Lopolight Suez Stop Signal Light, 3nm, 135°, 10-32VDC, Red Light

Overview

The Lopolight Suez Stop Signal Light is a red marine navigation signal light with a 135° horizontal light sector and 3 nautical mile visibility. Intended for vessels over 50 meters, it operates on 10-32V DC and provides a dedicated red signal for Suez Canal navigation requirements.

The fixture features an anodized aluminum housing, a PMMA lens, and an IP68 protection rating. It mounts horizontally on an aluminum base with a PE base plate and supports side or bottom cable routing. Available in silver and black anodized finishes, both configurations share the same optical performance, electrical specifications, and mounting arrangement.

Key features

• Red signal light with 135° horizontal coverage and 3 nautical mile visibility.

• 10-32V DC operating range for compatible vessel electrical systems.

• 2.5W power consumption with luminous intensity greater than 15 candela.

• IP68-rated enclosure with a 25-micron anodized aluminum housing and PMMA lens.

• Horizontal mounting with an aluminum base, PE base plate, and side or bottom cable routing.

• Plug connector for electrical connection.

• Operating temperature range from -25°C to +55°C.

• Tested to IEC 60945 for marine electrical and electronic equipment.

Variants

This Suez Stop Signal Light is available in two configurations distinguished by the exterior housing finish.

Both versions maintain the same red light output, 135° coverage, 3nm visibility, 10-32V DC operating range, and mounting dimensions. The finish is the primary selection difference, allowing the fixture to match the surrounding vessel hardware.

• 301-141 - Silver finish: Silver anodized aluminum housing with a metallic exterior appearance.

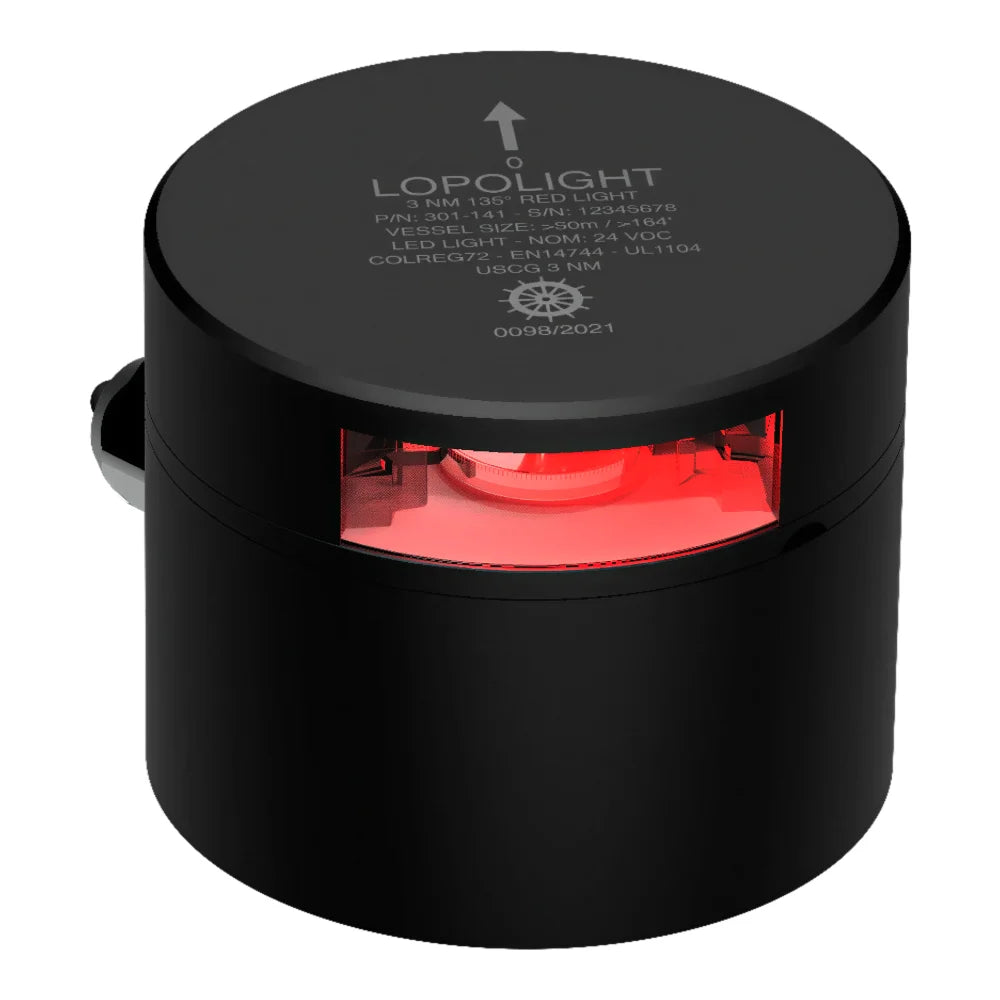

• 301-141-B - Black finish: Black anodized aluminum housing with a dark exterior appearance.

Installation and fit

The fixture measures 92.5mm (3.6 in) in diameter and 74.5mm (2.9 in) in height. Its horizontal mounting arrangement uses an aluminum base and PE base plate, with cable routing available through the side or bottom to accommodate the installation layout.

The light is intended for Suez Stop signaling installations on vessels over 50 meters. The required mounting position, orientation, and electrical connections should be confirmed against the vessel's signaling arrangement before installation.
