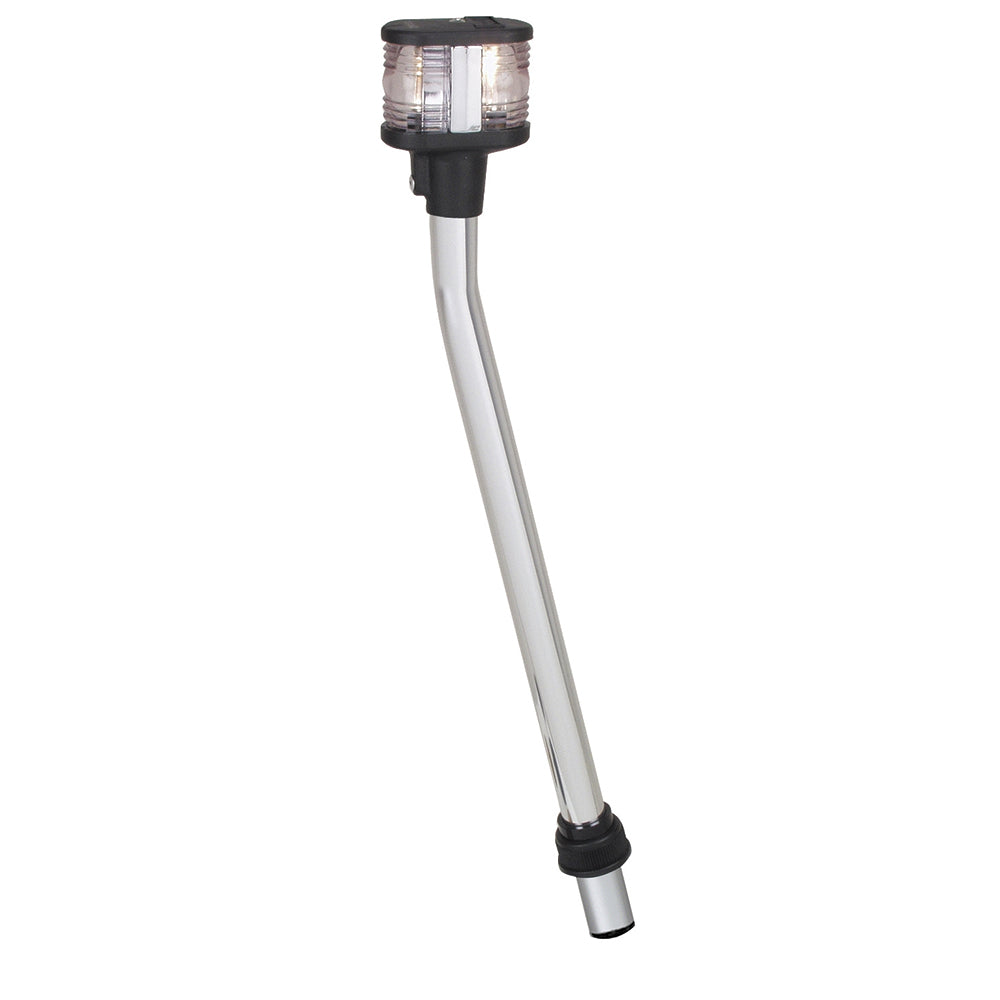

Perko 1125 Replacement Combination Masthead/White All-Round Light, Without Base, 12V, 3nm

Overview

The Perko 1125DP499A is a replacement pole light assembly for Perko's plug-in combination masthead and white all-round navigation light. It is the light-and-pole portion only, not the base, and it matches the Figure 1125 deck-mount setup used on sail or power driven vessels under 20 meters (65.6 ft.) in length.

This is a 12V incandescent unit with a 35-7/8 in. overall height, a 3/4 in. anodized pole, and a 16° rake. It keeps the original plug-in, stow-away layout, so it suits boats where the light is removed when not in use and reinstalled for night running or anchor-light duty.

Key features

• Replacement pole/light assembly for the Perko Figure 1125 combination masthead and white all-round light
• 12V incandescent configuration for boats already set up with this Perko plug-in deck-mount system
• Certified 3-mile navigation light for sail or power driven vessels under 20 meters (65.6 ft.) in length
• 35-7/8 in. overall height with a 16° rake and 3/4 in. anodized pole
• Gold-plated contacts in a plug-in format that makes removal and seasonal stowage straightforward
• Base is not included, so it is meant to replace a damaged or worn light pole on an existing compatible installation

Compatibility and fit

This replacement makes sense when the base and wiring on the boat are still serviceable and the problem is limited to the pole light itself. Before ordering, check that your boat uses the Perko Figure 1125 deck-mount plug-in arrangement and that the 16° rake and 35-7/8 in. height match the clearance around canvas, rails, and transom hardware.

It is built around a 12V incandescent setup, so it is a direct fit for boats already running that system. If your boat needs a new base, a different mounting angle, or a different pole length, this part alone will not cover the full repair.

Installation and setup

Because the base is not part of this SKU, installation is centered on plugging the replacement light into the existing deck socket and confirming clean electrical contact at the connection points. The plug-in format is useful on boats that are trailered, covered, or stored in tight slips where a fixed pole is more likely to get bumped or bent.

The light is a good match for owners replacing a cracked light head, a bent pole, or worn contacts on an existing Perko 1125 installation. It works well on small to mid-size sailboats and powerboats that need to keep the original navigation-light layout without changing the base or rewiring the deck mount.
