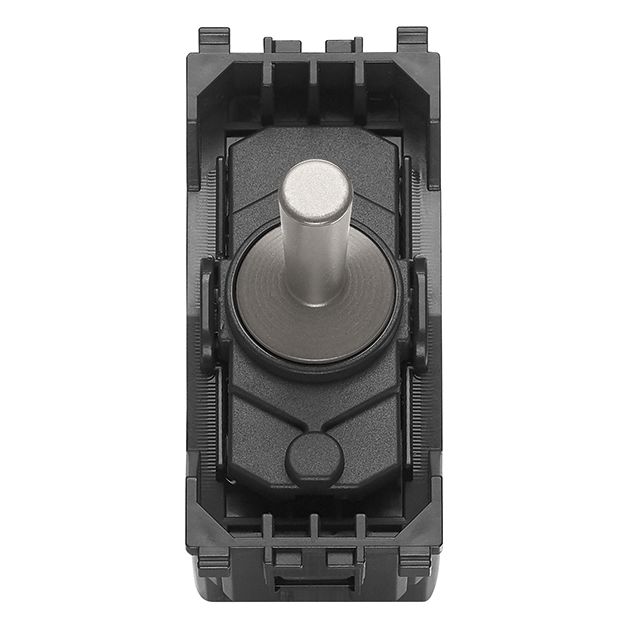

Vimar Eikon Vintage 1P 10AX 2-Way Switch, 250V, Flush-Mounted

Overview

The Vimar EIKON Series is a flush-mounted range of 1P 10AX 2-way switches in Vintage finishes for interior AC lighting circuits. These switches are rated 10AX at 250 V and are listed with a maximum 100 W load for self-ballasted lamps under IEC 60669-1:2017, which gives buyers a clear starting point for matching the switch to the circuit it will control.

It is a one-module switch with snap-in fastening and screwed terminals, used where the same light or circuit needs to be operated from two locations. On board, that layout suits spaces such as a cabin light controlled at the entrance and beside a berth, or a passageway light switched from each end. The range sits within the EIKON modular device family, so fit with the correct support and finish set matters just as much as the electrical rating.

Key features

• 1P 10AX 2-way switching for controlling one circuit from two positions
• Rated 250 V with a maximum 100 W load for self-ballasted lamps
• Flush-mounted one-module format for EIKON modular installations

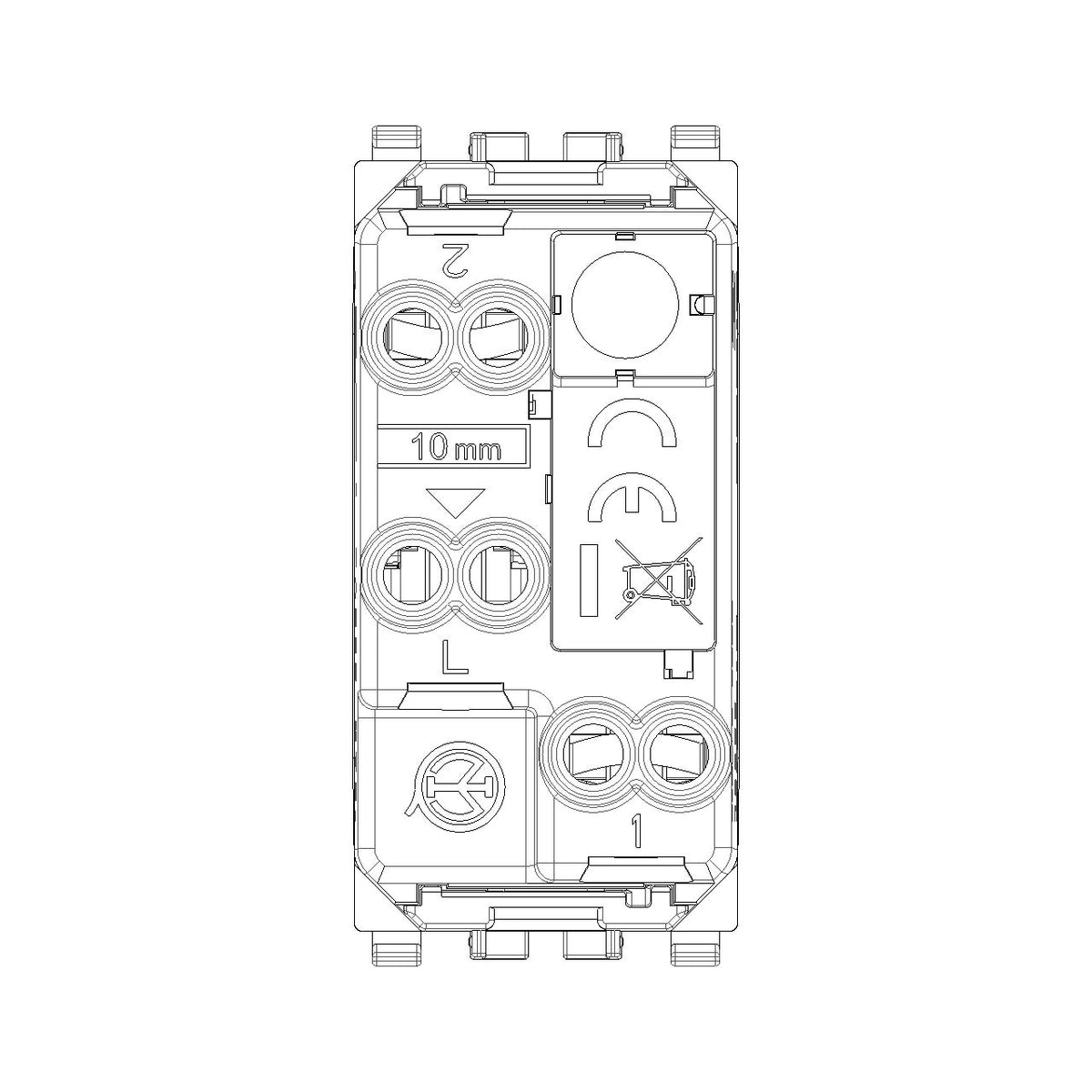

• Screwed terminal connection for wired installation
• Snap-in fastening for integration into compatible mounting supports

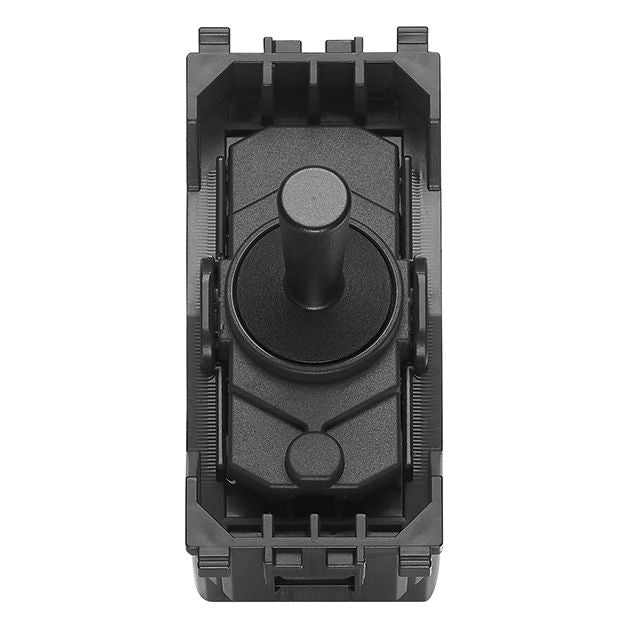

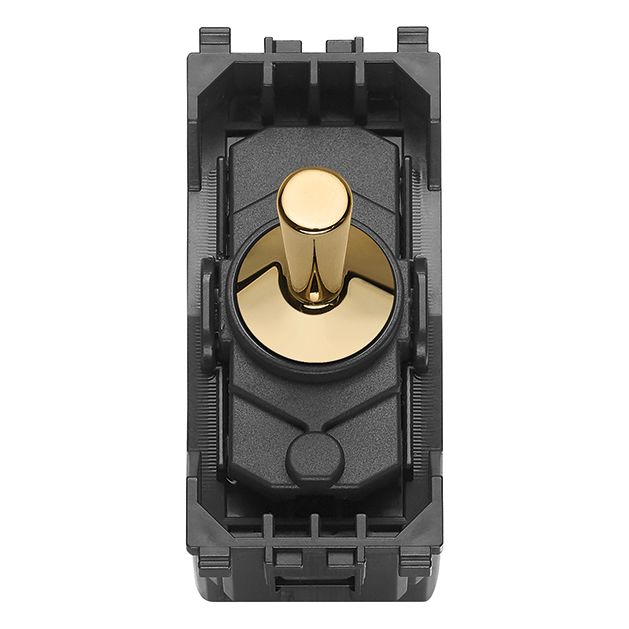

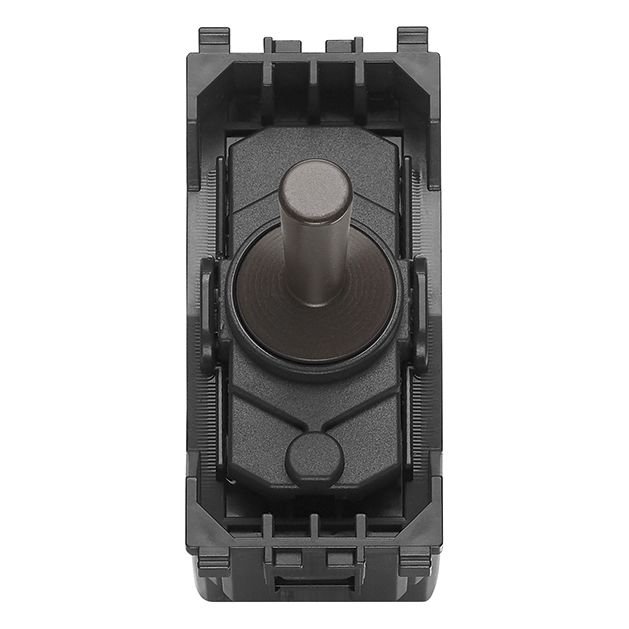

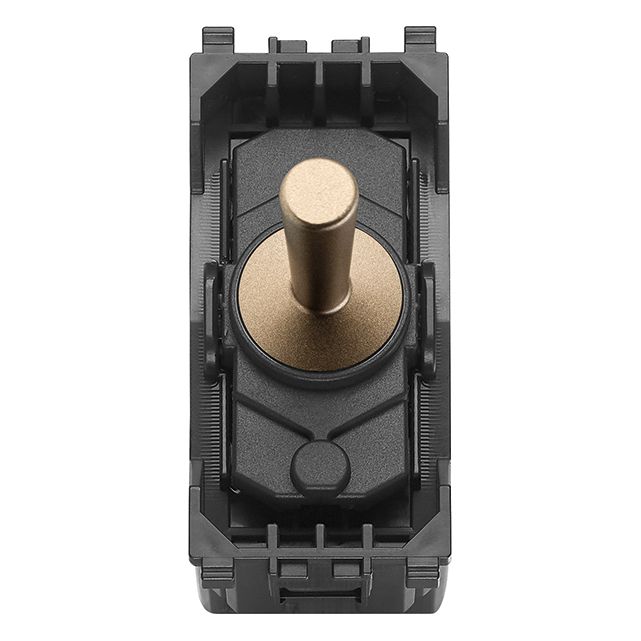

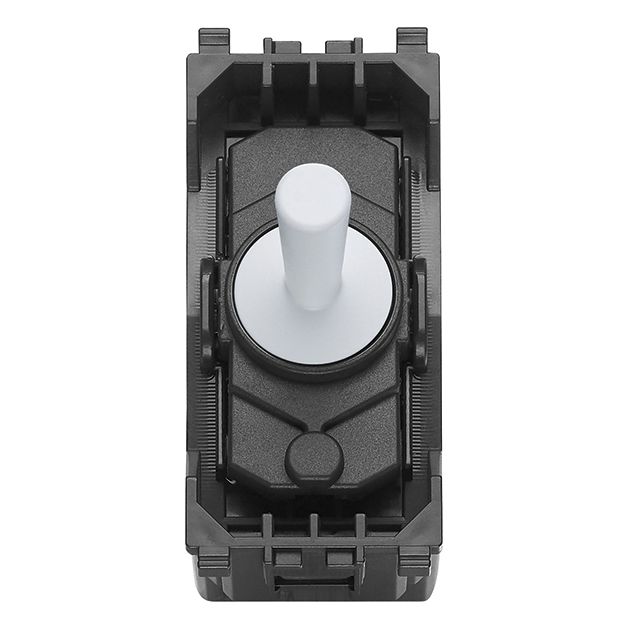

• Vintage finish options across the range: satin gold, white, bronze, gold, grey, and nickel

Variants

This range changes mainly in visible finish and colour, with versions offered in satin gold, white, bronze, gold, grey, and nickel. Depending on the version, the outer finish is listed as matt or glossy, with lacquered or metallic surface treatment.

Some construction details also change by finish. Most listed versions are shown as plastic-bodied switches with a 48.8 mm device height, while the satin gold version is listed with metal and brass construction and a 44.8 mm device height. Across the family, the switching format remains the same as a 1P 10AX 2-way flush-mounted device with screwed terminals.

Compatibility and fit

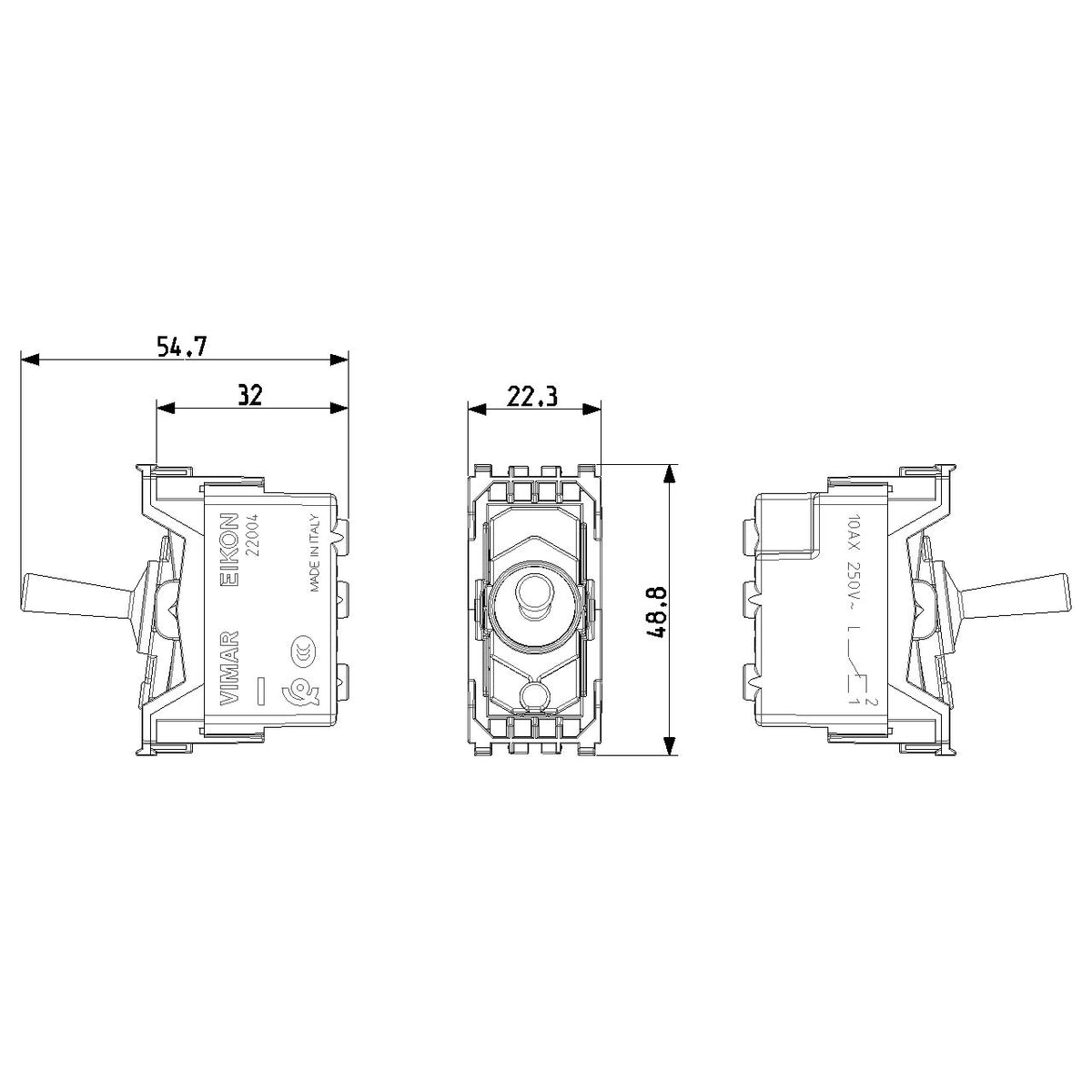

This switch belongs to the EIKON device system, so it should be matched with the correct compatible mounting support and cover plate for that series. Most listed variants are shown at 22.3 mm wide, 48.8 mm high, and 54.7 mm deep, with a built-in depth of 32 mm. The satin gold version is listed at 22.3 mm wide, 44.8 mm high, and 54.7 mm deep, so finish choice can affect visible size and construction details.

For marine refit work, this product makes the most sense in protected interior locations where a decorative wall switch is part of the cabin finish rather than a sealed deck or helm control. Buyers comparing it with 12V or 24V panel switches should note that this is a 250 V wired switch from a modular wall-device range.

Installation and use on board

The screwed terminals and flush-mounted format suit clean interior installations in saloons, cabins, corridors, and guest spaces where the switch needs to sit neatly with other EIKON devices. It is a good match for boats that use residential-style AC fittings inside the accommodation space and want the switch finish to line up with the rest of the interior hardware.
