Vimar Plana 2P+E French SICURY Socket Outlet, 16A, 250V, IP20

Overview

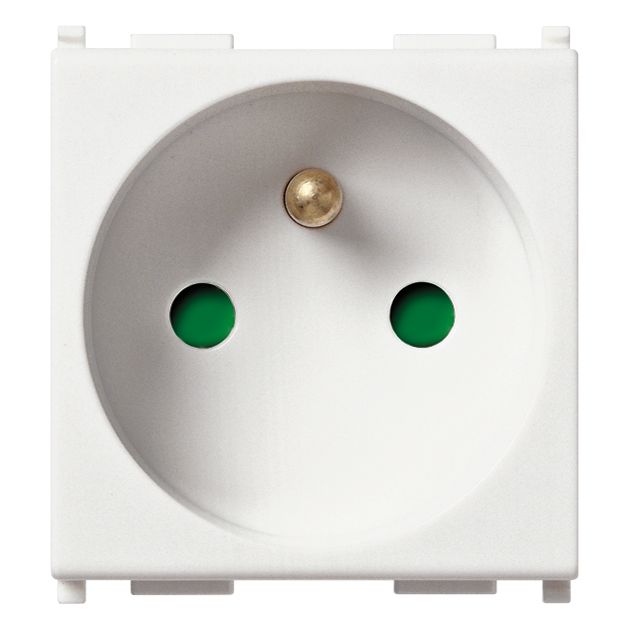

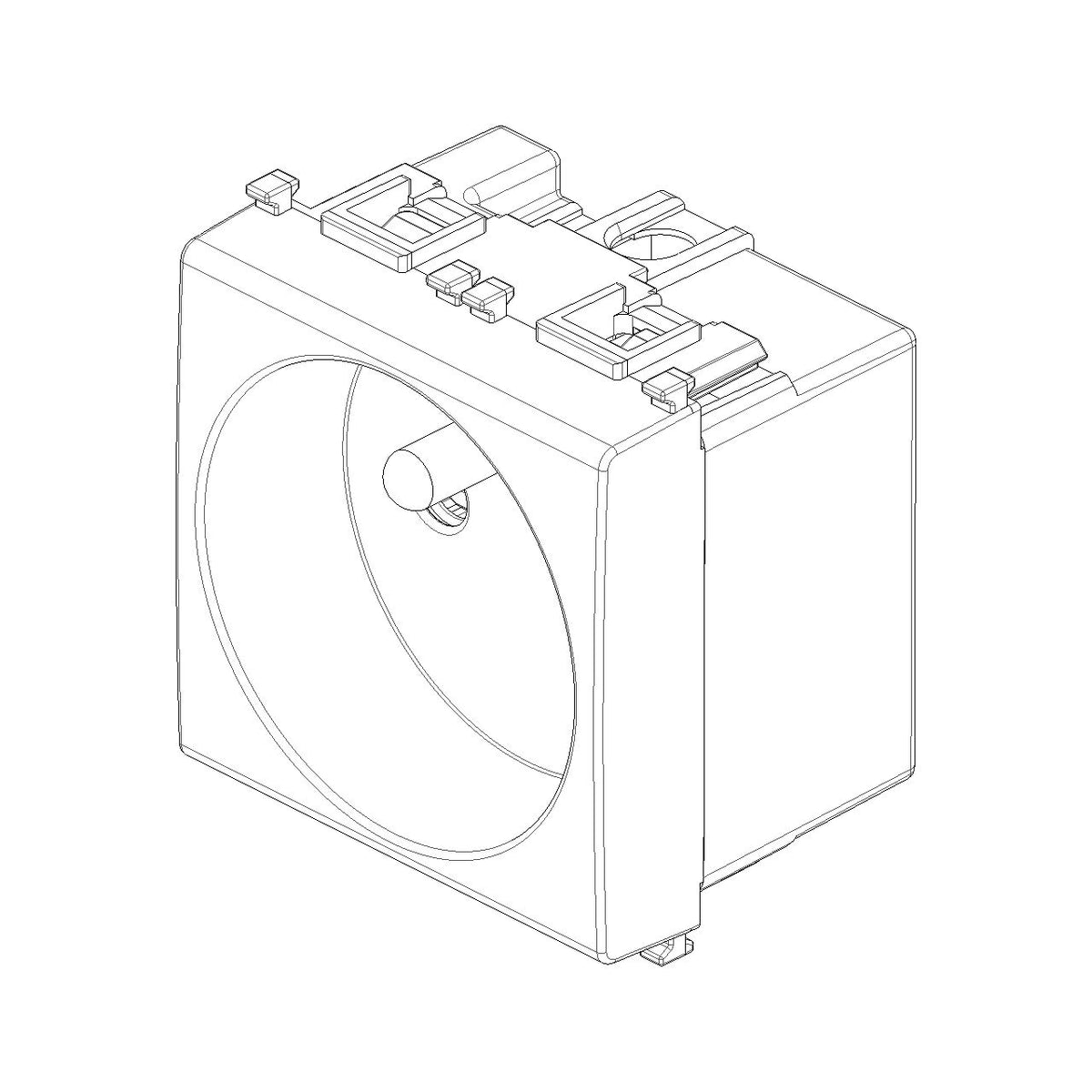

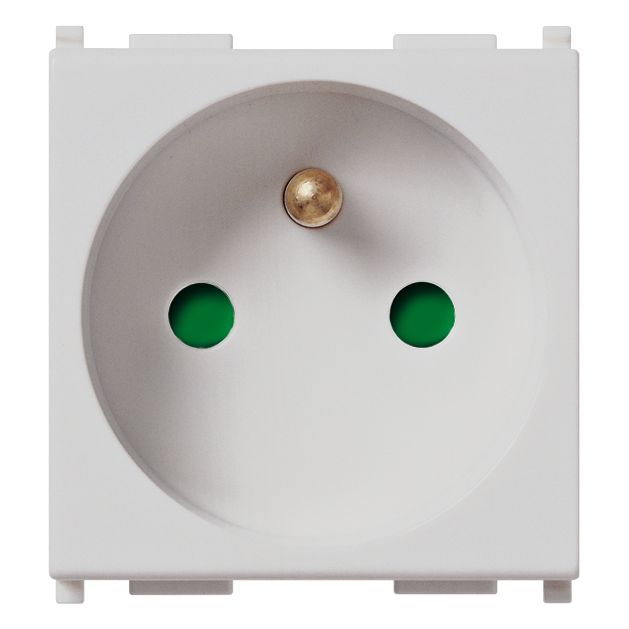

The Vimar Plana Series is a 2P+E French SICURY outlet range for flush-mounted AC installations that use the French socket format. It is rated 16 A at 250 V, works at 50 to 60 Hz, and uses a 2-module layout, which makes it easy to match with other Plana devices in a finished interior.

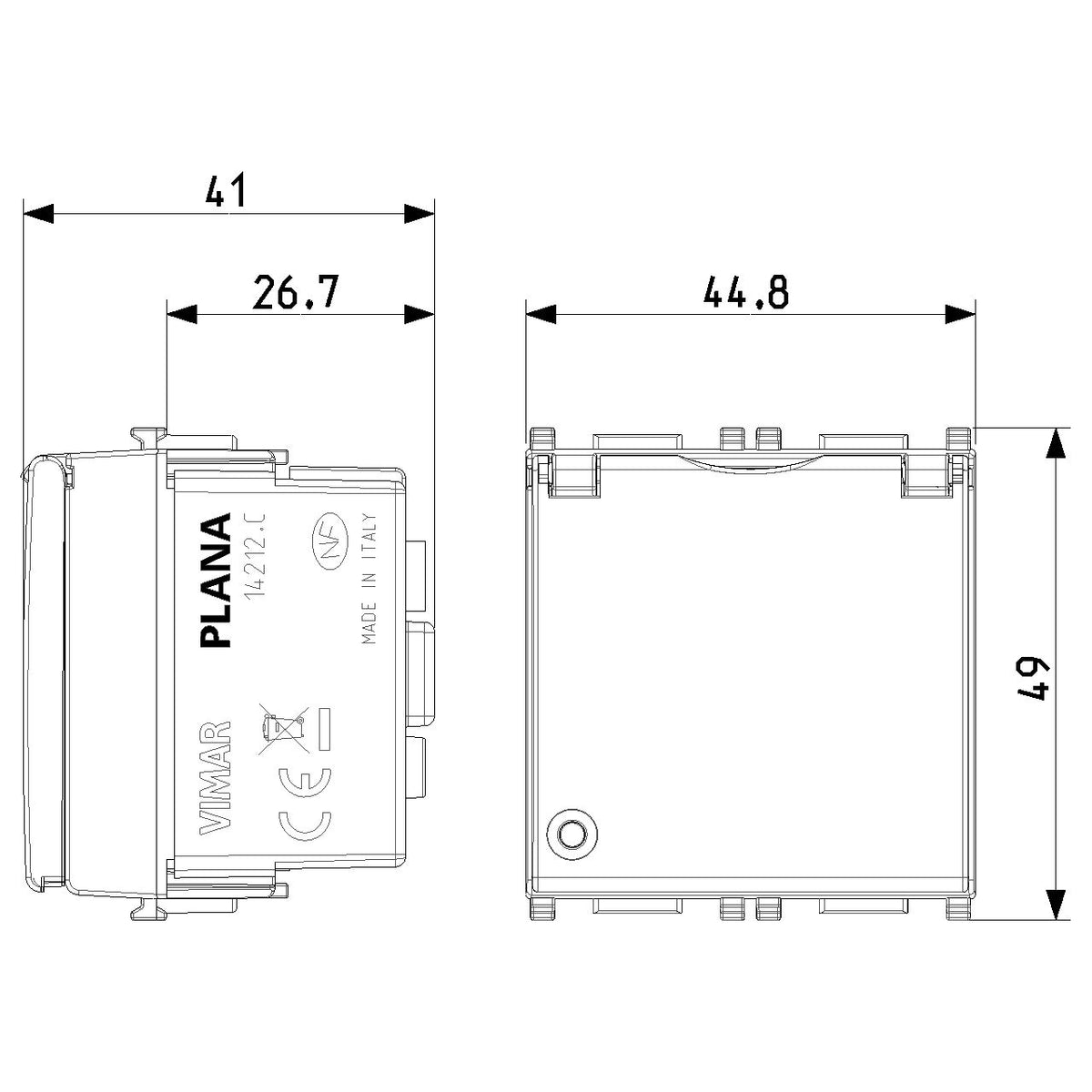

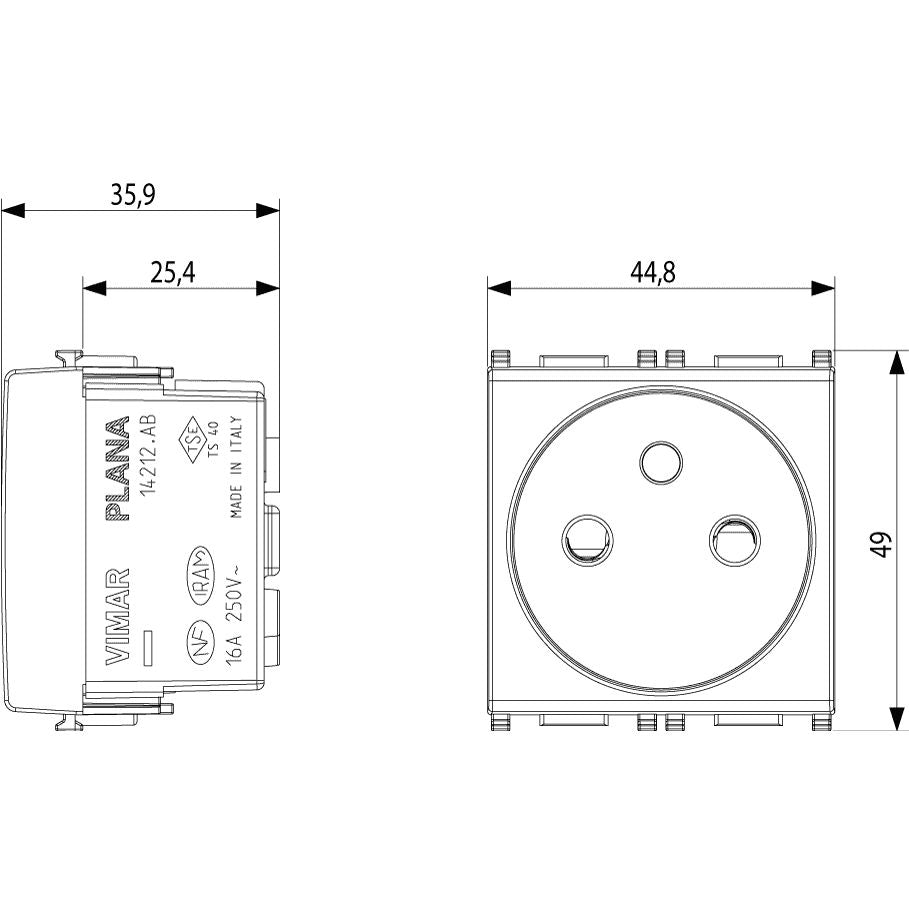

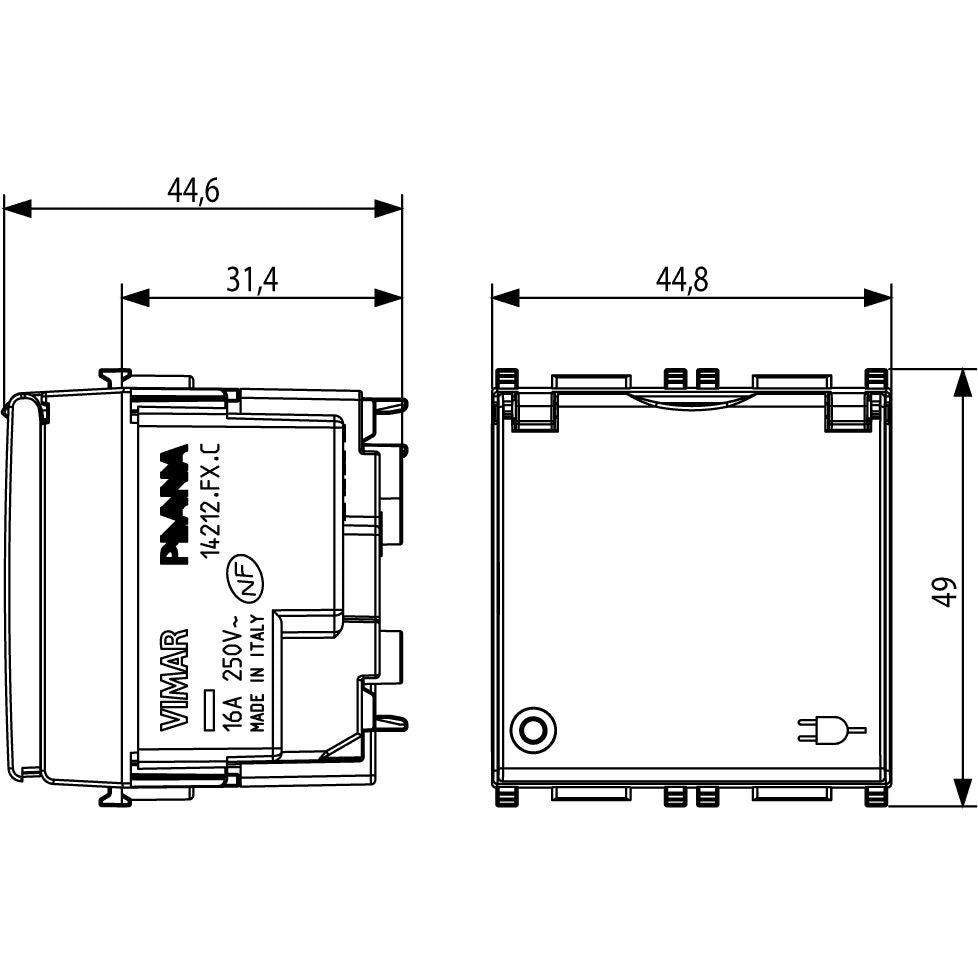

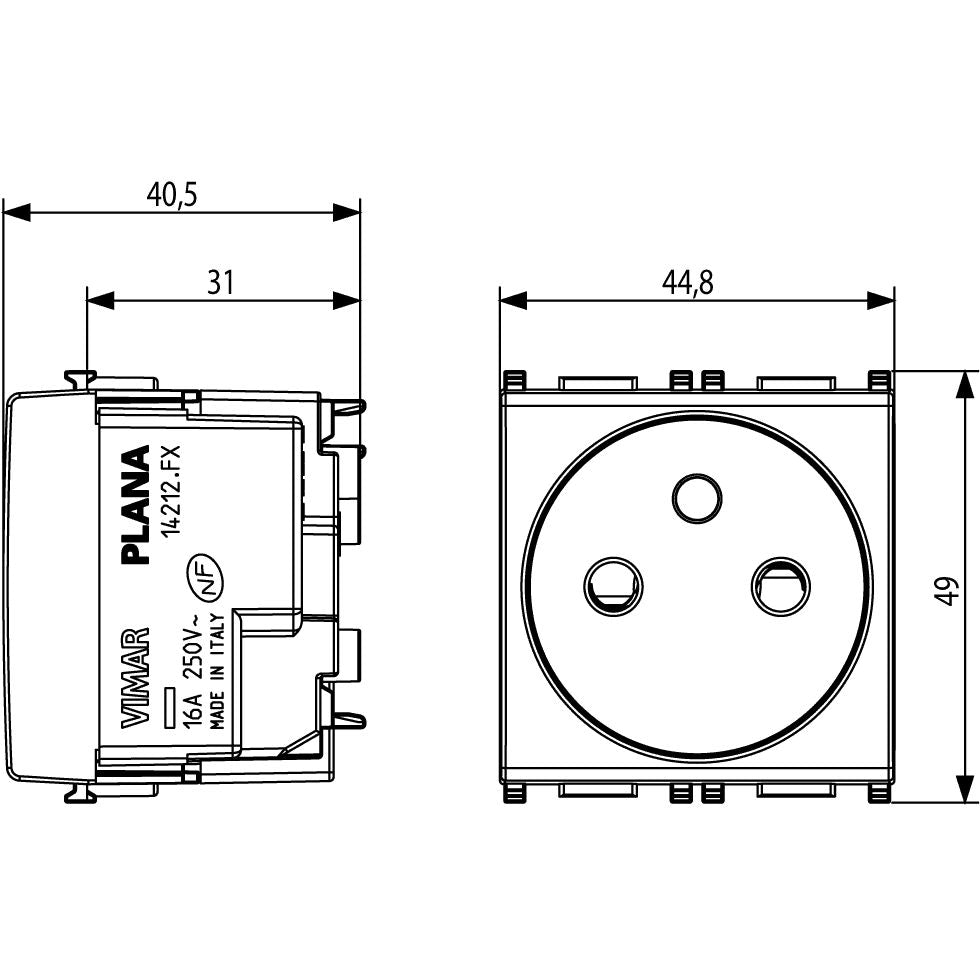

The body is made from halogen-free thermoplastic with a glossy surface, and the device measures 44.8 x 49.0 x 35.9 mm. Enhanced contact protection is built in, and the IP20 rating makes this a fit for protected indoor spaces rather than exposed areas on deck.

For marine interiors, this outlet suits cabins, saloons, galleys, and other dry accommodation spaces where a French standard receptacle is needed and the installation is already based around Vimar Plana components.

Key features

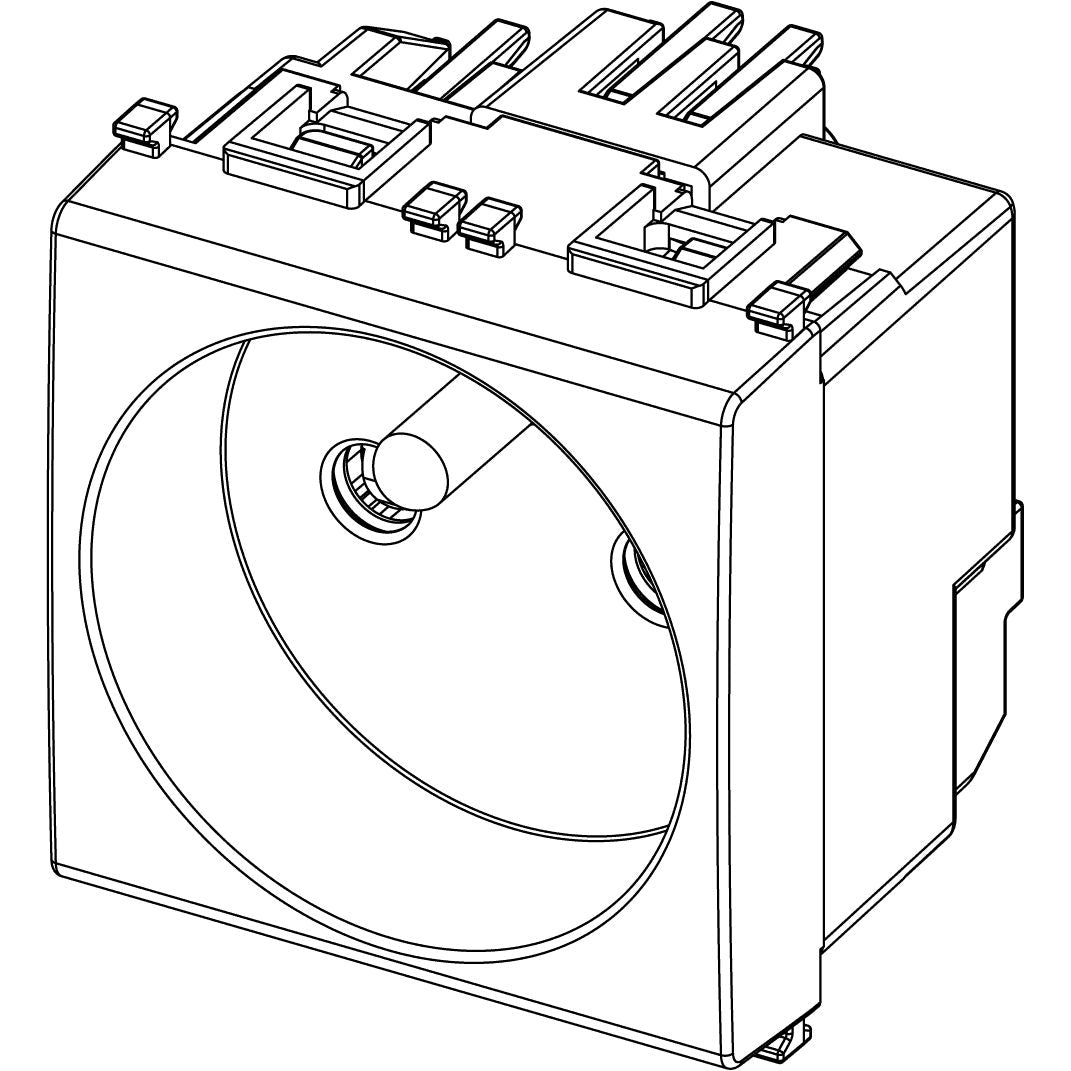

• French standard 2P+E outlet rated 16 A, 250 V AC, 50 to 60 Hz
• 2-module Plana format for flush-mounted installations
• SICURY enhanced contact protection built into the outlet
• Halogen-free thermoplastic body with a glossy finish

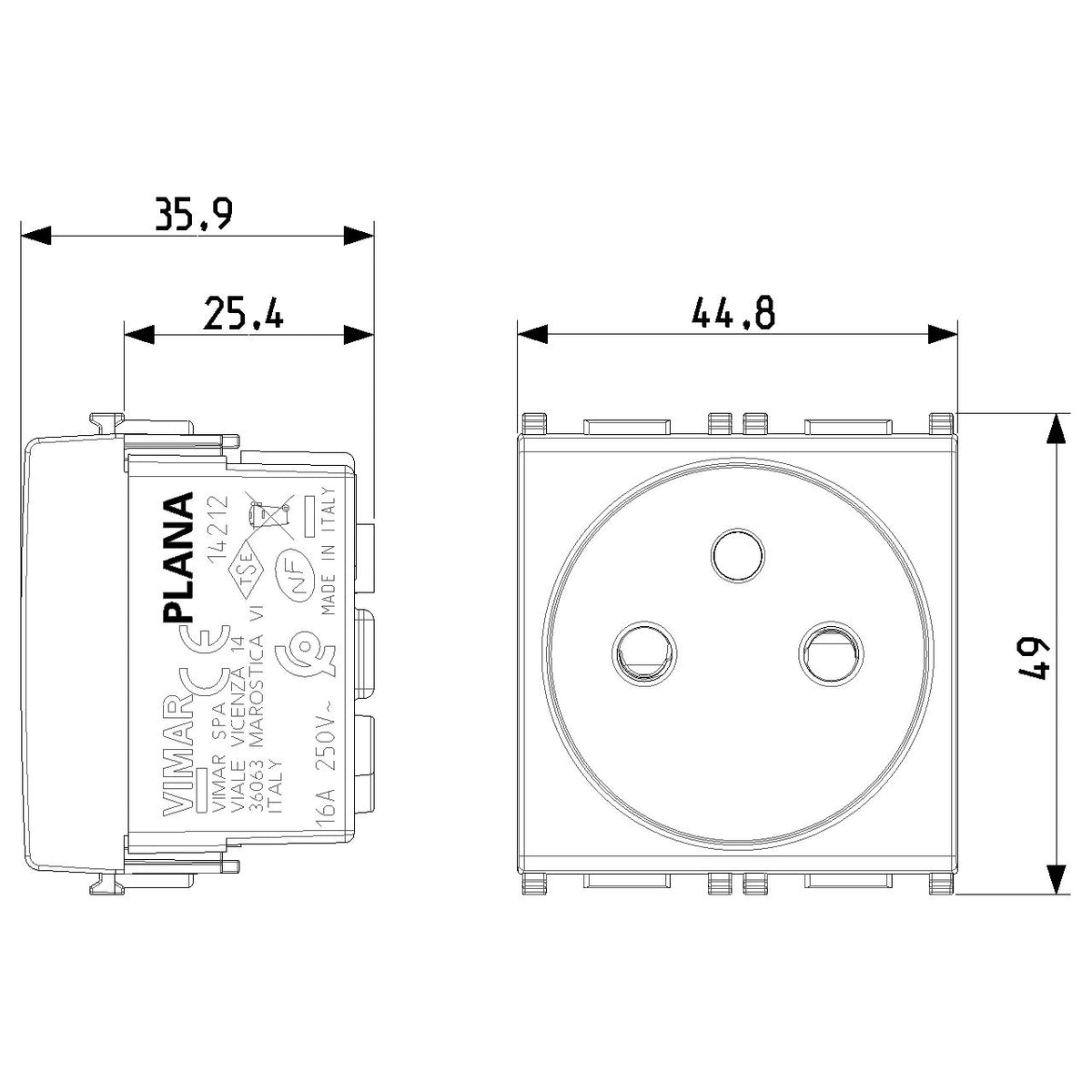

• Compact 44.8 x 49.0 x 35.9 mm size for panel and box clearance checks

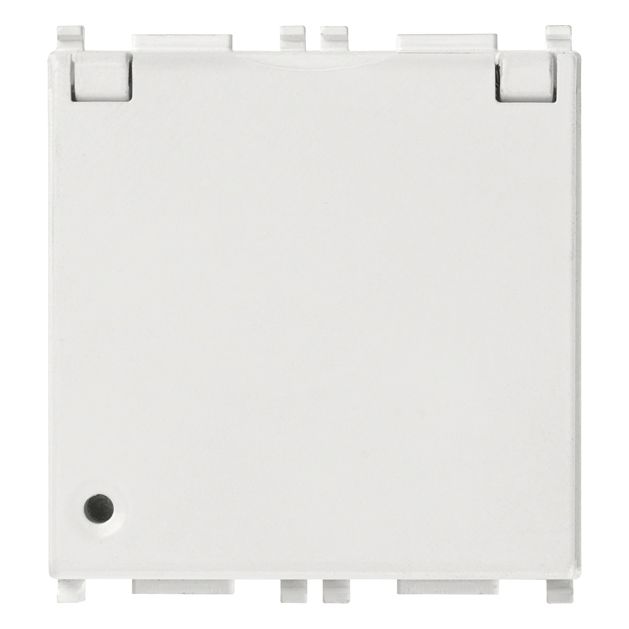

• Range includes white or silver finish, versions with or without cover, and screwed or screwless terminal options

Variants

Across the listed configurations, the differences are finish, front cover, and terminal style. The range is available in white or silver, with or without a cover, and with either screwed terminals or screwless push-in clamp terminals.

One white version adds antibacterial treatment. Across the range, the core outlet format stays the same: 2P+E French standard, 16 A, 250 V, 50 to 60 Hz, flush-mounted, and built as a 2-module device.

Compatibility and fit

This outlet is part of the Vimar Plana device family, so it is intended for Plana modular installations and a 2-module opening. The compact body helps when checking available depth behind cabin liners, furniture panels, or interior bulkheads.

Because protection is IP20, it belongs in dry interior locations. It is not intended for cockpits, exterior helm stations, wet lockers, or other places that see spray, washdowns, or direct weather exposure.

Installation and use on board

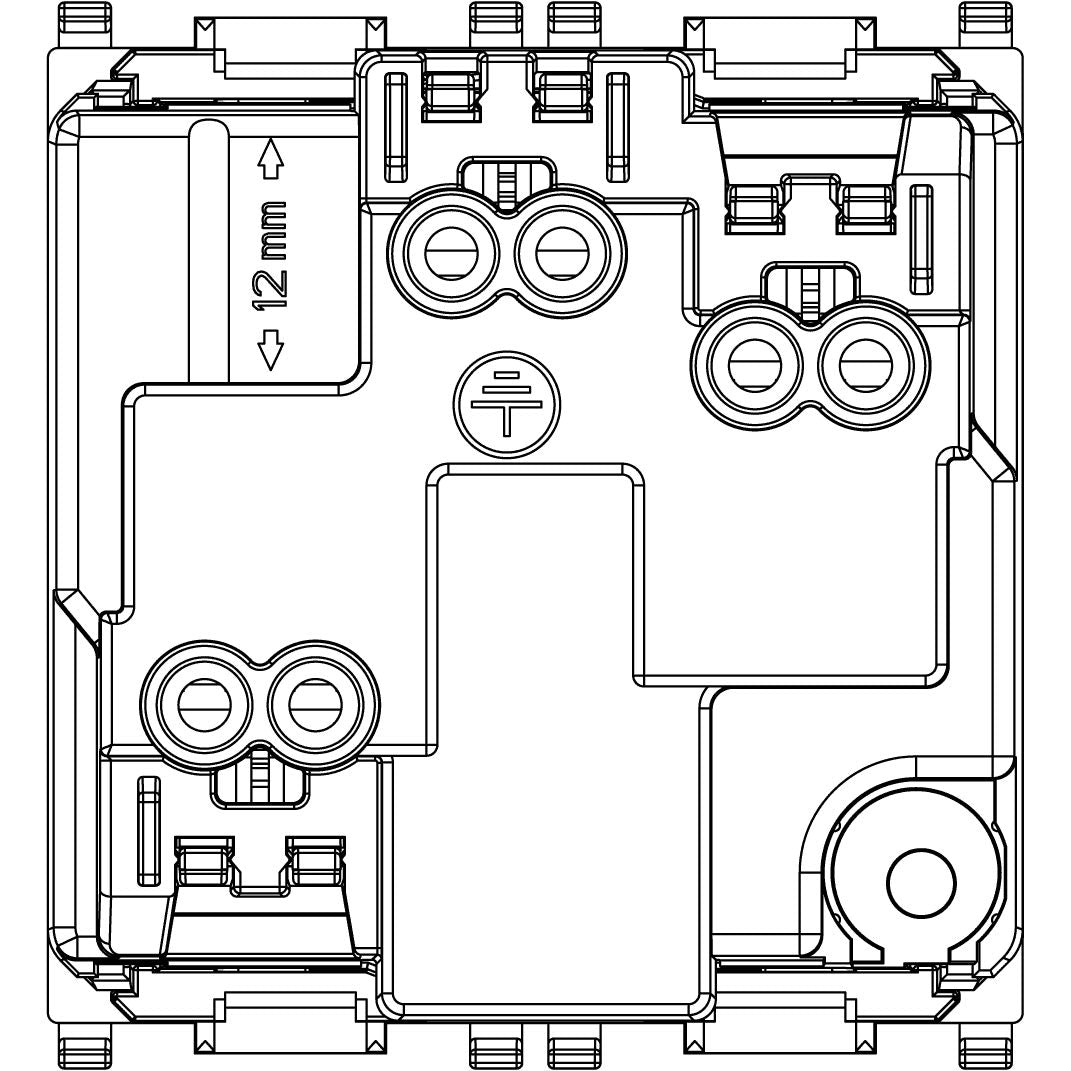

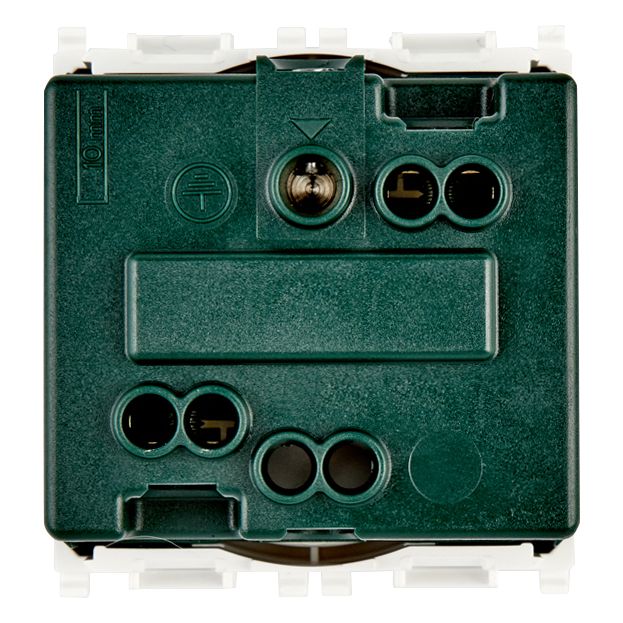

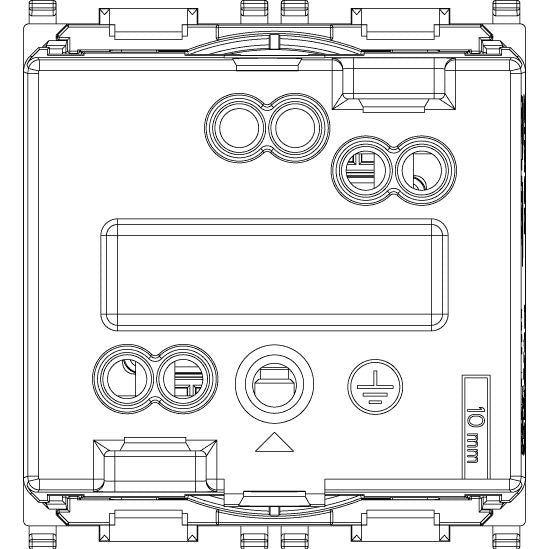

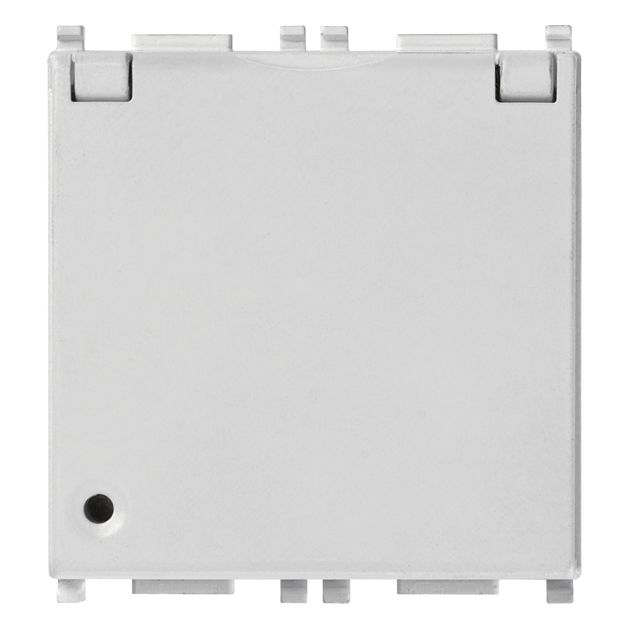

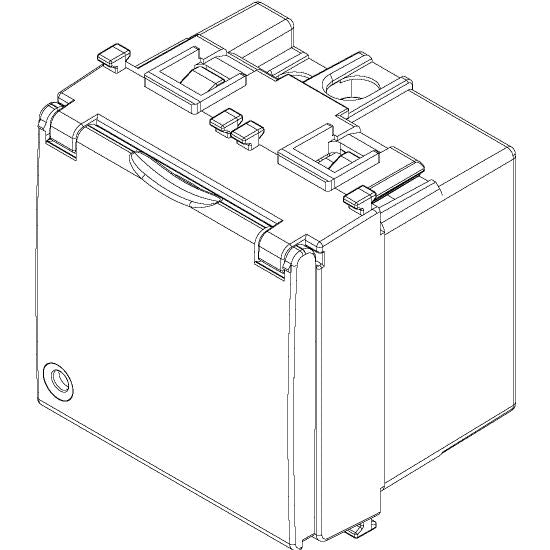

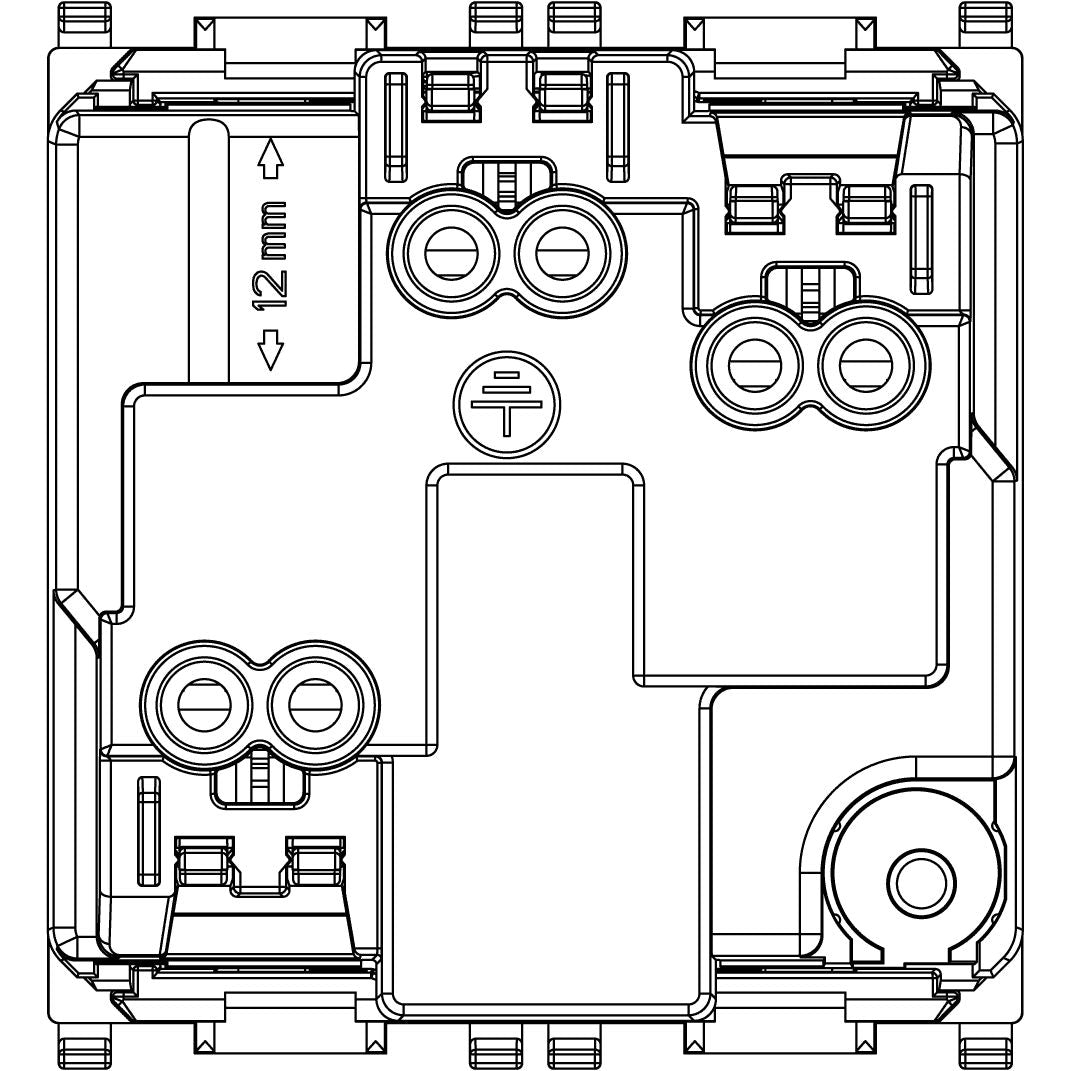

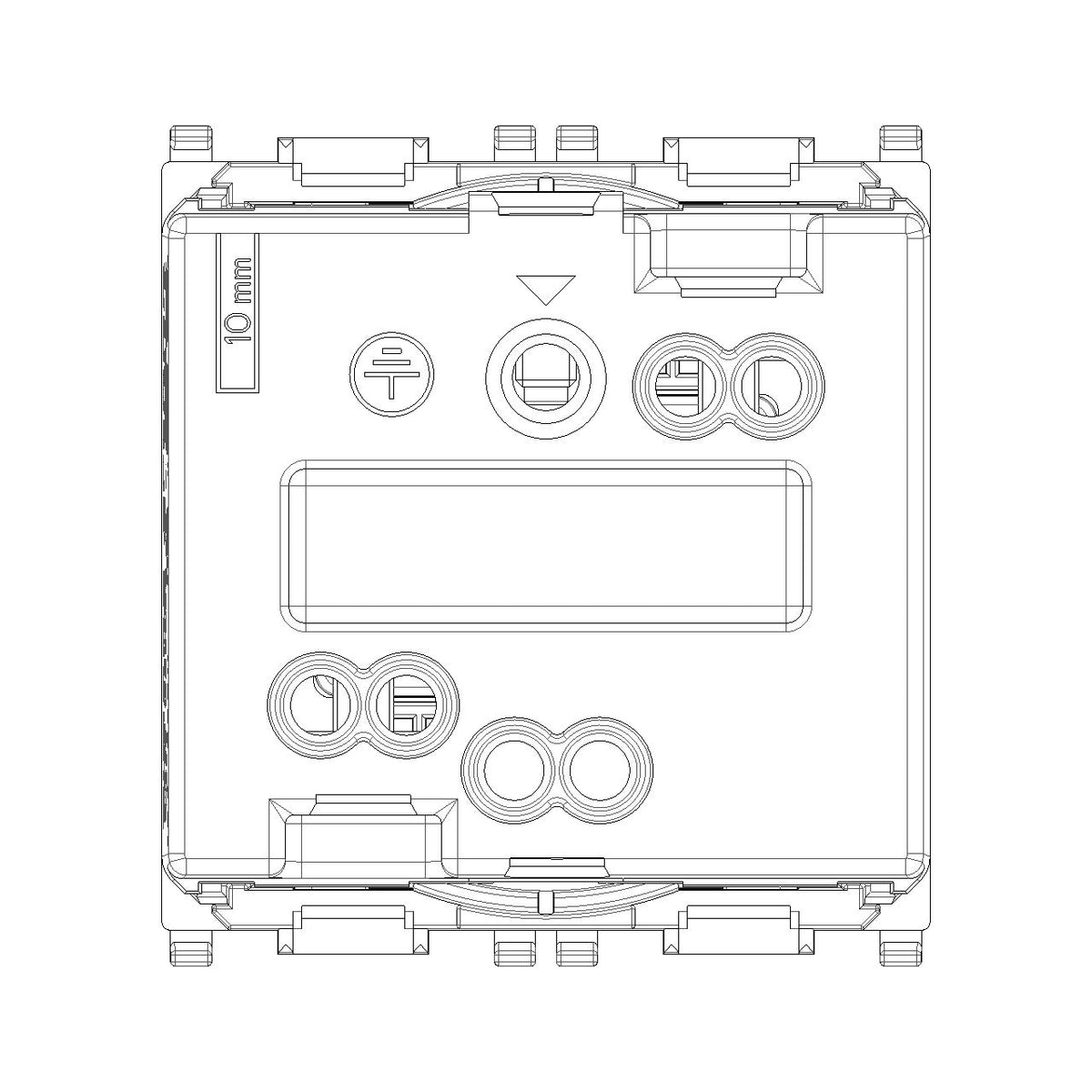

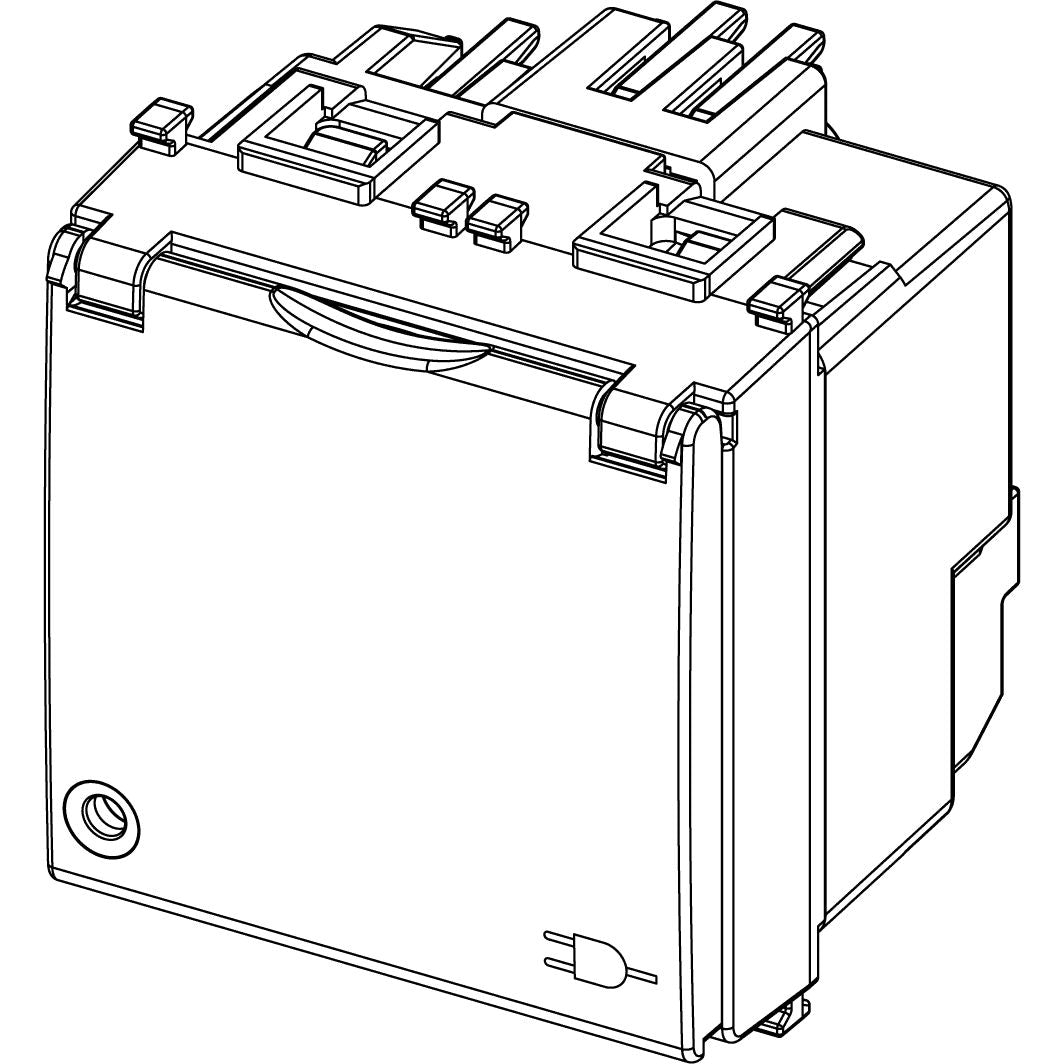

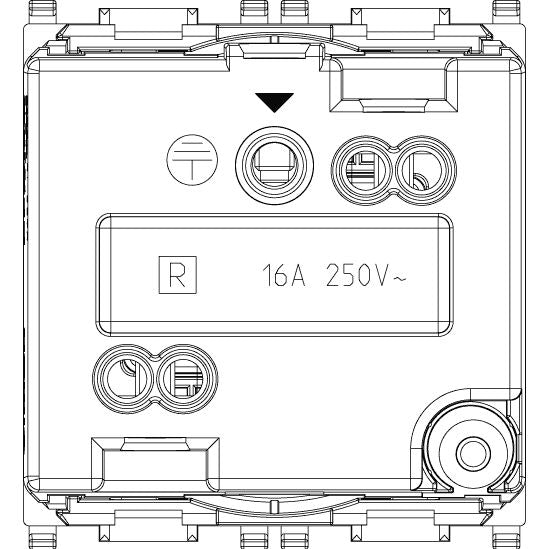

Screwed-terminal versions use conventional conductor termination, while the screwless versions use push-in clamp terminals. Versions with cover add a protective front flap over the socket face when the outlet is not in use.

This range is a good match for boats already laid out with French standard AC outlets and for refit work where the goal is to keep the same Vimar Plana look across switches, sockets, and other interior electrical devices.
