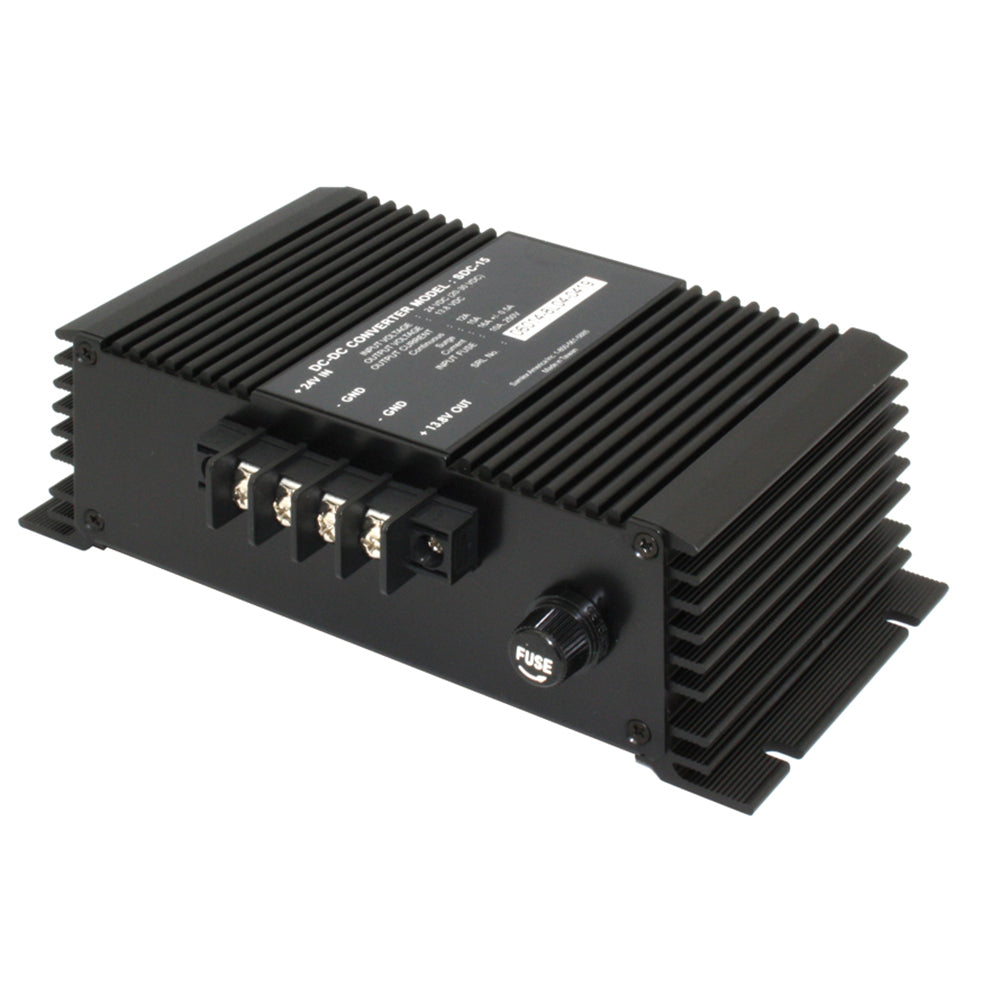

Samlex - Non-Isolated Step-Down - 12A, 24-12VDC Converter, Heavy Duty Applications

Robust Power Conversion: Samlex 12A Step-Down Converter for Heavy Duty Use

Introducing the Samlex 12A Non-Isolated Step-Down 24VDC-12VDC Converter, engineered for the demanding environments of heavy-duty applications. This high-efficiency, switch-mode step-down DC-DC converter seamlessly transforms a 24 VDC nominal input voltage (range 20 VDC to 35 VDC) into a highly regulated 12 VDC nominal (13.8 VDC) output at 12 Amps. Designed specifically for negative ground systems, the SDC-15 model boasts a robust suite of protections including overvoltage, short-circuit, and reverse polarity safeguards, ensuring reliable performance in a wide array of applications.

• Advanced switch-mode design for efficient power conversion
• Versatile mounting options accommodate almost any location
• Compact and lightweight for ease of installation in space-constrained environments
• Comprehensive protection features including reverse polarity, overvoltage, and short circuit protection
• High efficiency operation minimizes energy loss
• Temperature compensated current limit and cycle by cycle current limiting for enhanced safety

Specifications Tailored for Durability

• Input Voltage Range: 20-35 VDC, accommodating various power systems
• Output Voltage: 13.8 VDC, ensuring devices receive the correct power supply
• Current Capacity: 12 Amps, suitable for high-demand applications
• Weight: 2 lbs (0.9 kg), for a heavy-duty yet manageable solution
• Dimensions: 7.75 x 5 x 2.5 inches (19.7 x 12.7 x 6.4 cm), compact for easy integration
• Backed by a 2-Year Limited Warranty, affirming its reliability and build quality

Adaptable for Varied Heavy-Duty Environments

The Samlex 12A Step-Down Converter is ideal for a wide range of heavy-duty applications, from earth-moving equipment, heavy trucks, and buses, to marine vehicles. It's also perfectly suited for powering CB radios, 12-volt lighting systems, and AM/FM sound systems, demonstrating its versatility across different power needs and environments.

Enhance Your Equipment’s Power System with Samlex

Equip your heavy-duty machinery or vehicle with the Samlex 12A Step-Down Converter for an unmatched combination of efficiency, reliability, and power management. Whether you're navigating the high seas, working on rugged construction sites, or ensuring the functionality of critical communication systems, this converter delivers the performance you need to keep your operations running smoothly.
