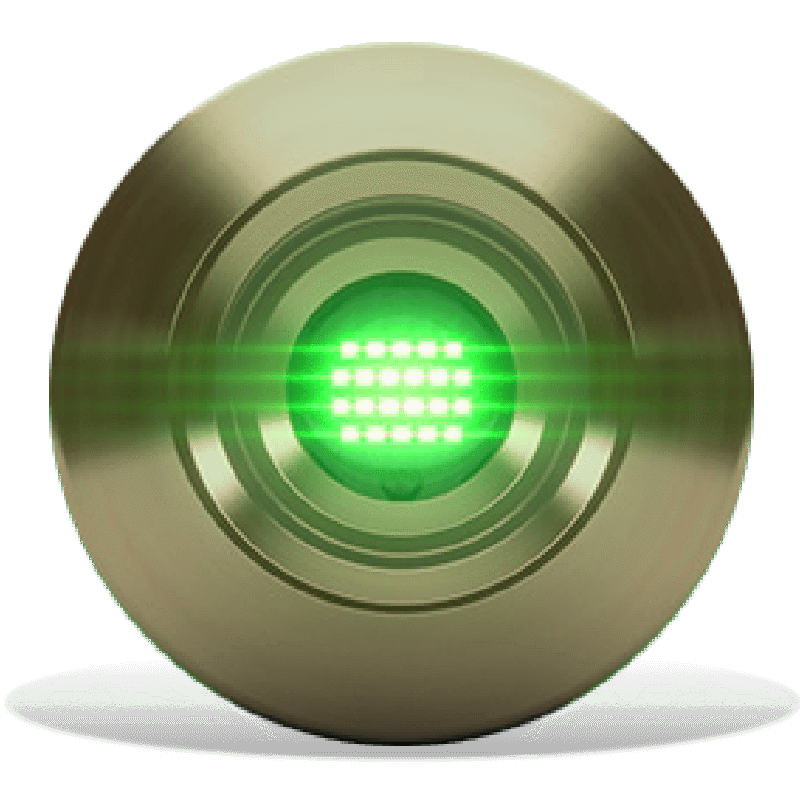

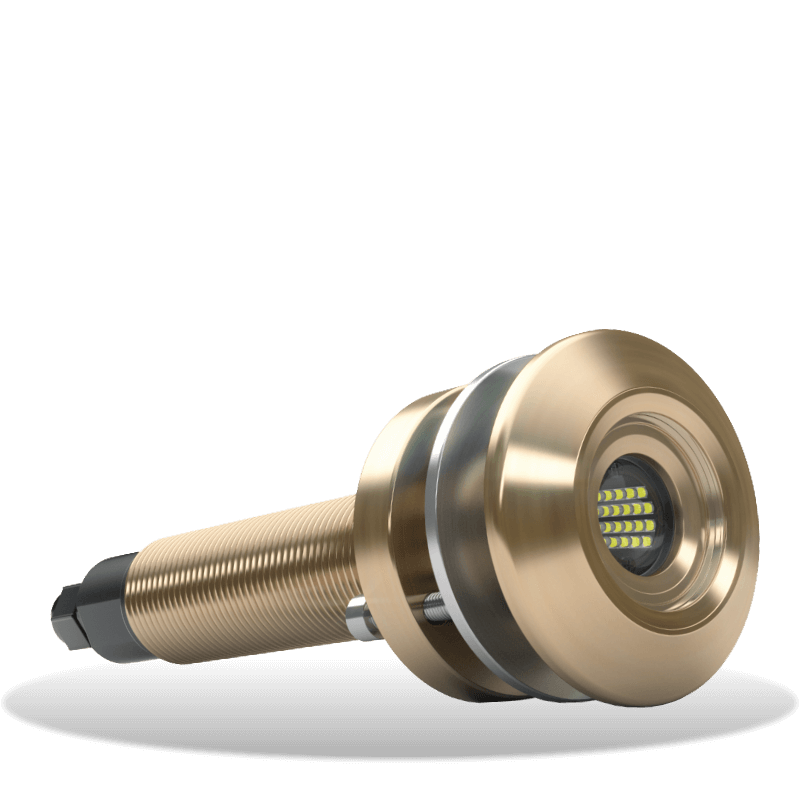

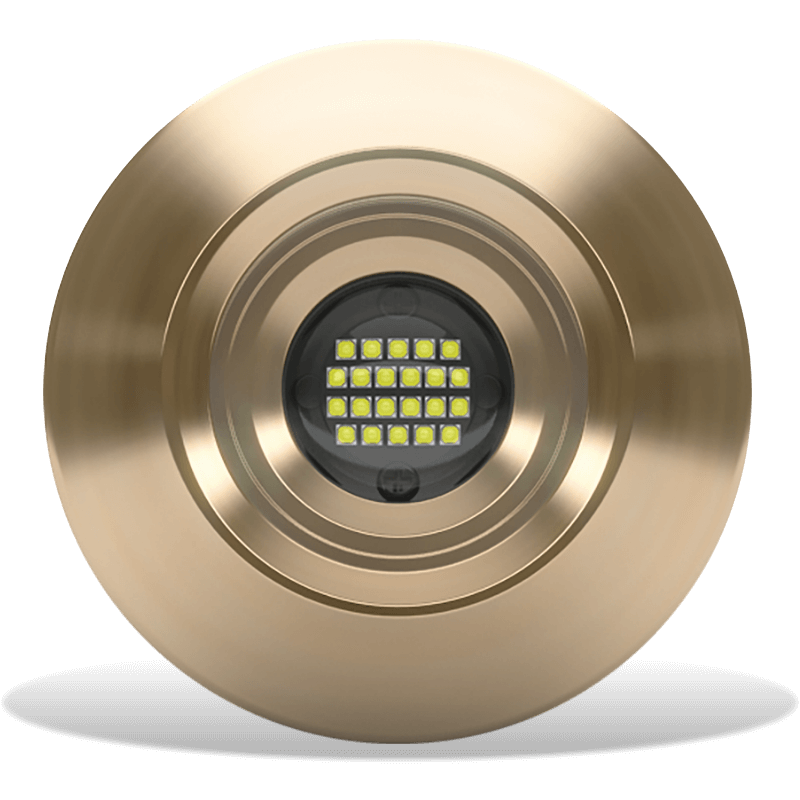

Lumishore - ORA TIX204 Underwater Light - 5300 Fixture Lumens, 60° Beam Angle

Compact and Powerful Lighting Solution for Marine Applications

The Lumishore ORA TIX204 is designed for marine enthusiasts seeking powerful and versatile lighting. Delivering 5,300 verified fixture lumens, the TIX204 offers exceptional illumination in a compact, low-profile, interchangeable thru-hull design. Ideal for transom, side, or bottom mounting, this light is built for seamless integration into various marine vessels. Its focused 60° beam angle ensures precise lighting, enhancing visibility and aesthetics underwater.

With an internal LED array and an integrated driver, the TIX204 simplifies installation and allows for easy servicing from inside the hull. The user-friendly design is controlled with a standard on/off switch, providing a reliable and intuitive experience. Whether you're enhancing underwater visibility or adding a sleek lighting feature to your vessel, the TIX204 delivers professional-grade performance.

Technical Specifications

• Available LED Colors: Single Color (White, Blue, Green)
• Lumens: 11,925
• Verified Fixture Lumens (White): 5,300
• LED Type:White: 11 x 10W High Power LEDs
• Blue & Green: 22 x 3W High Power LEDs
• Beam Angle: 60°
• Typical LED Life: 50,000+ hours
• Driver: Multi-channel internal driver
• Supply Voltage: 12/24 V DC (AC option available)
• Max Current Draw: 4.0A (12V) / 1.9A (24V)
• Housing Material: Marine-grade aluminum bronze
• User Control Options: On/off switch

Product Dimensions

The TIX204 features a compact and low-profile design, ensuring compatibility with various vessel types while maintaining a sleek, professional appearance.

Finishes

Crafted from marine-grade aluminum bronze, the TIX204 offers exceptional durability and resistance to harsh marine environments.

Highlights

• Delivers 5,300 verified fixture lumens for bright underwater illumination.
• Compact, low-profile interchangeable thru-hull design.
• Internal LED array and integrated driver for easy servicing and simplified installation.
• Focused 60° beam angle for precision lighting.
• Available in single colors: White, Blue, and Green.
• Suitable for transom, side, and bottom mounting.
• Robust marine-grade aluminum bronze construction.

Variations List

• LM600552: Light Color Blue
• LM600554: Light Color Green
• LM600553: Light Color White

The Lumishore ORA TIX204 is the ultimate solution for marine lighting, combining performance, reliability, and ease of use in a compact design tailored to the needs of boat owners and professionals alike.
