Lopolight LED Spreader Light, 10-32VDC, Surface Mount, White and Red Light

Overview

This Lopolight surface-mount LED spreader light is a compact marine lighting fixture with white and red light output for illuminating deck and rigging areas. It operates on 10-32VDC electrical systems and features a low-profile circular housing measuring 65 mm in diameter and 12.5 mm in height.

The white light supports general deck illumination and onboard tasks, while the red light offers an alternative for nighttime use. The fixture uses two 4.2 mm mounting holes for surface installation and complies with IEC 60945 requirements for marine electrical equipment.

Key features

• Dual-color LED illumination with white and red light output.

• 10-32VDC operating range, compatible with 12V and 24V DC systems.

• Compact circular housing measuring 65 mm in diameter and 12.5 mm in height (2.56 x 0.5 in).

• Surface-mount configuration with two 4.2 mm mounting holes.

• Current consumption of 250 mA at 12VDC and 125 mA at 24VDC.

• Complies with IEC 60945 for marine electrical equipment.

Variants

This spreader light is available in three housing finishes: Silver, Black, and White.

All three configurations retain the same white and red LED illumination, 10-32VDC operating range, compact housing dimensions, and two-hole surface-mount arrangement. The housing finish is the distinguishing characteristic.

• 400-222: Silver finish. The silver housing provides a metallic appearance while retaining the shared lighting and mounting specifications.

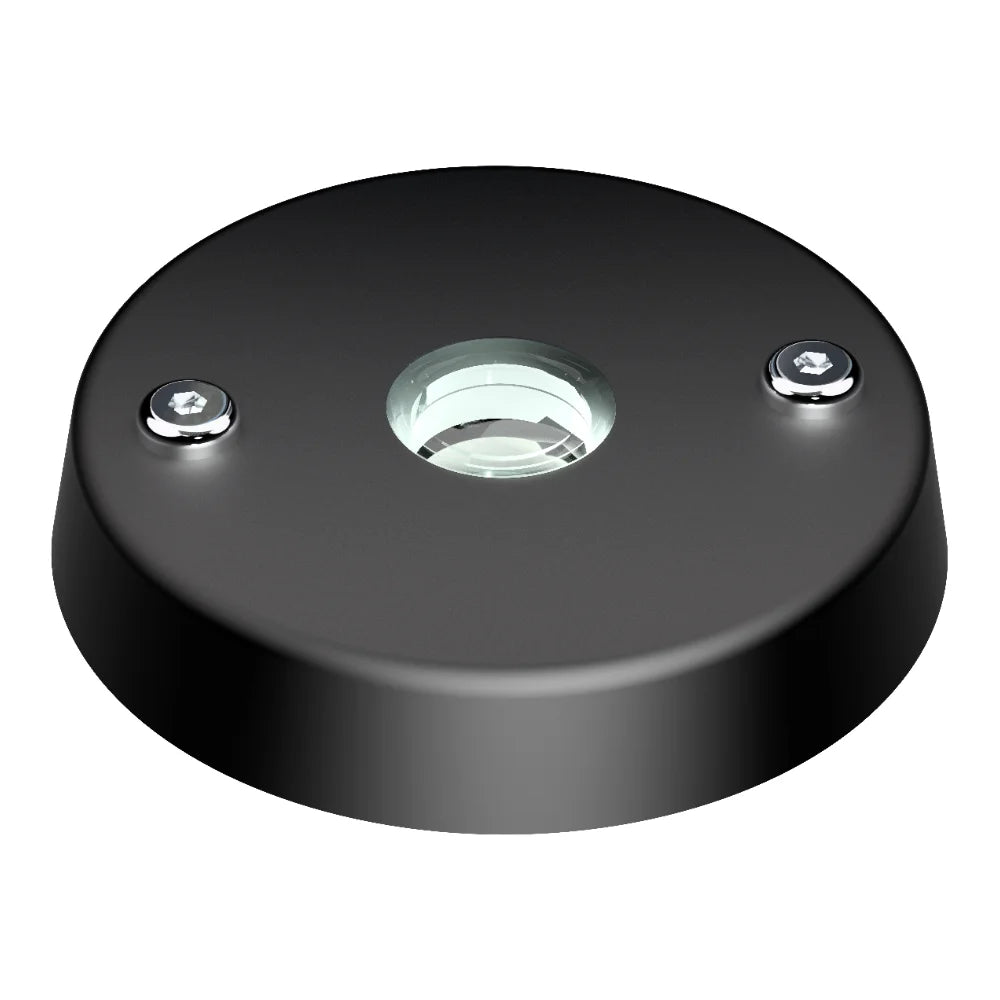

• 400-222-B: Black finish. The black housing offers a darker exterior appearance with the same white and red light output.

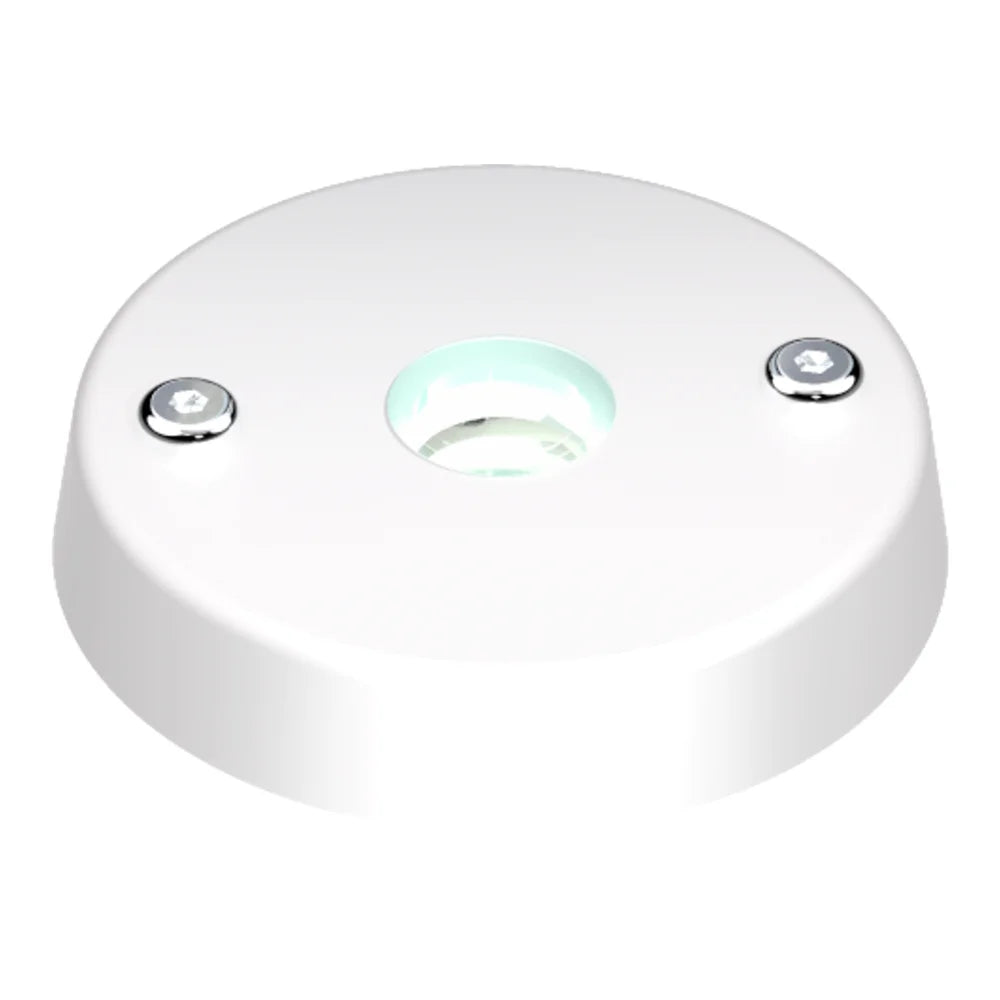

• 400-222-WH: White finish. The white ceramic finish provides a lighter housing appearance without changing the fixture's electrical or mounting specifications.

Installation and setup

The fixture mounts directly to a suitable surface using its two 4.2 mm mounting holes. Its 65 mm circular footprint and shallow housing profile are useful considerations when planning placement on spreaders or other deck-lighting locations.

Electrical installation requires a DC supply within the specified 10-32V range. The white and red lighting functions allow different illumination settings for routine deck activities and nighttime operation.
