Vimar Idea 1-Way Rocker Switch, 1P 16 AX 250V, IP40, 1-Module

Overview

The Vimar Idea 16001 is a 1-module 1-way rocker switch for the Vimar Idea modular range, rated 16 AX at 250 V with IP40 protection. It uses screw terminals, has a thermoplastic body with a matte finish, and measures 24.8 x 50.1 x 36.5 mm with a built-in depth of 23.3 mm.

This is a straightforward on and off AC switch for protected interior installations where a clean modular layout matters. On a boat, that usually means cabin, galley, head, or interior bulkhead locations that stay out of spray and washdowns. The IP40 rating suits enclosed or sheltered spaces rather than exposed deck or open cockpit positions.

The family also makes sense when you are replacing an existing Vimar Idea switch and want the new piece to sit correctly in the same modular system. The listed versions mainly change the front color and the symbol on the rocker, which helps match the panel visually and keeps circuits easier to identify on board.

Key features

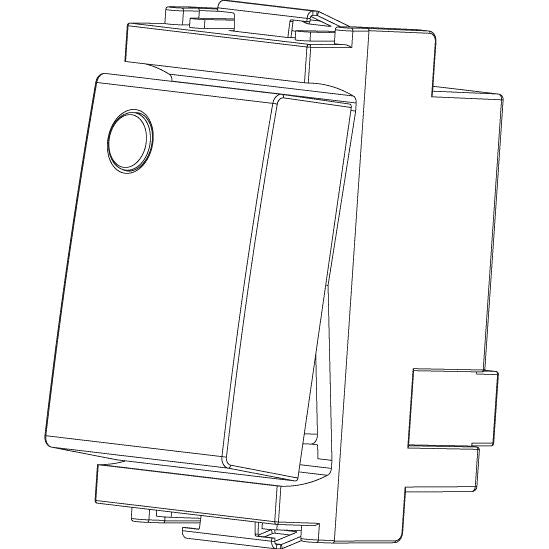

• 1-pole, 1-way rocker switch rated 16 AX at 250 V

• 1-module format for Vimar Idea modular installations

• IP40 protection for protected interior spaces

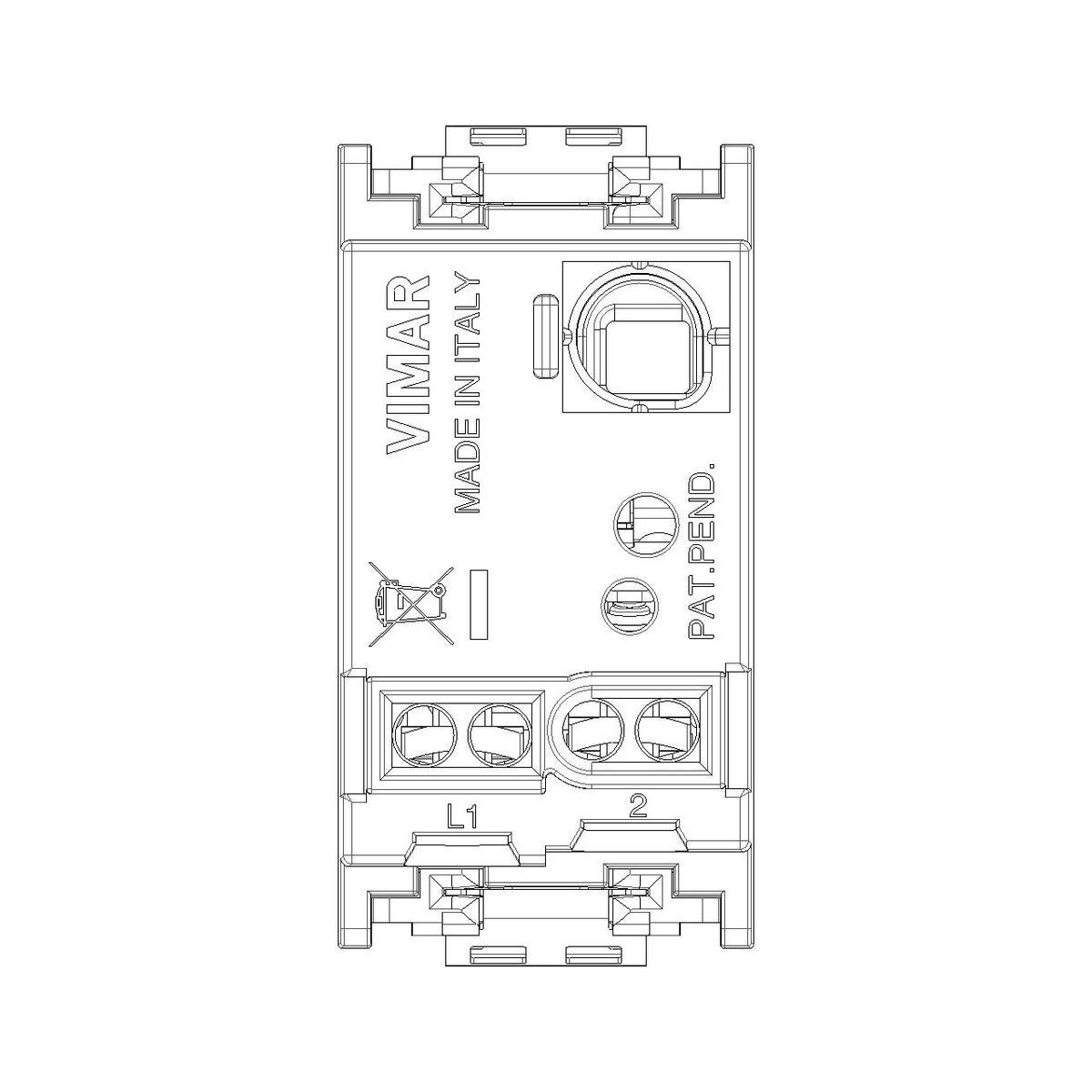

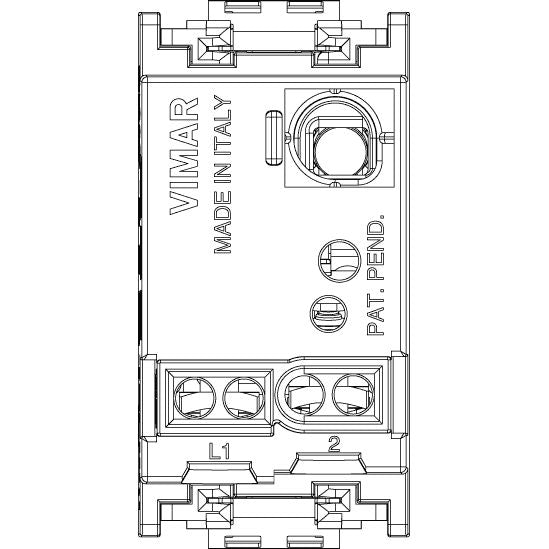

• Screw terminal connection

• Thermoplastic construction, halogen-free, with matte finish

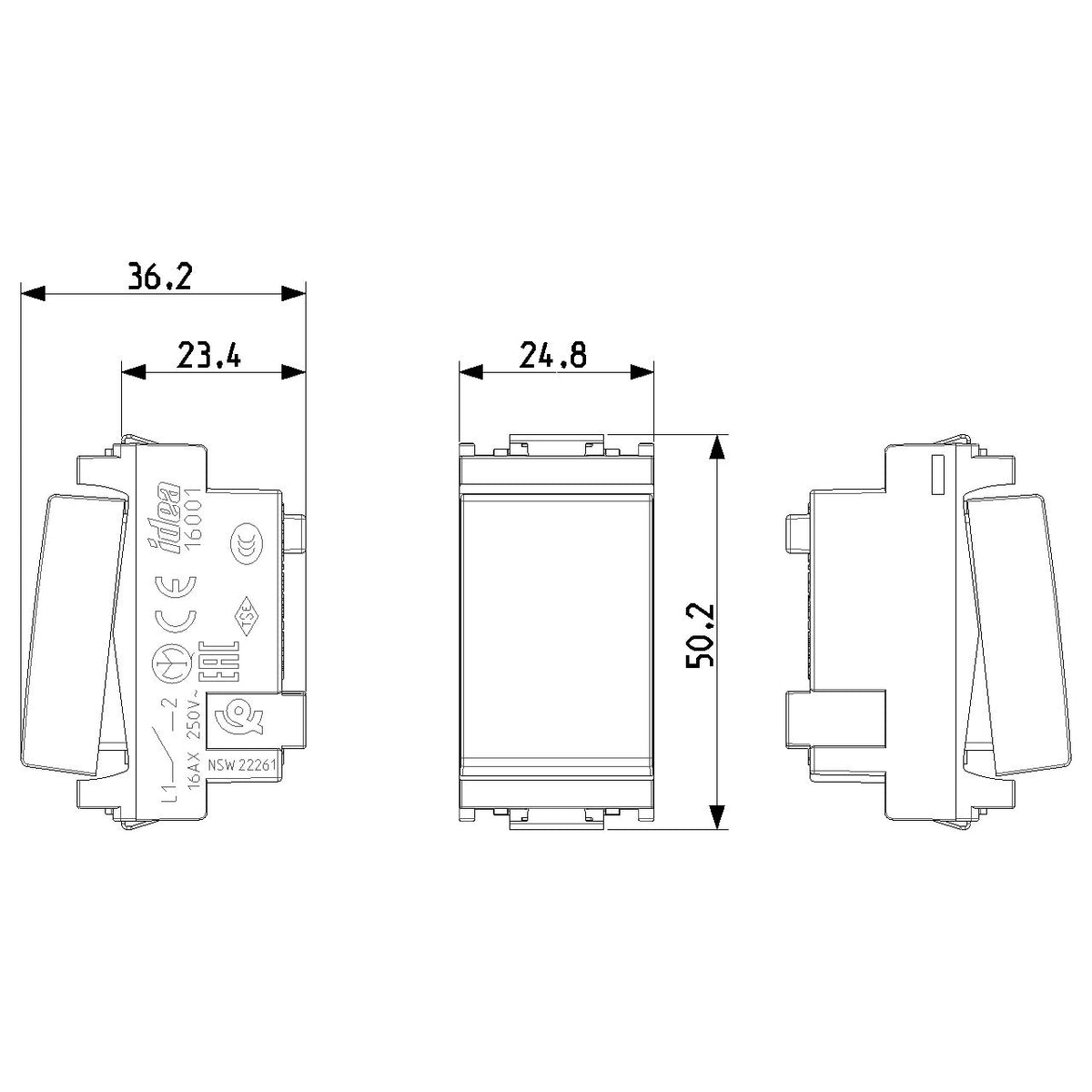

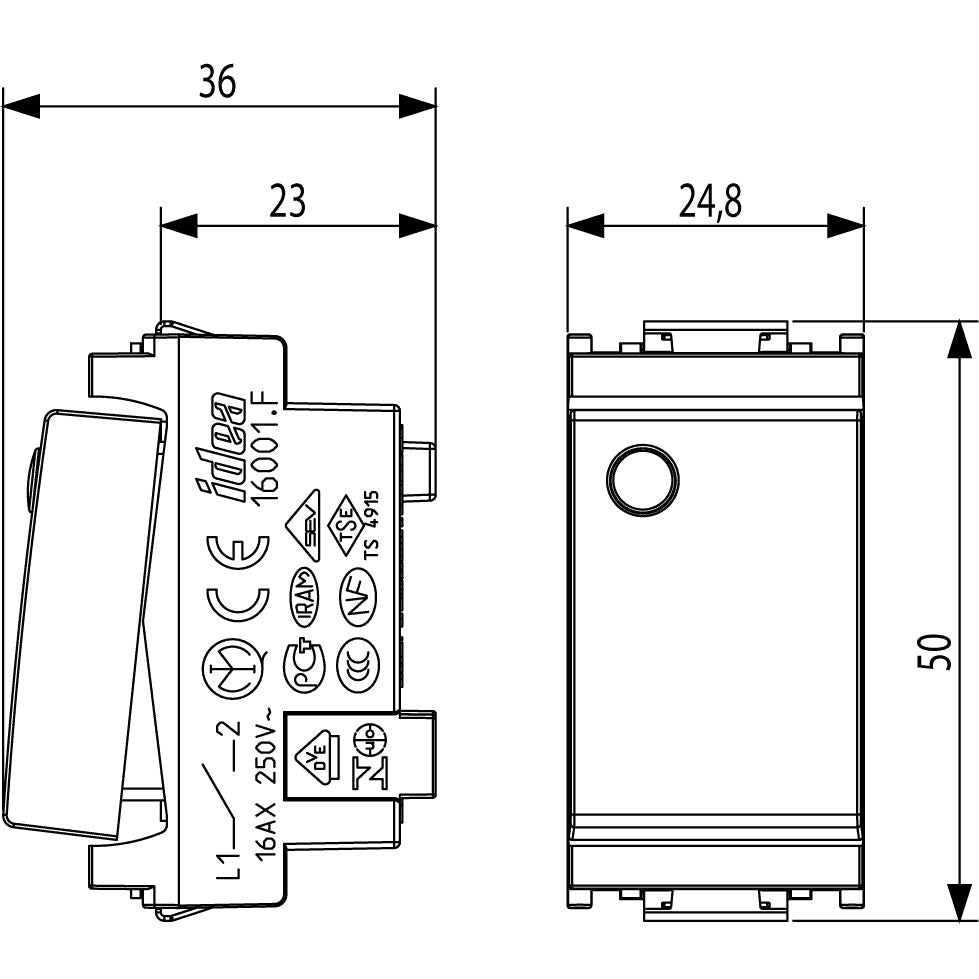

• Compact body size of 24.8 x 50.1 x 36.5 mm and 23.3 mm built-in depth

• Max 200 W for self-ballasted lamps

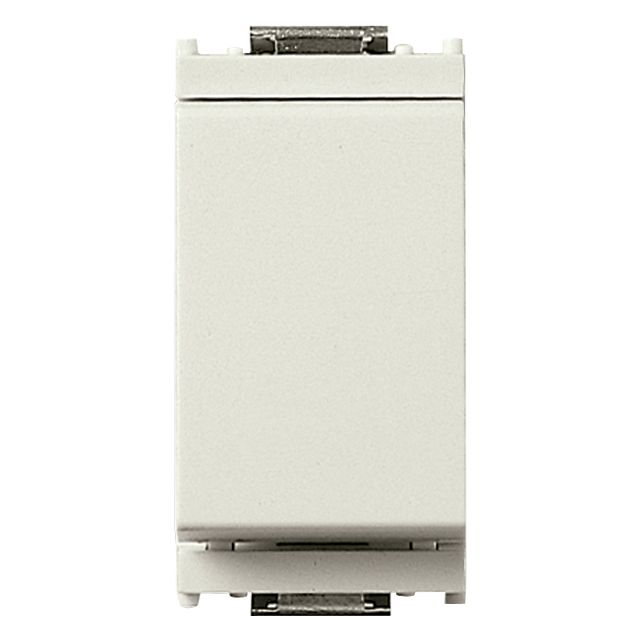

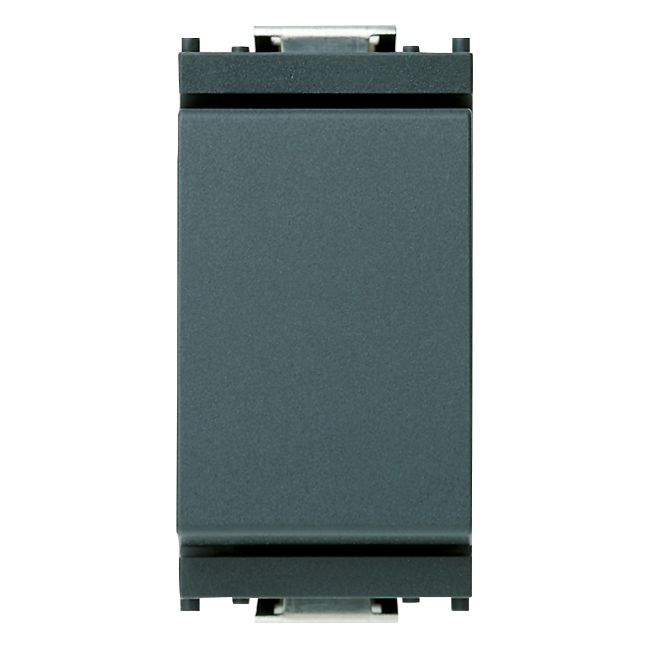

• Range includes gray or ivory fronts with plain, lightbulb, fan, music note, or indicator-style rocker markings depending on version

Variants

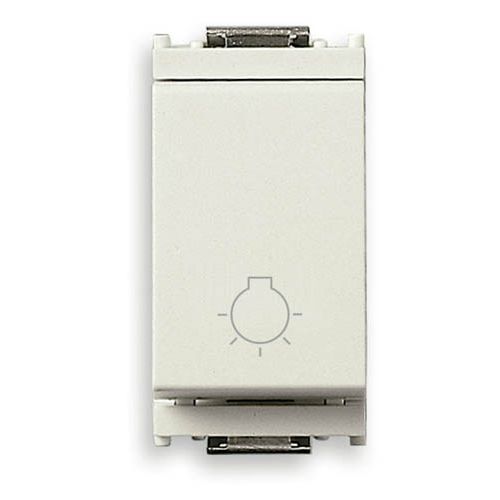

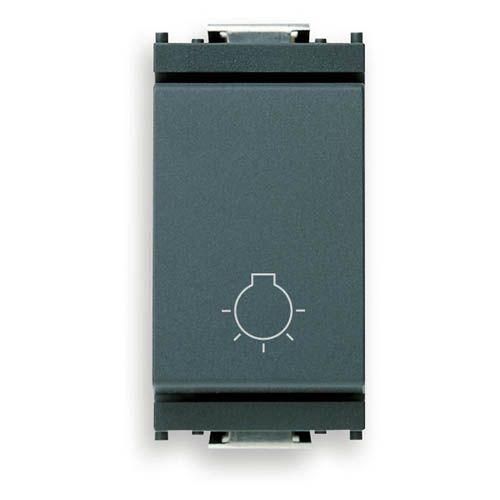

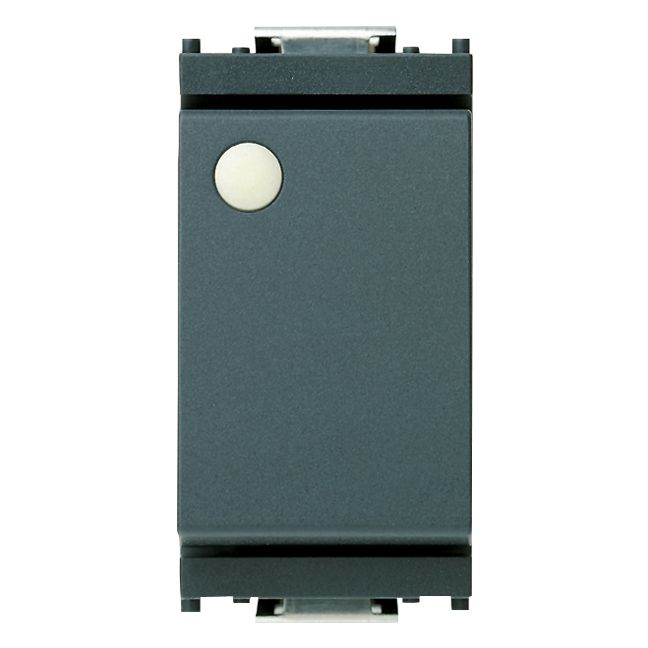

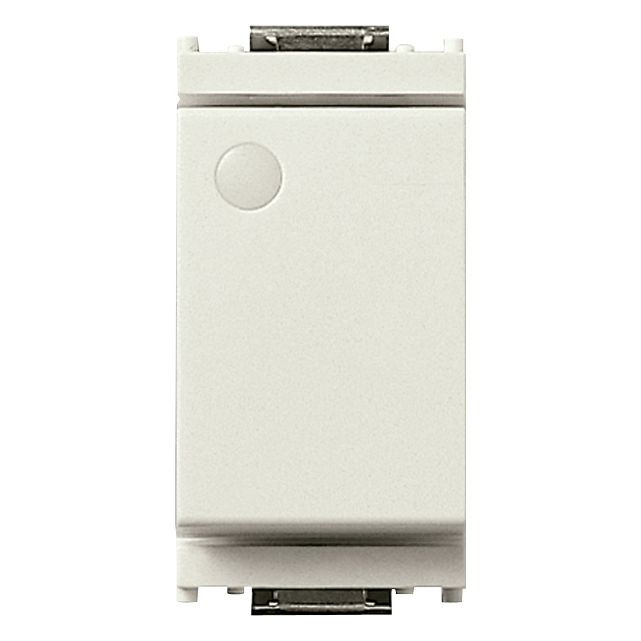

Across the listed versions, the visible changes are the rocker color and the front marking. The range includes gray and ivory options, with rocker faces shown as standard, lightbulb, indicator, music note, or fan.

The part number suffixes separate those front-end differences within the same Idea 16001 switch family. That matters most when you are matching an existing panel, keeping switch legends consistent, or replacing a single failed switch without changing the look of the rest of the installation.

Compatibility and fit

This switch is part of the Vimar Idea system and is built as a modular device for flush-mounted installations. It fastens by snap engagement, so it should be matched with the correct Idea support and cover arrangement already used in the panel or wall position.

For refits and service work, check both the module format and the available depth behind the mounting surface before ordering. This is a good match for owners, yards, and electricians who already have Vimar Idea hardware on board and need a like-for-like replacement rather than a different switch platform.

Electrical and onboard use

The electrical rating makes this a switch for AC circuits within its stated limits, not a general-purpose 12 V or 24 V DC panel switch. In practical boat use, it suits interior AC lighting or other switched loads where the circuit design, voltage, and enclosure are appropriate for this type of device.

The plain and symbol-marked rocker options are useful when several similar switches sit side by side. A lightbulb, fan, or music note marking can make the panel easier to read at a glance, especially in cabins and saloons where multiple switched functions share the same trim line.
