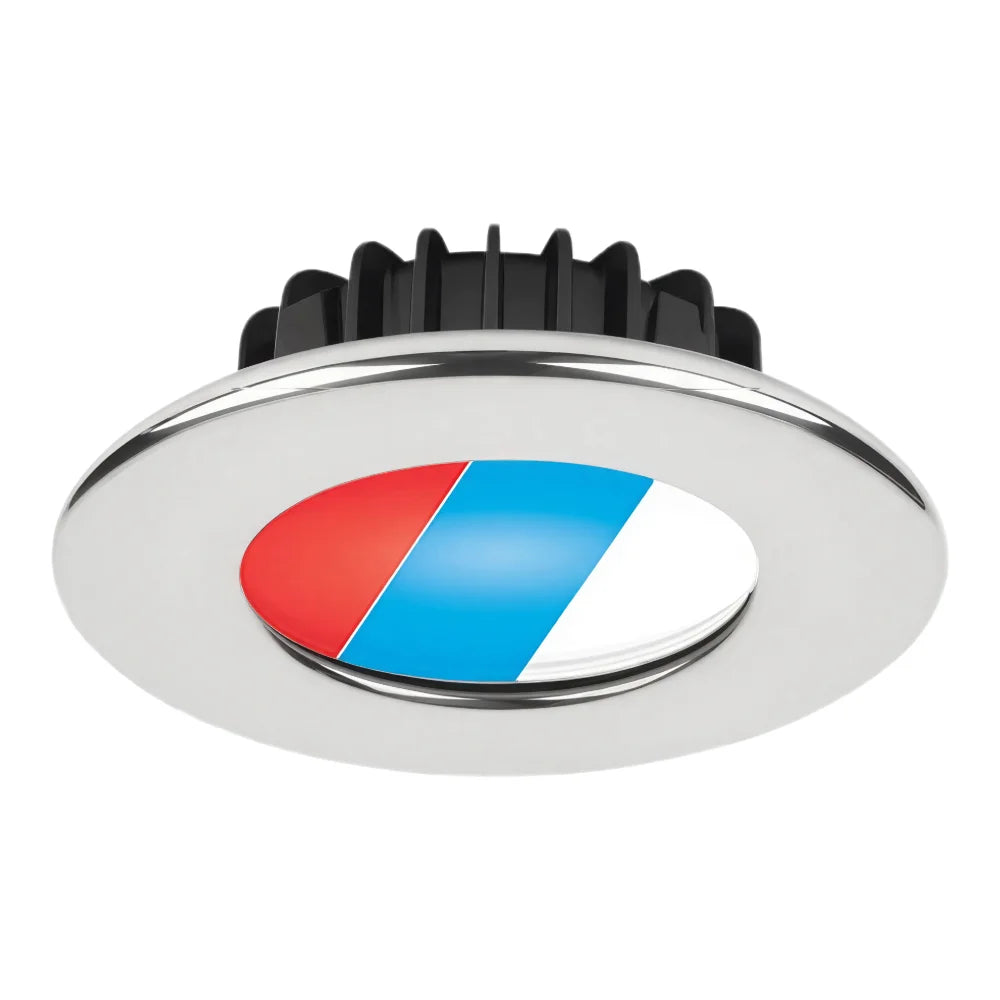

Imtra Ripple PowerLED Tri-Color Downlight, 10-40VDC, 5W, IP65

Overview

The Imtra Ripple is a recessed PowerLED tri-color downlight for marine lighting installations, operating on 10-40VDC with 5.0W power consumption. It features a polished stainless steel round bezel, a frosted glass lens, and three selectable LED light colors controlled through a single on/off switch.

The fixture uses integrated drive electronics and a two-wire connection for power and color selection, simplifying installation in existing lighting circuits. Its screw-mounted construction and IP65-rated exposed face make it suitable for marine ceilings, hardtops, overhangs, and other locations where the front of the fixture may encounter moisture.

Key features

• Three selectable LED colors operated through a single external on/off switch.

• Two-wire electrical connection for power and color selection.

• 90-degree beam angle for broad downlighting coverage.

• Polished stainless steel bezel with rounded edges and a frosted glass lens.

• IP65 protection against frontal water exposure.

• Integrated LED driver eliminates the need for a separate remote driver.

• Three-screw mounting arrangement for secure installation in rigid ceiling panels.

• Rated LED operating life of 50,000 hours.

Variants

The Ripple PowerLED Tri-Color Downlight is available in two configurations distinguished by the color temperature of the white LED. Both configurations provide red and blue illumination alongside their respective white light output.

Both versions retain the same polished stainless steel finish, 10-40VDC operating range, 5.0W power consumption, and mounting dimensions.

• ILIM63701 - Red/Blue/Warm White: Combines red and blue lighting with 2800K warm white illumination, producing a softer white appearance with a rated output of 183 lumens.

• ILIM63801 - Red/Blue/Cool White: Combines red and blue lighting with 6000K cool white illumination, producing a cooler white appearance with a rated output of 297 lumens.

Installation and setup

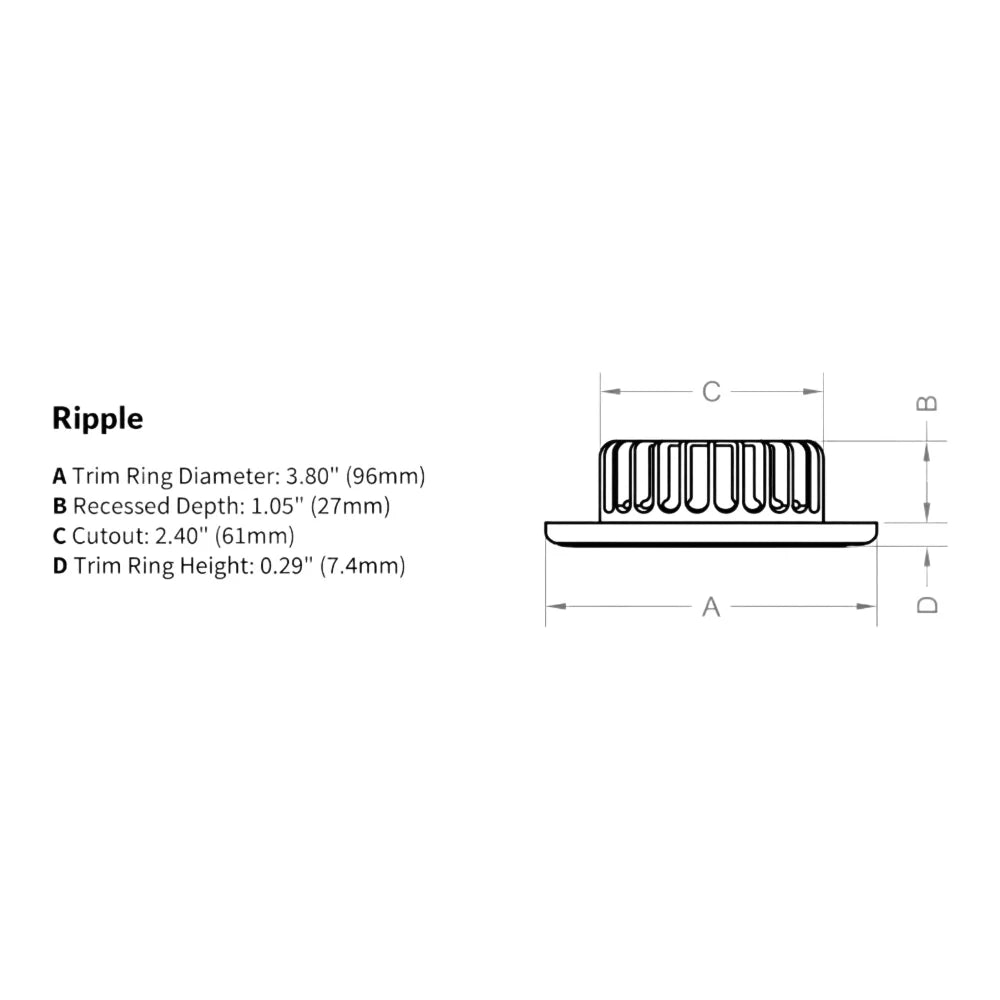

The fixture has a 3.80-inch (96mm) diameter bezel, requires a 2.40-inch (61mm) mounting cutout, and has a recessed depth of 1.05 inches (27mm). Its twist-on trim ring allows access to the screw-mounting arrangement, making it suitable for rigid mounting surfaces such as fiberglass or wood.

Installation requires protection against water exposure from behind the fixture. Maintain approximately 0.5 inches (13mm) of free space above the housing for heat dissipation. The IP65 rating applies only to the exposed front surface and does not indicate that the complete fixture is waterproof.

Operation and control

Light colors are selected by toggling the external on/off switch, allowing the fixture to cycle through its available LED colors without additional color-control wiring. The integrated electronics support operation across common 12V, 24V, and 32V DC marine electrical systems.
