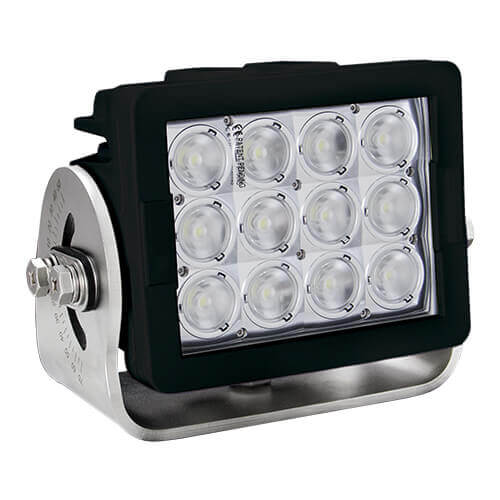

Imtra Offshore 12-LED Deck Light, 11-65VDC, 84W, 25° Beam, Black Housing

Overview

The Imtra Offshore 12-LED Marine Deck Light is an 84W exterior lighting fixture operating on 11-65VDC electrical systems. Its 25° narrow flood beam delivers concentrated 5700K cool white illumination with 6,679 effective lumens, supporting focused lighting across working decks and other exposed vessel areas.

The fixture combines a black anodized die-cast aluminum housing, protective coating, and IP68/IP69K ingress protection for demanding marine environments. Electronic thermal management, electromagnetic interference shielding, and transient voltage suppression provide additional protection for the LED lighting system.

Key features

• 12 high-output LEDs with 84W total power consumption.

• 11-65VDC input voltage for compatible marine DC electrical systems.

• 25° narrow flood beam with 5700K cool white light output.

• 10,560 raw lumens and 6,679 effective lumens.

• IP68/IP69K protection against dust and water ingress.

• Black anodized die-cast aluminum housing with protective coating.

• Impact-resistant and UV-resistant polycarbonate lens.

• CISPR 25 Class 1 electromagnetic interference protection.

Installation and mounting

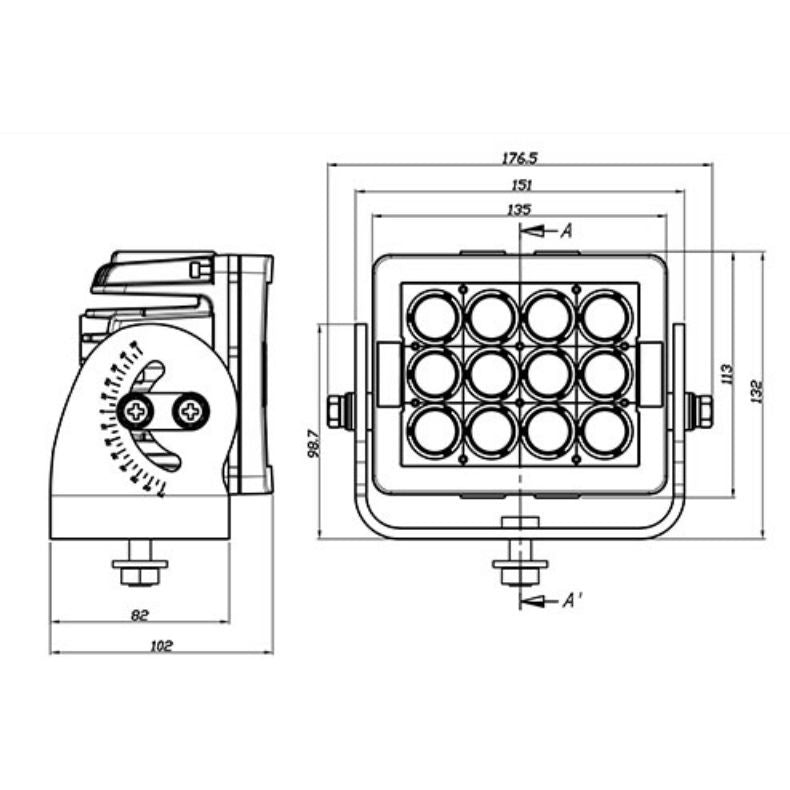

The light uses a 304 stainless steel trunnion mounting bracket with graduated aiming marks for positioning the beam toward the intended deck area. A 6 ft, 16 AWG duplex boat cable is supplied for connection to the vessel's DC electrical system.

The fixture is suitable for installations requiring concentrated illumination rather than broad floodlight coverage. Mounting location, available clearance, beam direction, and electrical compatibility should be confirmed before installation.

Construction and protection

The housing incorporates a corrosion-resistant exterior coating and a vibration-dampened assembly rated for 60 Grms of shock and vibration resistance. These construction features support operation in exposed marine locations subject to moisture, vessel movement, and environmental stresses.
