Vimar Eikon Relay Actuator, 1 Module, 6A, 120-230V, Change-Over Relay Output

Overview

The Vimar Eikon 20534 relay actuator is a flush-mounted bus-system actuator with a 6 A change-over relay output for 120 to 230 V circuits. It takes up 1 modular spacing, includes LED indication, and connects to the Vimar By-me Plus system for remote switching from the control network.

On board, this fits interior switch panels where you need a relay point inside a coordinated Eikon installation. The IP40 housing makes it a better match for protected helm, cabin, or service-panel locations than exposed areas that see washdowns or direct spray.

This unit has one switching contact, is suitable for C-load applications, and does not have local hand operation on the device itself. That matters when the switching logic is handled through the bus system and you want the front of the panel to stay clean and consistent with the rest of the installation.

Key features

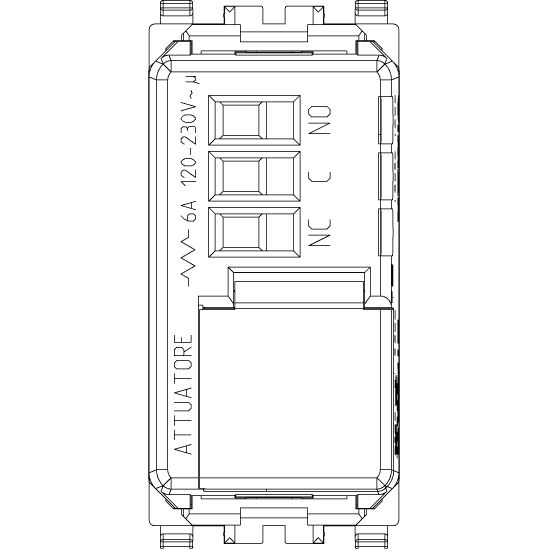

• 6 A change-over relay output for switching AC circuits in the 120 to 230 V range

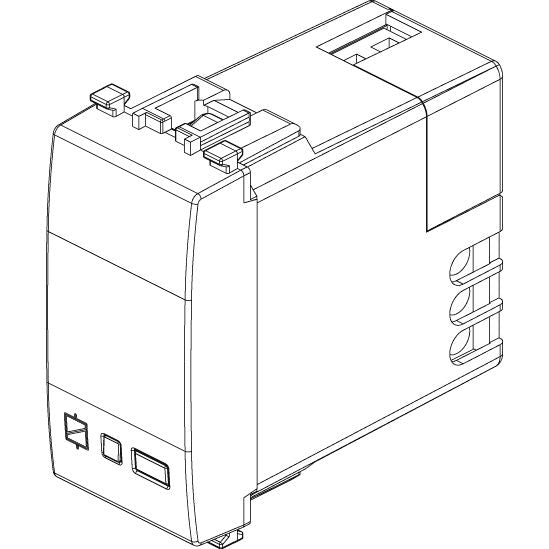

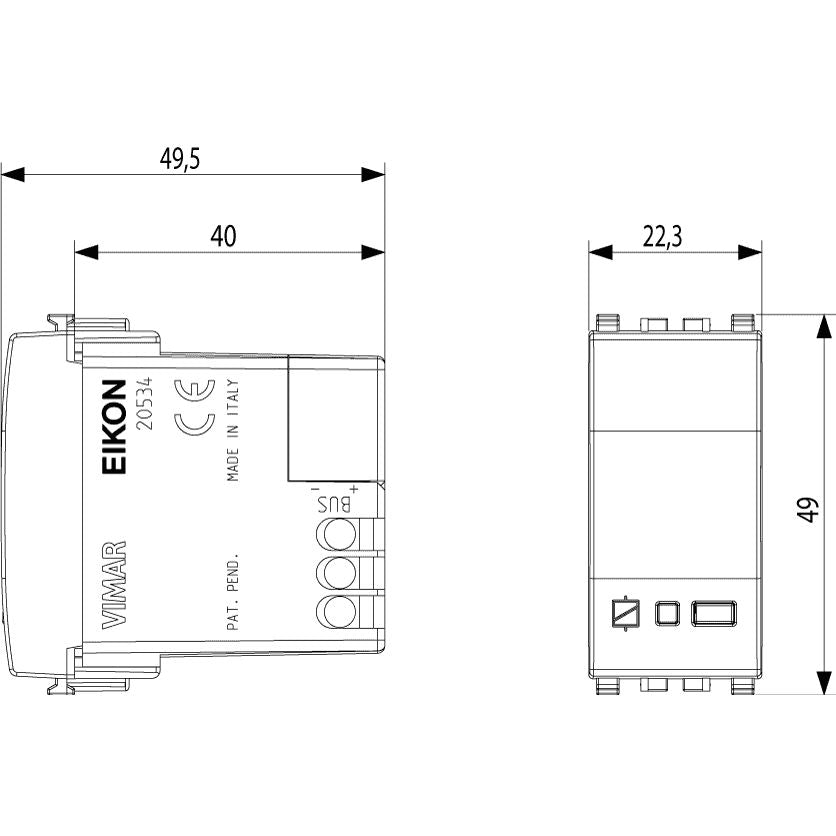

• Flush-mounted 1-module format for compact panel layouts
• Bus-connected actuator for Vimar By-me Plus installations
• LED indication for a quick status check at the panel
• Suitable for C-load applications
• One switching contact and no local hand operation on the actuator body
• IP40 protection for dry, protected interior mounting locations

Variants

This product is offered in three finish options within the same Eikon relay actuator family.

The confirmed difference across the listed variants is the finish and color. The electrical format remains the same across the range, including the 6 A change-over relay output, 120 to 230 V operating range, 1-module flush-mounted body, LED indication, bus connection, and IP40 protection.

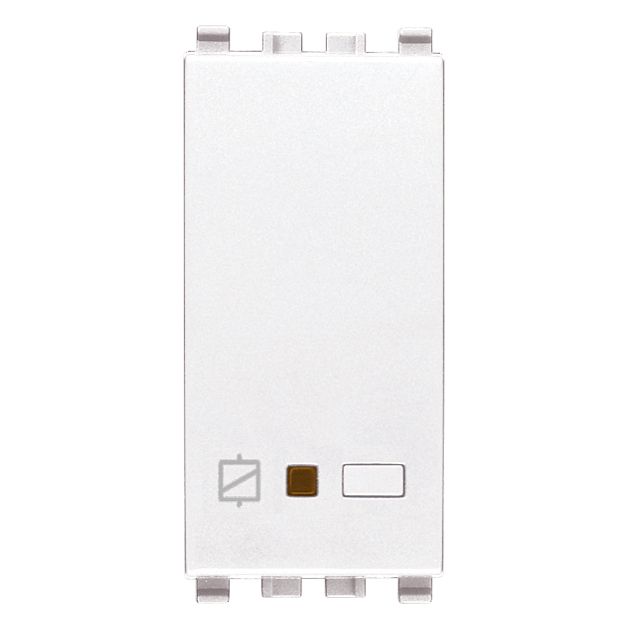

• VM20534.B: White. This version suits white Eikon devices and lighter interior panel layouts where the actuator should blend in with surrounding controls.

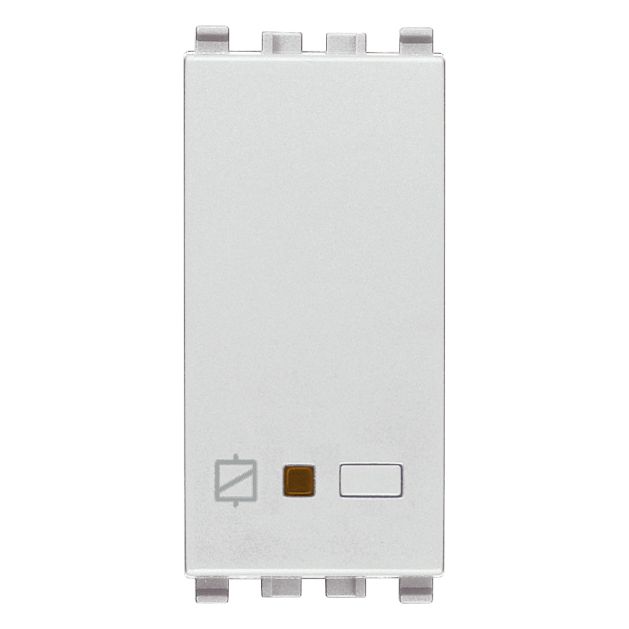

• VM20534.N: Silver. This version matches Eikon Next silver installations and keeps the same relay and mounting format as the other options.

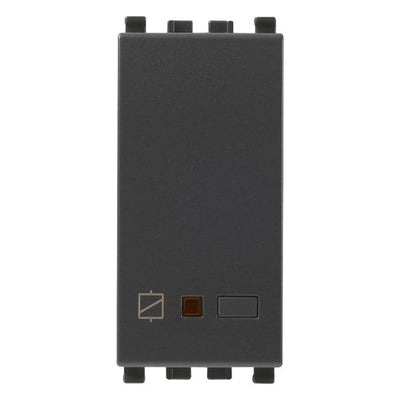

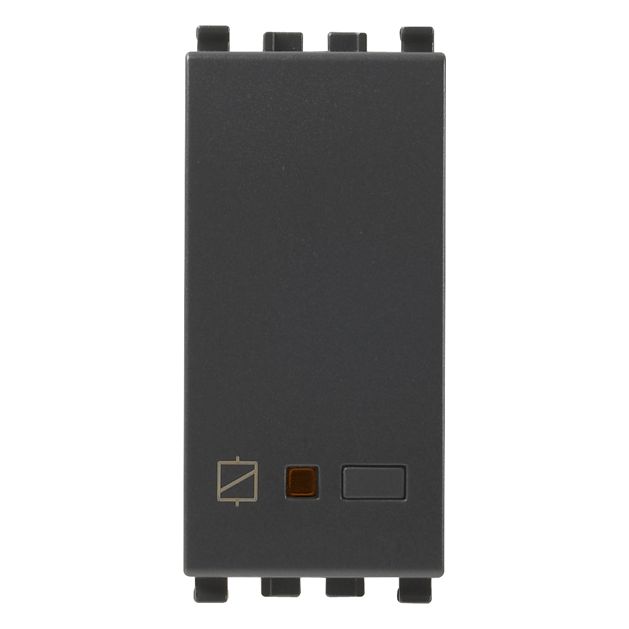

• VM20534: Grey. This version fits grey Eikon installations and works well in darker switch panels or utility areas where that finish is already used.

Compatibility and fit

This actuator is a good match for boats that already use Vimar Eikon modules and the By-me Plus control platform, especially where panel space is tight and a 1-module relay point is needed. It is not the right choice for low-voltage DC distribution or for exposed exterior mounting.

Installation and setup

Because the body is flush-mounted and one module wide, it works well in neat multi-position panels where the front finish needs to stay aligned with other Eikon devices. Installation belongs in a protected interior enclosure with the correct bus connection and an AC load that stays within the 6 A rating.
