Imtra DHR PAN2019F Searchlight Control Panel, 24VDC, Focus Control

Overview

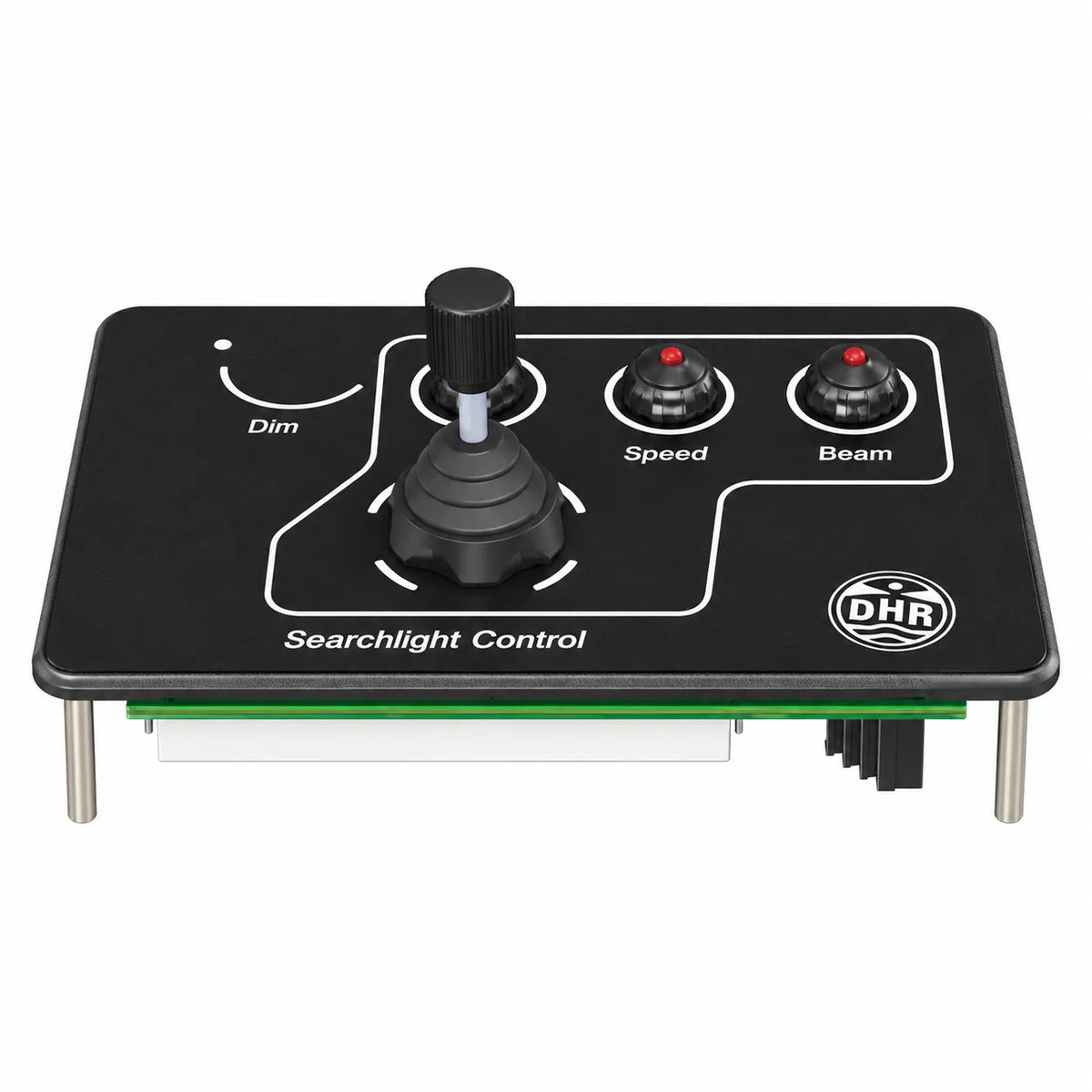

The Imtra DHPAN2019F is a DHR PAN2019F remote control panel for compatible focusable marine searchlights in the RCN, RCB, and RCL series. Operating on 24VDC, it provides centralized control of searchlight movement, beam focus, and light activation from a vessel's control station.

The panel combines a directional joystick with dedicated focus and operating controls. Its integrated LED dimmer adjusts the illumination of the panel controls, while the matte black aluminum front plate provides a clean appearance for helm and wheelhouse installations.

Key features

• 24VDC electrical operation.

• Joystick control for searchlight positioning.

• Adjustable beam focus for compatible searchlights.

• Dedicated light source on/off control.

• Integrated LED dimmer for panel illumination.

• Matte black aluminum front plate.

• Compatible with designated DHR focusable searchlight models.

Compatibility and fit

The PAN2019F is intended for DHR searchlights equipped with remote focus functionality. Confirmed applications include the DH320RCL22 and DH320RCP22 models in the DHR 320 series, along with the discontinued DH300RCB220.

Compatibility depends on the searchlight model and its control configuration. The PAN2019F is the focus-capable version of the control panel and should not be confused with the PAN2019NF non-focus version.

Installation and operation

The panel is suitable for installation at a vessel's helm or wheelhouse control station, allowing operators to direct and adjust a compatible searchlight remotely. Installation requires an appropriate 24VDC supply and wiring connections matched to the searchlight's control system.
