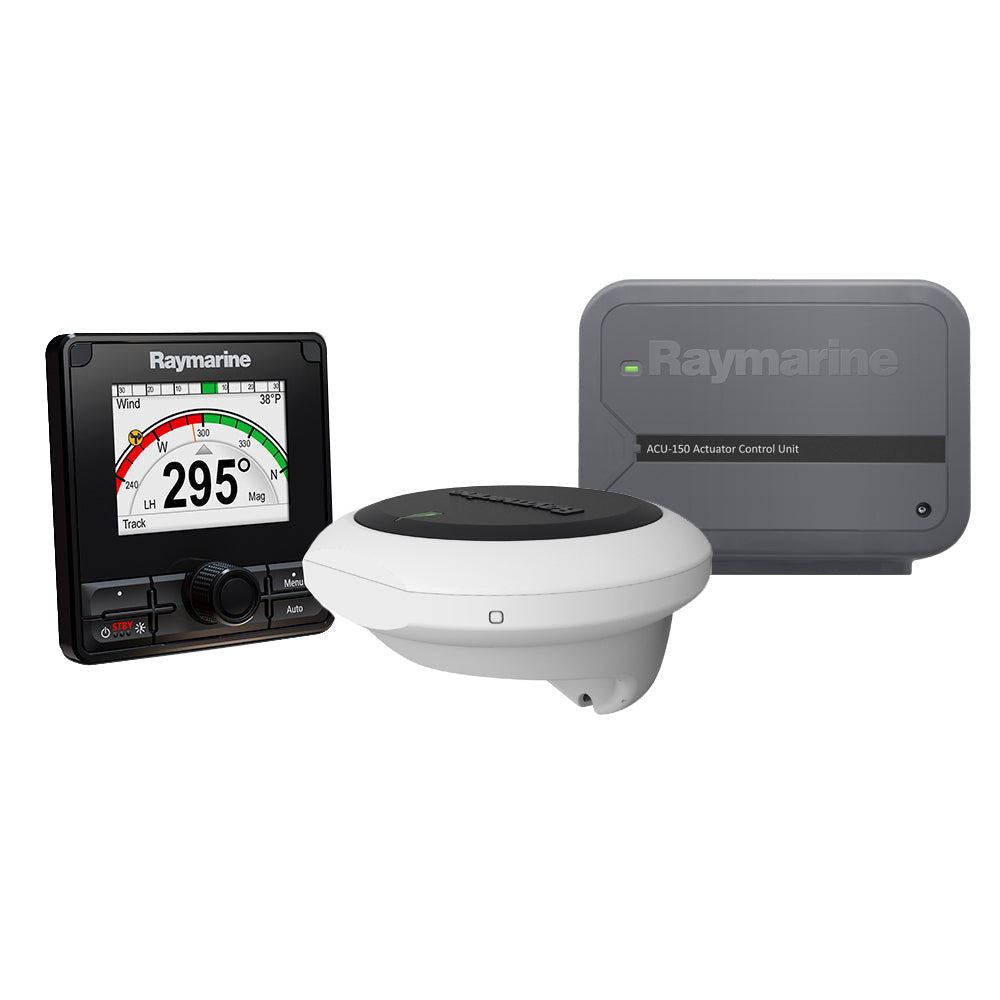

Raymarine EV-150 Power Pilot Core Pack, No Drive, 12V, For Hydraulic Steering, 4.9-14.0 cu in Ram Capacity

Overview

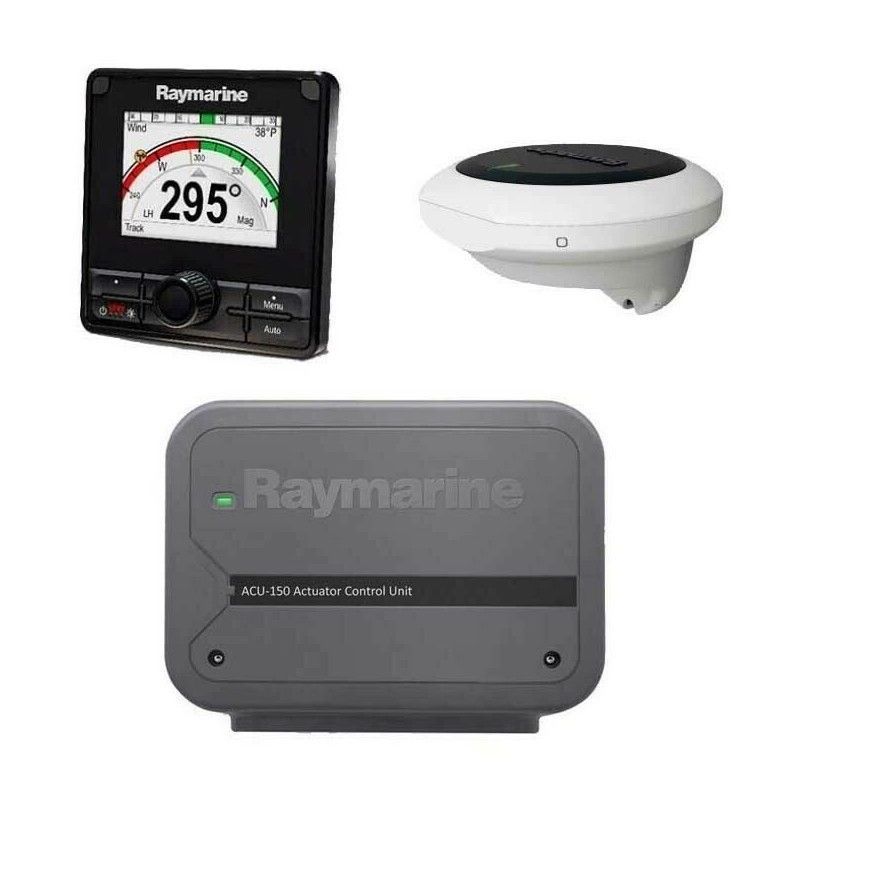

The Raymarine T70407 is an EV-150 Power Pilot core pack for small to medium powerboats with hydraulic steering, supplied without a drive unit for installations that already have a compatible Type 1 12 V hydraulic drive or where the drive will be purchased separately. It is built around the ACU-150 actuator control unit, p70Rs control head, EV-1 sensor core, and Evolution cabling needed to create the main autopilot system.

This autopilot is intended for 12 V DC electrical systems only, with an operating voltage range of 10.8 V DC to 15.6 V DC. In a properly matched EV-150 hydraulic setup, it suits steering cylinder capacities from 4.9 cu. in. to 14.0 cu. in., or 80 cc to 230 cc, which covers many single outboard and single inboard hydraulic steering installations.

The EV-1 sensor core uses 9-axis sensing to track vessel motion, while Hydro-Balance technology helps compensate for hydraulic steering behavior such as elasticity and torque steer. For cruising, fishing, and route tracking, this gives the boat steadier course control without the long manual calibration process older autopilots often require.

Key features

• EV-150 core pack supplied without a hydraulic drive, suitable for repowers, upgrades, or installations where the drive unit is selected separately.
• Works with 12 V DC systems only, with a confirmed operating range of 10.8 V DC to 15.6 V DC.
• Supports hydraulic steering setups in the 80 cc to 230 cc cylinder capacity range when paired with the correct Type 1 12 V hydraulic drive.
• Includes the EV-1 sensor core with 9-axis vessel motion sensing for heading, pitch, roll, and yaw data.
• ACU-150 actuator control unit has a maximum continuous drive current output of 7 A at supply voltage.
• SeaTalkng connectivity lets the control head, sensor core, and ACU communicate as part of the Raymarine autopilot network.
• p70Rs control head gives helm control through a sunlight-viewable 3.5 in display, rotary knob, and dedicated autopilot buttons.
• Hydro-Balance steering control helps reduce drive hunting and course corrections on hydraulically steered boats.

Installation and setup

This is the no-drive version, so the hydraulic drive is not included. The steering system must be checked for the correct drive type and steering cylinder capacity before installation, especially on boats with outboard hydraulic steering or single inboard hydraulic steering.

The ACU-150 connects into the SeaTalkng network and handles steering commands to the hydraulic drive. Its housing measures 180 mm wide, 140 mm high, and 52 mm deep, so it should be mounted where it is protected, serviceable, and close enough for clean cable routing to the network and steering drive connections.

Compatibility and fit

This pack is a good match for owners upgrading an existing Raymarine autopilot installation or building an EV-150 system around a separately sourced Type 1 hydraulic drive. It is not a 24 V autopilot pack, and it should not be treated as a universal fit for all hydraulic steering systems without checking the steering cylinder volume and drive requirements.

On board, the system fits the needs of fishing boats, coastal cruisers, and small to medium powerboats where steady heading control, route tracking, and hands-off helm support are useful during longer runs or trolling work.

Environmental and electrical details

The ACU-150 is rated for operation from -20 degrees C to +55 degrees C and storage from -30 degrees C to +70 degrees C. The connector panel is rated IPx2, while the drive electronics are rated IPx6, so mounting location still matters even though the electronics are built for the marine environment.

Standby power consumption is 300 mA at 12 V, and the NMEA 2000 Load Equivalency Number is 1. These details help when planning the boat’s electronics load, network power, and breaker layout.

What’s included

• ACU-150 actuator control unit
• p70Rs autopilot control head
• EV-1 sensor core
• Evolution cabling kit
