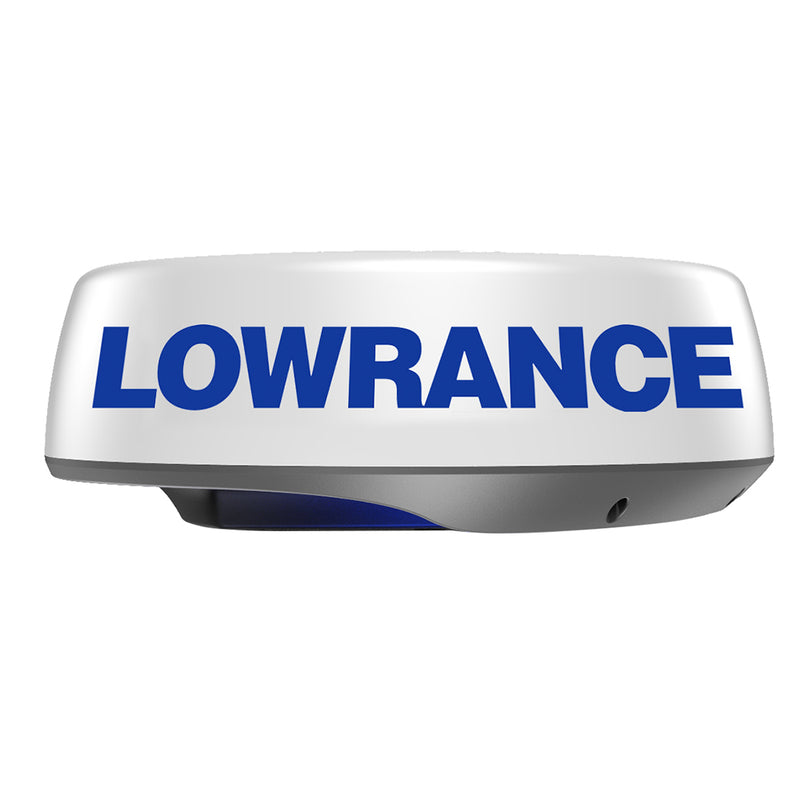

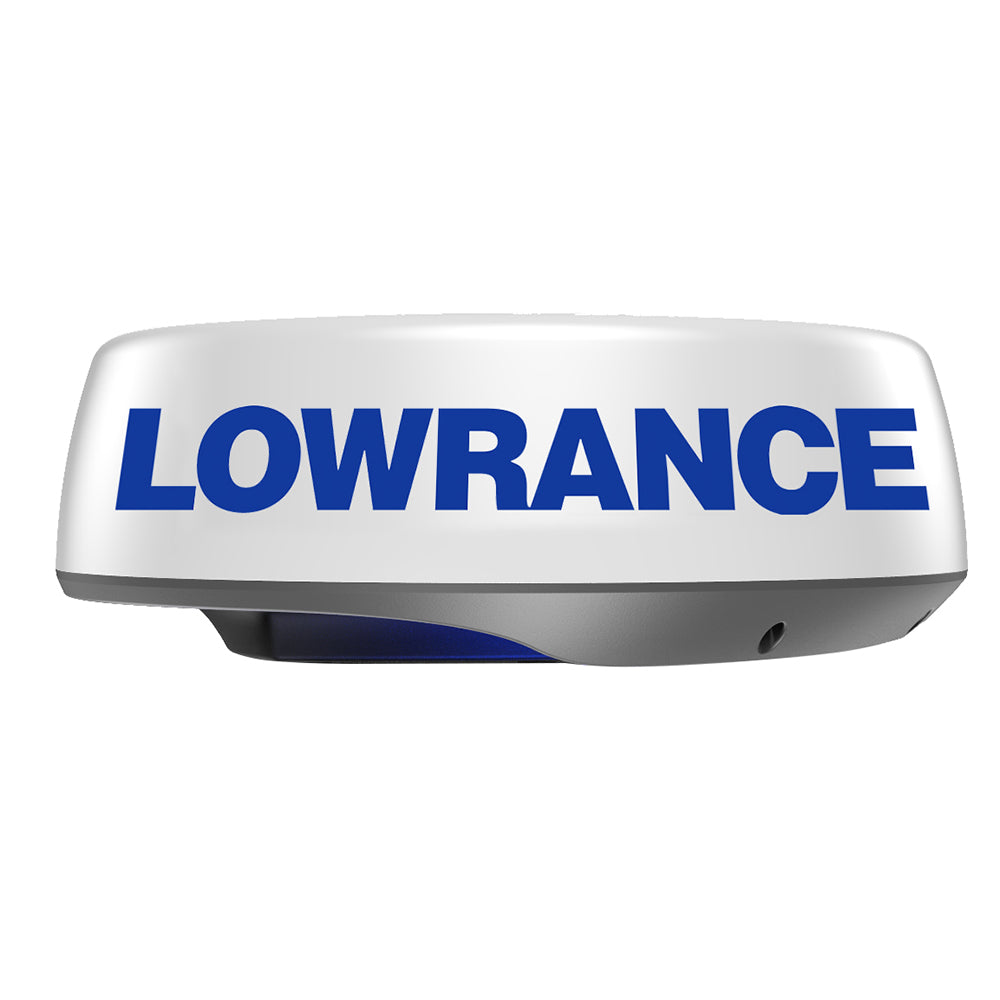

Lowrance - HALO24 Radar Dome with Doppler Technology

Navigating Oceans With Clarity

The HALO24 Radar Dome enhanced with Doppler Technology brings the future of navigation to your vessel. With real-time views and an unparalleled 60 RPM operation at close range, the HALO24 radar revolutionizes the way we perceive the marine world around us.

Technical Marvels Within

HALO24 isn't just about looks—it’s a technical powerhouse. With the innovation of VelocityTrack™ Doppler technology, you'll have instant feedback on moving objects in your vicinity. This radar is designed to help sailors and boaters identify potential hazards, providing both safety and peace of mind.

Dimensions That Count

Despite packing so much power and technology, the HALO24 radar remains compact. Designed for efficiency, its dome structure ensures optimum performance without occupying too much space on your boat.

Lustrous Spectrum of Capabilities

Whether you're sailing through fog or trying to navigate crowded harbors, the HALO24 radar offers an unmatched view of your surroundings, ensuring your journeys are safer and more enjoyable.

Key Features Unfolded

• 48 nm range from a compact 24" dome
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation for versatile viewing
• Ultra-fast 60 RPM operation at ranges up to 2nm
• VelocityTrack™ Doppler technology for collision avoidance
• MARPA target tracking (up to 10 targets, 20 in dual range)
• Instant readiness from standby
• Sleek, low profile dome design with integrated LED lights
• 5m Radar Cable included

Specifications You'd Want to Know

• Operating Temperature: -25° to +55°C (-13° to +130°F)
• Waterproof Rating: IPX6
• Max relative wind velocity: 51 m/sec (100 Knots)

Power Details & Physical Attributes

• Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V
• DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems)
• Dimensions: Ø Diameter 610 mm (24”), Height 225 mm (8.9”)
• Scanner weight (no cable): 6.75kg (14.9 lbs)

The Science Behind the Screen

• Radar ranges: 100M (328 ft) to 48nm with 18 range settings
• Transmitter frequency: X-band - 9.4 to 9.5 Ghz
• Horizontal beam width (Tx and Rx antenna): 3.9° nominal
• Vertical beam width (Tx and Rx antenna): 22°

Connectivity That Matters

• Protocol: Ethernet 100 Base T
• Maximum inter connecting cable length: 30M (98.5')
