Lopolight Red LED Navigation Light, 3nm, 180°, 10-32VDC, IP68

Overview

This Lopolight LED navigation light emits red light across a 180° sector with a visibility range of 3 nautical miles. Operating on 10-32VDC, it features a horizontally mounted fixture with an IP68 rating, suitable for marine installations requiring a defined red light sector.

The light measures 92.5 mm (3.6 in) in diameter and 74.5 mm (2.9 in) in height. Its anodized finish is available in silver or black, allowing the exterior appearance to match the vessel's installation requirements without changing the light color or coverage.

Key features

• Red LED light with 180° sector coverage and a 3 nautical mile visibility rating.

• 10-32VDC operating range for compatible onboard DC electrical systems.

• IP68-rated enclosure for protection against water and dust ingress.

• 2.5W power consumption, with current draw of 210 mA at 12VDC and 100 mA at 24VDC.

• Horizontal mounting configuration with a plug connector.

• Compact circular housing measuring 92.5 mm (3.6 in) in diameter and 74.5 mm (2.9 in) in height.

• Operating temperature range of -25°C to 55°C.

• Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, MED, DNV, and LR requirements.

Variants

This navigation light is available in two anodized finish configurations, identified by their individual part numbers.

The exterior finish is the distinguishing option. Both configurations retain the same red light output, 180° coverage, 3 nautical mile visibility rating, electrical specifications, dimensions, and horizontal mounting arrangement.

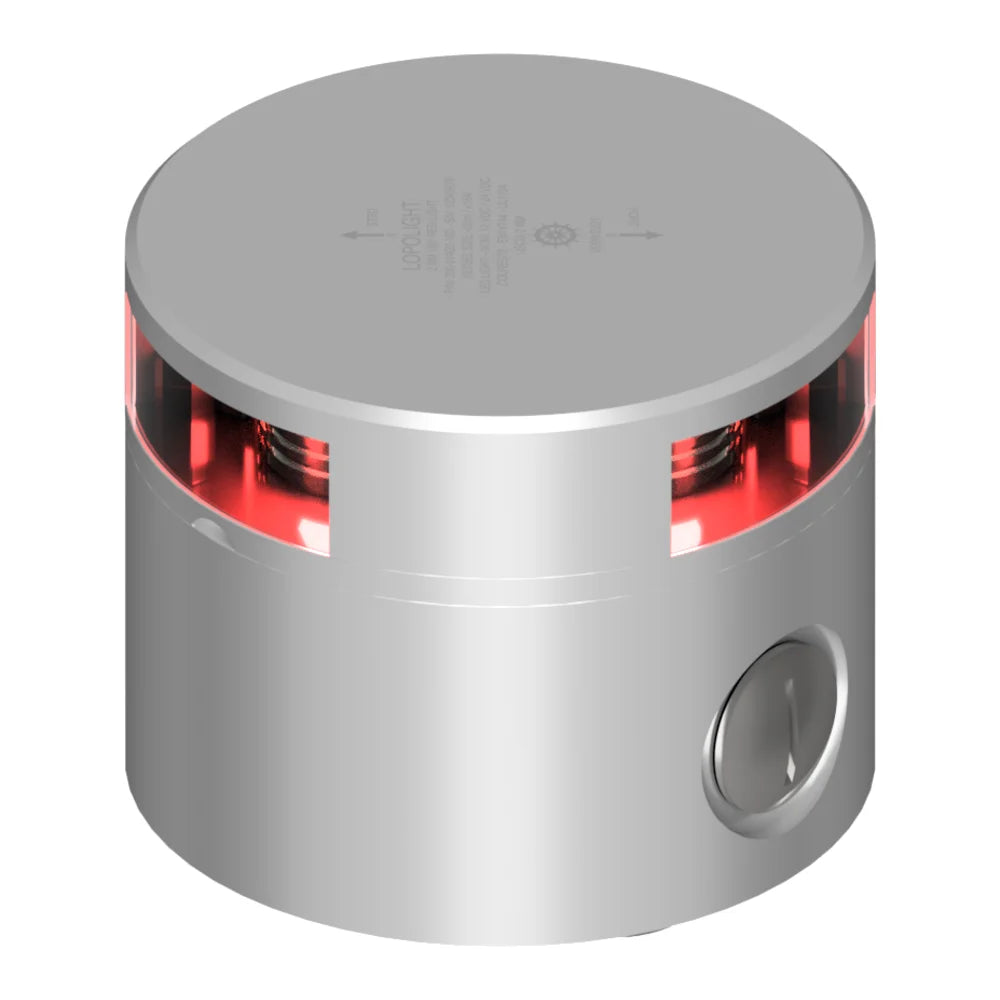

• 300-114G2-180, Silver finish: Silver anodized aluminum exterior for installations requiring a metallic housing appearance.

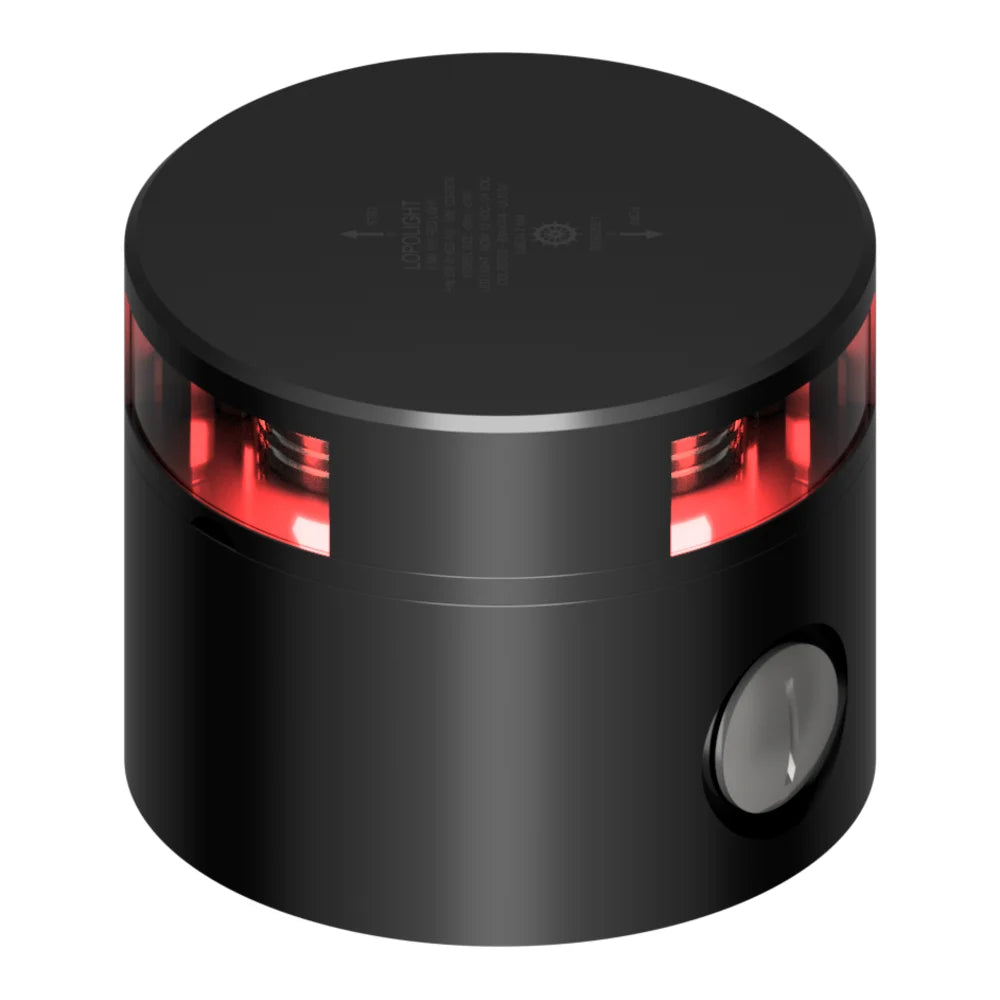

• 300-114G2-B-180, Black finish: Black anodized exterior for installations requiring a darker housing appearance.

Installation and setup

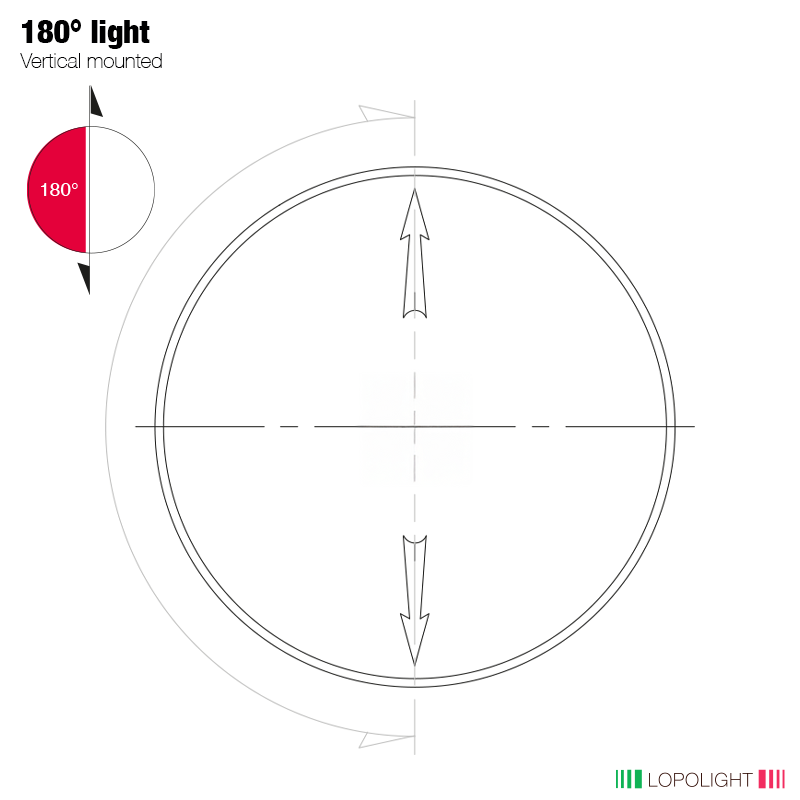

The fixture uses a horizontal mounting arrangement and plug connector. The specified minimum supply wire size is 0.5 mm² (AWG 22). Installation should maintain the required orientation and unobstructed 180° light sector for the intended navigation-light arrangement.

What's included

• 1 LED navigation light.

• 2 mounting screws, M6 x 8 mm.

• Installation guide.
