Imtra DMS-1200 LED Dimmer, 12A, 6-30VDC, 0-10V Control

Overview

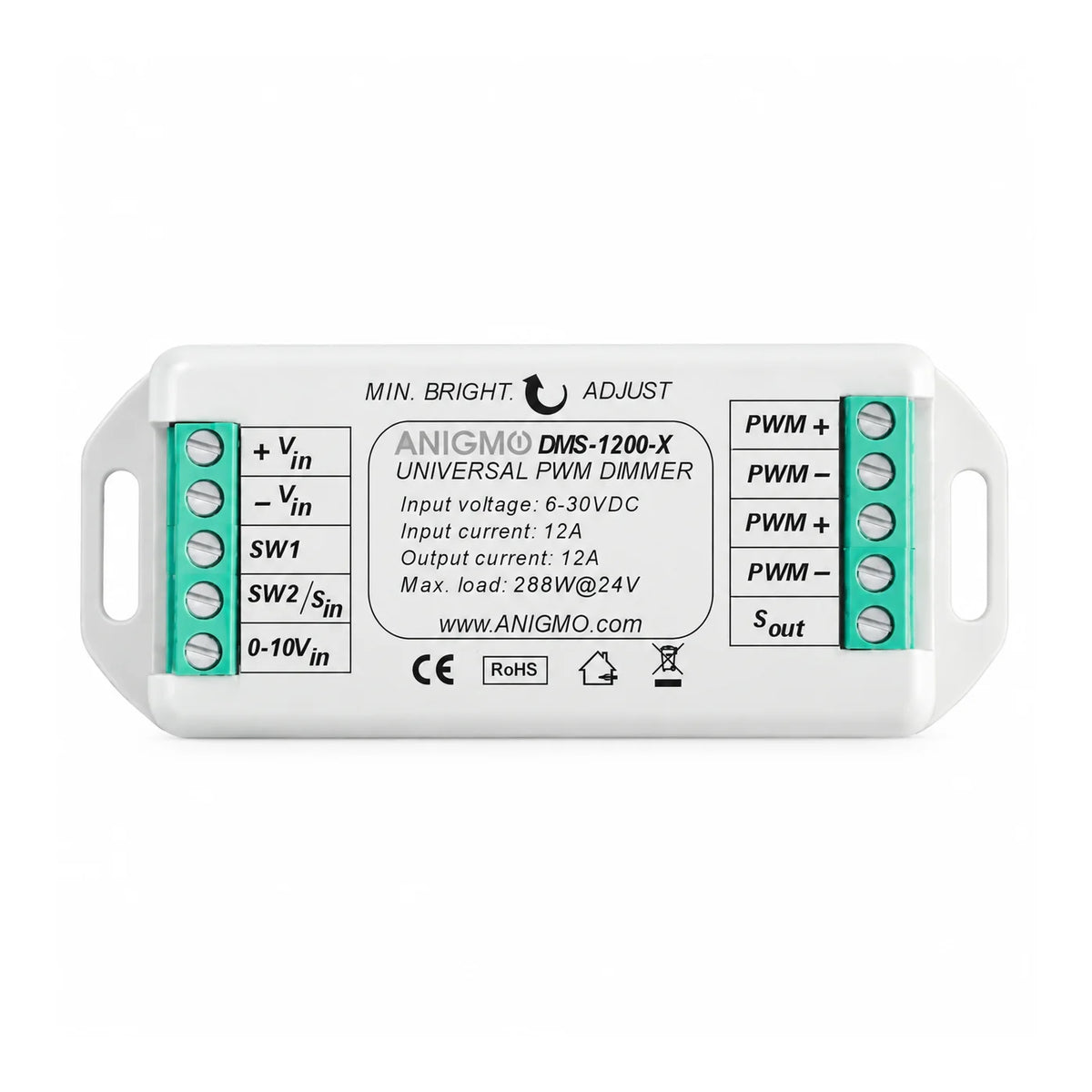

The Imtra ILDMS-1200-X is a DMS-1200 universal low-voltage LED dimmer that provides adjustable brightness and on/off control for compatible marine lighting systems. Operating on a 6-30VDC power supply with a maximum output capacity of 12A, it uses pulse-width modulation (PWM) to control dimmable LED fixtures, strips, and compatible incandescent or halogen lighting.

The module supports several control methods, including single or dual momentary switches, potentiometers, and 0-10V control signals from compatible lighting management systems. Its adjustable minimum brightness setting helps accommodate different LED loads, while integrated electrical protections address overload, overheating, and short-circuit conditions.

Key features

• 12A maximum output capacity, supporting up to 144W at 12VDC or 288W at 24VDC.

• 6-30VDC power input for low-voltage lighting systems.

• 0-100% PWM dimming range with adjustable minimum brightness.

• Supports momentary pushbutton, up/down switch, potentiometer, and 0-10V control.

• Integrated short-circuit, overload, and overheating protection.

• Screw-terminal electrical connections accommodate conductors up to 14 AWG.

• Compact housing measuring 96 x 40 x 20 mm.

Installation and setup

The dimmer can be secured using screws, double-sided tape, or cable ties in a dry location within its specified operating temperature range of 0°C to 50°C. Installation near the connected lighting fixtures helps minimize output wiring length. Wiring must follow the applicable control configuration and electrical installation requirements.

Momentary switches provide direct on/off and brightness adjustment, while a compatible 0-10V controller or potentiometer allows the lighting level to follow an external control signal. When integrating a 0-10V control system, its negative control connection must remain isolated from the power supply negative as specified in the wiring instructions.

Lighting compatibility

The DMS-1200 is suitable for compatible constant-voltage LED lighting circuits, including dimmable lamps and LED strips, as well as supported low-voltage incandescent and halogen loads. Fixture compatibility, operating voltage, and total connected current should be verified before installation to ensure the lighting load remains within the dimmer's electrical limits.
