Vimar Plana 1-Module Interchangeable Button, Lightable Diffuser, IP40, Halogen-Free

Overview

The Vimar Plana Series is a range of 1-module interchangeable buttons with a lightable diffuser for switch or push-button positions in Plana installations. Each version keeps the same compact 22.2 x 43.7 x 7.9 mm format and IP40 protection, so it suits interior control points where you want a clean illuminated face and clear room-status marking.

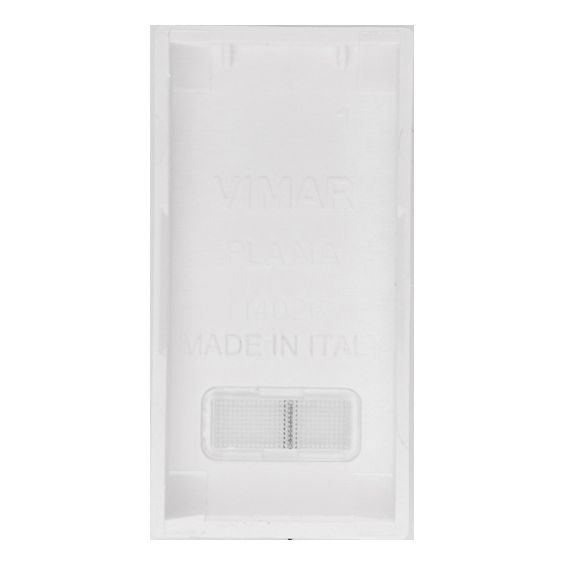

This is the visible front button rather than a complete powered control unit. It uses thermoplastic construction, a glossy finish, clamp mounting, and a built-in light outlet in the diffuser. On board, that makes it useful in cabins, corridors, heads, and service areas where a small illuminated button can help identify functions or room status without taking extra panel space.

Because it is an IP40 component, it is better suited to protected interior locations than exposed exterior positions. For refit work, the 1-module size matters just as much as the finish and symbol, since it needs to match the Plana layout already on the vessel or in the accommodation space.

Key features

• 1-module interchangeable button for Vimar Plana switch or push-button positions.
• Lightable diffuser with monitoring window for illuminated indication at the control point.

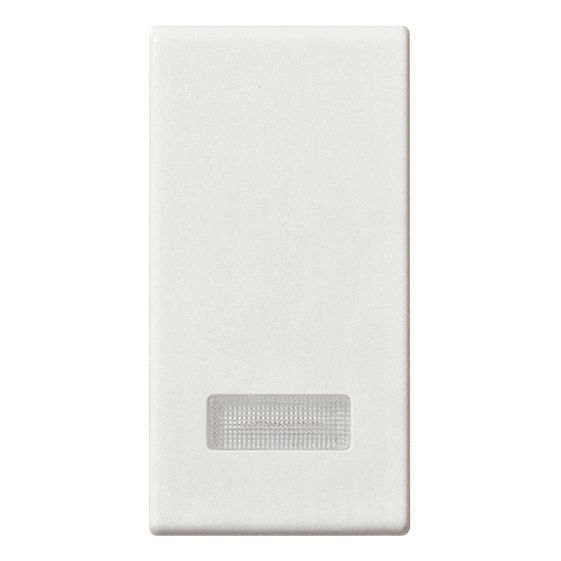

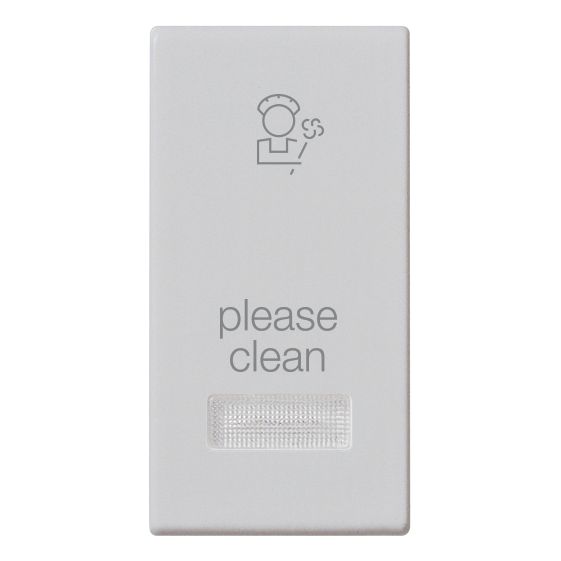

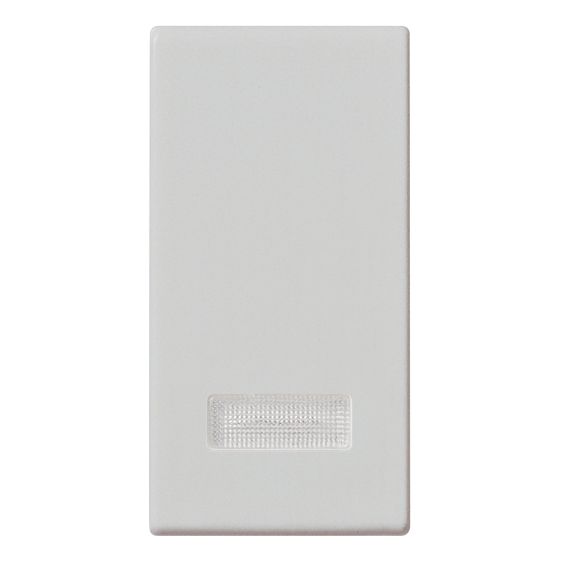

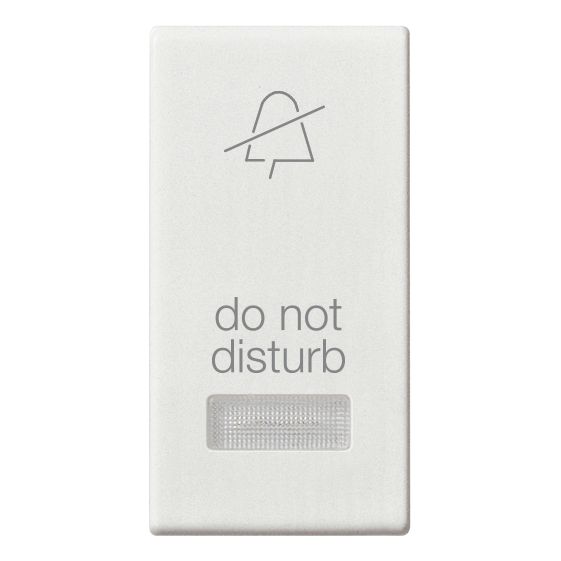

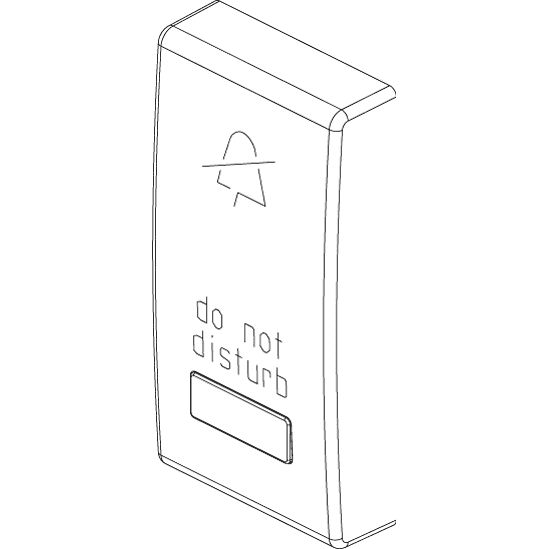

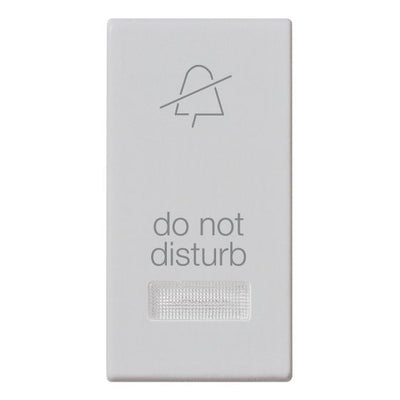

• Available in white or silver, with plain, Do Not Disturb, or Please Clean front markings.
• Thermoplastic body that is halogen-free, with glossy surface finishing.
• Clamp-mounted format with IP40 protection for protected interior installations.

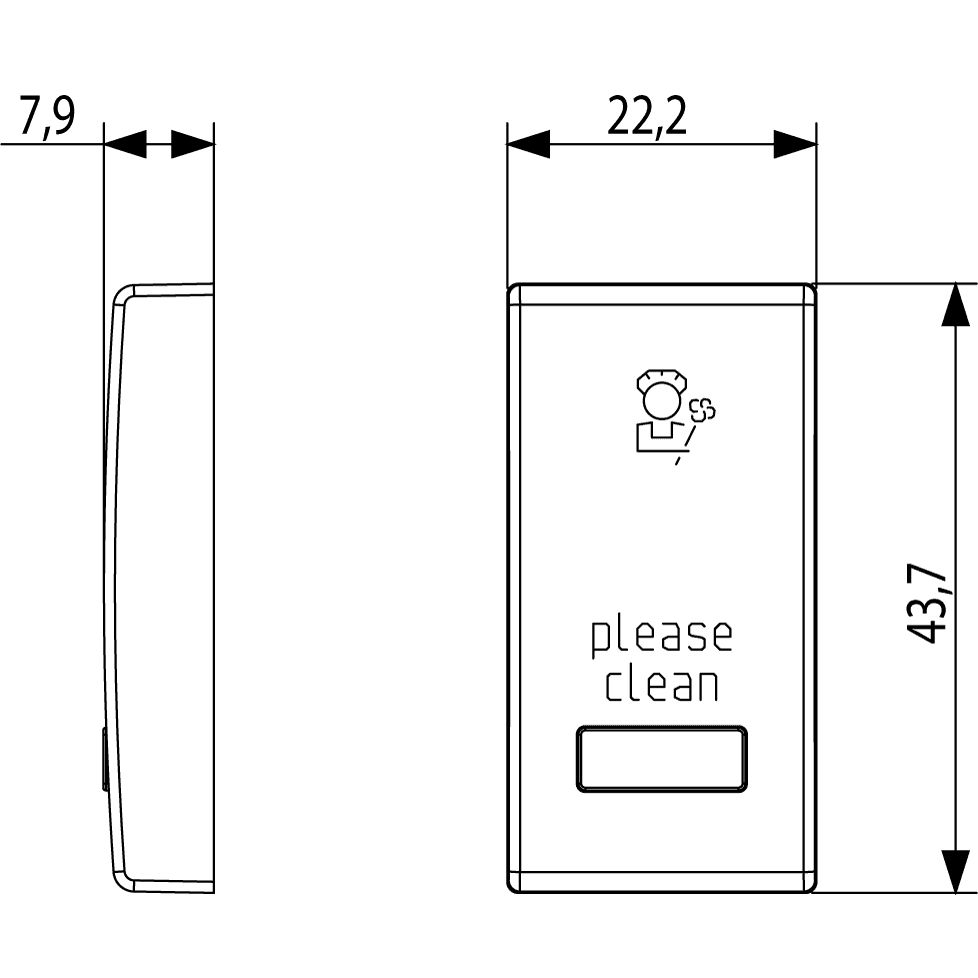

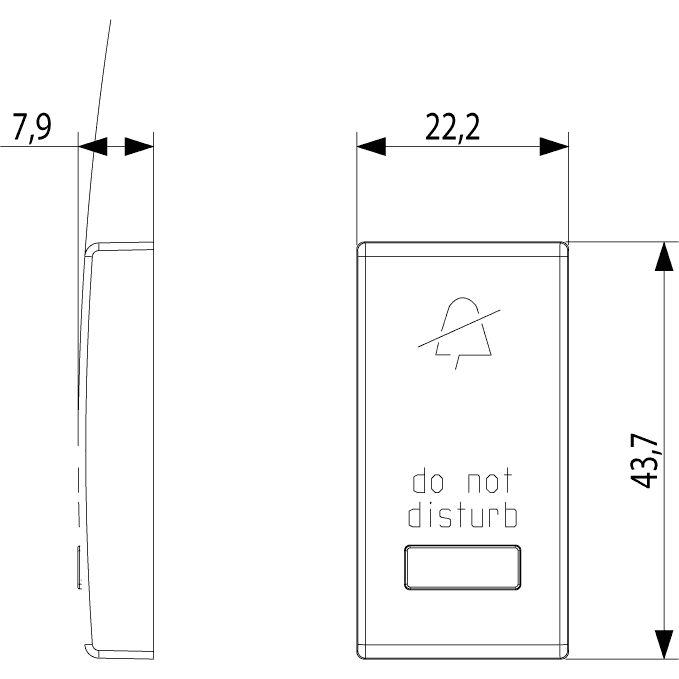

• Compact size of 22.2 x 43.7 x 7.9 mm for tight switch panels and modular plates.

Variants

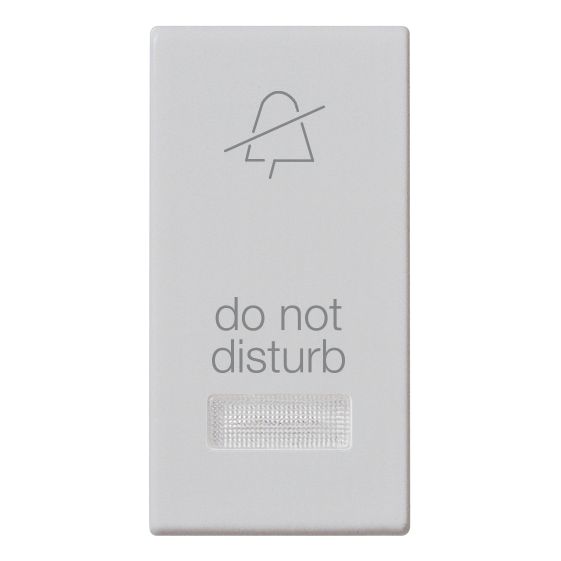

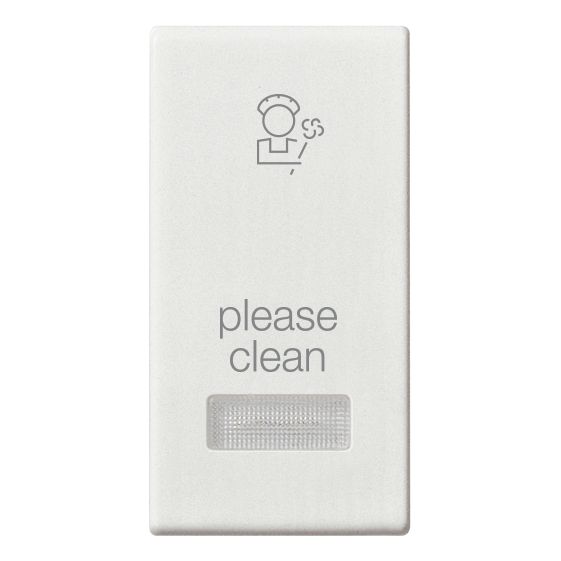

This range changes mainly by finish and front symbol. The listed versions are offered in white or silver, with either a plain face, a Do Not Disturb symbol, or a Please Clean symbol.

That makes the family easy to match to the look of the panel and the way the space is used. Plain versions keep the face neutral for general switching, while the marked versions are more suitable where crew or guests need a clear visual cue at the door or inside a cabin area.

Compatibility and fit

Fit is straightforward when the installation already uses the Vimar Plana modular system and needs a 1-module front button with diffuser. The button is intended for domestic switching-device positions and for switch or push-button use, so it is a trim and control element rather than a standalone electronic accessory.

For marine projects, this matters most in interior refits where panel consistency is important across cabins and passageways. The white finish aligns with a clean low-contrast look, while silver gives more visual separation on the plate without changing the module size.

Installation and onboard use

The clamp-mounted format helps during replacement work because the button can be swapped without changing the overall plate layout. The illuminated diffuser is useful in low ambient light, especially on overnight passages or in accommodation spaces where you want the control point to remain easy to spot.

This product is a sensible match for builders and refit teams maintaining guest areas, crew spaces, or interior service zones on yachts and commercial vessels. It is less suited to washdown zones, open cockpits, or other exposed locations where a higher level of ingress protection would be needed.
