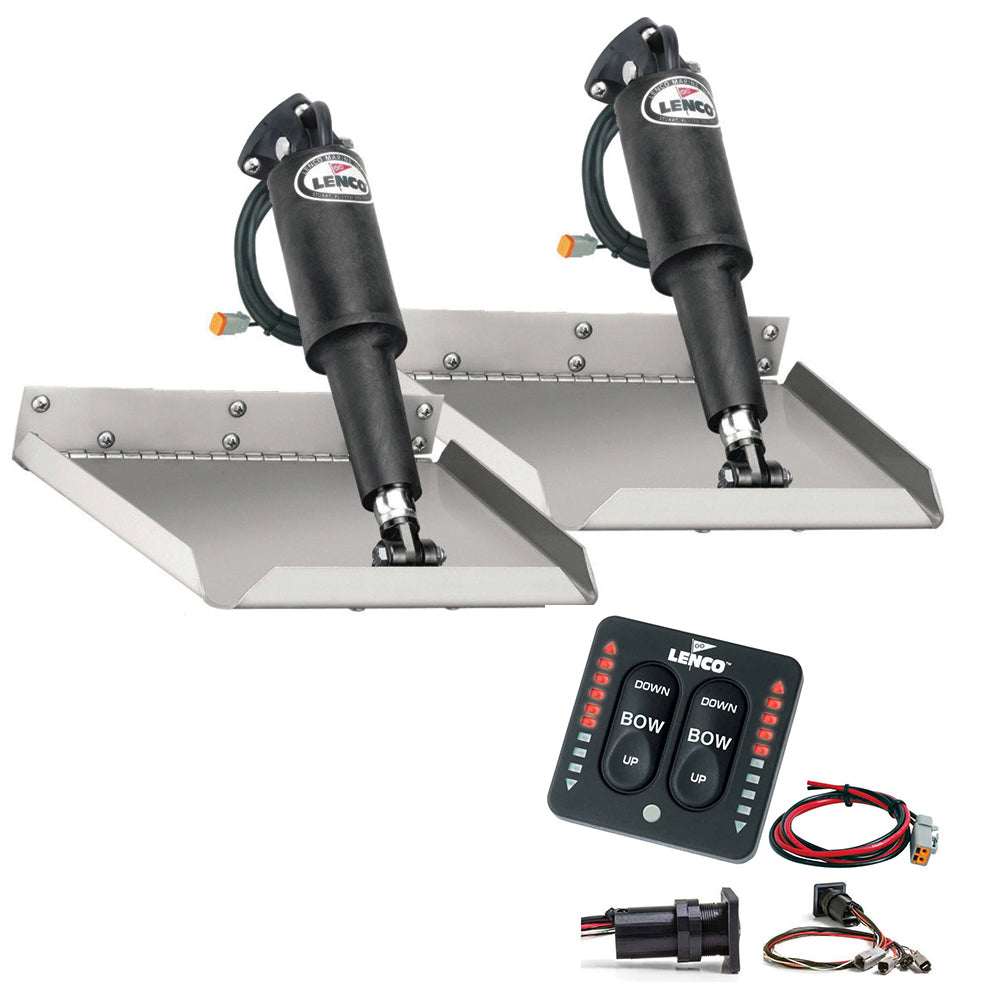

Lenco Marine - Edgemount Trim Tab Kit - With LED Indicator Switch Kit 12V

Elevate Your Boating Experience with Advanced Trim Tab Technology

The Lenco 9" x 9" Edgemount Trim Tab Kit with LED Indicator Switch is designed to significantly enhance your boat's performance. This advanced trim tab system ensures smoother, drier, and faster rides while increasing overall safety. Perfect for both small skiffs and large yachts, Lenco’s trim tabs offer unparalleled reliability and efficiency, making them an essential upgrade for any boat.

Comprehensive Benefits and Uses

Lenco's Edgemount Trim Tab Kit features innovative electric actuators that deliver instant response for precise control. These actuators are fully submersible, maintenance-free, and sealed for life, ensuring long-lasting performance in harsh marine environments. The trim tab planes are crafted from 12-gauge laser-cut stainless steel, providing exceptional strength and durability. Additionally, the system includes a tactile switch with an LED indicator, offering intuitive control and clear feedback on the position of your trim tabs.

Key Features and Advantages

• Instant Response Actuators: Provide precise control and are fully submersible and maintenance-free.
• High-Durability Trim Tab Planes: Made from 12-gauge stainless steel for superior strength.
• Self-Locking Ballscrew: Ensures the trim tabs remain in position, even while backing down.
• Corrosion-Proof Mounts: High-impact mounts maintain their appearance and performance through years of use.
• Space-Saving Installation: Clean and efficient setup that saves time and space.
• Environmentally Conscious: Oil-free design reduces environmental impact.

Tactile Switch with LED Indicator

• Self-Contained Keypad: Sealed for protection against the elements.
• Laser Engraved Graphics: Fade and smudge-proof for lasting clarity.
• Plug & Play Harness: Simplifies installation with quick connectors.
• LED Indicator Display: High-intensity LEDs show exact trim tab positions, adjusting brightness based on ambient light.
• Built-In Retract Feature: Automatically returns trim tabs to a fully retracted position when power is removed.
• Compatibility: Works with both 12V and 24V systems.

Kit Contents

• LED Indicator Switch Kit: Tactile switch with LED indicators for precise control.
• Electric Actuators: Two actuators with 6' leads and Deutsch plugs.
• Actuator Extension Wiring Harnesses: Two 20' harnesses for flexible installation.
• Trim Tab Planes: Two 12-gauge stainless steel planes.
• Mounting Brackets: Upper and lower brackets with gland seal.
• Stainless Steel Hardware: All necessary mounting hardware for installation.

Technical Specifications

• Suggested Boat Length: Suitable for boats from 16' to 30'.
• Blade Dimensions: 9" length x 9" width (other sizes available).
• Material: 12-gauge stainless steel.
• Finish: Smooth.
• Actuators: 12-volt.
• Switch Kit: LED indicator tactile switch.

General Dimensions

• Length of Tab: 9 inches
• Width of Tab: 9 inches

Premium Finishes

• Stainless Steel: Ensures durability, corrosion resistance, and a sleek, polished appearance.

Product Variations

• 9" x 9" (TT9X9EI): Standard size for versatile applications.
• 12" x 9" (TT12X9EI): Larger size for additional control.
• 12" x 12" (15110-103): For more demanding applications.
• 12" x 18" (TT12X18EI): For the highest level of performance and control.

Important Safety Information

This product contains chemicals known to the State of California to cause cancer and reproductive harm.

Manufacturer's Note

Please note that this product cannot be returned to the original point of purchase. For any issues or concerns, contact the manufacturer directly for assistance and support.

Enhance your boat's performance with the Lenco 9" x 9" Edgemount Trim Tab Kit with LED Indicator Switch, providing unparalleled control, durability, and efficiency. Ideal for a wide range of boats, this trim tab kit ensures your vessel operates at its best, offering a smoother and more enjoyable ride.
