Imtra DMS Universal LED PWM Dimmer, 6-30VDC, 0-10V Input

Overview

The Imtra DMS Series is a universal low-voltage LED dimmer that uses pulse width modulation (PWM) to provide smooth, flicker-free brightness control for marine lighting circuits. Operating from a 6-30VDC power supply, it supports dimmable 12V and 24V LED bulbs, flexible and rigid LED strips, and compatible low-voltage halogen and incandescent lamps.

The dimmer accepts several control methods, including momentary switches, potentiometers, and 0-10V control signals. Its adjustable minimum brightness setting allows the dimming range to be tailored to the connected lighting, while built-in electrical protections help manage overload, overheating, and short-circuit conditions.

Key features

• 6-30VDC input voltage range for low-voltage DC lighting systems.

• High-frequency PWM control with a 0-100% dimming range.

• Supports compatible 12V and 24V LED, halogen, and incandescent lighting.

• Accepts momentary push-button, potentiometer, and 0-10V control inputs.

• Adjustable minimum brightness level.

• Overload, overheating, and short-circuit protection.

• Multiple dimmer modules can be synchronized for larger lighting loads.

• Compact 96 x 40 x 20 mm housing with screw-terminal connections.

Variants

The DMS Series is available in two configurations with different electrical load ratings.

Both configurations share the same operating voltage range, PWM dimming functionality, and control options. The load rating determines the maximum current capacity of the connected lighting circuit.

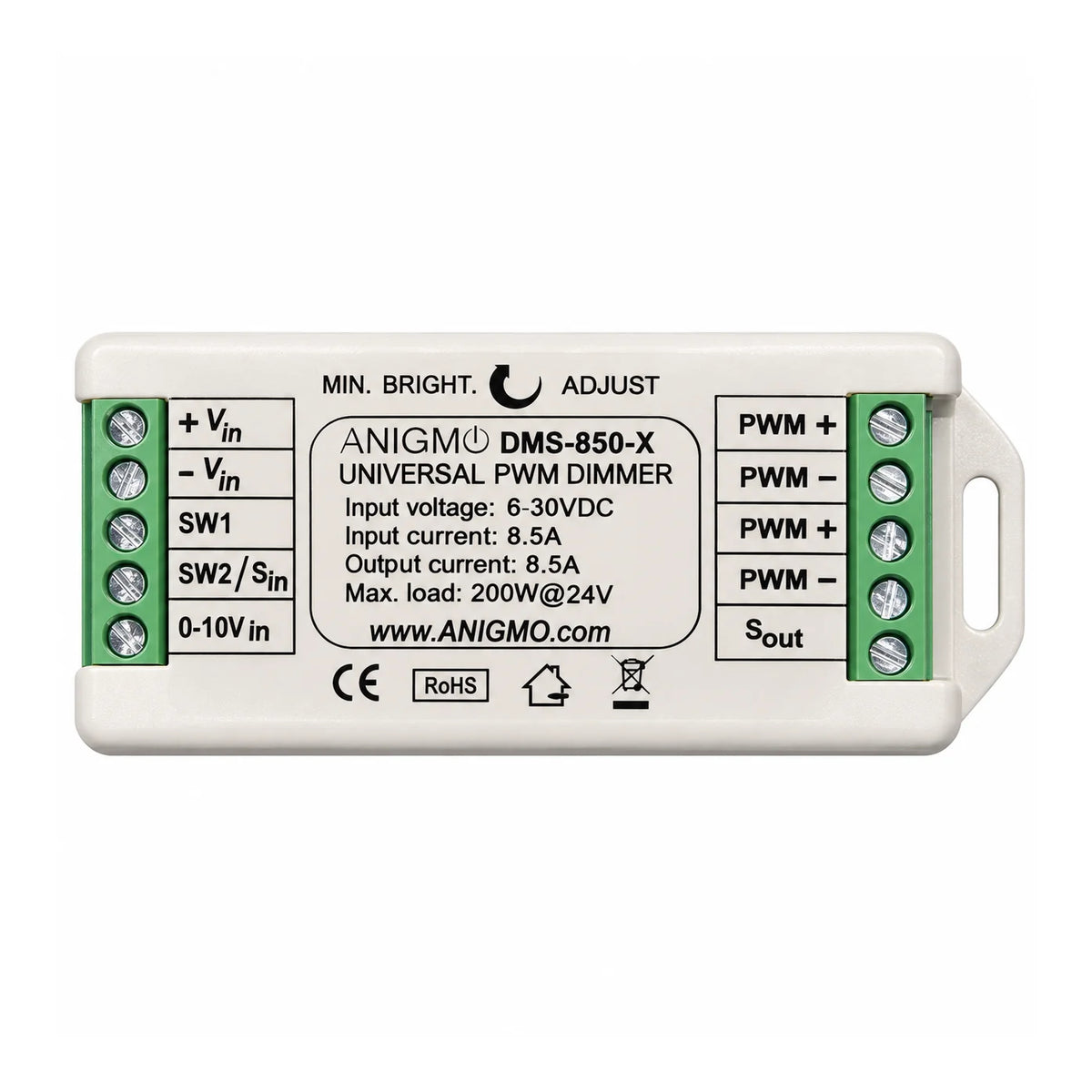

• ILDMS-850-X, Load Rating 8.55A: Higher-current configuration for lighting circuits requiring greater load capacity.

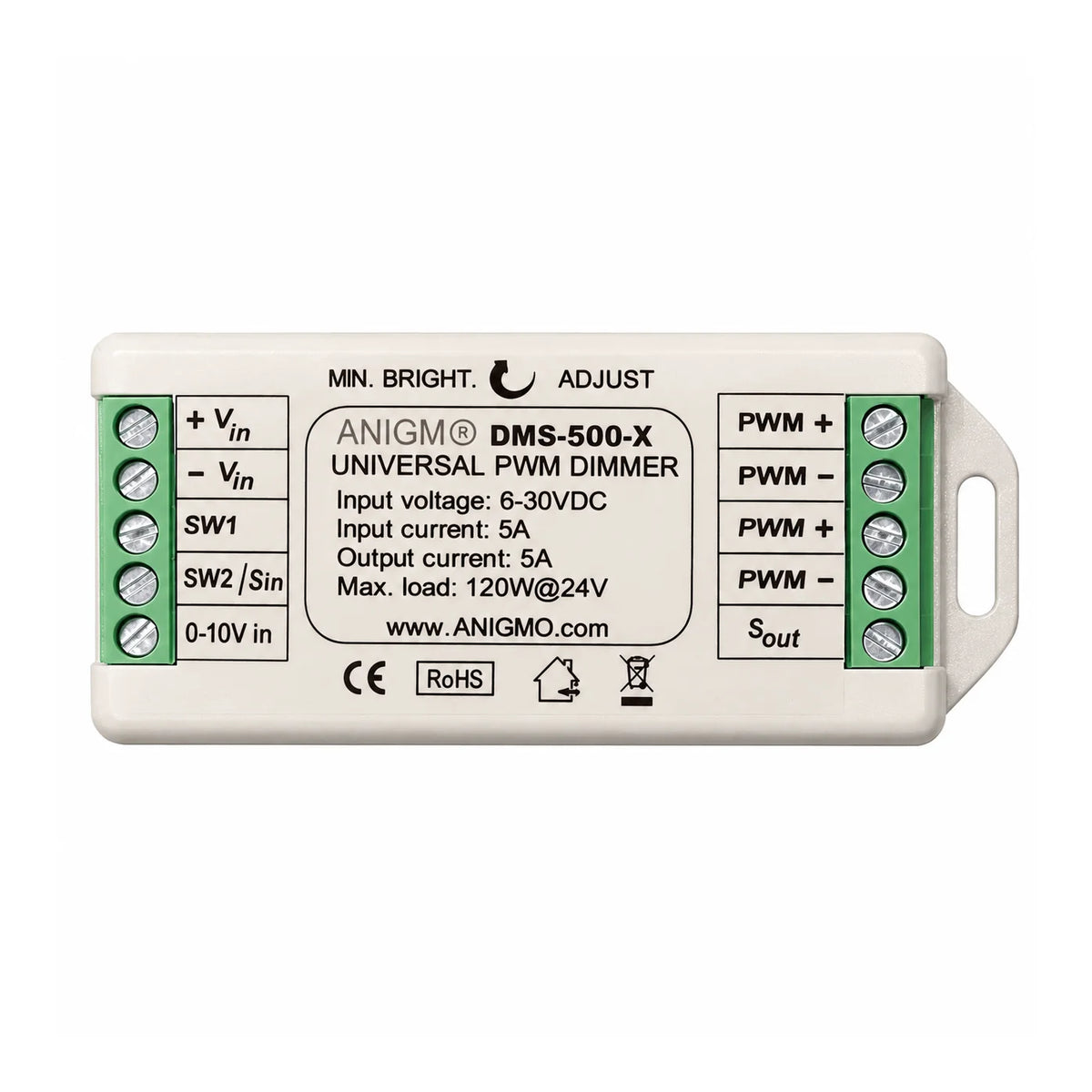

• ILDMS-500-X, Load Rating 5A: Lower-current configuration for lighting circuits within the 5A load limit.

Installation and control

The dimmer connects to the DC power supply, lighting load, and selected control interface through screw terminals accommodating conductors up to 2 mm2 (14 AWG). Control arrangements include single momentary switching, separate up/down momentary switches, potentiometer control, and integration with compatible 0-10V control systems.

For installations with lighting loads exceeding the capacity of a single module, multiple DMS dimmers can be synchronized. The connected lighting must be compatible with PWM dimming, and the total circuit load must remain within the selected module's current rating.
