Vimar E27 Lampholder, Partially Threaded Skirt, Glass-Reinforced Polyester Resin

Overview

The Vimar 02104 E27 lampholder is a four-variant range of Edison lamp holders for portable lighting assemblies and replacement work where the entry style and finish need to match the existing fitting. Across the range, the holder format stays E27 and the body is made from glass-reinforced polyester resin.

The main differences are the mechanical entry and the finish. Two versions use an M10x1 nipple with a locking screw and a partially threaded skirt with casing lock, while the other two use a dome with shaped threaded entry and a partially threaded skirt with shade-holder seat. Black and white versions are available in both entry styles.

This is the kind of part to check when replacing a worn holder in a cabin lamp, berth light, or other onboard fixture where the lamp base is E27 but the mounting detail has to line up with the existing hardware.

Key features

• E27 Edison lampholder format for fixtures built around a standard E27 holder
• Glass-reinforced polyester resin body
• Available with an M10x1 nipple and locking screw or with a dome and shaped threaded entry
• Black and white finishes across the range
• Partially threaded skirt arranged either for casing lock or for a shade-holder seat, depending on variant

Variants

This range is offered in four configurations.

What changes between variants is the body color and the entry style. The E27 holder format and the glass-reinforced polyester resin construction remain the same across the range.

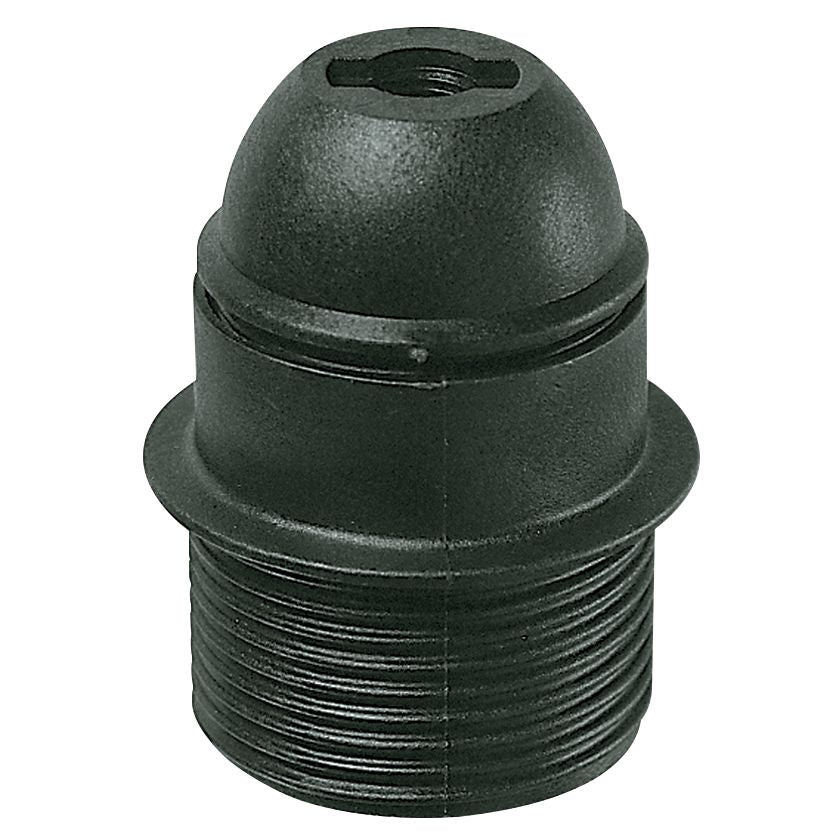

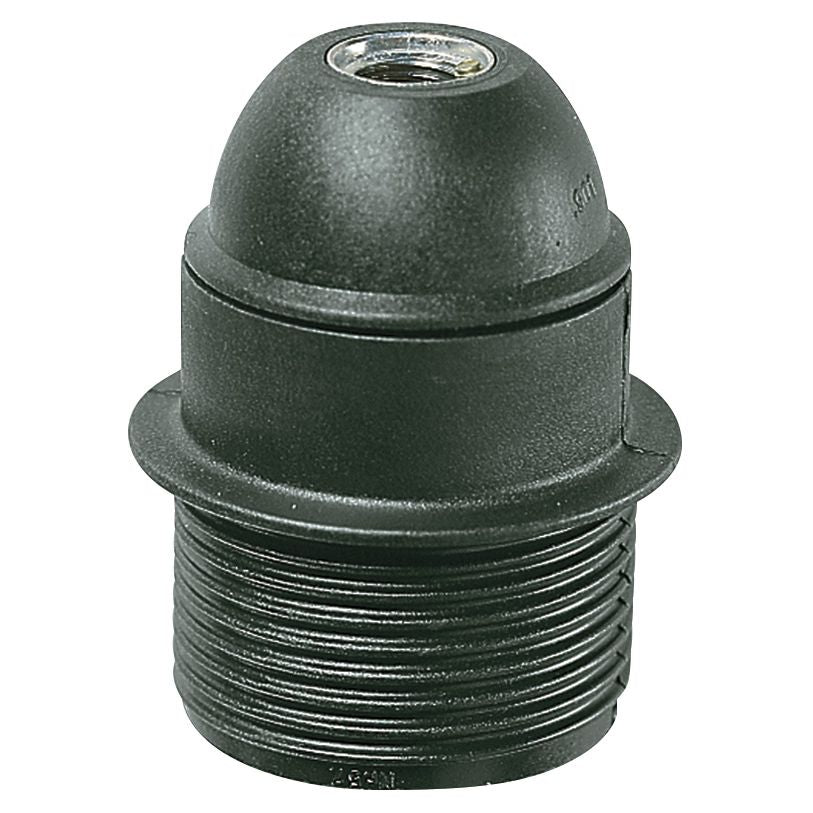

• VM02104: Black finish with M10x1 nipple and locking screw. This version suits fittings built around a threaded nipple connection.

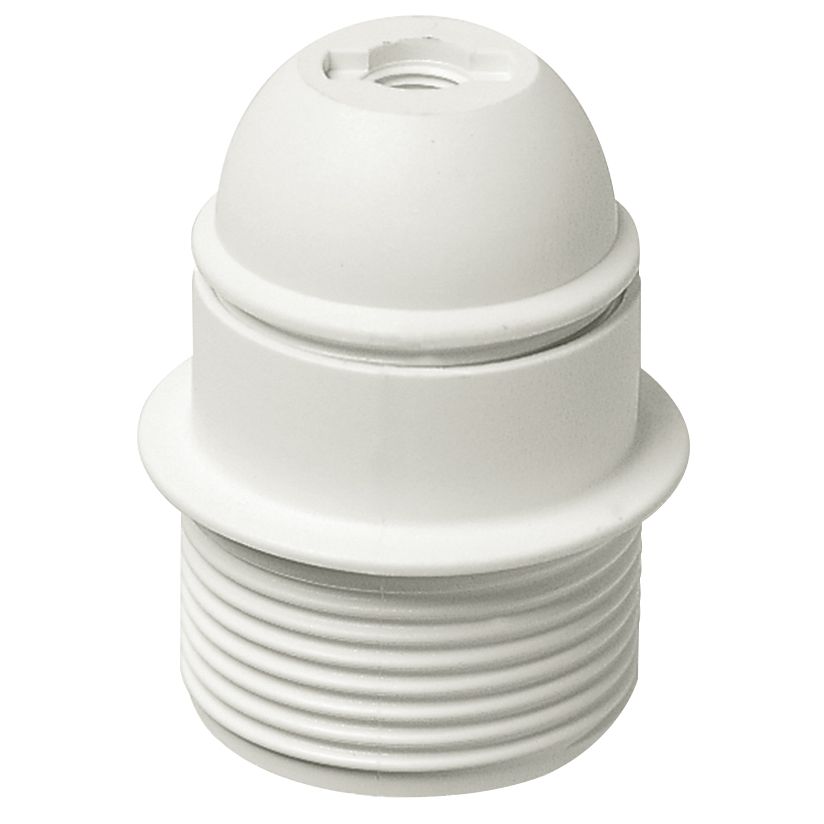

• VM02104.S.B: White finish with dome and shaped threaded entry. It matches dome-style fittings in a white finish.
• VM02104.S: Black finish with dome and shaped threaded entry. This version uses the dome-style arrangement with a shade-holder seat.

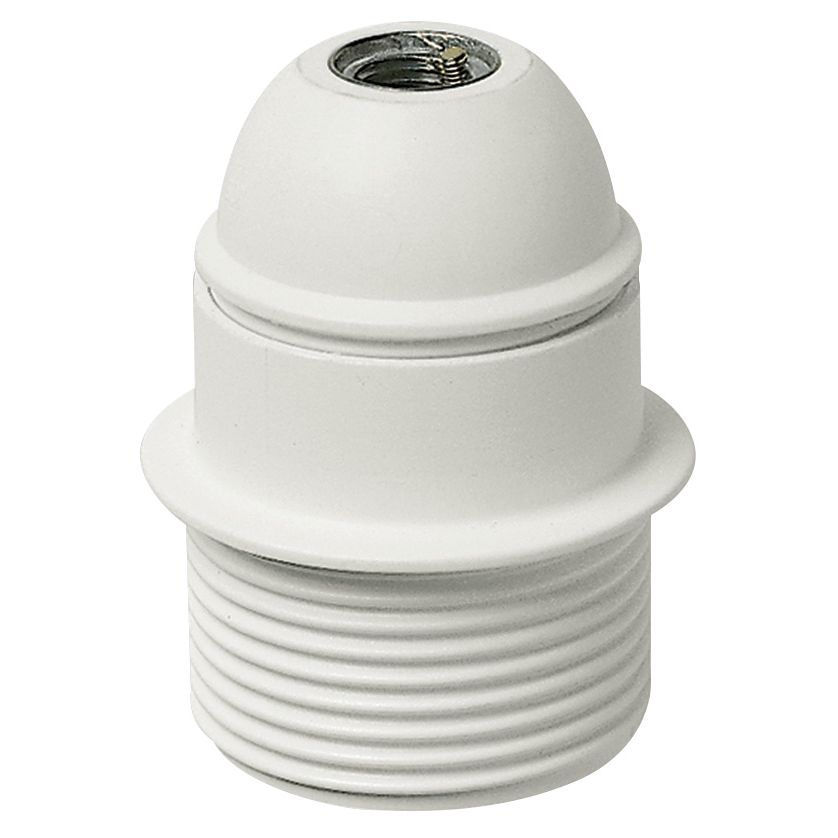

• VM02104.B: White finish with M10x1 nipple and locking screw. It keeps the threaded nipple connection in a white finish.

Compatibility and fit

Check three points before ordering: the fixture must use an E27 lampholder, the entry style must match your existing hardware, and the visible finish should suit the light fitting. For nipple-mounted setups, confirm an M10x1 threaded connection with locking screw. For dome-style setups, confirm the shaped threaded entry and shade arrangement already used by the fixture.

Because the mounting details differ between the M10x1 and dome versions, matching the existing lampholder is more important than matching the lamp alone. That is usually the difference between a straight replacement and a fitting that needs extra parts or rework.

Use on board

On boats, this type of part makes sense in interior lights and service lamps where an older E27 holder has cracked, discolored, or loosened at the entry point. It is a practical match for owners or yards repairing one fitting at a time and trying to keep the original mounting style.
