Lectrotab - Joystick LED Trim Tab Control

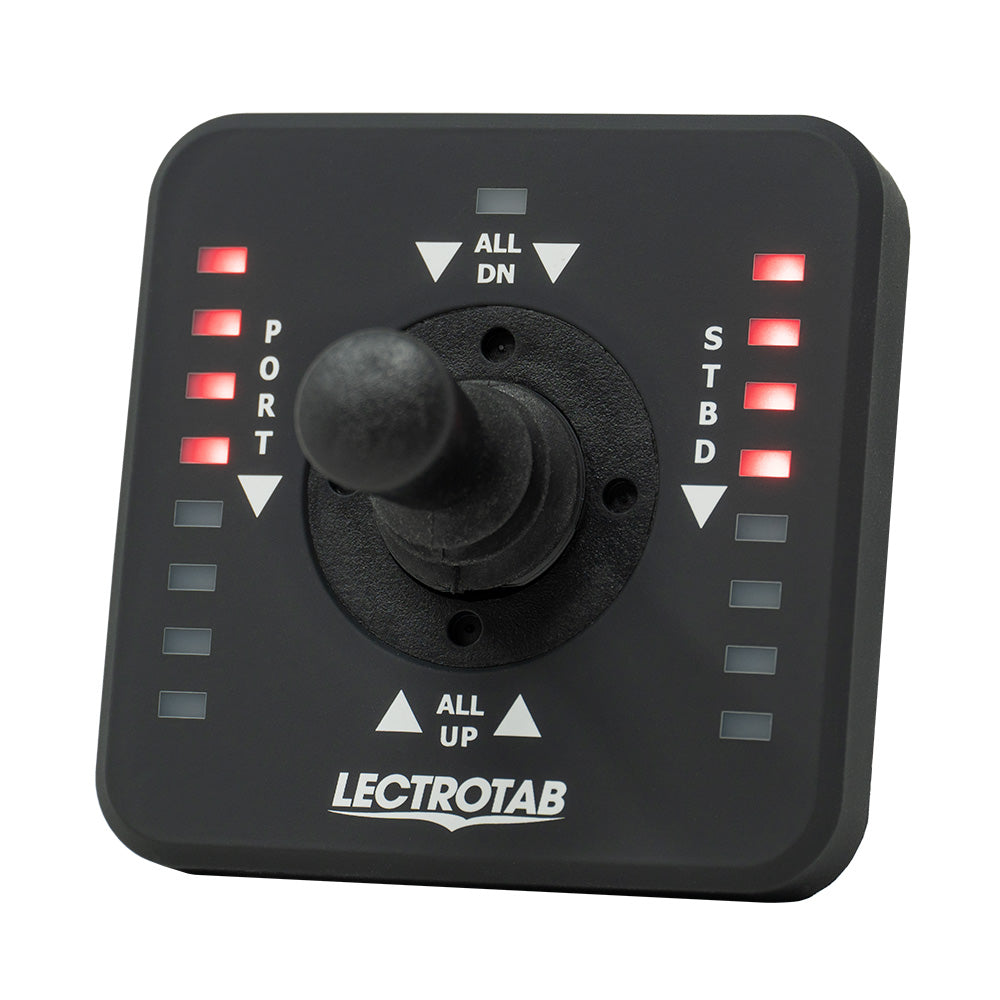

Take Control with Lectrotab's Joystick LED Trim Tab Control

Introducing the Lectrotab Joystick LED Trim Tab Control, the ultimate solution for precision and ease in managing your vessel's trim tabs. Designed with feedback from boat owners in mind, this control combines advanced technology with user-friendly features for an enhanced boating experience. The intuitive joystick allows for simple operation, providing immediate adjustment of your trim tabs with a single touch. Equipped with an LED display for clear visibility of trim tab positions, and NMEA 2000 compatibility for seamless integration, this control is both powerful and convenient, making it an essential upgrade for any boater seeking the best in navigation and stability.

Exceptional Features for Superior Performance

• Intuitive single "Joystick" control for easy trim tab adjustment
• NMEA 2000 compatibility ensures seamless system integration
• LED display offers real-time trim tab position indicators
• Microprocessor-based control for precise tab adjustments
• Dual station capability with the addition of a second JLC-11 and cable (sold separately)
• Automatic memory feature returns tabs to last position after ignition cycle
• Fully sealed and waterproof design, resistant to sunlight deterioration
• Automatic tab retraction and calibration for added convenience
• Easy upgrade path from existing Lectrotab controls
• No external power module required for simplified installation
• LED indicators automatically adjust brightness based on ambient light
• Supports single or dual actuator configurations per tab
• Compatible with both 12 or 24 VDC systems

Technical Specifications Detailed for Your Vessel

• Display Color: Sleek Black, complementing any vessel aesthetic
• Flexible Station/Actuator Configuration: Single or Dual Station, 1 or 2 Actuators per tab
• Compact Dimensions: Width and Height/Thickness - 3.0" (77mm) / 2.0" (50mm)
• Mounting Hole Cutout: 2.625" (66.7mm) Diameter for easy installation
• Voltage Compatibility: Operates on 12/24 VDC systems
• Recommended Fuse Size: 12 VDC - 15 or 20 AMPs, 24 VDC - 10 AMPs
• Auxiliary Fuse Requirement: 1 to 2 AMPs for additional protection

Designed for the Modern Mariner

The Lectrotab Joystick LED Trim Tab Control is crafted for boaters who demand precision, durability, and ease of use. Its robust, waterproof design ensures reliability in all marine conditions, while the LED indicators provide clear visibility in any lighting. Whether upgrading from another Lectrotab control or integrating into a new system, this joystick control offers a straightforward installation process and versatile operation, making it an ideal choice for optimizing your vessel's performance.

Installation and Operation Made Simple

With overall dimensions designed for convenience and a standard mounting hole cutout, the Lectrotab Joystick LED Trim Tab Control is straightforward to install and integrate into your vessel's existing systems. Its compatibility with 12 or 24 VDC systems and adaptable for single or dual station setups makes it a versatile solution for any boating application, ensuring that you have precise control over your trim tabs for a smoother, more responsive boating experience.
