Lenco Marine - 101XDS Short Extreme Duty Actuator

Precision Engineering for Confined Marine Spaces

The Lenco 101XDS Short Extreme Duty Actuator is specially designed for marine applications where space is at a premium. As the shortest actuator in the Lenco lineup, it is perfect for OEM-specific kits and other limited-space installations. Despite its compact size, the 101XDS does not compromise on power or durability, offering robust performance and reliability in the harshest marine environments.

Unmatched Features for Superior Marine Performance

• Compact Powerhouse: With a 2.25-inch stroke and overall length of just 10 7/8 inches, this actuator is ideal for tight spaces without sacrificing strength.
• High-Impact Materials: Constructed from glass fiber-filled, ultraviolet-resistant nylon, and 316 super buff stainless steel tubing, ensuring longevity and resilience.
• Advanced Seal System: Features the newly implemented Anti Extrusion Ring (AXR) seal stabilization system and an integrated wiper seal at the actuator base for superior protection against water intrusion.
• Enhanced Strength: Includes a stronger top cap and mounting clevis design, as well as improved pressure-tight torx screws.
• Efficient Motor: The high-torque actuator motor easily pushes up to 500 pounds, making it twice as powerful as typical hydraulics.

Key Benefits at a Glance

• Ballscrew Design: Offers more reliability and power than traditional hydraulics, ensuring consistent performance.
• Waterproof Connections: Uses "Plug & Play" Deutsch connectors to prevent water intrusion and ensure secure electrical connections.
• Thrust Bearing Design: Molded-in brass thrust bearing for smooth and reliable operation.
• Easy Installation: Comes with 5/16" mounting hardware and a 6-foot cable for flexible installation options.

Technical Specifications

• Stroke Length: 2.25 inches

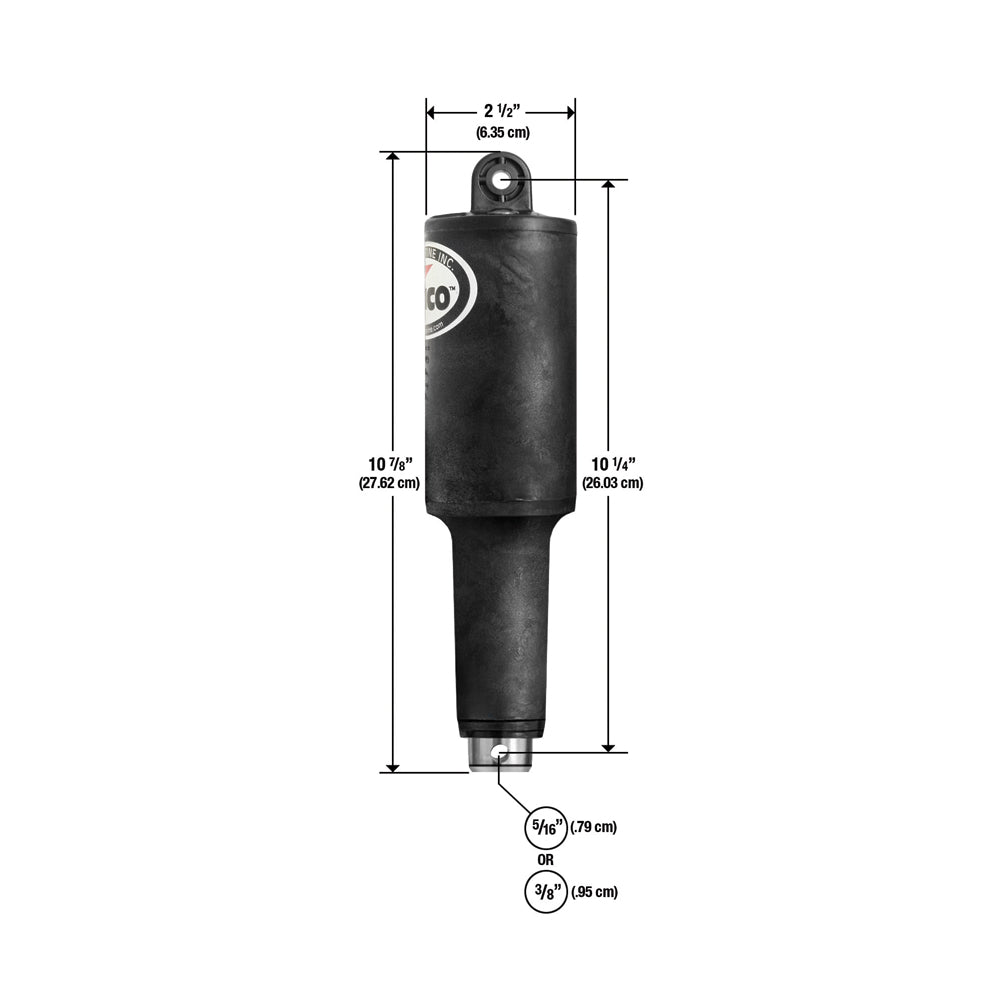

• Overall Length: 10 7/8 inches (tip to tip)
• Voltage: 12V
• Mounting Hardware: 5/16"
• Cable Length: 6 feet

Compact and Durable Dimensions

The 101XDS Short Extreme Duty Actuator’s compact size makes it an excellent choice for applications requiring a powerful actuator in confined spaces.

Finishes

• Standard Finish: Designed to withstand the demanding marine environment while maintaining a sleek, professional appearance.

Product Variations

• 15057-001 Size Stroke w/5/16" Hardware: Standard version with 5/16" mounting hardware for general applications.
• 15058-001 Size Stroke w/3/8" Hardware: Enhanced version with 3/8" mounting hardware for added stability and strength.
