Lopolight Double Port LED Navigation Light, 2nm, 112.5° Red Light

Overview

This Lopolight Double Port LED Navigation Light is a red port-side light with a 112.5° illumination sector and 2 nautical mile visibility range. Its double-light configuration is intended for horizontal mounting on vessels in the 12 to 50 meter range, with a CS/CD aluminum mounting base and plug connector.

The fixture features an anodized aluminum housing, PMMA lens, and IP68 ingress protection. It measures 92.5 mm in diameter by 96.5 mm and operates with a current consumption of 90 mA at 12V DC or 50 mA at 24V DC. Silver and black finishes are available with the same navigation light configuration and electrical characteristics.

Key features

• Double red port-side LED navigation light with a 112.5° illumination sector and 2 nautical mile visibility.

• IP68 ingress protection for marine installations exposed to water.

• Current consumption of 90 mA at 12V DC and 50 mA at 24V DC.

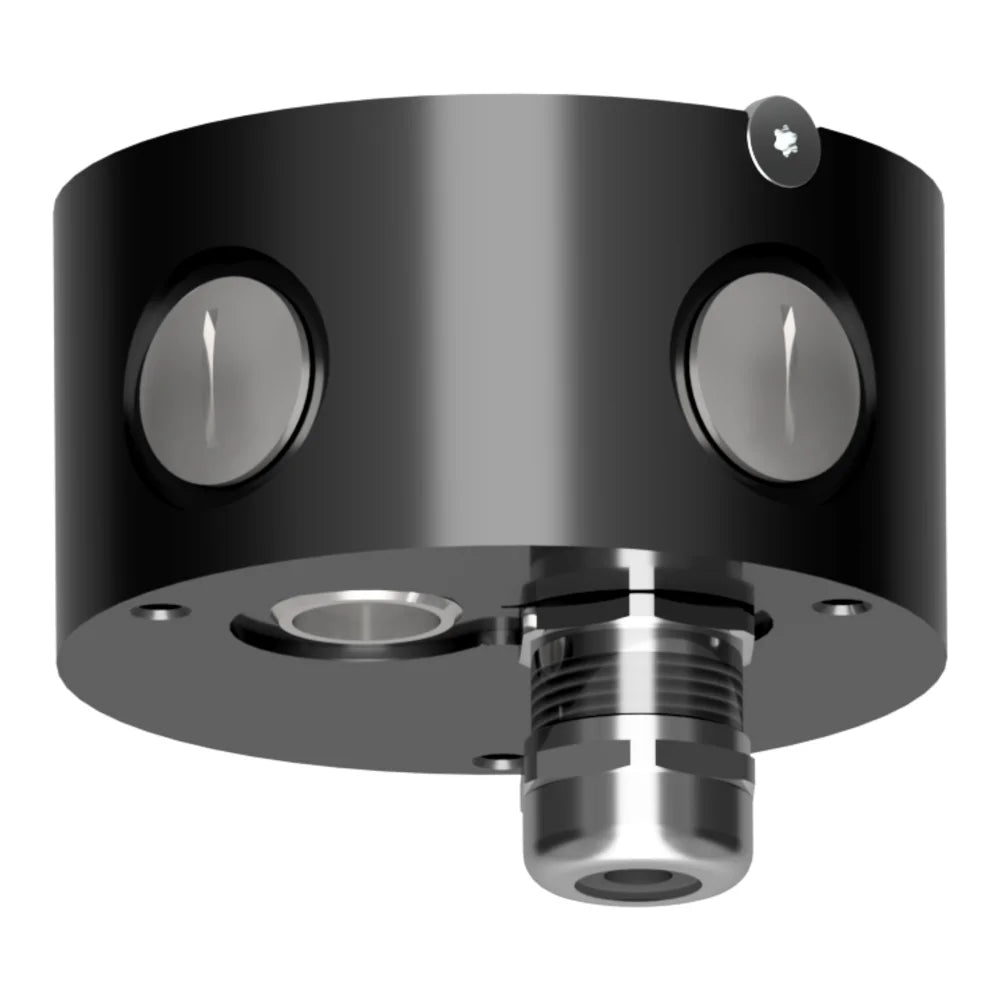

• Horizontal mounting configuration with CS/CD aluminum base and plug connector.

• Anodized aluminum construction with PMMA lens and A4 stainless steel screws.

• Overall dimensions of 92.5 mm diameter x 96.5 mm.

• Listed approvals include COLREG 72, EN 14744, IEC 60945, USCG, MED, DNV, and ABS.

• Operating temperature range of -25°C to 55°C.

Variants

This navigation light is available in two finish configurations, Silver and Black, each with its own part number.

Both versions retain the same red light output, double-light arrangement, visibility range, dimensions, electrical characteristics, IP68 rating, and CS/CD mounting configuration. The difference is the anodized aluminum exterior finish.

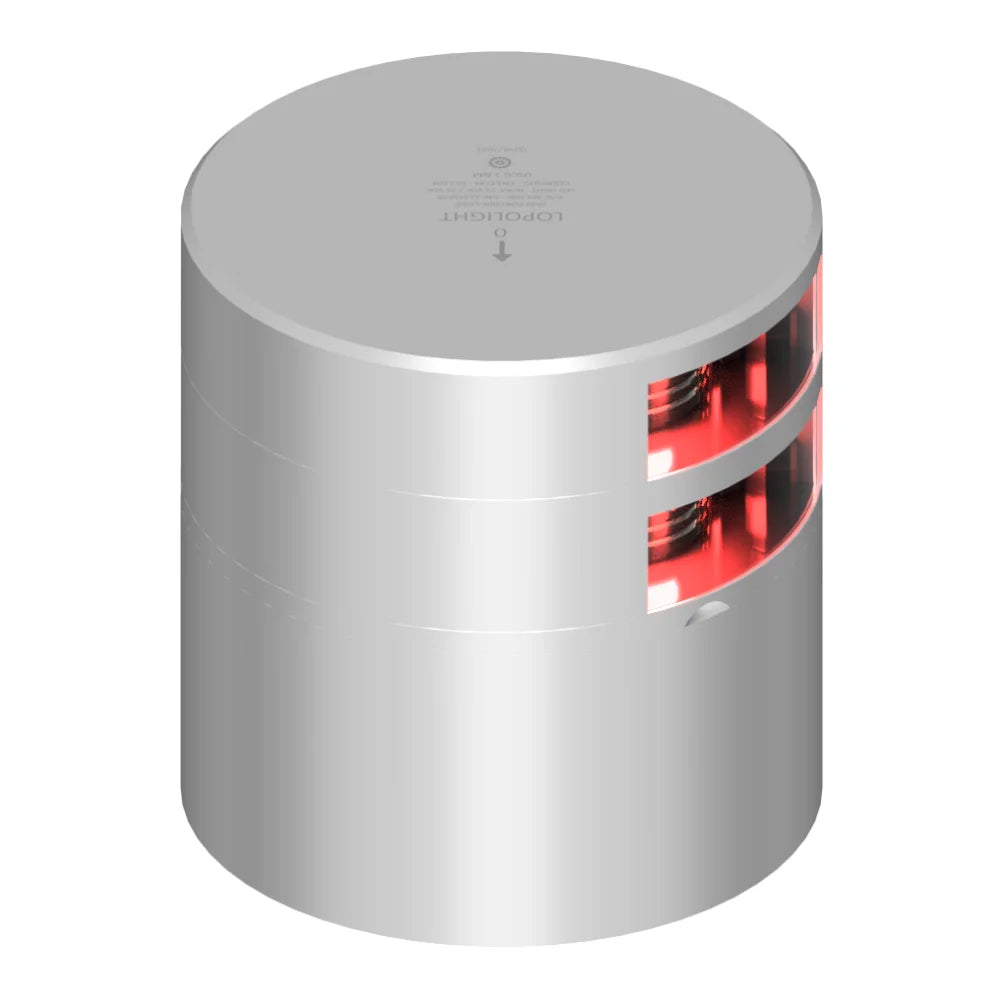

• 301-009ST-CSCD - Finish: Silver. Features a silver anodized aluminum housing and matching aluminum mounting base.

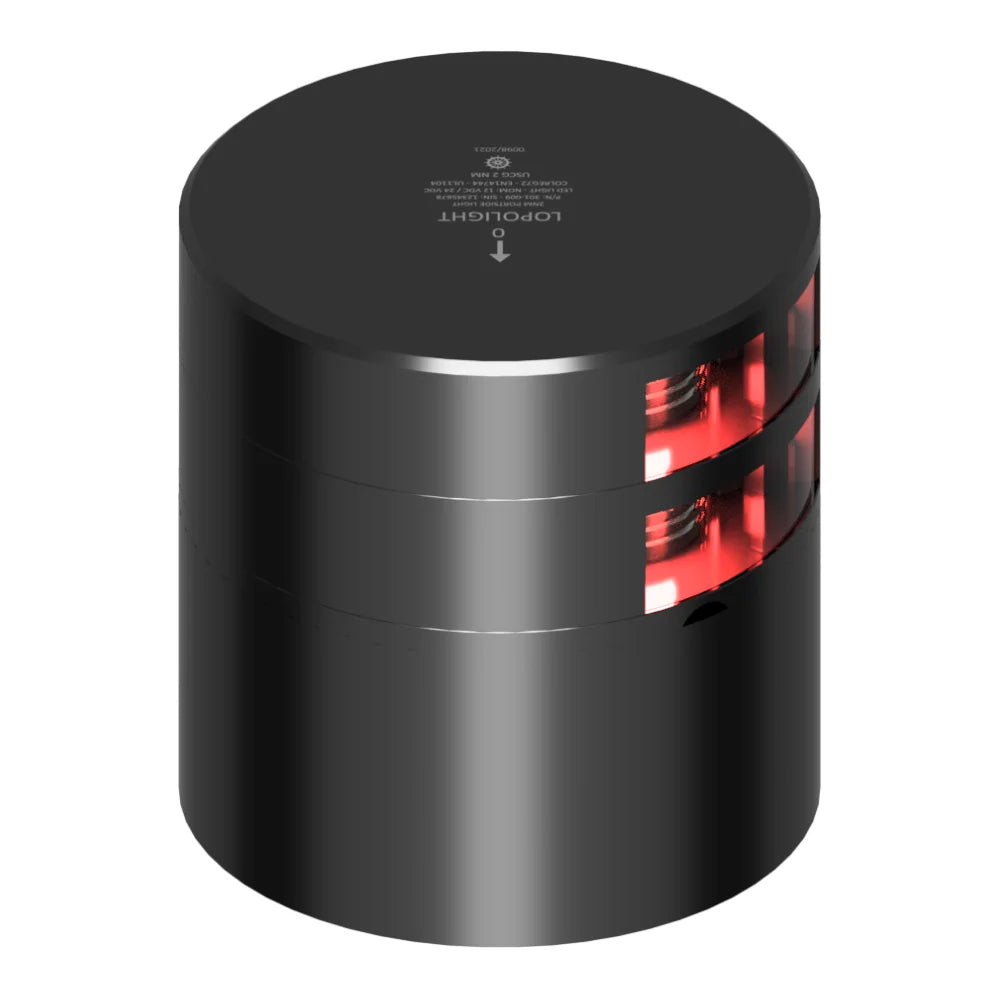

• 301-009ST-B-CSCD - Finish: Black. Features a black anodized aluminum housing and matching aluminum mounting base.

Installation and fit

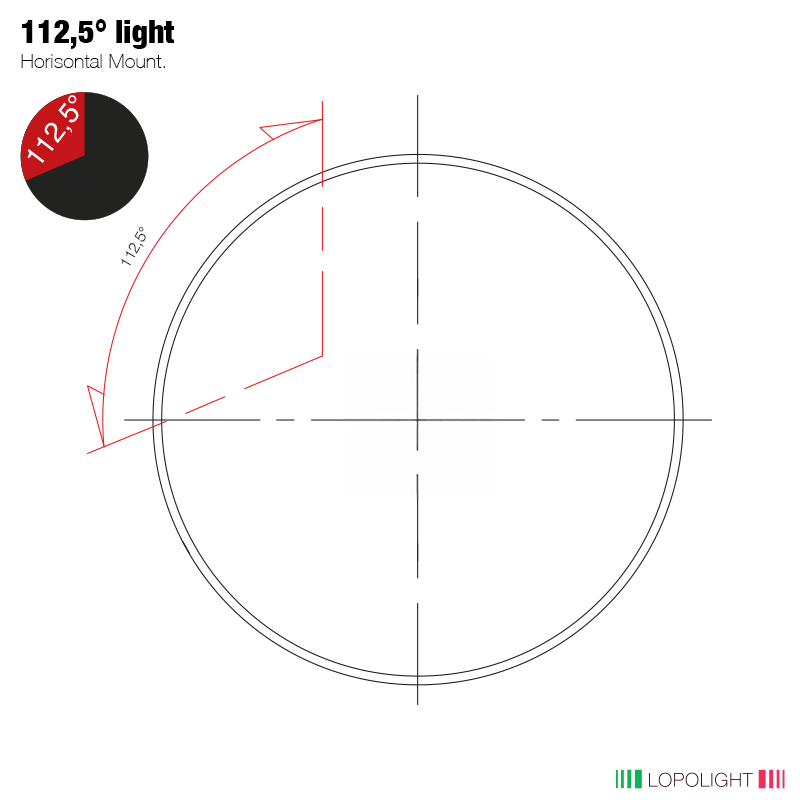

The horizontal mounting arrangement and plug connector support installation within a compatible vessel navigation lighting system. The CS/CD aluminum base forms part of the mounting configuration. The fixture is specified for vessels in the 12 to 20 meter and 20 to 50 meter categories, with its 112.5° red sector serving the port-side navigation light position.

What's included

• 1 Double port LED navigation light

• 1 Installation guide
