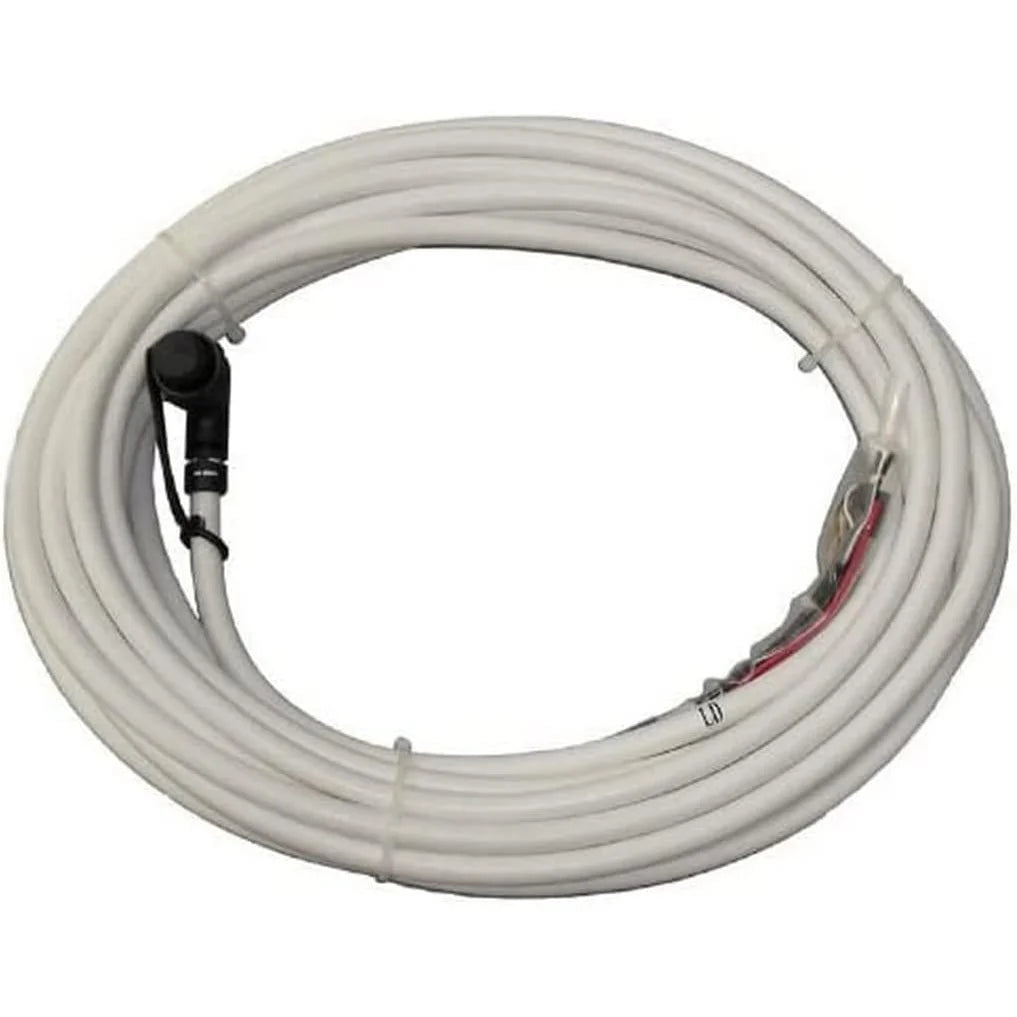

Raymarine Digital Radar Cable, RJ45 Connector

Overview

The Raymarine Digital Radar Cable with RJ45 Connector is a cable range for Raymarine digital radar installations, offered in 5 m, 10 m, 15 m, and 25 m lengths. It uses a radar connector at one end and an RJ45 connector at the other end, making it suitable for installations where the radar scanner cable needs to run from a mast, arch, hardtop, or radar mount back toward the display or network connection point.

This cable is mainly about fit and routing. The different lengths let the installer match the run to the boat layout without leaving excess cable coiled behind panels or coming up short at the helm. For refits, electronics upgrades, and replacement radar cabling, the RJ45 connection style is the key detail to confirm before purchase.

Key features

• Made for Raymarine digital radar cable runs that require an RJ45 connector.

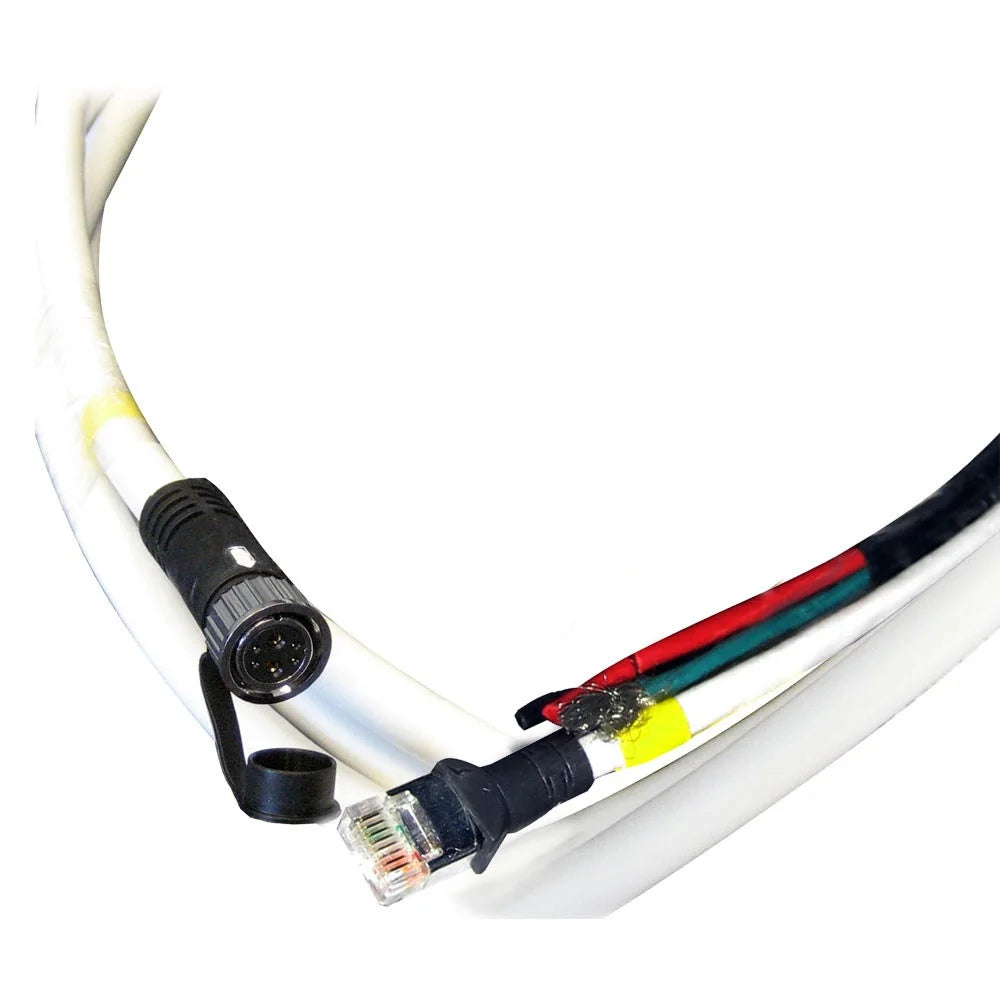

• Radar connector at one end and RJ45 connector at the other end for the supported Raymarine radar cable configuration.
• Available in 5 m, 10 m, 15 m, and 25 m lengths to suit short helm runs, mast routes, radar arches, and longer cable paths through the boat.
• Useful for new radar installations, electronics refits, or replacing an existing cable with the same connector type and length requirement.
• Helps keep the radar cable path clean by matching the cable length to the vessel layout.

Variants

This product is offered in multiple cable lengths so the same connector configuration can be matched to different boat layouts.

The cable length changes between variants. The RJ45 connector style and Raymarine digital radar cable purpose remain consistent across the listed options.

• A55076D: Cable length 5 m. This length suits shorter runs where the radar scanner and display or network connection point are close together, such as compact consoles or hardtop installations.
• A55077D: Cable length 10 m. This length gives more routing room for many small to mid-size boats where the cable needs to pass through a cabin top, arch, or helm area.
• A55078D: Cable length 15 m. This option adds extra reach for installations with a longer route from the radar mount to the electronics area.
• A55079D: Cable length 25 m. This is the longest listed option and is intended for boats with extended cable paths through masts, liners, bulkheads, or larger helm layouts.

Installation and setup

Before ordering, check the existing radar cable connector type and measure the full cable path, not just the straight-line distance. Allow for service loops, bends, deck penetrations, cable glands, and the route through liners or conduits. Avoid sharp bends, crushed sections, and areas where the cable could rub against metal edges or moving equipment.

On mast or arch installations, the cable run should be planned before pulling the cable so the connector is protected and the cable exits cleanly at the radar scanner and at the display or network end. A dry test route is helpful before final fastening, especially on refits where older cable paths may already be crowded.

Compatibility and fit

This cable should be matched to Raymarine digital radar equipment that uses the RJ45 connector style shown for this cable range. It should not be treated as interchangeable with RayNet-ended radar cables or other network cable styles unless the complete system connection has been checked.

It is a practical match for boat owners and installers working on Raymarine radar upgrades, replacement cable runs, or helm electronics changes where the scanner cable length and connector style are already known.
