Lopolight LED Anchor Light, 10-32VDC, 2nm, 360°, IP68

Overview

This Lopolight LED anchor light is a 360° white all-round navigation light with 2 nautical miles of visibility. Operating on 10-32VDC, it features an IP68-rated aluminum mounting base with a plug connector and cable-side and cable-down M20 glands. It is available in silver and black anodized finishes for marine installations requiring a horizontally mounted anchor light.

The fixture measures 92.5mm in diameter and 74.5mm in height. Its construction incorporates anodized aluminum, a PMMA lens, and A4 stainless steel screws. With a luminous intensity exceeding 5.4 candela, it is specified for vessels up to 50 meters and meets applicable navigation-light standards, including COLREG 72, EN 14744, and IEC 60945.

Key features

• 360° white LED illumination with 2nm visibility for all-round anchor-light applications.

• 10-32VDC operating range, with current consumption of 167mA at 12VDC and 110mA at 24VDC.

• IP68 protection with anodized aluminum construction, a PMMA lens, and A4 stainless steel screws.

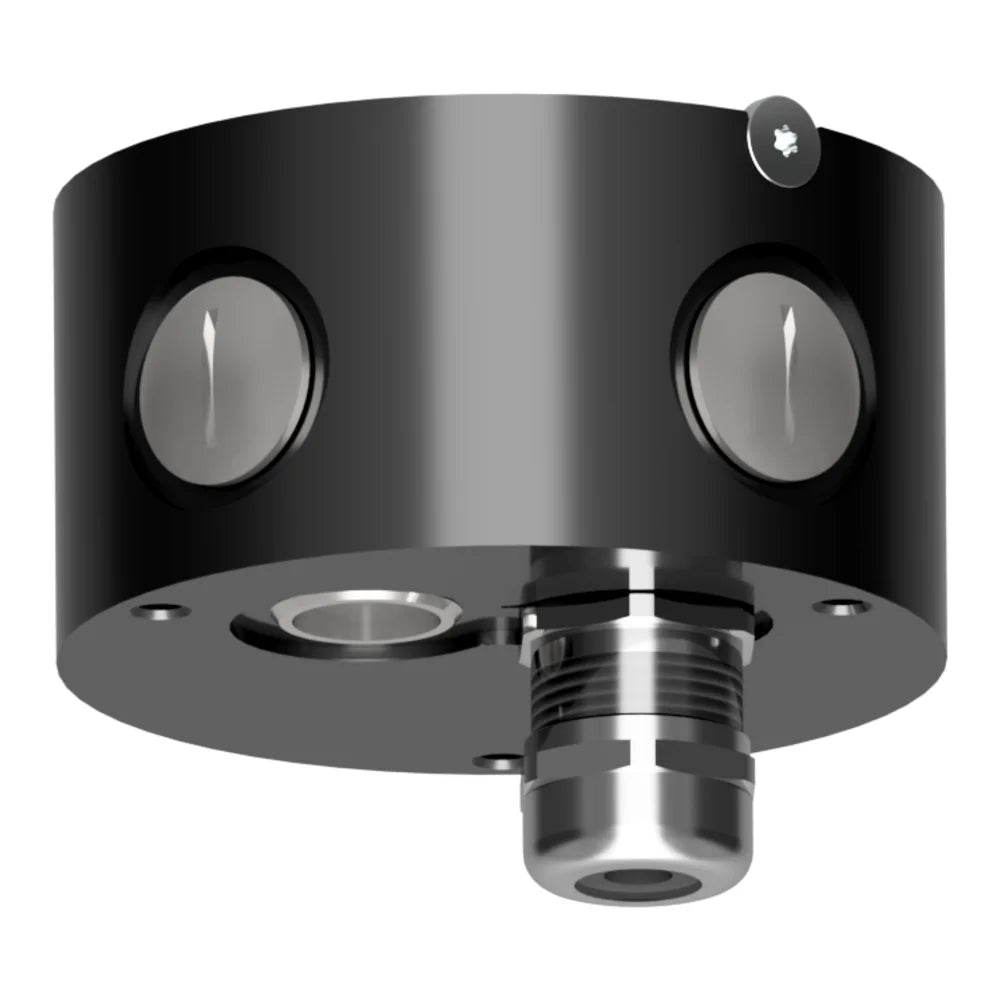

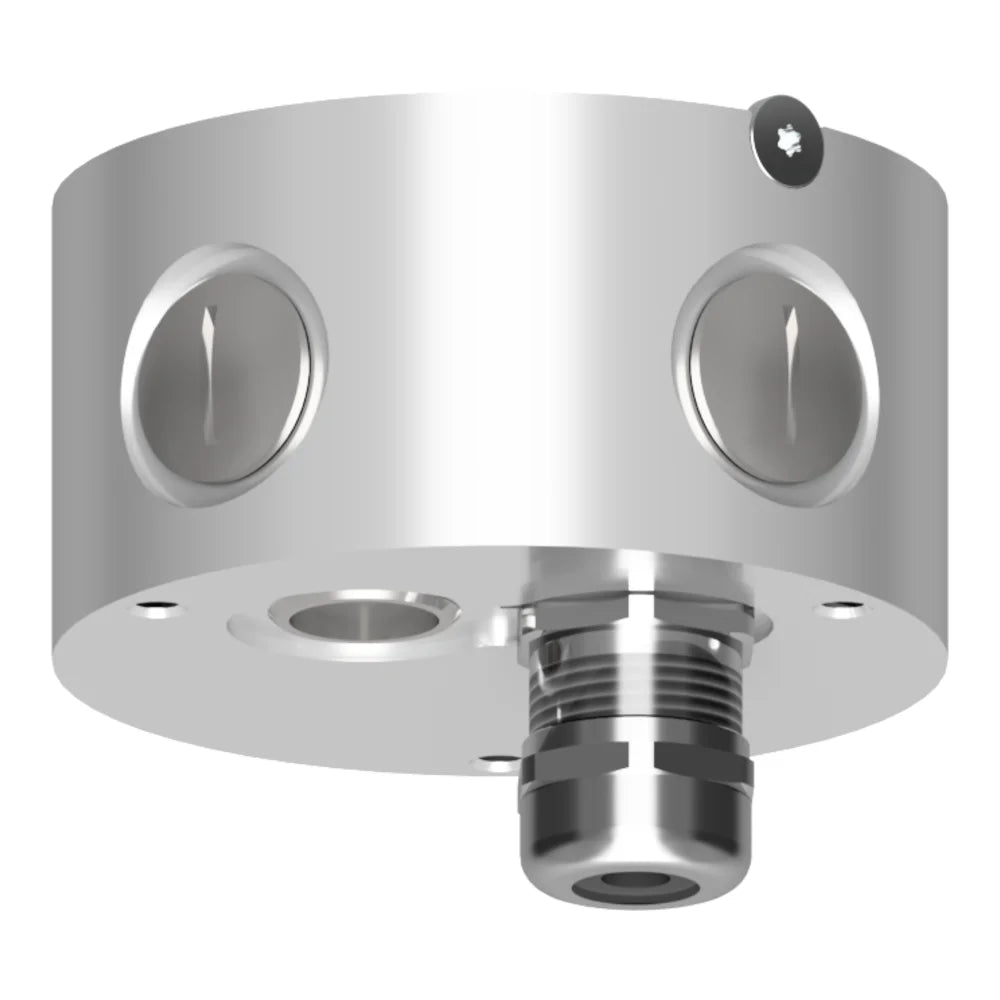

• Connector-equipped aluminum base with cable-side and cable-down M20 glands.

• Horizontal mounting configuration with overall dimensions of 92.5mm diameter x 74.5mm height.

• Approved to COLREG 72, EN 14744, IEC 60945, IACS E10, USCG, ABS, MED, DNV, and LR standards and requirements.

Variants

This anchor light is available in two finish configurations, allowing the exterior appearance to match the surrounding vessel hardware.

The anodized finish varies between silver and black. Both versions retain the same white 360° light output, 2nm visibility, electrical specifications, IP68 protection, and connector-equipped CS/CD aluminum mounting base.

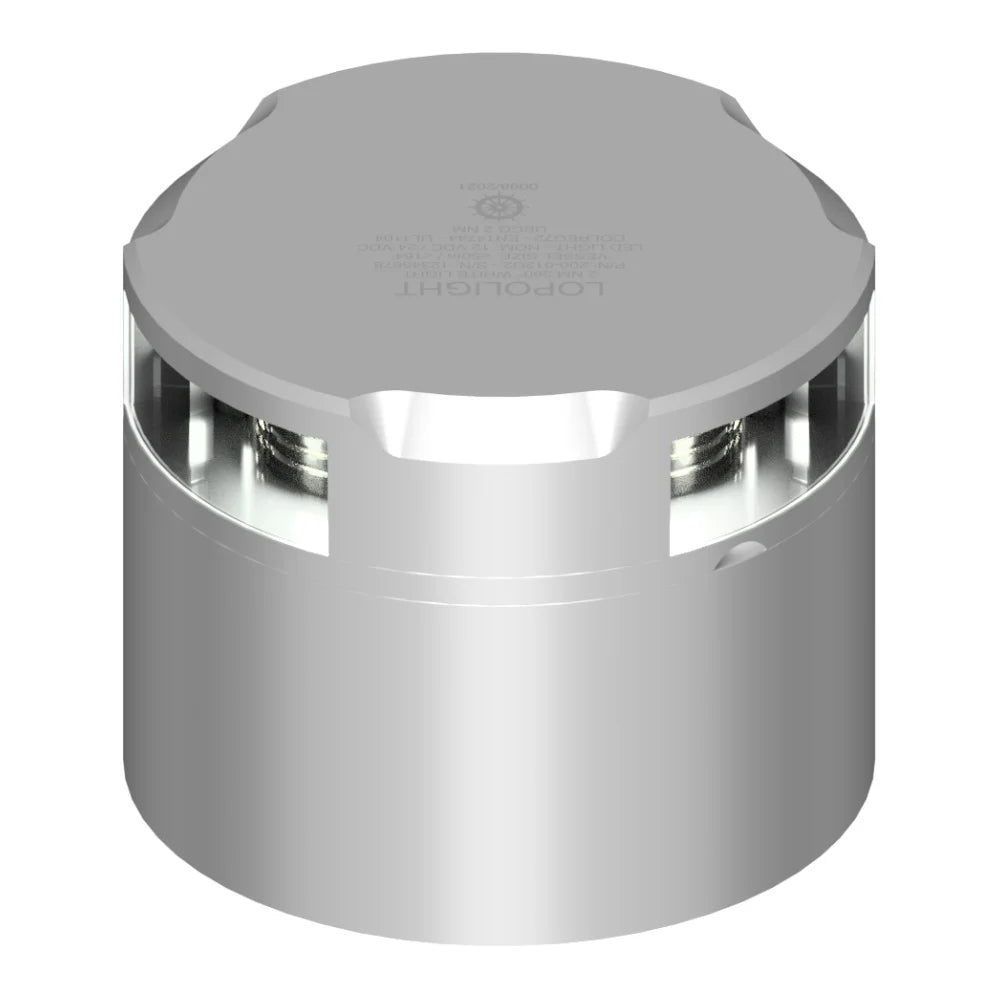

• 201-012-CSCD, Silver finish: Silver-anodized aluminum construction with the standard white LED light output and CS/CD mounting base.

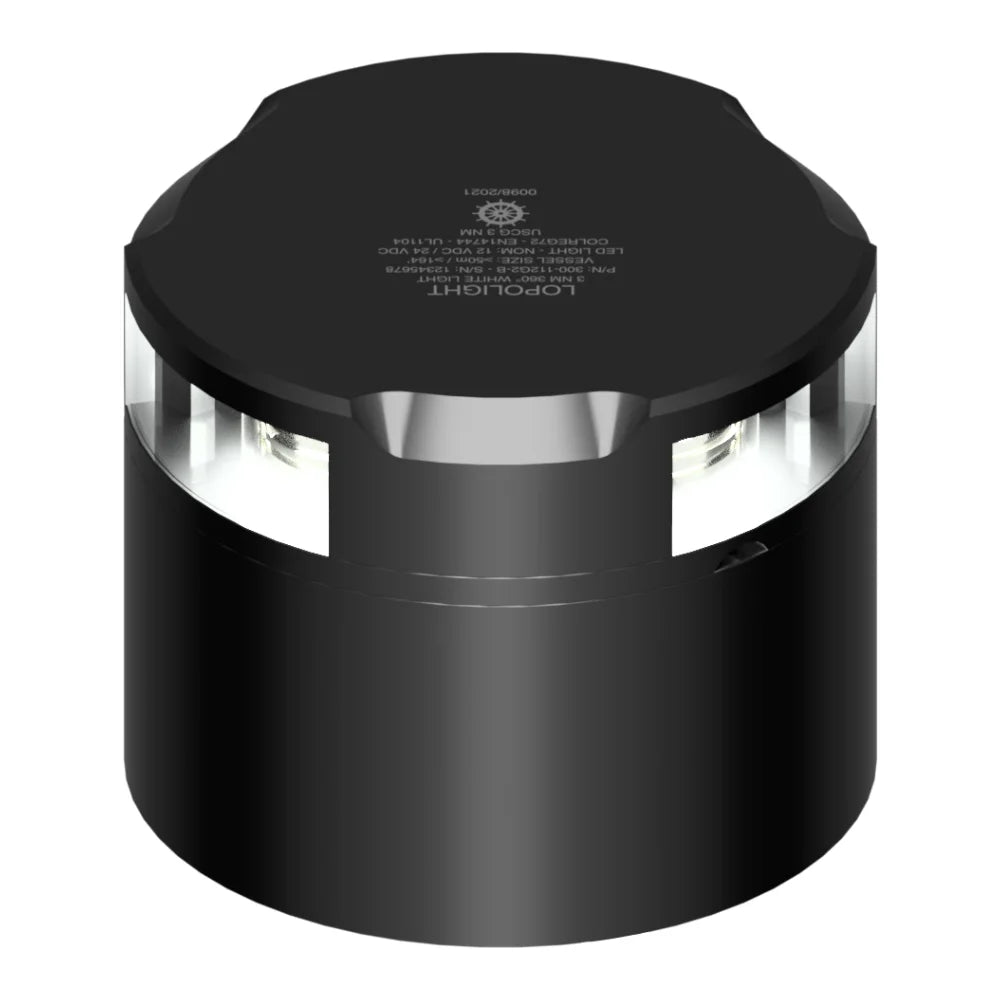

• 201-012-B-CSCD, Black finish: Black-anodized aluminum construction with the same white LED light output and CS/CD mounting base.

Installation and setup

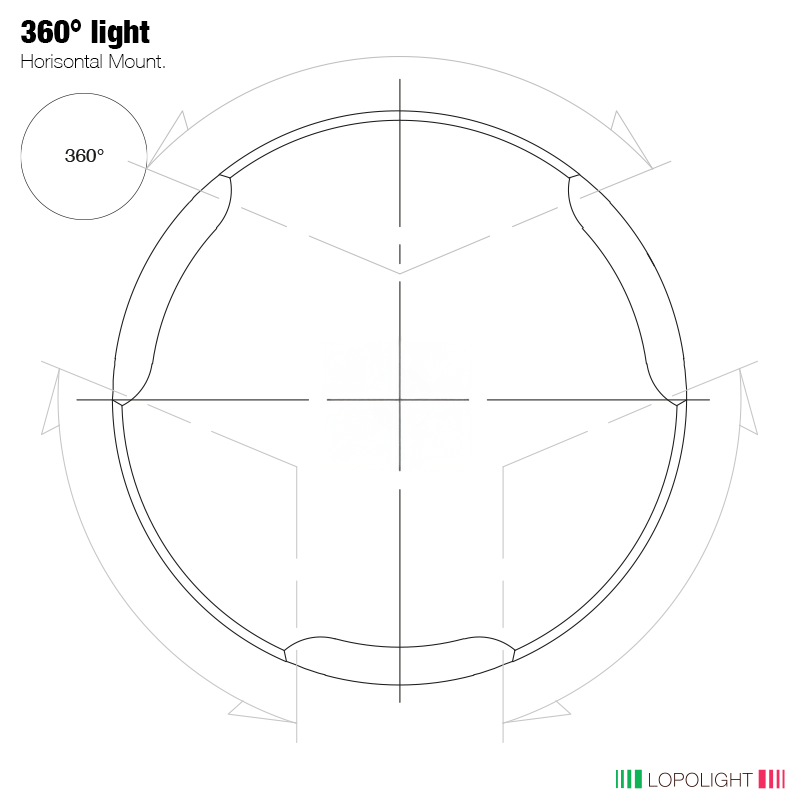

The light is configured for horizontal mounting, with an aluminum base accommodating cable entry from the side or below through M20 glands. Its plug connector supports the electrical connection, while the 10-32VDC operating range accommodates compatible marine DC electrical systems. The mounting location must provide unobstructed 360° visibility for proper anchor-light operation.

What's included

• 1 LED navigation light with connector-equipped aluminum base.

• Installation guide.
