Lopolight Double Red LED Navigation Light, 3nm, 360°, 10-32VDC

Overview

This Lopolight Double Red LED Navigation Light is a 360° all-round signal light with a 3 nautical mile visibility rating, intended for vessels over 50 meters. The double configuration emits red light with an intensity greater than 15 candela and operates on 10-32V DC, drawing 2.9W.

The fixture has an IP68 rating, an anodized aluminum housing, and a PMMA lens. Its horizontal mounting arrangement includes an aluminum base with side or downward cable routing, allowing the electrical connection to be accommodated within the installation.

Key features

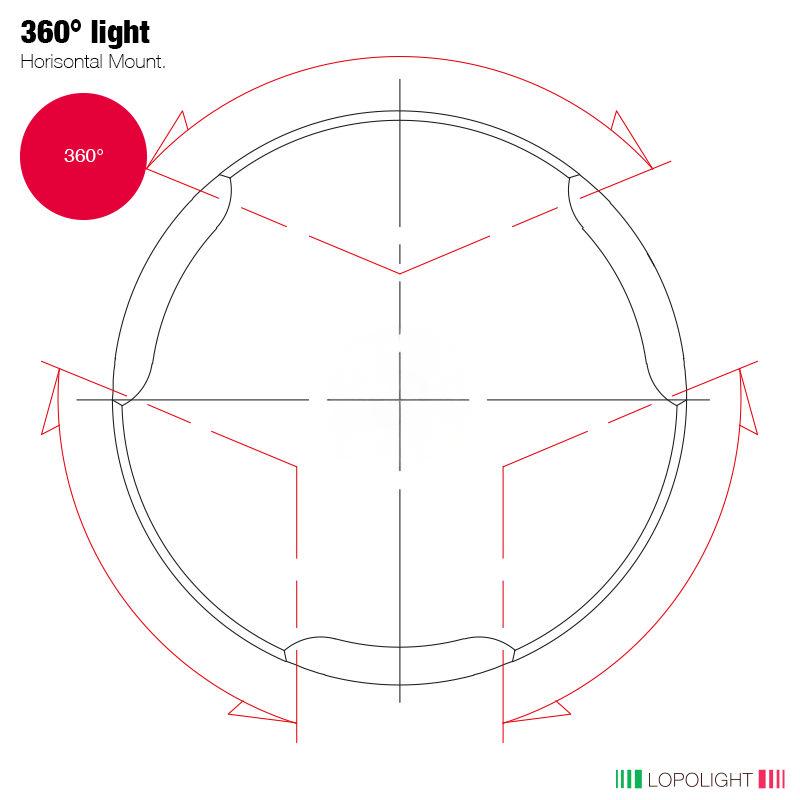

• Double red LED light configuration with 360° visibility and a 3 nautical mile range.

• 10-32V DC operating range with 2.9W power consumption.

• IP68 protection rating.

• Anodized aluminum housing with a 25-micron finish and PMMA lens.

• Horizontal mounting with aluminum base and side or downward cable routing.

• Plug connector for electrical connection.

• Dimensions of 92.5 mm diameter x 96.5 mm height (3.6 x 3.8 inches).

• DNV certification and listed approvals including COLREG 72, EN 14744, IEC 60945, USCG, and MED.

Variants

This navigation light is available in two anodized aluminum finishes: Silver and Black.

The finish changes the exterior appearance of the fixture. Both versions maintain the same double red LED configuration, 360° light coverage, 3 nautical mile visibility, electrical specifications, dimensions, and mounting arrangement.

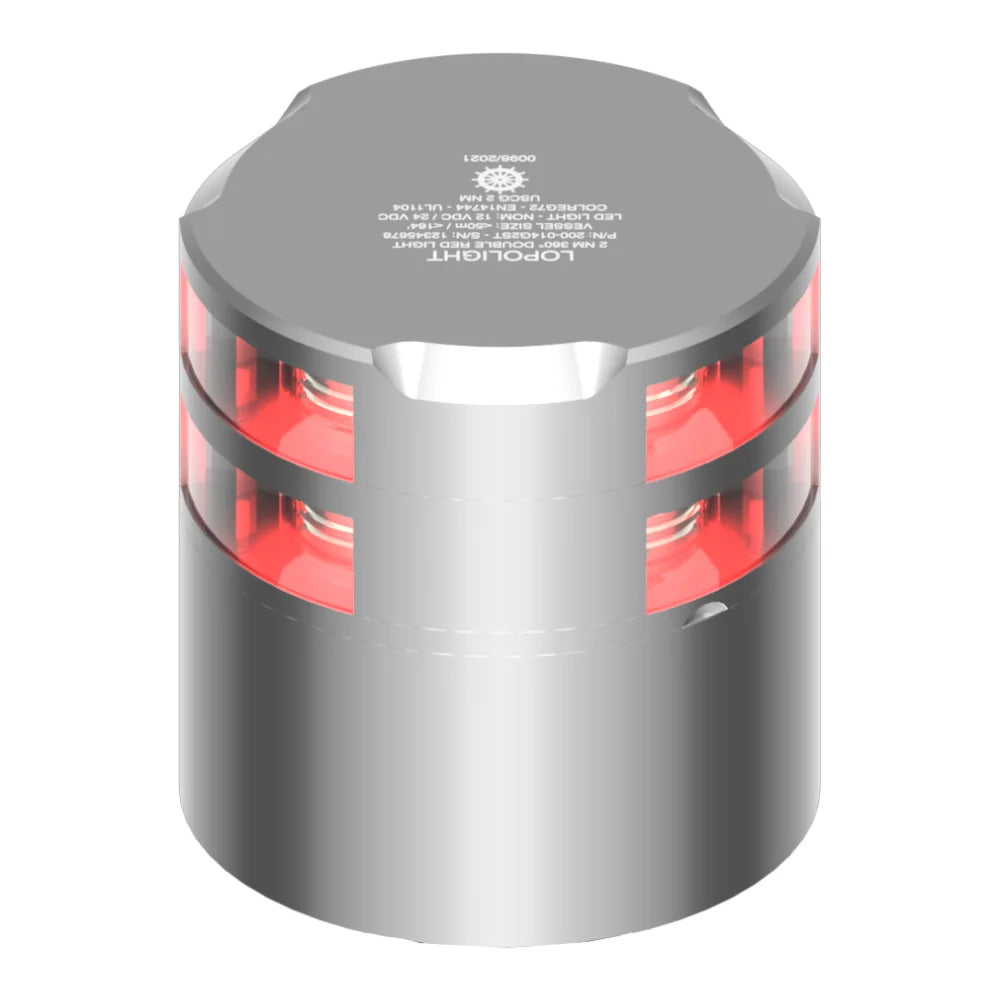

• 300-114G2ST, Finish Silver: Silver anodized aluminum housing with a 25-micron surface finish.

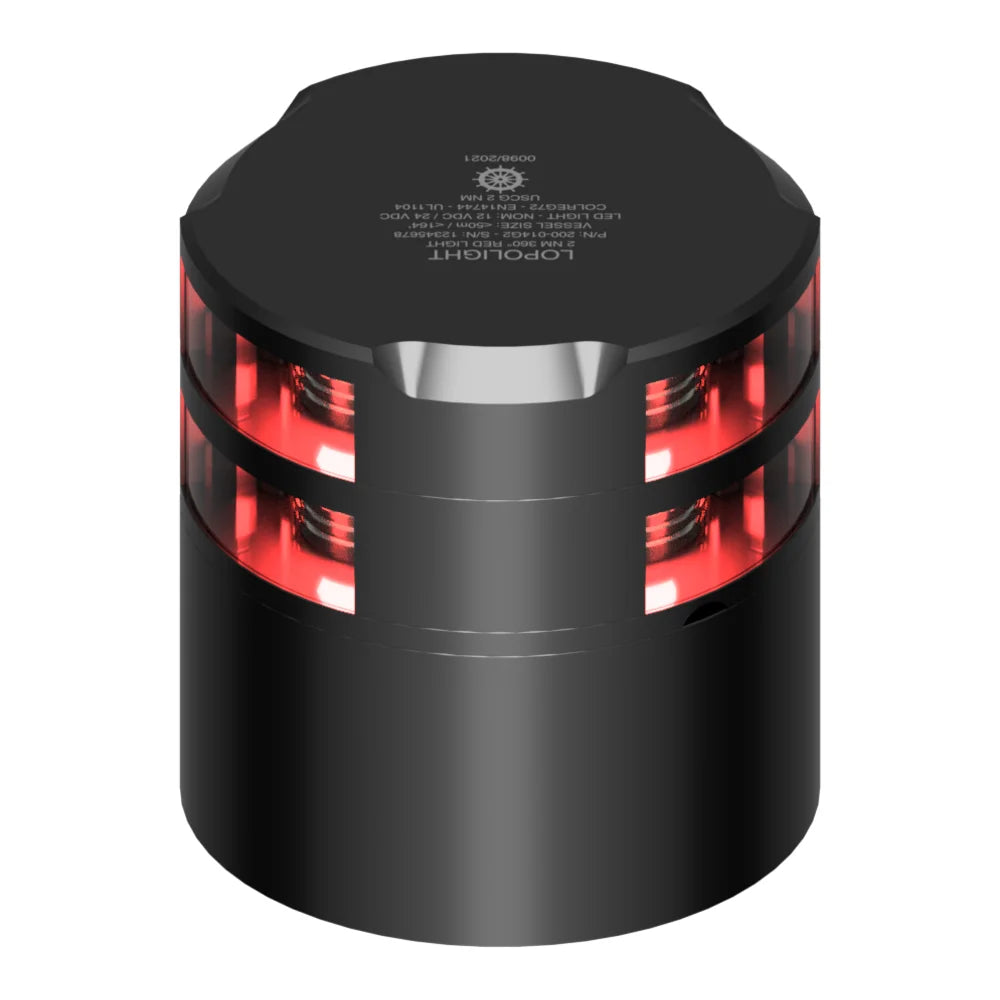

• 300-114G2ST-B, Finish Black: Black anodized aluminum housing with a 25-micron surface finish.

Installation and setup

The fixture is intended for horizontal mounting and includes an HDPE base plate. Its aluminum base accommodates cable routing from the side or downward, with a plug connector for the electrical connection. The specified minimum feed wire size is 0.5 mm² (AWG22).

The 10-32V DC operating range supports compatible 12V and 24V vessel electrical systems. Rated current consumption is 210 mA at 12V DC and 120 mA at 24V DC. The specified operating temperature range is -25°C to 55°C.
