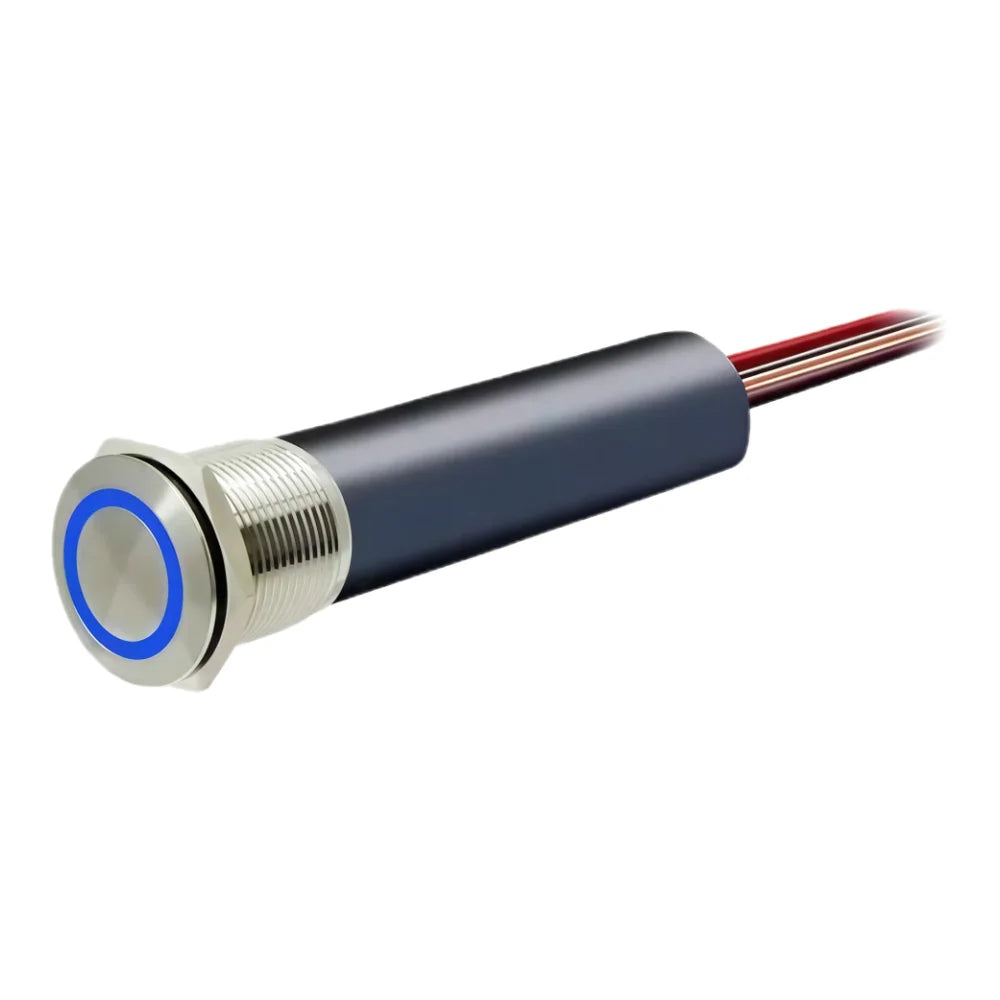

BocaTech Mini LED Push Button Switch, 15A DC, Non-Resettable

Overview

The BocaTech Mini LED is a non-resettable, solid-state push button power switch rated for 15A DC. Its compact stainless steel construction and integrated LED indicator support direct control of electrical circuits from marine dashboards and distribution panels. The product family includes 12V DC and 24V DC versions with momentary or On/Off operation.

The self-contained switching circuit operates without a separate electronic controller. A 3/4 in (19 mm) panel cutout accommodates the switch, allowing compact placement alongside other helm or electrical controls.

Key features

• 15A DC switching capacity for marine electrical circuits.

• Solid-state push button operation without a separate electronic controller.

• Non-resettable construction requiring external fuse or circuit breaker protection.

• Stainless steel components and integrated LED status ring.

• 3/4 in (19 mm) panel cutout for installation.

• Available in 12V DC and 24V DC configurations.

• Momentary and latching On/Off switching options.

• Red or blue LED ring options for visual status indication.

Variants

The switch is available in eight configurations distinguished by operating voltage, switching action, and LED color. Voltage options include 12V DC and 24V DC, while the LED indicator is available in red or blue.

Momentary configurations activate the connected circuit while the button is pressed, whereas On/Off configurations maintain the selected switching state. All configurations retain the 15A DC rating, solid-state construction, and non-resettable design.

Installation and electrical protection

The switch mounts through a 3/4 in panel opening and is suitable for integration into compact marine control panels. Its self-contained electronics eliminate the need for an additional switching controller. Because this is a non-resettable model without integrated circuit breaker protection, the connected circuit requires appropriately rated external overcurrent protection.
