Vimar Neve Up 2P+E 16A P30 SICURY Socket Outlet, 250V, 2 Modules, Flush Mount

Overview

The Vimar Neve Up is a 2P+E 16A 250 V SICURY socket outlet for Italian type P30 installations, built in a 2-module format for flush mounting. It uses side and central earth contacts and is sized for standard 50-60 Hz AC circuits.

For marine interiors, this outlet makes sense where the boat already uses the Neve Up modular system and an Italian P30 receptacle is required in a protected location. Its IP20 rating points it toward dry interior spaces such as cabins, galley modules, or navigation areas rather than open decks, cockpits, or other places exposed to spray and washdowns.

Key features

• Italian type P30 socket format with side and central earth contacts
• 16 A, 250 V, 50-60 Hz rating for AC circuits built around this outlet standard
• SICURY contact protection for safer use around crew and guests

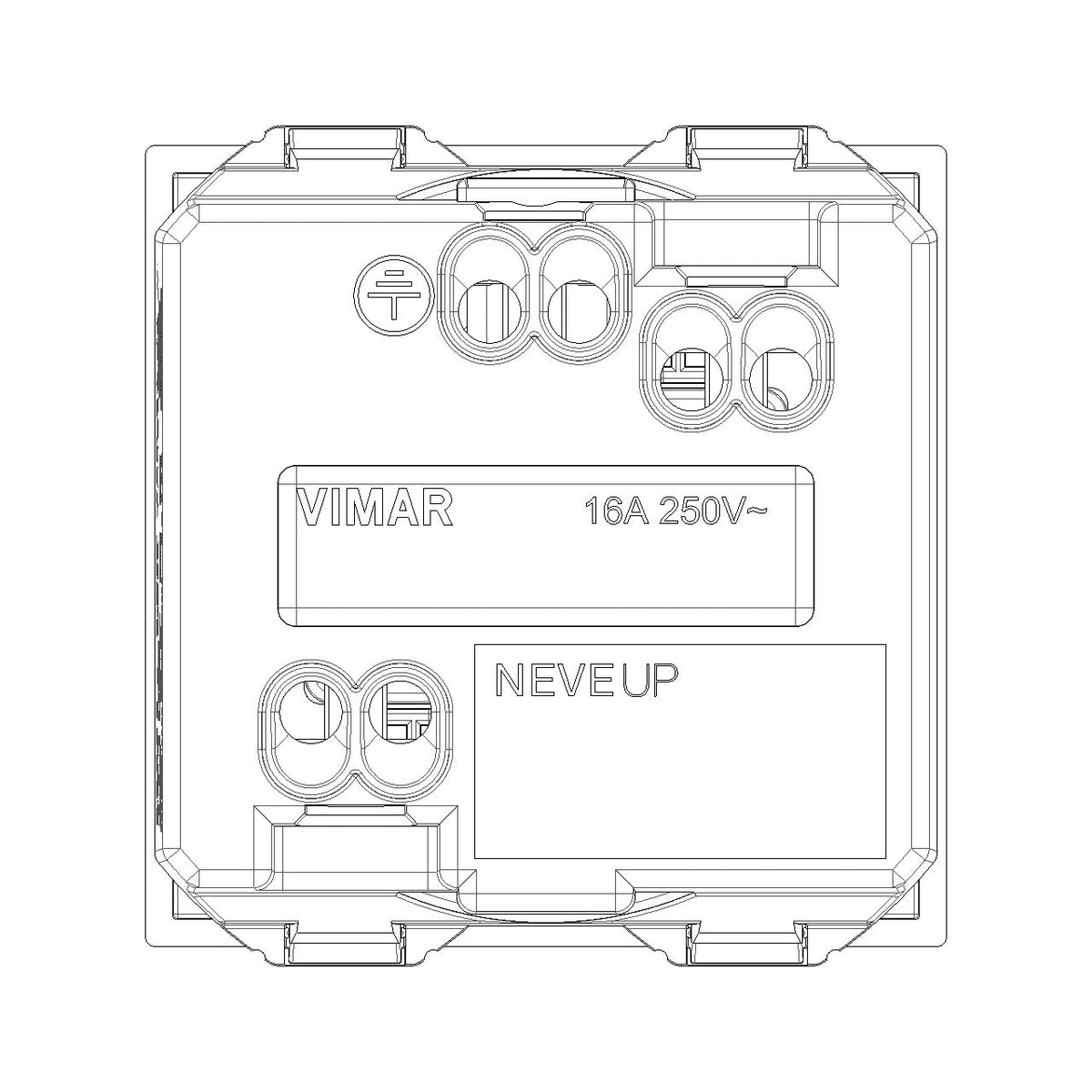

• 2-module flush-mounted body with screw terminals for fixed installations

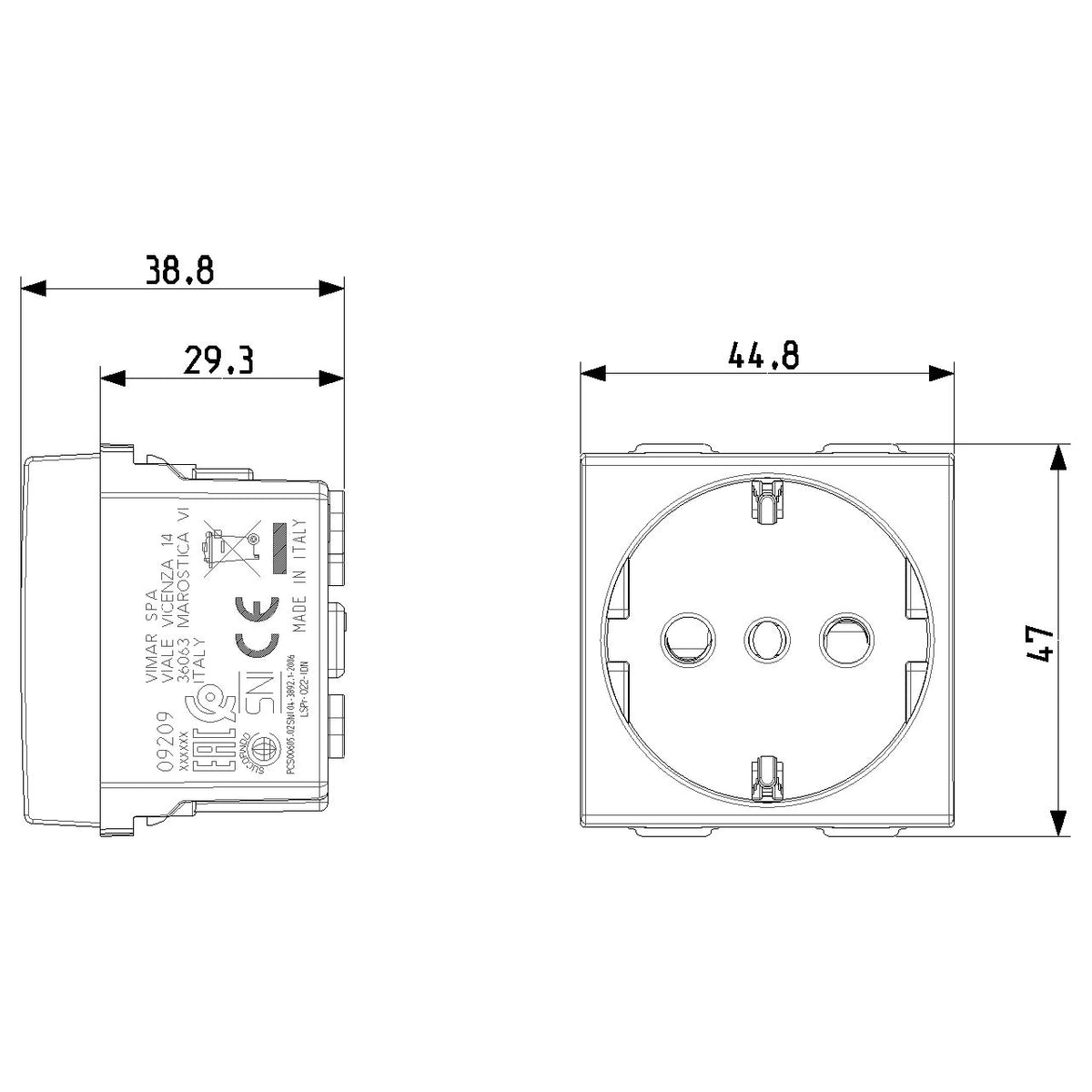

• 44.8 mm width, 47 mm height, and 38.8 mm depth for fit checks behind the panel
• Available in white and carbon matt finishes to match different interior trim styles

Variants

This outlet is offered in two finish options within the same Neve Up 2-module format.

The listed versions differ by colour and surface finish. The electrical format stays the same across both versions: Italian type P30, 2P+E, 16 A, 250 V, 50-60 Hz, and flush mounting.

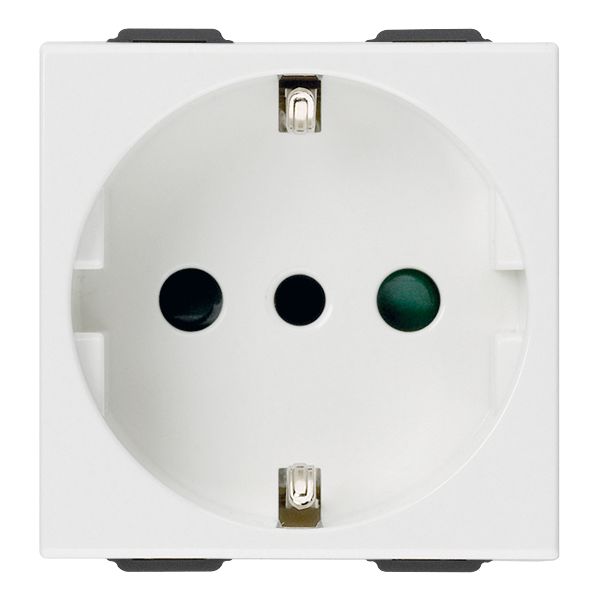

• VM09209: White finish. This version works well on light wall plates and cabin panels where a standard white electrical trim is already in place.

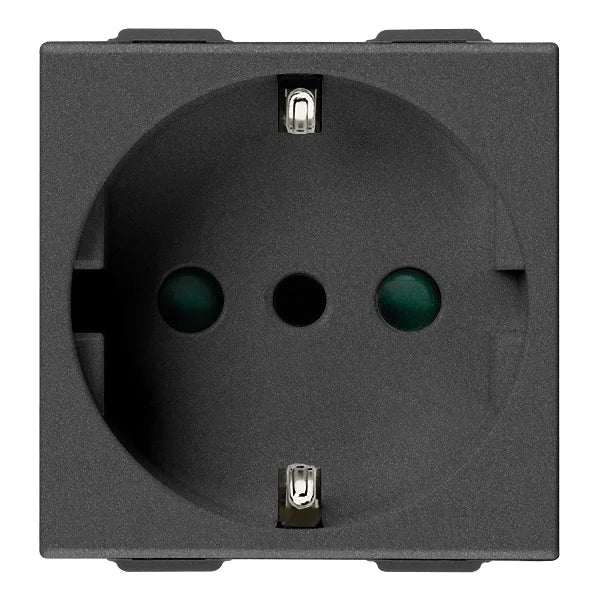

• VM09209.CM: Color Carbon Matt. This version suits darker interiors and switch panels where a lower-gloss trim blends in better.

Compatibility and fit

This is a dedicated Italian P30 outlet, not a universal receptacle, so plug type should be checked before purchase. It is also intended for Neve Up modular assemblies, so the matching support, frame, and mounting box should be verified during a refit or new installation.

Installation and use on board

The flush-mounted body and screw-terminal connection suit fixed AC installations where a neat finish matters and panel space is limited. On boats, it is a sensible match for protected accommodation spaces and service areas that stay dry in normal use.

This product is a good fit for owners and installers working on vessels that already use Italian-standard fittings or Neve Up components. It is less suited to exposed areas where a higher ingress rating would be needed.
