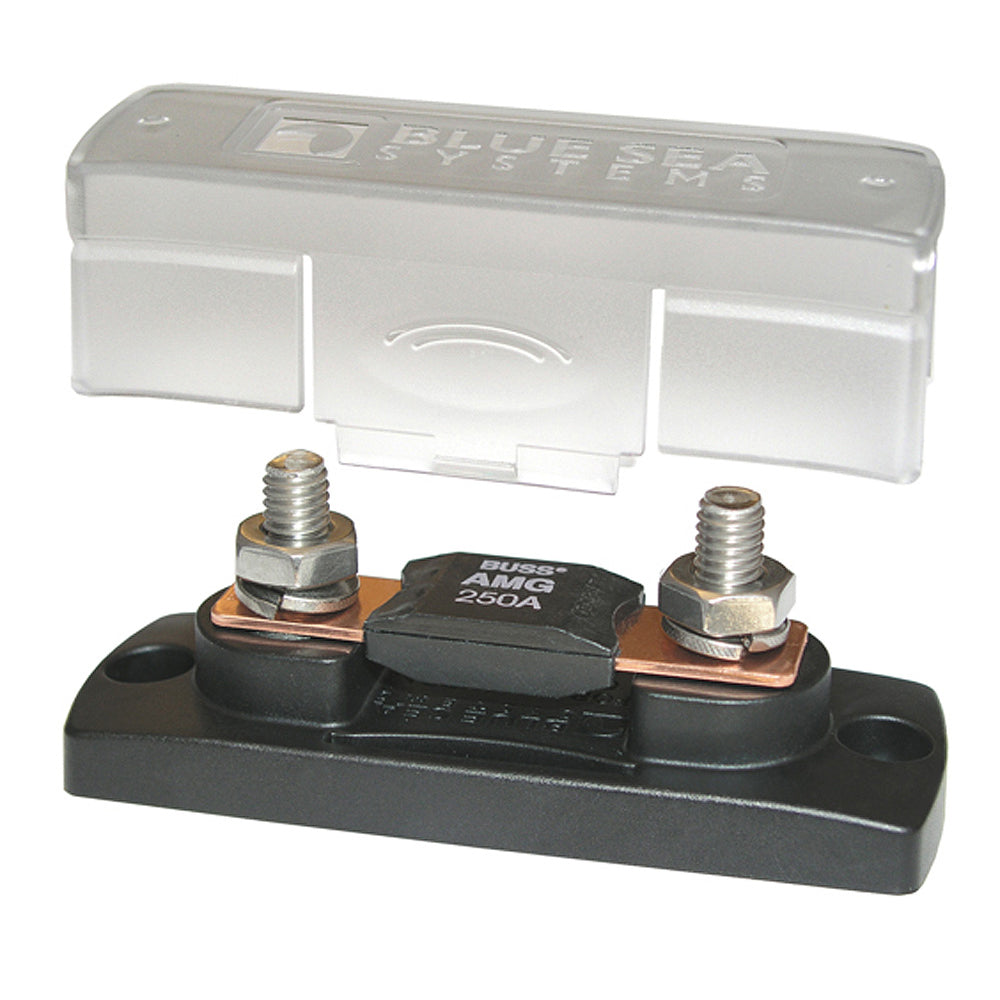

Blue Sea Systems MEGA/AMG Fuse Block, 100-300A, 32V DC, With Cover

Overview

The Blue Sea Systems 5001 is a MEGA/AMG fuse block with an insulating cover for 100 to 300A circuit protection on 12V or 24V systems up to 32V DC. It accepts 5/16 inch M8 ring terminals and is built for high-current DC feeds where you need a single fuse mounted in a clean, protected way.

This style of block is commonly used close to batteries and on feeds for inverters, chargers, windlasses, thrusters, and main DC distribution circuits that use MEGA or AMG fuses. The cover has cable breakouts in three directions, which helps when routing is tight along a bulkhead or inside a battery compartment, and the fuse itself is sold separately so the circuit can be matched to the required amperage.

Key features

• Fits MEGA and AMG fuses in the 100A to 300A range
• Rated for DC systems up to 32V, covering typical 12V and 24V boat electrical setups

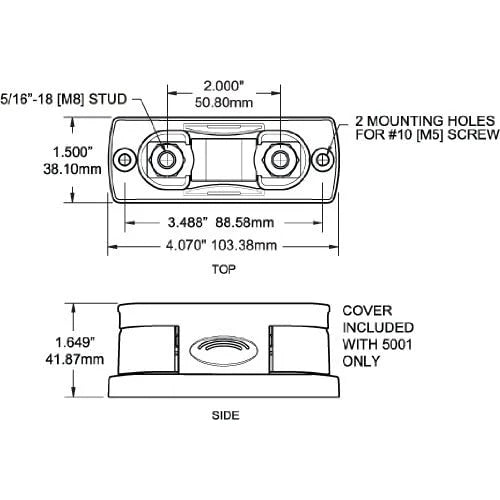

• 5/16 inch M8 stud connections work with common marine ring terminals and cable up to 2/0 AWG
• Insulating cover meets ABYC and USCG insulation requirements and allows cable entry from three directions
• Stainless steel studs and insert-molded mounting points help keep the fuse connection secure under vibration
• Reinforced PBT base and polycarbonate cover handle heat better than light-duty fuse holders

Installation and fit

This block is meant for single-fuse protection on a high-current branch or feed. It works best where the cable run can reach the studs without a hard bend and where there is enough room to remove the cover for service. The published torque values of 110 in-lb at the terminal and 120 in-lb at the stud are useful when you want a firm connection without over-tightening the hardware.

For a boat refit or a new DC installation, this is a straightforward way to add overcurrent protection near the power source while keeping the fuse enclosed. The covered layout is easier to live with in service areas where exposed fuse studs would be a poor fit.

Materials and construction

The base is reinforced PBT, the cover is polycarbonate, and the fuse studs are stainless steel. That combination makes sense in marine electrical spaces where heat, vibration, and corrosion are part of normal use. The insert-molded studs also help the fuse sit firmly in place during installation and later maintenance.

Use on board

This fuse block suits owners, yards, and marine electricians working on boats with a single high-current DC circuit that needs MEGA or AMG fuse protection. It is especially useful when the goal is a covered fuse connection that stays accessible for inspection and fuse changes without adding a larger multi-circuit block.
