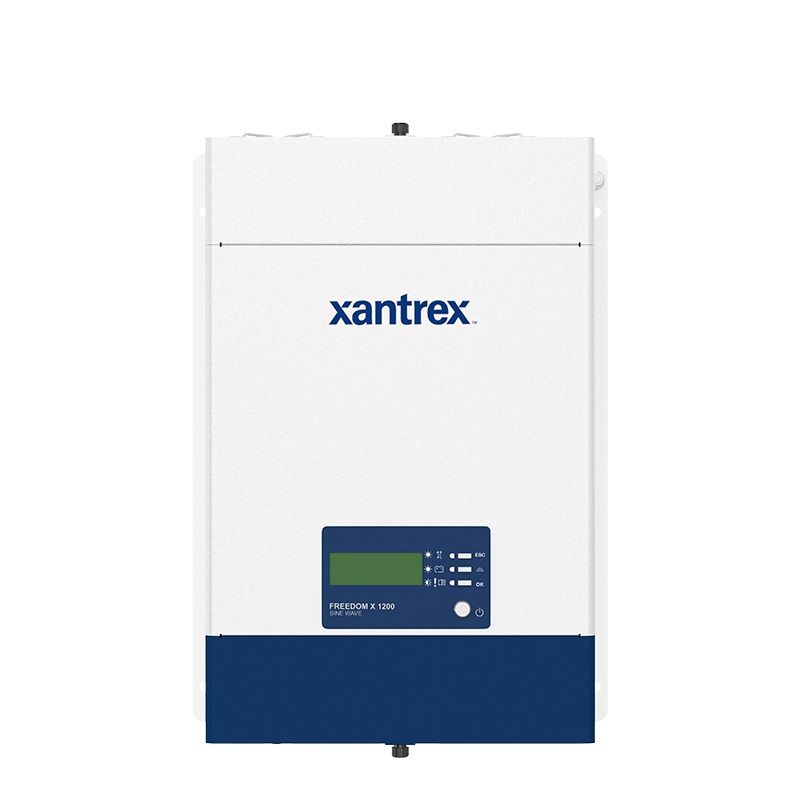

Xantrex - Freedom X Pro 1200 Inverter - 1000 Watt, 120AC Output, 12VDC Input

Reliable Power for Marine Applications

The Xantrex Freedom X Pro 1200 is a high-performance 1000-watt inverter designed for marine and mobile applications. Built with a rugged, industrial-grade metal casing and conformal-coated circuit boards, this inverter ensures durability and resilience in demanding environments. It delivers true sine wave output, making it ideal for powering sensitive electronics on board. The built-in transfer switch allows seamless switching between shore power and battery power, while the low battery voltage shutdown helps protect your power system. With quick-connect AC terminals and pre-wired pigtail cables, installation is fast and straightforward.

Advanced Technical Features

The Xantrex Freedom X Pro 1200 is engineered for efficiency and reliability. It offers a peak surge rating of 2400 watts, ensuring stable operation of power-intensive devices. The inverter operates with a high peak efficiency of over 91%, maximizing battery life and energy savings. A built-in communication card enables seamless integration with third-party monitoring and control systems via RV-C connectivity.

Technical Specifications

• Continuous Output Power: 1200 W
• Surge Power Rating: 2400 W
• Output Voltage Range: 110–125 VAC
• Output Frequency Regulation (User Configurable): 50/60 Hz
• Output Waveform: True Sine Wave
• Efficiency (Full Load): > 86%
• Peak Efficiency: > 91%
• No-Load Input Power: < 10 W
• Off Mode Current Draw: < 4 mA
• AC Input Operating Voltage Range: 95–130 VAC
• AC Transfer Relay: 30 A
• DC Input Operating Voltage Range: 10.5–16.5 VDC
• Battery Voltage (Nominal): 12 VDC
• Low Battery Cut-Out: Adjustable from 10.5–12.1 VDC
• Transfer Time: 10–20 ms

Product Dimensions

• Size: 14.8 x 10.4 x 3.5 inches (376 x 263 x 91 mm)
• Weight: 10.4 lbs (4.7 kg)

Key Features & Benefits

• True Sine Wave Output – Provides clean and stable power, ideal for sensitive electronics.
• Industrial-Grade Durability – Heavy-duty metal casing and conformal-coated circuit boards for long-term reliability.
• High Surge Capability – 2x surge rating (2400 W) for running demanding appliances.
• Built-in Transfer Switch – Seamlessly switches between shore and battery power.
• RV-C Connectivity – Allows easy integration with third-party monitoring and control displays.
• Quick Installation – AC quick-connect terminals and pre-wired pigtail cables simplify the setup process.
• Low Battery Voltage Shutdown – Protects batteries from deep discharge.

Perfect for marine applications, the Xantrex Freedom X Pro 1200 is a reliable and efficient solution for onboard power needs.
