Lopolight NLC Navigation Light Control Panel, 28 Channels, IP67

Overview

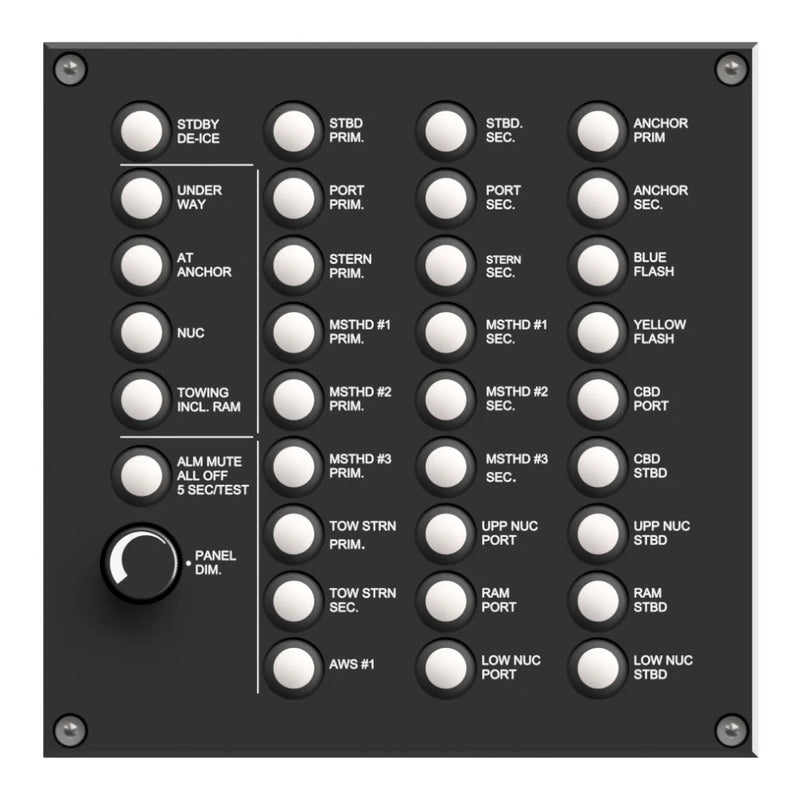

The Lopolight NLC is a bulkhead-mounted navigation light control panel for the Lopolight Core NLC system, supporting control of up to 28 navigation lights. It provides a dedicated control interface for managing navigation lighting on vessels equipped with the NLC control and monitoring system.

The panel features an IP67 waterproof rating, hardcoat-anodized aluminum construction, and an IP67-rated M12 8-pin connector. It mounts from the front of a bulkhead and is available in configurations with or without an additional navigation light dimmer for compatible RPM/NPC lights.

Key features

• 28-channel capacity for controlling up to 28 Lopolight navigation lights.

• Compatible with the Lopolight Core NLC navigation light control and monitoring system.

• IP67 waterproof rating for protection against dust and water ingress.

• Front bulkhead mounting configuration.

• IP67-rated M12 8-pin electrical connector.

• Hardcoat-anodized aluminum construction.

• Available with an additional navigation light dimmer for RPM/NPC lights.

Variants

The control panel is available in two 28-channel configurations for the Lopolight Core NLC system.

The configurations differ in their navigation light dimming functionality. Both retain the same 28-channel control capacity, front bulkhead mounting arrangement, IP67 protection, and hardcoat-anodized aluminum construction.

• 500-112-28: 28 Channels. Standard control panel configuration supporting up to 28 Lopolight navigation lights.

• 500-112-28-2: 28 Channels + Light Dimmer. Includes additional navigation light dimming functionality for compatible RPM/NPC navigation lights.

Installation and system integration

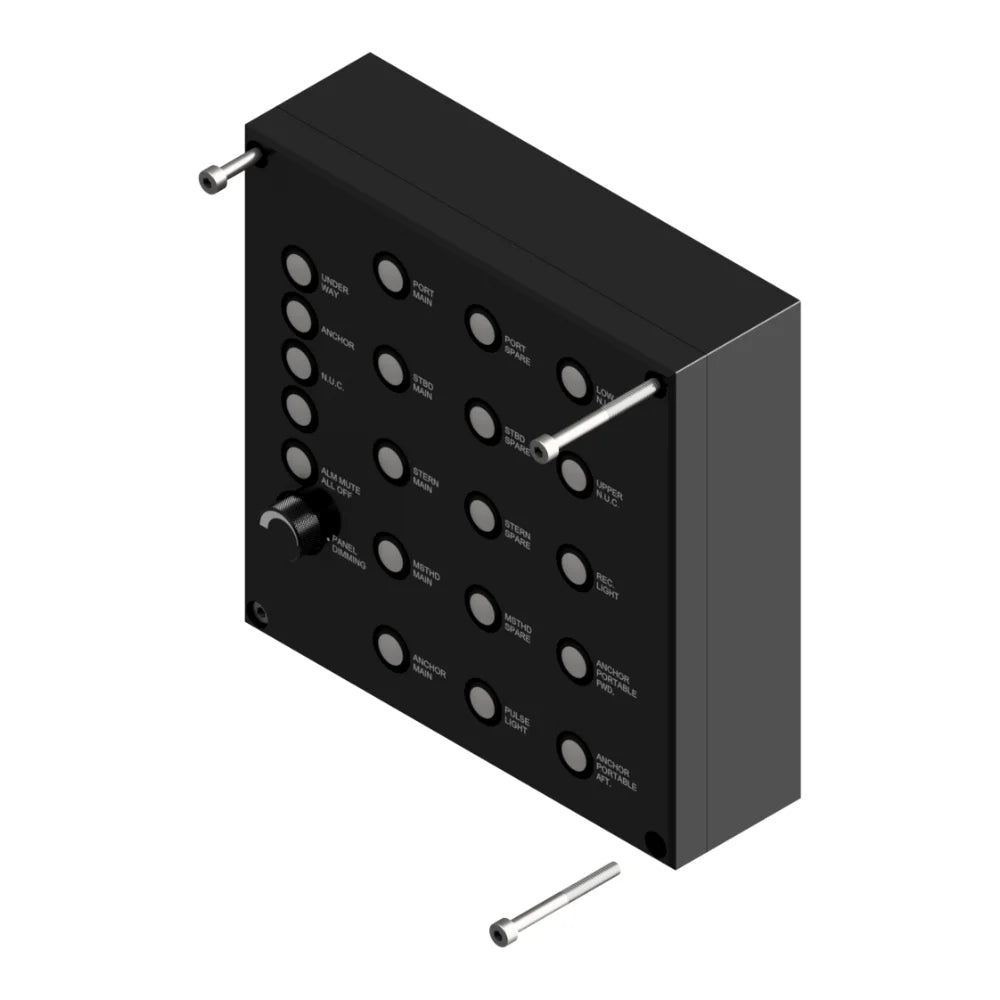

The panel mounts from the front of a bulkhead and connects to the Core NLC system through an M12 8-pin connector with IP67 protection. Its 28-channel capacity accommodates installations requiring centralized control of multiple navigation lights.

Both configurations serve as control heads within the Lopolight NLC system. The dimming-equipped version adds brightness adjustment functionality for compatible RPM/NPC navigation lights, allowing that capability to be incorporated into the vessel's navigation lighting controls.
