Vimar Idea 1-Way Key Switch, 2P 16AX, 250V, IP40, Key Removable in OFF Position

Overview

The Vimar Idea 16165 is a keyed 1-way switch from the Idea range, built as a 2-pole 16 AX 250 V device with the key removable only in the OFF position. It uses a 1-module format, IP40 protection, and screwed terminals, which makes it a practical fit for protected interior panels rather than exposed deck or washdown locations.

On board, this kind of switch works well where a circuit should stay under controlled access, such as an interior utility feed, a service circuit, or a function that should not be switched on casually. The body is plastic with thermoplastic construction, and the housing size is 24.8 x 50.1 x 32.8 mm, so it is worth checking panel depth and Idea-series compatibility before installation.

For lighting loads with self-ballasted lamps, the rated load is up to 200 W. The keyed action and OFF-position key removal also make it easier to leave a circuit isolated when the boat is unattended or when only selected crew should have access.

Key features

• 2-pole 16 AX 250 V keyed 1-way switch for controlled circuit access
• Key can be removed only in the OFF position
• IP40 rating for dry, protected interior mounting locations
• 1-module flush-mount format in the Vimar Idea system
• Screwed terminal connections with a thermoplastic housing
• Body size of 24.8 x 50.1 x 32.8 mm for panel fit checks
• Rated up to 200 W with self-ballasted lamps

Variants

This product is offered in multiple configurations within the same keyed switch family.

Across the variants listed here, the electrical format stays the same: 2-pole 16 AX 250 V, 1-module, IP40, with the key removable only in the OFF position. What changes between versions is the body color and the key type.

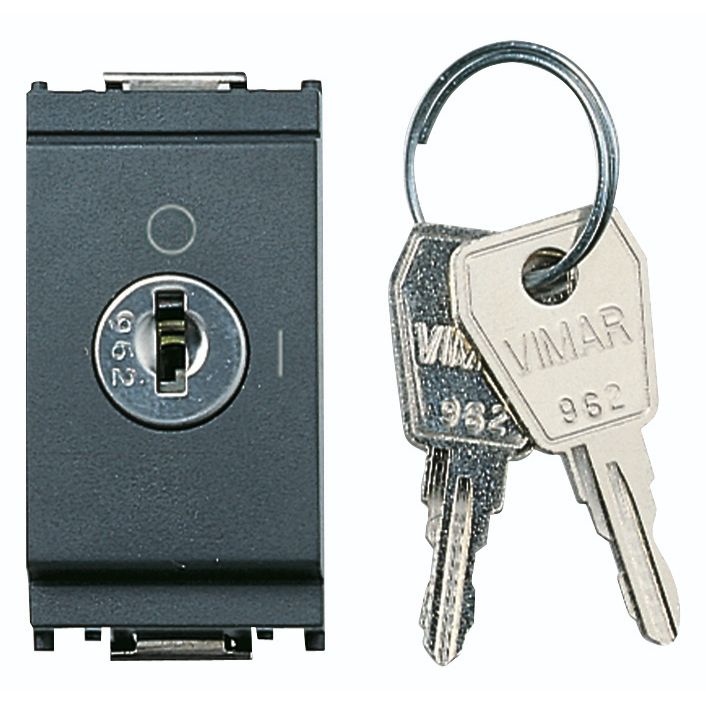

• VM16165.S: Color Gray with Standard key type. This version uses the standard key profile and a gray finish that suits darker trim and switch surrounds.

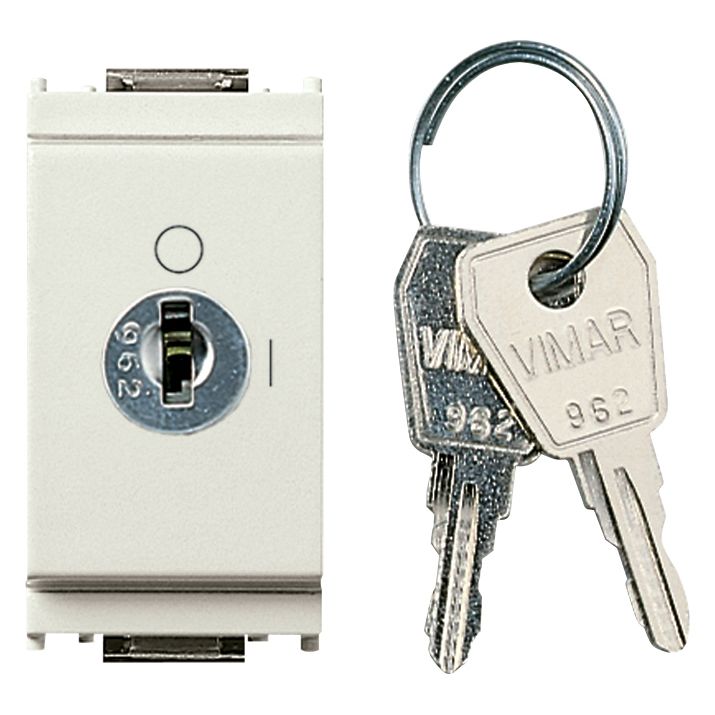

• VM16165.S.B: Color Ivory with Standard key type. This version keeps the standard key profile with a lighter face for panels finished in Ivory or similar tones.
• VM16165.S.CU: Color Gray with 000 Unified key type. This version uses the 000 Unified key profile, which matters when the surrounding installation is standardized on that key system.
• VM16165.S.CU.B: Color Ivory with 000 Unified key type. This version combines the lighter Ivory finish with the 000 Unified key profile for panels that already use that keyed format.

Compatibility and fit

This switch belongs to the Vimar Idea modular range and uses a single-module layout. It should be matched with the correct Idea-series support and cover components, and the available mounting depth should be checked against the 32.8 mm body depth before ordering for a refit or replacement job.

Because it is a 2-pole switch, it is suited to applications where both poles need to be opened together. That can be useful on boats where circuit isolation matters as much as day-to-day switching.

Use on board

This is a good match for enclosed cabin areas, utility spaces, lockers, or interior service panels where a keyed on or off function makes sense. It is less suited to open cockpit, flybridge, or other exposed mounting points unless the switch is installed inside an additional protected enclosure.
