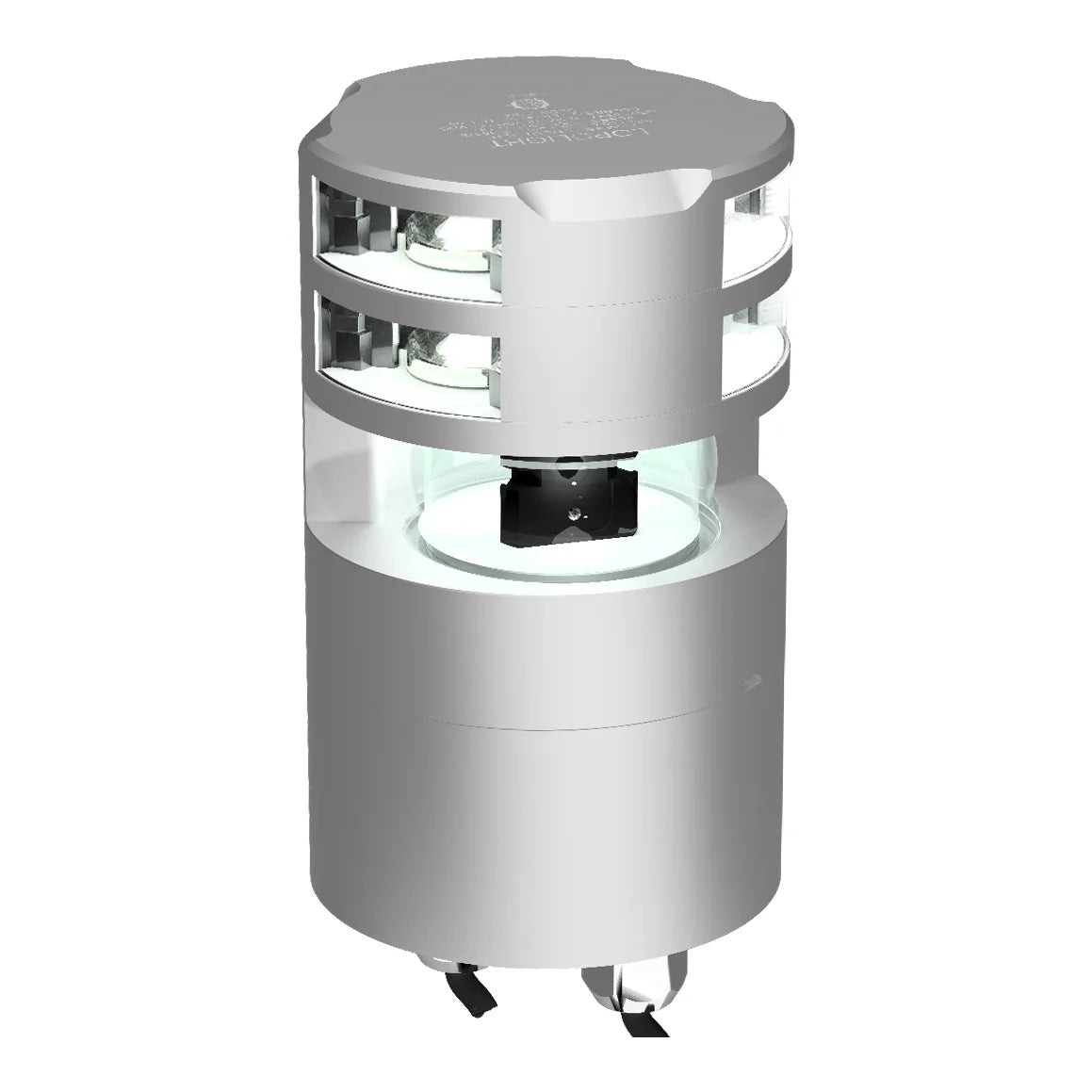

Lopolight 6nm Masthead and Double 3nm Anchor LED Navigation Light

Overview

The Lopolight 300-136+112G2ST-CD is a combined LED navigation light assembly featuring a 6 nautical mile masthead light and a double 3 nautical mile, 360° white all-round light configuration. Intended for vessels over 50 meters, it combines masthead and anchor lighting functions in a single horizontally mounted unit.

Operating on 20-32V DC with a 13W power draw, the fixture features an IP68-rated enclosure, a silver anodized aluminum housing, and a PMMA lens. Its combined configuration accommodates the distinct white navigation light functions required on large yachts and commercial vessels.

Key features

• Combined 6nm masthead and double 3nm all-round white LED navigation light configuration.

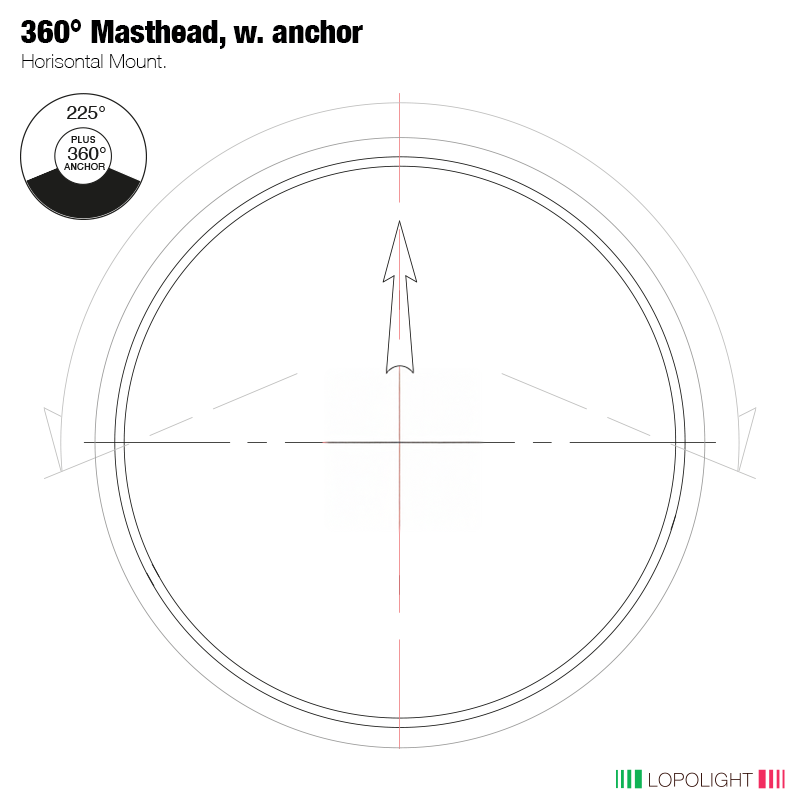

• 360° white light coverage for the all-round anchor light function.

• 20-32V DC operating range with 13W power consumption.

• IP68 protection against dust and water ingress.

• Silver anodized aluminum housing with a PMMA lens and A4 stainless steel screws.

• Horizontal mounting configuration with a plug connector for electrical connection.

• DNV certification with listed approvals including COLREG72, EN14744, IEC 60945, USCG, ABS, MED, and LR.

Installation and fit

The fixture measures 92.5 mm (3.6 in) in diameter and 151 mm (5.9 in) in height, with a weight of 2 kg (4.41 lb). Its horizontal mounting arrangement and compact combined construction allow the masthead and all-round white light functions to be incorporated into a single assembly.

Electrical connection is made through a plug connector, with a minimum feed wire size of 0.5 mm² (AWG 22). At 24V DC, the specified current consumption is 580 mA. The fixture is intended for marine electrical systems operating within its 20-32V DC input range.

Marine applications

This combined navigation light is intended for superyachts and other vessels exceeding 50 meters that require a 6nm masthead light together with a double 3nm all-round white light configuration. The IP68 enclosure and corrosion-resistant housing materials support installation in exposed marine environments.
