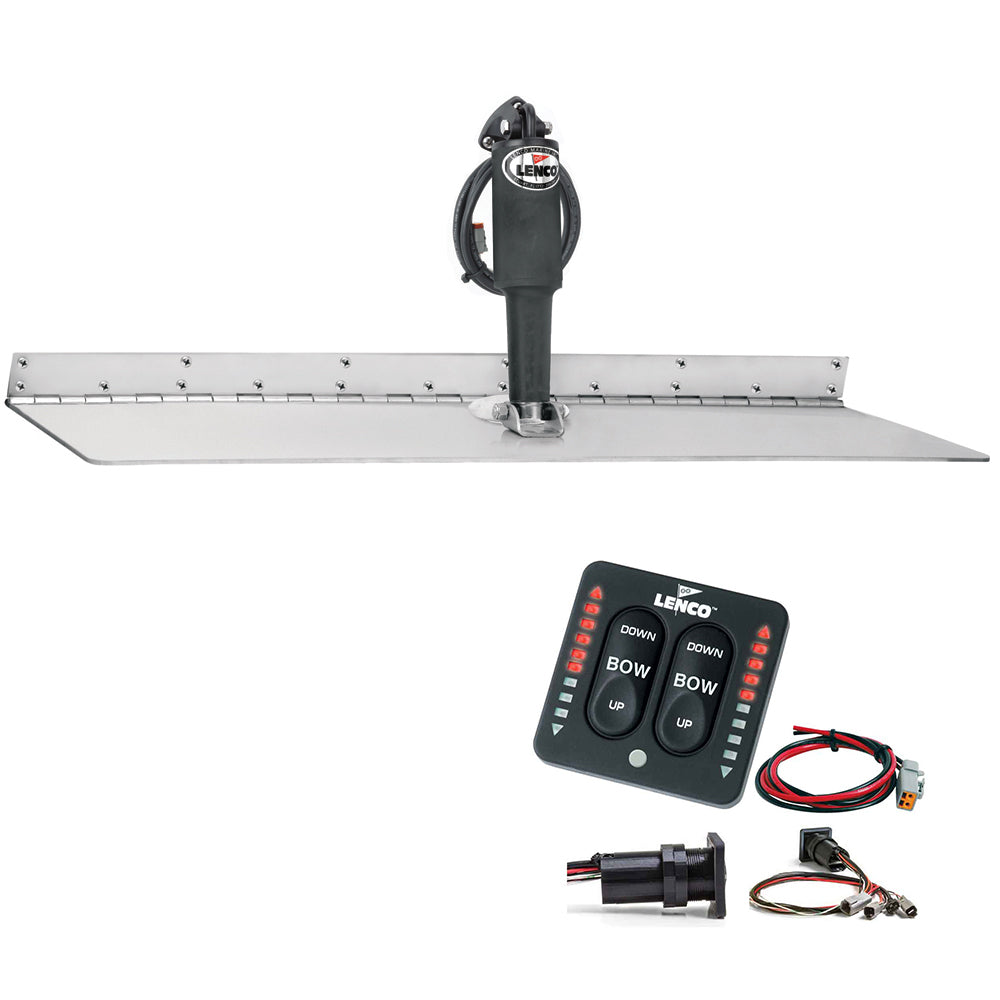

Lenco Marine - Super Strong Trim Tab Kit - With LED Indicator Switch Kit 12V

Built for High-Performance and Durability

The Lenco 12" x 18" Super Strong Trim Tab Kit with LED Indicator Switch Kit 12V is engineered to meet the demands of sport-fishing boats, high-speed cruising boats, and large commercial vessels. These trim tabs are designed to withstand the harshest marine conditions, providing unmatched stability and control. With 7-gauge stainless steel blades and extreme-duty mounting hardware, this trim tab kit ensures your vessel performs at its best, no matter the situation.

General Description

Lenco's Super Strong Trim Tab Kit is built for serious vessels that require top-notch performance and durability. The trim tabs feature 7-gauge flat 304 stainless steel blades with all stainless steel mounting hardware, ensuring they can handle the toughest conditions without bending or flexing. Whether you're navigating rough seas or backing down on a big catch, these trim tabs provide the control and stability you need for a safe and efficient ride.

Key Features

• Instant Response Actuators: Extreme-duty electric actuators offer precise control and quick adjustments.
• Durable Construction: 7-gauge laser-cut stainless steel blades and heavy-duty stainless steel mounting hardware.
• Maintenance-Free: Fully submersible actuators are sealed for life, requiring no maintenance.
• Welded Stainless Steel: Billet ram ends are welded for extra strength and durability.
• No Spray or Mist: Designed to prevent spray or mist when mounted in recessed pockets.
• Heavy Duty Hinge: Stitch welded heavy-duty stainless steel hinge with 3/8" hinge rod.

Actuator Details

• High-Impact Construction: Made from 50% glass fiber-filled, ultraviolet-resistant nylon case.
• Extreme-Duty: Fully submersible, maintenance-free, and sealed for life with electro-polished solid 316 stainless steel billet ends.

Tactile Switch with LED Indicator

• Self-Contained: Sealed keypad and control box module.
• User-Friendly: Fade/smudge-proof laser engraved graphics, plug & play switch wiring harness connector.
• Built-In Retractor: Automatically retracts tabs when power is removed.
• LED Display: High-intensity LED indicators show the exact position of the trim tabs at all times.
• Photo Eye Sensor: Adjusts LED intensity for optimal viewing in direct sunlight.
• Voltage Compatibility: Compatible with 12 and 24-volt systems.
• Self-Check Feature: Ensures reliable performance.

Each Kit Includes

• Tactile LED Indicator Switch Kit
• 2 Stainless Steel Trim Tab Planes
• 2 Actuators with 6' Lead and Deutsch Plugs
• All Necessary Stainless Steel Mounting Hardware
• Actuator Extension Harnesses (2 for Single Actuator Application)

Technical Specifications

• Suggested Boat Length: 18' to 34'
• Blade Length: 12"
• Blade Width: 18"
• Material: 7 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt

Variations List

• TT12X18SSI: Size 12" x 18"
• TT12X24SSI: Size 12" x 24"
• TT12X30SSI: Size 12" x 30"

Safety Notice

This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Upgrade your boat with the Lenco 12" x 18" Super Strong Trim Tab Kit and experience superior control and performance on the water.
