Newmar Power - Elite DC Panel

Comprehensive Power Management for Marine Applications

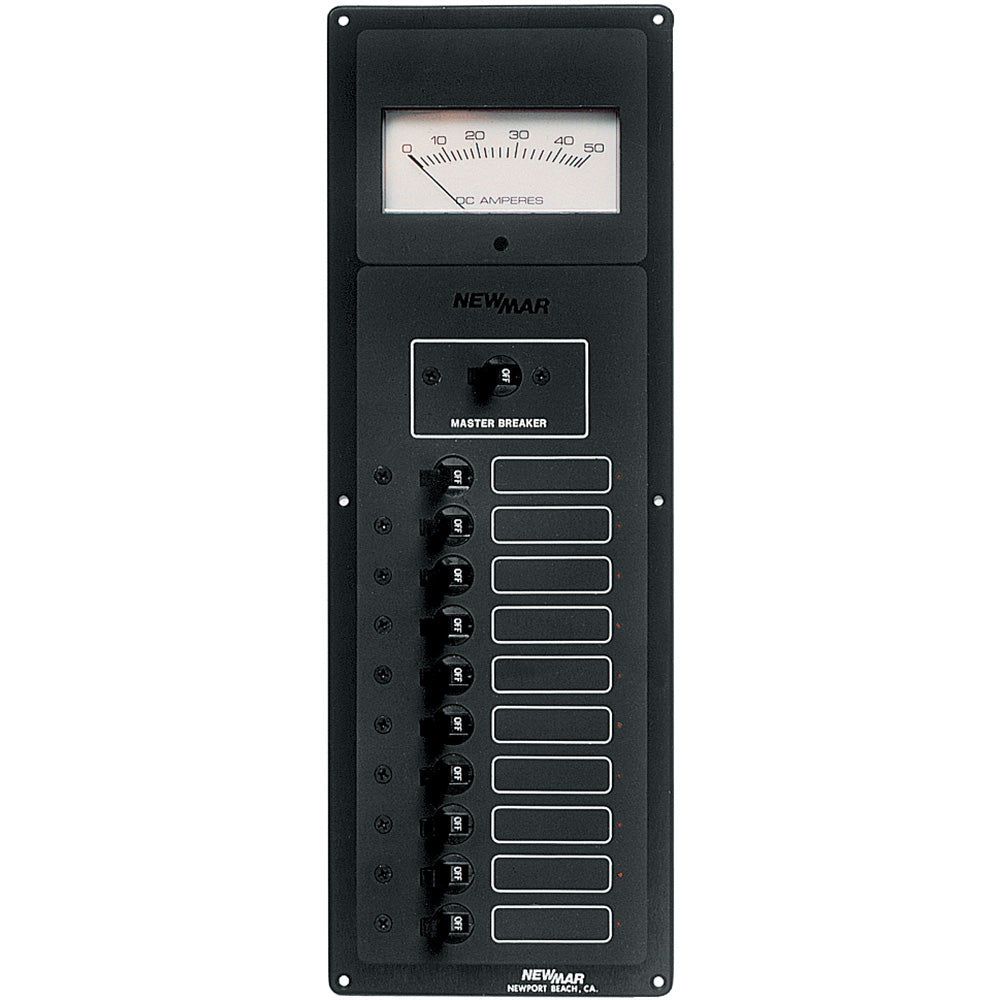

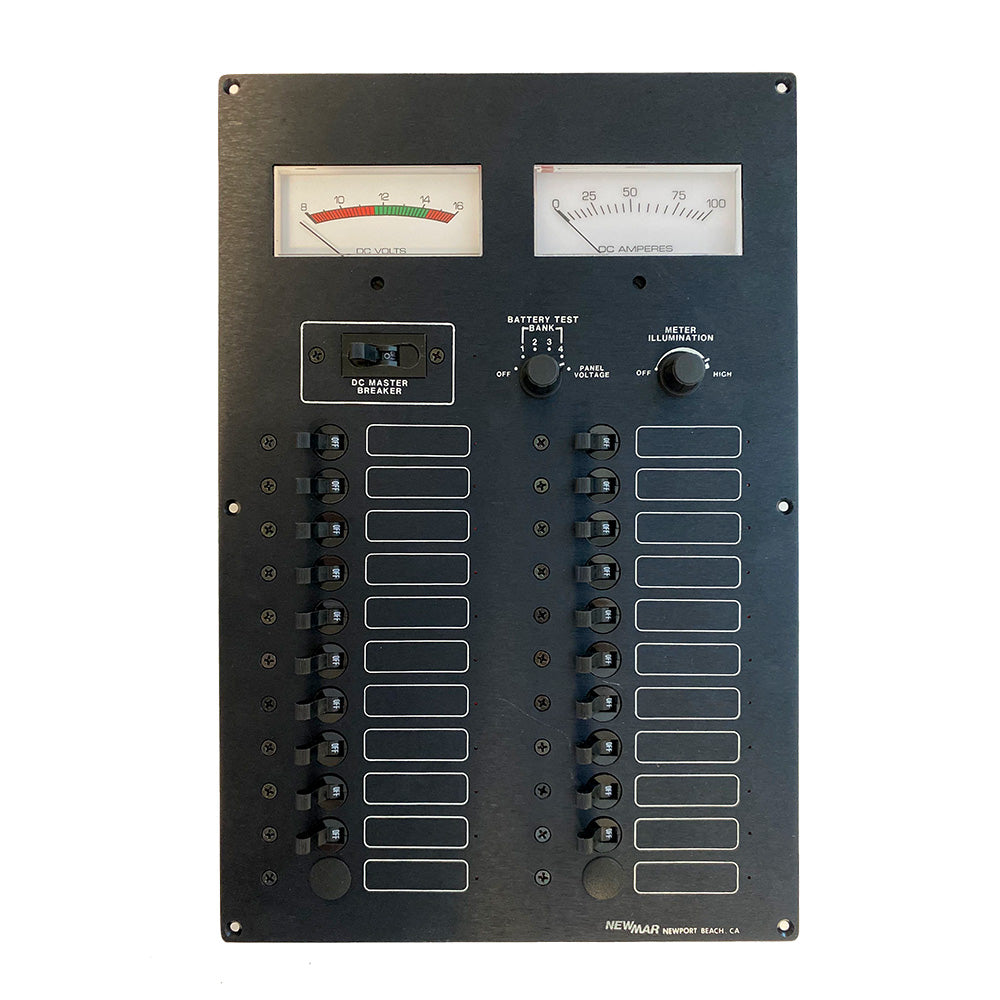

Upgrade your vessel's electrical system with the Newmar ES-1 Elite DC Panel. This master control panel is designed to offer large DC circuit capacity, providing you with robust and reliable power management. Whether installed alone or in conjunction with the ES-2 panel for a complete AC-DC control and monitoring system, the ES-1 Elite DC Panel ensures efficient and safe operation of your marine electrical systems.

Advanced Features for Superior Control

The Newmar ES-1 Elite DC Panel is packed with features that make it indispensable for marine use. Here's an overview of what makes it stand out:

• Analog DC Volt and Ammeter: Back-illuminated with a dimmer for clear visibility and precise monitoring.
• Versatile Voltage Options: Standard 12-volt operation with a 24-volt option available.
• Comprehensive Monitoring: Includes a 4 battery bank test switch to keep track of your power sources.
• High-Capacity Breaker: Equipped with a DC master breaker (100 Amp standard; 50 or 75 amp optional) for enhanced safety and reliability.
• Extensive Circuit Capacity: Features a 22 branch circuit capacity with 20 installed as standard, customizable with various amperage options (3-5A, 5-10A, 6-15A, 6-20A).

Key Benefits at a Glance

• Enhanced Safety: Robust DC master breaker and extensive circuit capacity ensure safe operation.
• User-Friendly Design: Back-illuminated meters and dimmer functionality for easy monitoring.
• Customizable: Various amperage options and voltage configurations to suit your specific needs.
• Flexible Installation: Can be installed alone or with the ES-2 panel for a comprehensive AC-DC control system.

Technical Specifications

• Dimensions (W x H x D): 10 x 15 x 4 inches
• Weight: 8 lbs. (3.6 kg)
• Standard Voltage: 12V (24V optional)

Built for Marine Excellence

The Newmar ES-1 Elite DC Panel is specifically designed for marine environments, providing reliable and efficient power management to keep your vessel running smoothly. Its rugged construction and advanced features make it an essential component for any marine electrical system.

Product Variations: Tailored Power Solutions

Choose the Newmar Elite DC Panel variant that best suits your needs:

• ES-1 Voltage 12V: Standard model for most marine applications.
• ES-7D Voltage 24V: Higher voltage model for specialized requirements.

Conclusion

Equip your marine vessel with the Newmar ES-1 Elite DC Panel for top-tier power management and control. Its advanced features, customizable options, and robust construction make it the ideal choice for ensuring efficient and safe operation of your marine electrical systems. Select the variant that meets your needs and experience the reliability and performance that Newmar brings to your marine adventures.
