Garmin Tilt/Swivel Mount, For echoMAP 50dv/50s, GPSMAP 547/547xs

Overview

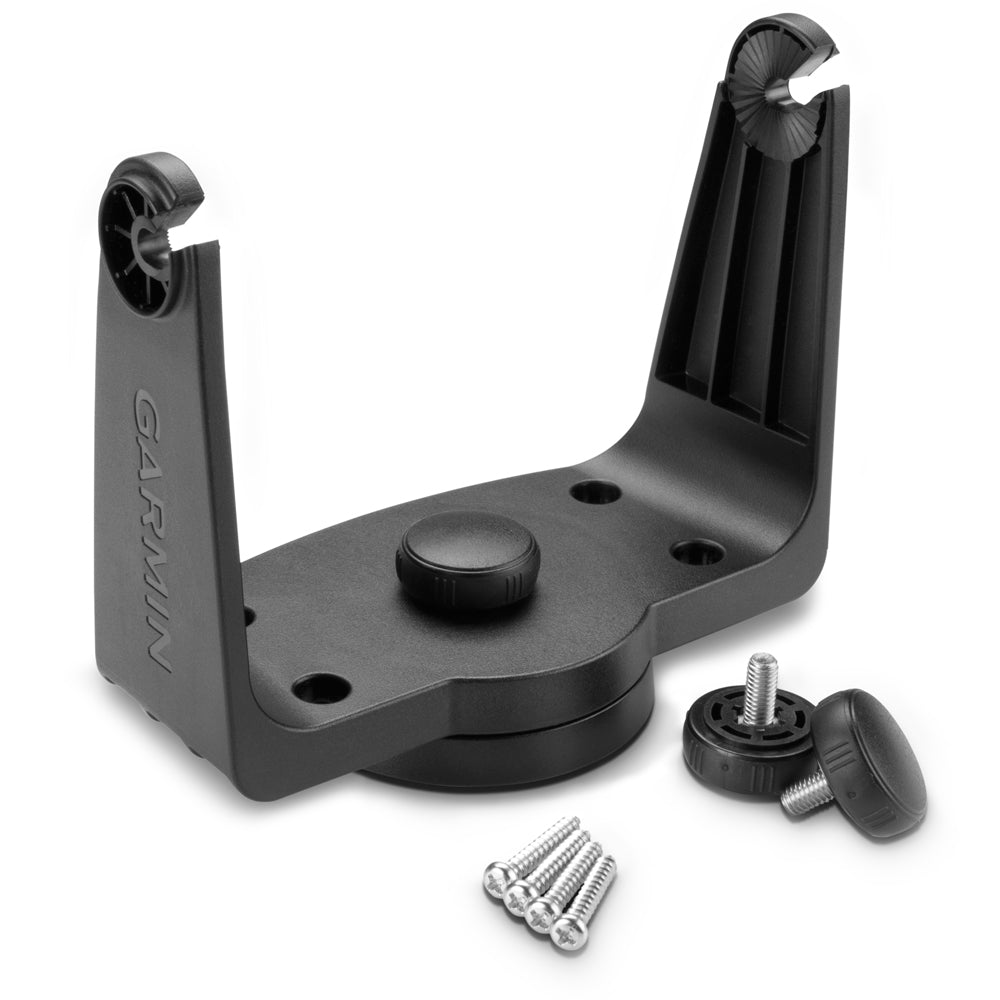

The Garmin 010-11966-00 is a tilt and swivel mounting bracket for compatible 5-inch echoMAP and GPSMAP displays, giving you a secure surface mount at the helm with an adjustable viewing angle.

It is used with echoMAP 50dv and echoMAP 50s units, along with GPSMAP 5x7 models such as GPSMAP 527, 527xs, 547, and 547xs. On a boat, the ability to change the angle matters when you move between sitting and standing, share the screen with a co-pilot, or need to reduce glare as the sun shifts.

Key features

• Tilt and swivel adjustment so the screen can be aimed toward your driving position.
• Compatible with Garmin echoMAP 50dv and echoMAP 50s.
• Compatible with Garmin GPSMAP 5x7 units including GPSMAP 527, 527xs, 547, and 547xs.
• Surface-mount style for mounting on a dash, console top, electronics box, or other flat location.
• Hand knobs let you loosen, set the angle, and lock it back down without tools.

Installation and setup

Before drilling, hold the bracket in place and check clearance for the unit to tilt through its range without hitting a windshield frame, grab rail, or console lip. Plan cable routing so power and transducer leads have enough slack to move with the display, and so they do not rub on sharp edges or get pinched when the unit is tilted.

For fiberglass or cored panels, sealing the fastener holes helps keep moisture out of the structure. After the first few runs, especially if the boat sees chop and vibration, recheck fasteners and the knob tension so the display stays where you set it.

Compatibility and fit

Confirm your chartplotter model matches the compatibility list above before ordering. If your unit is currently flush-mounted, verify you have the correct mounting points and hardware for a bracket installation at the new location.

Use on board

This bracket is a practical match for smaller helms where a 5-inch screen is mounted on top of the console, as well as for a second station where you want quick angle changes without reworking the dash. It also works well when the display needs to be shared between the helm seat and a standing operator during docking or slow-speed maneuvering.

Maintenance and care

Rinse salt spray off the bracket and knobs with fresh water and wipe it down periodically to keep adjustment smooth. If the mounting surface flexes or the boat is trailered often, inspect the fasteners as part of routine checks.
