Imtra Tide PowerLED Downlight, 10-40VDC, Warm White/Red

Overview

The Imtra ILIM57300 is a Tide PowerLED bi-color marine LED downlight with a round surface-mount base, a white-finished stainless steel bezel, and warm white/red illumination. Operating on 10-40VDC with a power consumption of 3.2W, this compact fixture supports interior lighting applications aboard boats, including cabin overheads and under-cabinet installations.

The downlight combines integrated current-controlled drive electronics with a frosted glass lens for blended light distribution without concentrated hot spots. Its warm white channel has a color temperature of 2800K, while the separate red channel provides an alternative illumination color. The fixture supports dimming through compatible Imtra PowerLED PWM controllers and has an IP40 protection rating.

Key features

• 10-40VDC operating range with 3.2W power consumption.

• Bi-color LED output with 2800K warm white and red illumination.

• Round surface-mount base with a white-finished stainless steel twist-on bezel.

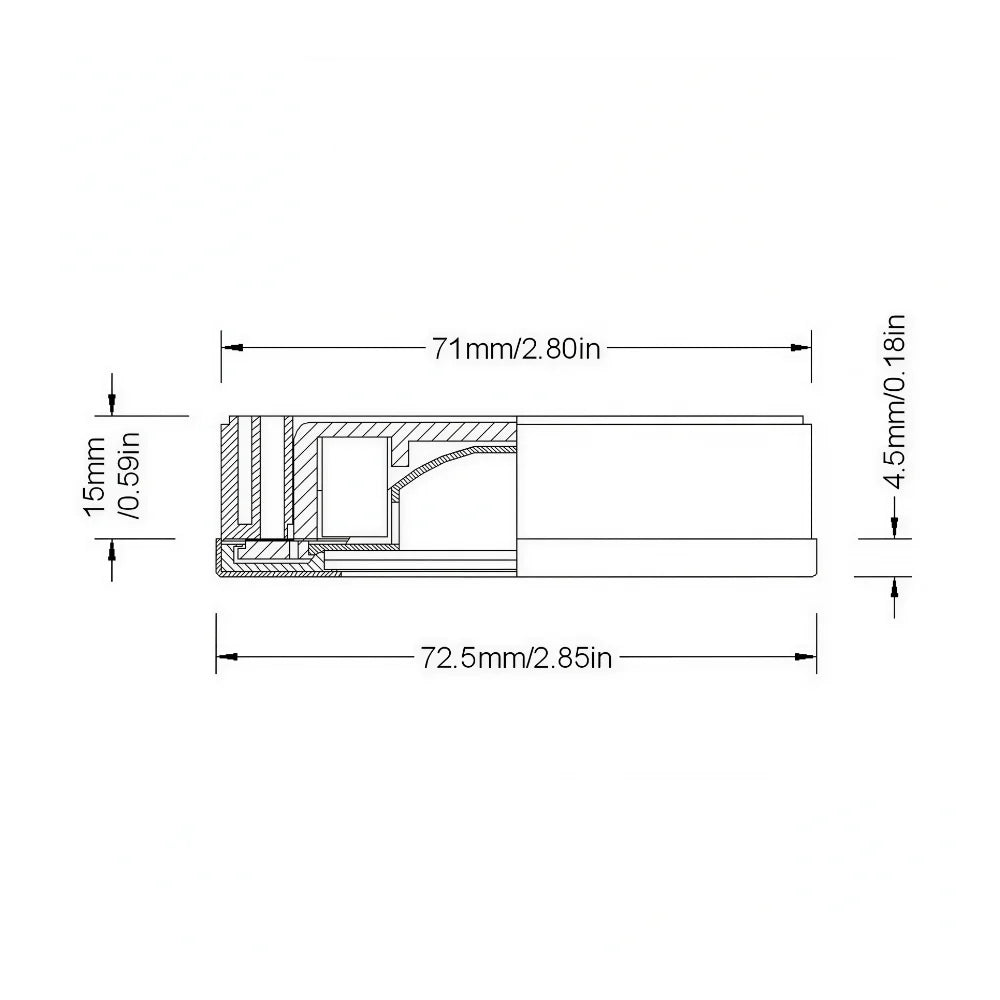

• 2.86-inch (73mm) diameter trim ring and frosted glass lens.

• Integrated current-controlled LED driver with reverse-polarity, transient, and voltage-spike protection.

• Compatible with Imtra PowerLED PWM dimmers ILIM80130 and ILIM80140, supporting a 5-100% dimming range.

• IP40 ingress protection rating for interior installations without liquid exposure.

• Rated LED operating life of approximately 50,000 hours.

Installation and electrical integration

The round base allows surface mounting without the recessed cutout required by flush-mounted downlights. Integrated driver electronics eliminate the need for a separate remote LED driver. The bi-color configuration uses three electrical leads, with separate positive connections for the white and red channels and a shared negative connection.

Compatible Imtra PowerLED PWM dimmers support brightness adjustment and bi-color control through a momentary switch. The fixture has no integrated switch, so switching and dimming are handled through the connected control system.

Placement on board

The compact surface-mounted configuration accommodates interior cabin lighting and under-cabinet installations where a recessed fixture is not preferred. Its warm white and red channels allow two illumination colors within the same fitting.

The IP40 rating does not provide protection against water ingress, so installation should be limited to protected interior locations. The rear housing must remain shielded from water exposure, with approximately 1/2 inch (13mm) of free space around the heat sink for ventilation.
