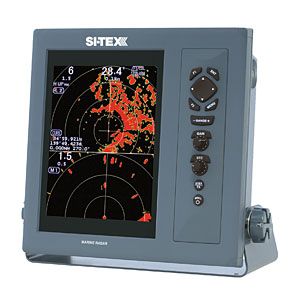

SI-TEX - T2060A 10.4" Color Radar - With 6Kw 4.5' Open Array

High-Performance Radar with Dual-Speed Operation

The Si-Tex T2060A-4 is a powerful 10.4” color radar system designed for marine navigation, offering high-speed target tracking and precision. Equipped with a robust 6kW open array scanner and a 4.5' antenna, this radar ensures reliable performance in various marine conditions. With its dual-speed antenna rotation of up to 48 RPM, it is particularly suited for high-speed vessels and river navigation, providing clear, real-time imaging of targets in all conditions.

Simultaneous Long- and Short-Range Target Tracking

This radar system features a split-screen display, allowing users to monitor long- and short-range targets simultaneously. The True-Trail Function helps distinguish moving targets, enhancing navigational safety and awareness.

Advanced Target Detection and Interference Rejection

The Si-Tex T2060A-4 includes advanced features such as Interference Rejection, Target Expansion, Parallel Index, and True/Relative Bearing to provide enhanced tracking and navigation capabilities. It also comes with a standard AIS interface module capable of tracking up to 200 targets. Additionally, an optional Automatic Tracking Aid (ATA) can monitor 50 targets simultaneously, further improving situational awareness.

Technical Specifications

Radar System:

• Scanner Type: 4.5' Open Array
• Peak Power Output: 6kW
• Output Frequency: 9410 ± 30MHz
• Beam Width: 1.8° Horizontal, 22° Vertical
• Rotation Speed: 24 or 48 RPM
• Pulse Width: 0.08, 0.15, 0.3, 0.5, 1 µsec
• IF Frequency: 60MHz
• Range Accuracy: Better than 8m or 1% of range scale selected
• Minimum Detecting Distance: 25m

Display Unit:

• Screen Size & Type: 10.4" TFT Color LCD
• Resolution: 480 x 640
• Display Modes: Heads Up, North Up*, Course Up*, WPT Up**
• Dimensions: 12 19/32" x 12 19/32" x 5 39/64"
• Power Requirements: 10.8 - 31.2vDC
• Power Consumption: 110 watts or less

Note: Some display modes require external input from heading, speed, or GPS compass systems.

Highlights

• Dual-speed antenna rotation for high-speed and river operations
• Split-screen display for simultaneous long- and short-range monitoring
• True-Trail Function for easy identification of moving targets
• Interference Rejection and Target Expansion for enhanced visibility
• Parallel Index and True/Relative Bearing functions for improved navigation
• Standard AIS interface supporting up to 200 target tracking
• Optional Automatic Tracking Aid (ATA) for up to 50 targets

What’s in the Box?

• MRD-104 Display Unit
• RB717A - 6kW Pedestal
• RW701A-04 - 4.5' Antenna
• 15M Radar Cable
• DC Power Cable
• Quick Reference Guide
• Operation Manual

This radar system is a powerful addition to any vessel, offering high-performance tracking and navigational precision, making it ideal for professional and recreational mariners alike.
