Lumitec Contour Masthead/Anchor Combo Light, 39 in, 10-30V, IP67, 3NM

Overview

The Lumitec Contour Masthead Combo Light is a low-profile LED navigation light that combines masthead, anchor, and stern light functions in one 39 in fixture for 12V and 24V boats. It operates on 10-30 VDC, uses white light output, and carries an IP67 rating for wet deck and hardtop locations where spray, rain, and washdowns are part of normal use.

The light integrates a 225-degree masthead light, a 360-degree anchor light, and a 135-degree stern light. It is rated to 3 NM for masthead and anchor visibility, with stern light performance rated to 2 NM, giving boat owners a clean way to handle required navigation lighting without adding separate fixtures in the same area.

This range suits center consoles, pilothouse boats, and other vessels where a slim masthead light helps reduce clutter above the hardtop or electronics arch. The finish and base style vary by configuration, so the right version depends on the boat’s color scheme and how the light will be mounted.

Key features

• Three functions in one fixture: masthead light, 360-degree anchor light, and stern light.
• 10-30 VDC input supports common 12V and 24V DC electrical systems on boats.
• IP67 rating helps protect the fixture in exposed marine mounting areas.
• 39 in length gives the light useful height above hardtops, arches, and deck equipment.
• White light output with low current draw: 185 mA at 12V DC and 95 mA at 24V DC.
• Available in black or white finishes to match common hardtop, tower, and console layouts.
• Antenna mount and Angler Motorized Base configurations cover fixed and powered fold-down installations.

Variants

The Lumitec Contour Masthead Combo Light is offered in four configurations. The choices change the finish color and the base style, while the core 39 in combo navigation light remains the same across the range.

Black and white finishes affect how the light looks against the boat’s hardtop, arch, or tower. Antenna Mount versions use a standard antenna-style mounting approach and the base is not included. Angler Motorized Base versions are set up for powered fold-down mounting where lowering the light from the helm or control area is useful.

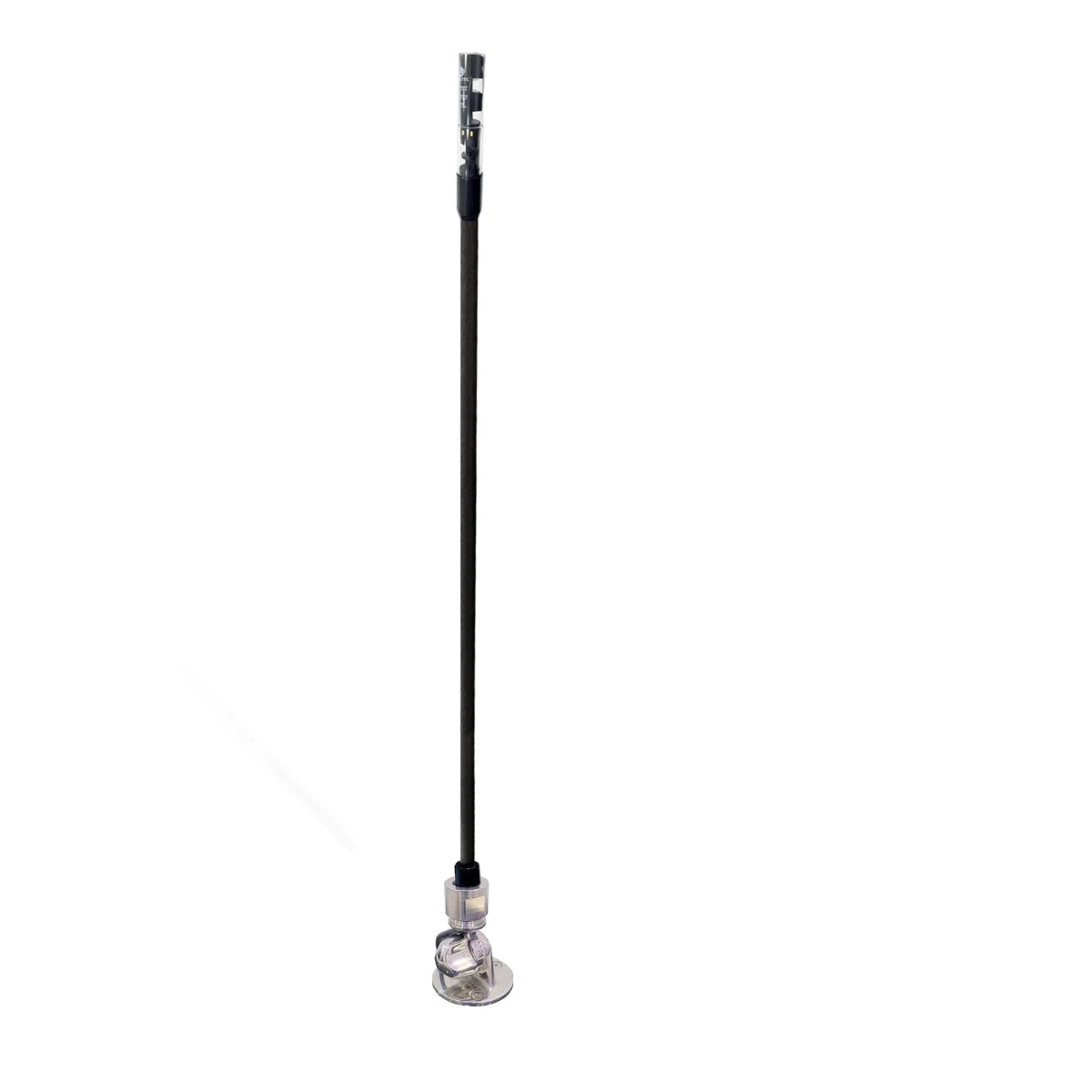

• 101905: Black finish with Antenna Mount base. This version suits installations where a black shaft better matches the hardtop hardware, radar arch, or electronics layout, and it is supplied as the shaft fixture for use with a compatible antenna-style base.

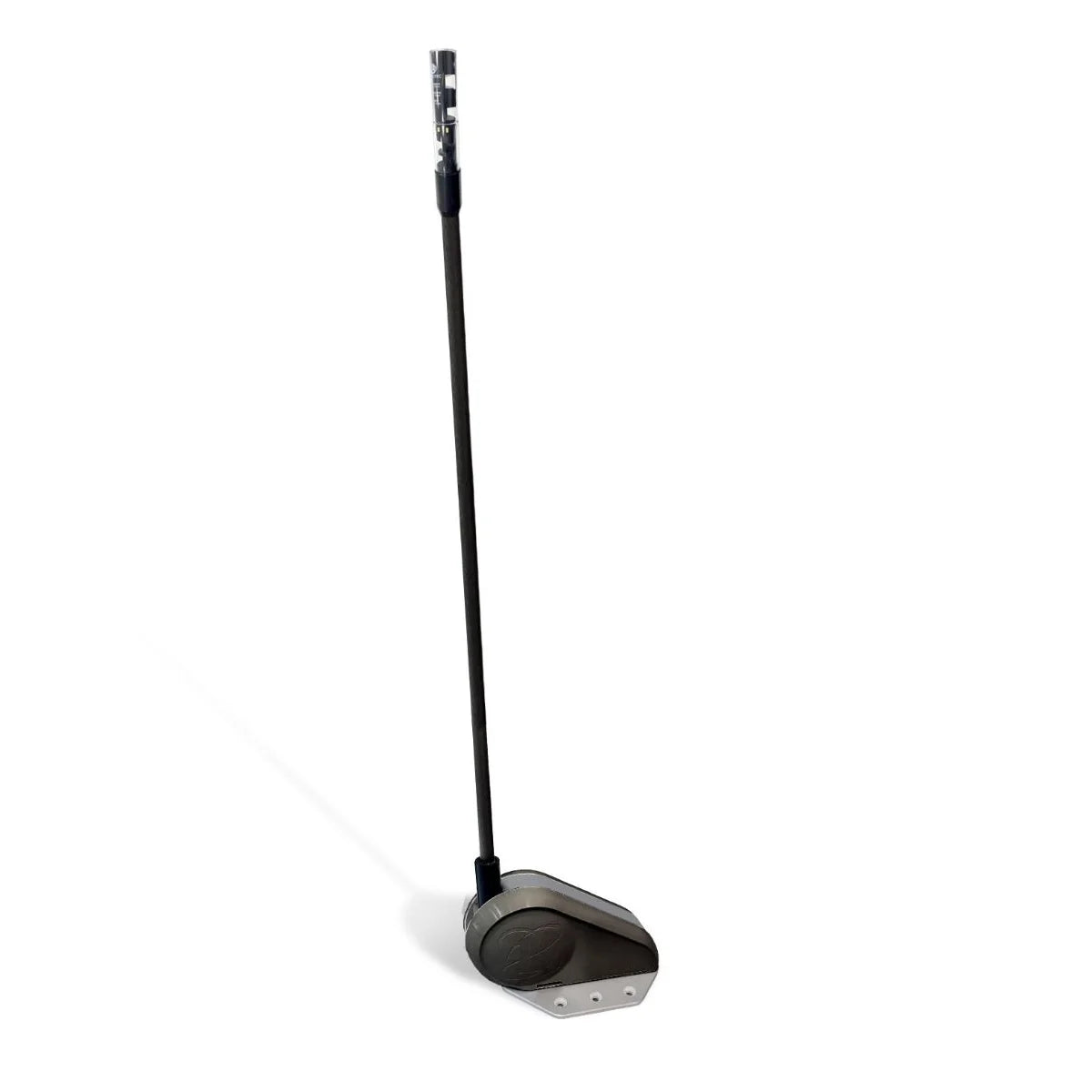

• 101907: Black finish with Angler Motorized Base. This configuration keeps the black appearance and adds powered fold-down mounting for boats that need clearance under bridges, covers, or storage areas.

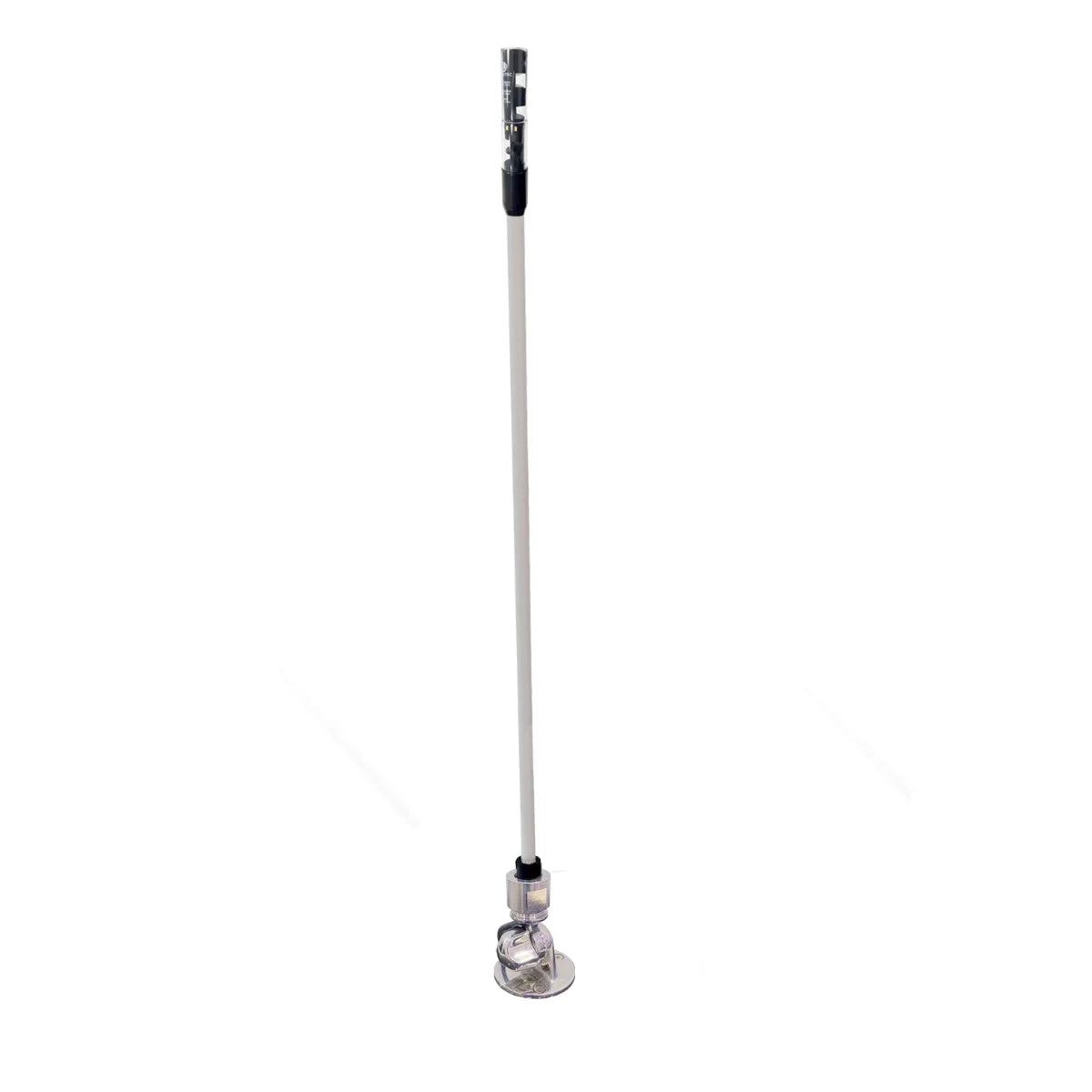

• 101904: White finish with Antenna Mount base. This version fits well visually on white hardtops and towers, and it is supplied as the shaft fixture for use with a compatible antenna-style base.

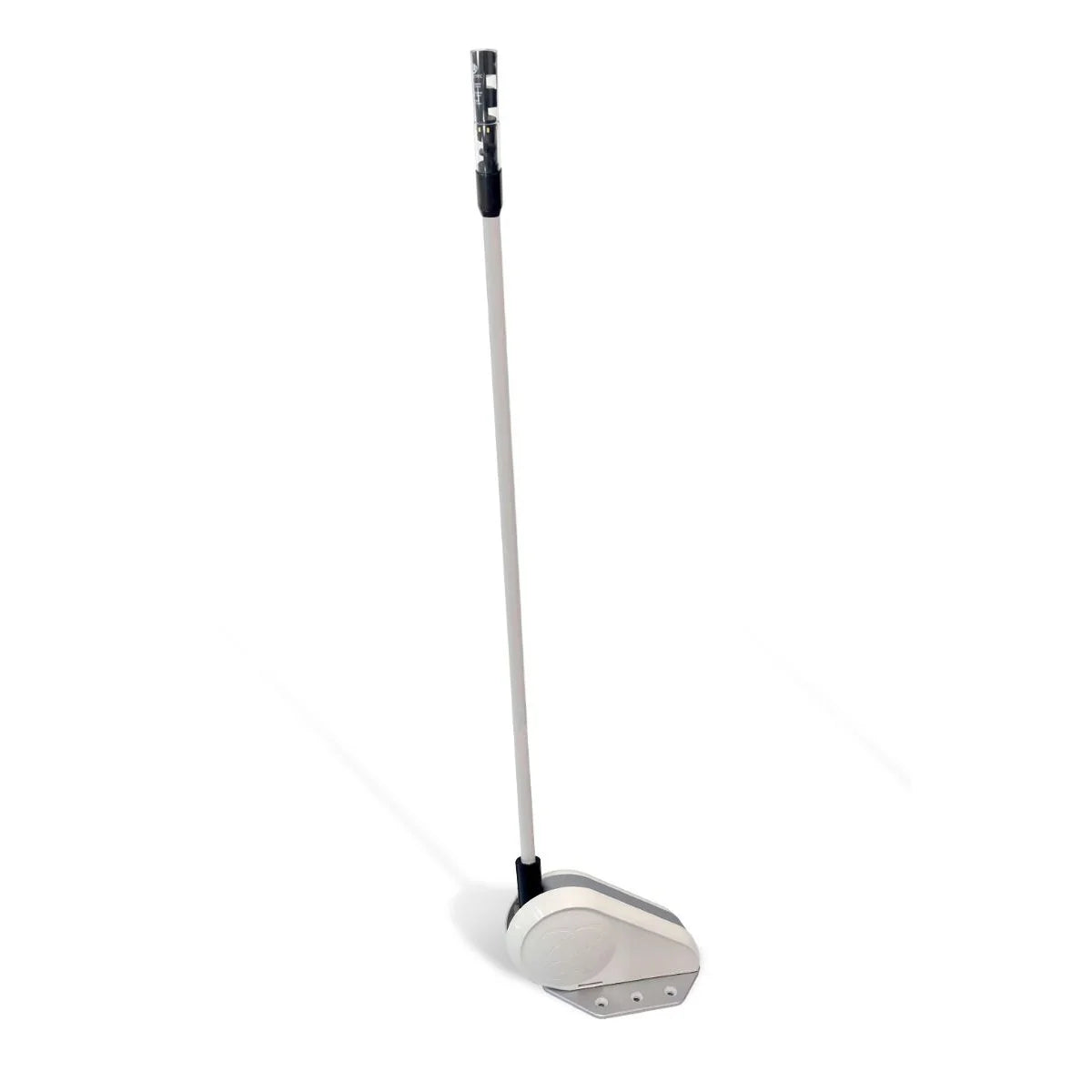

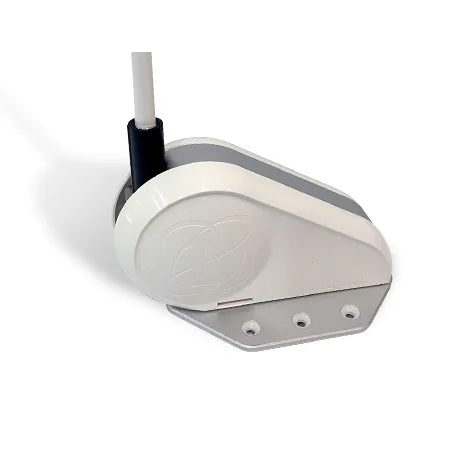

• 101906: White finish with Angler Motorized Base. This configuration pairs the white finish with powered fold-down mounting for boats where clearance control matters and the light needs to blend with a white top or arch.

Electrical and system integration

The 10-30 VDC input range makes the fixture practical for both 12V and 24V DC systems without selecting a separate voltage-specific model. Power draw is low at 2.2 W, which helps keep electrical load modest when the anchor light is left on overnight.

Wire the light through the boat’s protected navigation light circuit and follow the vessel’s switching arrangement for masthead, anchor, and stern operation. As with any navigation light, final placement should maintain the required sectors of visibility and keep the light clear of antennas, radar, outriggers, and other equipment that could block the beam.

Mounting and fit

The 39 in height is useful when the light needs to sit above equipment on a hardtop or arch. Antenna Mount versions are suited to boats already using standard antenna-style mounts or custom top layouts, while Angler Motorized Base versions help when the fixture needs to fold down for trailering, dry-stack storage, bridge clearance, or boat covers.

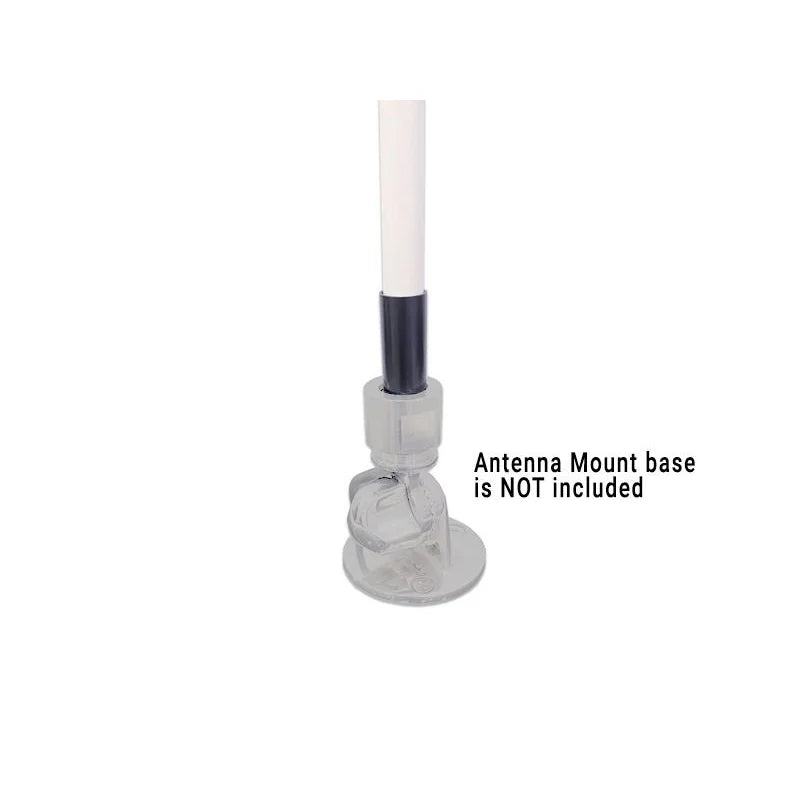

Before ordering, match the configuration to the actual mounting plan. For Antenna Mount versions, confirm the mount base separately, since the light is supplied as the shaft fixture only. For motorized versions, check available space, wiring route, and swing clearance so the light can move without contacting nearby antennas, radar, or canvas hardware.

Use cases on board

This light is a good match for boats where the top area is already crowded and the owner wants masthead, anchor, and stern lighting handled from one clean fixture. It works especially well on center consoles, fishing boats, and cruising boats that need navigation lighting above the hardtop without adding unnecessary bulk.

The IP67 rating and operating temperature range of -31 degrees F to +131 degrees F make it suitable for exposed tops in saltwater service, provided the installation is sealed, supported, and wired correctly. Regular rinsing and inspection of the mount, wiring entry, and moving base components will help keep the installation working properly through normal marine use.
