Lopolight Double Stern and 360° Navigation Light, 3nm, 10-32VDC

Overview

The Lopolight double stern and 360° navigation light combines double stern and double all-round white light configurations in a single assembly, with 3 nautical miles of visibility. Operating on 10-32VDC electrical systems, it features an IP68 ingress protection rating and is specified for vessels over 50 meters.

The fixture is designed for horizontal mounting on a 400-035 cable-down base and uses a plug connector for electrical connection. Available in silver and black anodized finishes, both configurations maintain the same navigation light arrangement and electrical specifications.

Key features

• Combined double stern and double 360° all-round white navigation light configuration.

• 3 nautical mile visibility with luminous intensity exceeding 15 candela.

• 10-32VDC operating voltage for compatible marine electrical systems.

• IP68 ingress protection rating.

• Horizontal mounting on a 400-035 cable-down base with plug connector.

• Current consumption of 130mA at 12VDC and 72mA at 24VDC.

• DNV certified, with approvals including COLREG72, EN14744, and IEC 60945.

• Specified for vessels over 50 meters in length.

Variants

This navigation light assembly is available in two anodized finish configurations.

Both variants feature the same white light output, 3nm visibility, 10-32VDC operating range, IP68 protection, and horizontal cable-down mounting arrangement. The primary difference is the exterior finish.

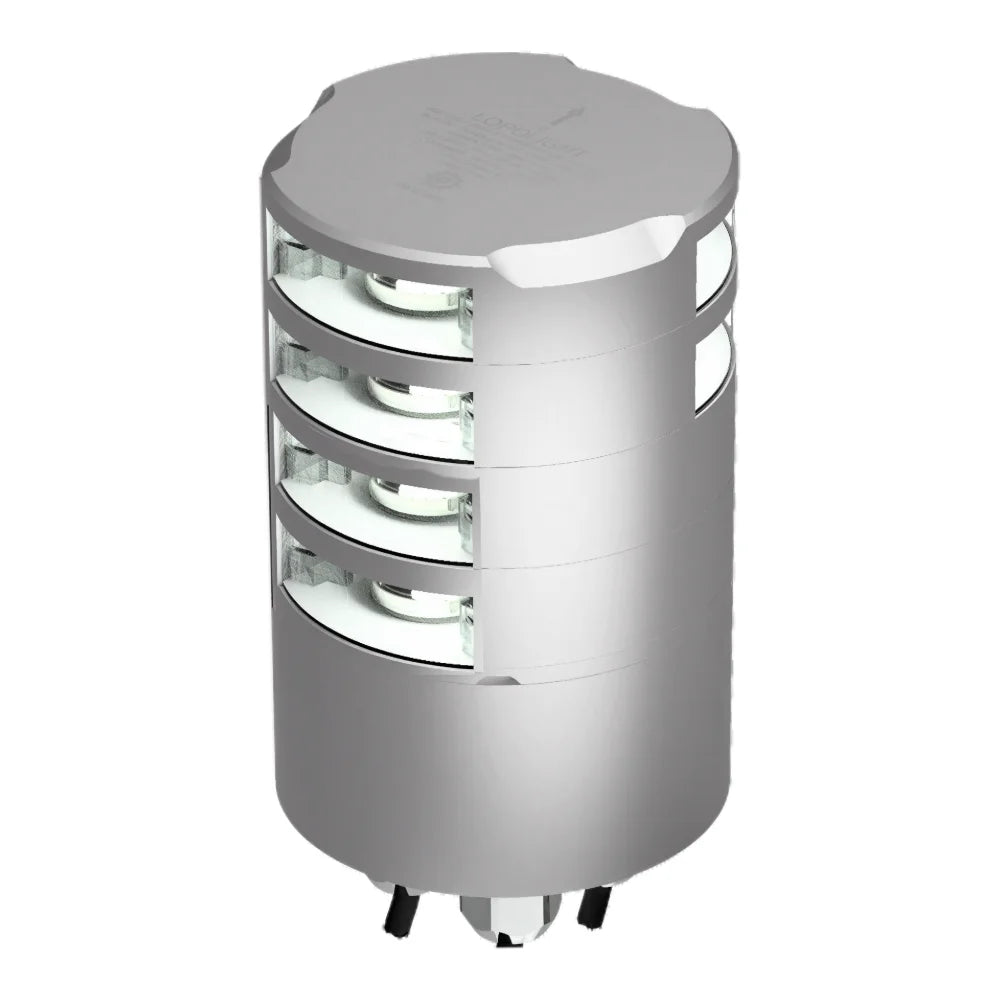

• 301-105ST+112G2ST-CD: Silver anodized finish, providing a metallic silver appearance to the fixture housing.

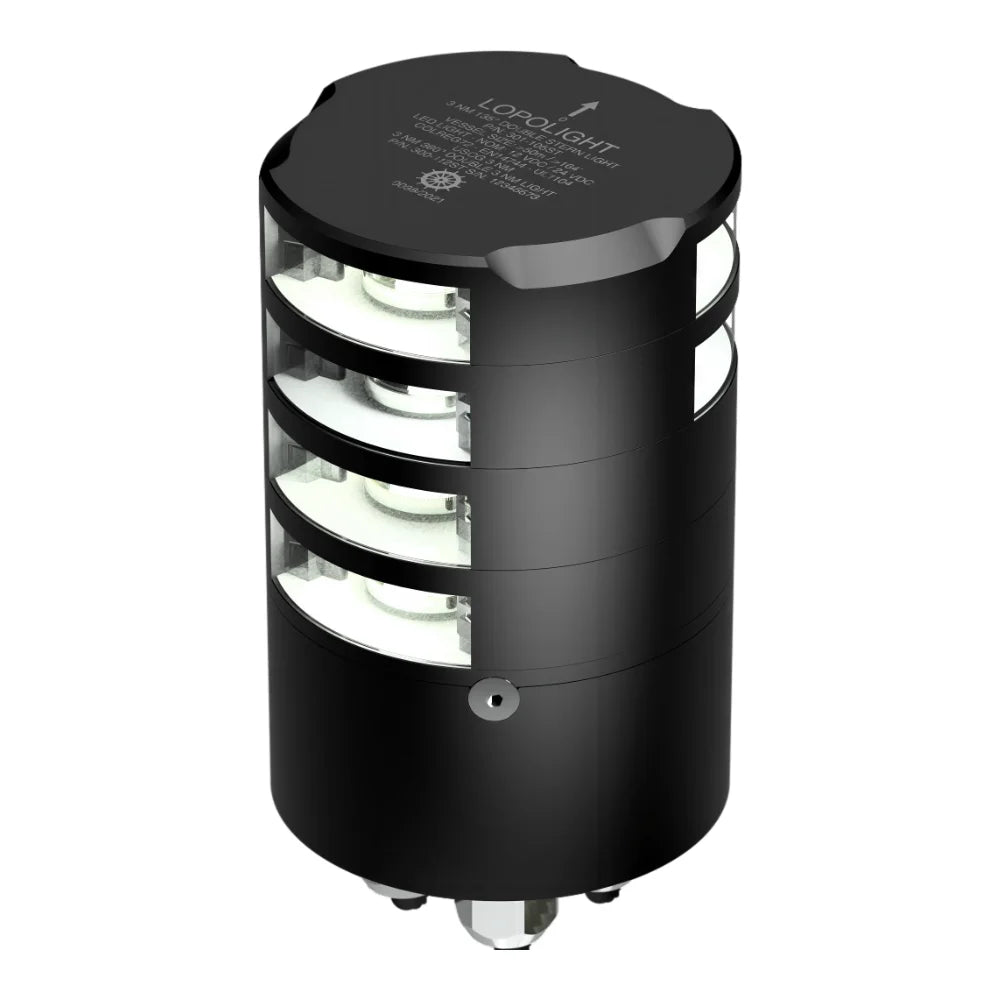

• 301-105ST+112G2STBCD: Black anodized finish, providing a black exterior appearance to the fixture housing.

Installation and setup

The assembly mounts horizontally using the 400-035 cable-down base, with the electrical connection routed through the mounting arrangement. Its plug connector supports integration with the vessel's compatible DC electrical system. Installation should maintain the required visibility of the stern and all-round white navigation lights.
