Vimar PLANA 1-Module LED Auxiliary Emergency Lamp, 100-240V AC, Rechargeable Li-Ion Battery, 2.5h Autonomy, Courtesy or Step Marker Light, External 1-Way Switch Control

Overview

The Vimar VM14398 is a 1-module LED auxiliary emergency lamp for escape-route lighting on 100-240 V AC systems, with max system power of 1.0 W. It uses an individual rechargeable lithium-ion battery and a non-exchangeable LED light source, and it is rated IP40 with Class II double insulation.

This unit installs either surface-mounted or recessed, which makes it a practical fit for interior bulkheads, companionway areas, and passageways where you want a small marker light that remains available during a loss of main power. Overall size is 22.3 mm wide, 45.7 mm high/depth, and 49.0 mm long, with a built-in depth of 35.2 mm for recessed installs.

It also supports a remote switch connection, so it can be used as a courtesy light or step marker when controlled by an external 1-way switch.

Key features

• 100-240 V AC input with 1.0 W max system power
• Individual rechargeable lithium-ion battery with fixed, non-exchangeable LED light source
• Escape-route lighting function in a 1-module format for Vimar PLANA device positions
• Surface mounting or recessed mounting, depending on the panel and box arrangement
• Remote switch connection support for courtesy light or step-marker control
• IP40 protection and Class II double insulation for interior electrical safety

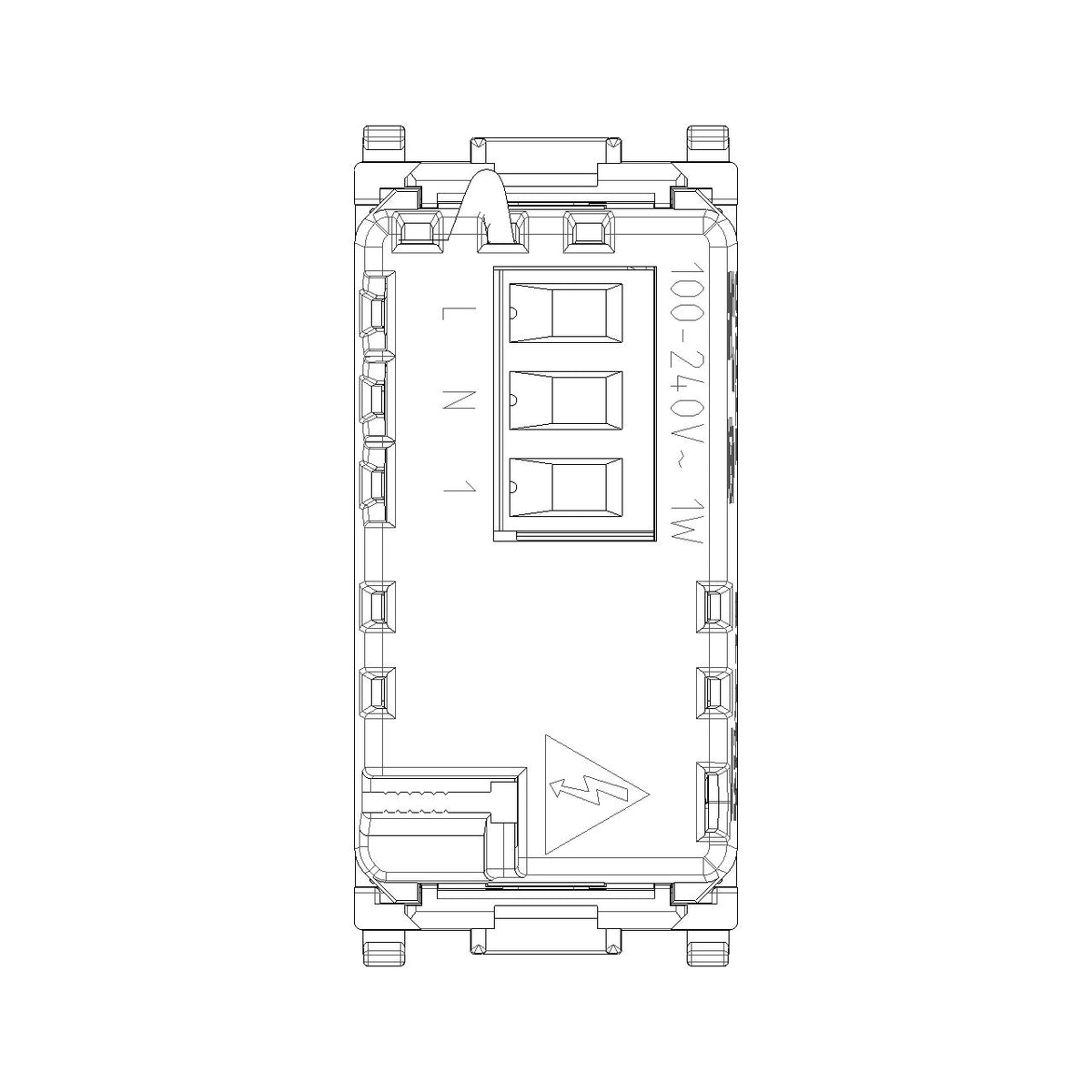

• Screw connection terminals for straightforward wiring

Installation and setup

Plan the location first with real on-board sightlines in mind: low on a bulkhead by steps, along a cabin passage, or near the route from berths to the companionway. For recessed mounting, confirm there is enough clearance behind the panel for the built-in depth and that cabling can be routed without pinching.

Because this device is for mains voltage, treat it like any other AC accessory on a vessel. Use appropriate marine-rated conductors, provide proper circuit protection at the distribution panel, and keep terminations tight and strain-relieved to handle vibration underway.

Compatibility and fit

This lamp is intended for 100-240 V AC electrical systems, which commonly means shore-power or inverter-fed circuits on board. It is not a 12 V or 24 V DC fixture, so verify the supply type at the mounting location before ordering.

If you want step or courtesy lighting control, confirm your installation includes an external 1-way switch and wiring path for the remote switch connection.

Use notes for marine interiors

The IP40 rating is suited to protected interior spaces where the unit will not see washdowns or direct spray. On boats that get heavy condensation, place it where it can stay dry and avoid mounting positions that drip from hatches or deck hardware.

This is a good match for cruising sailboats, motor yachts, and working boats with an AC distribution system where clear egress paths matter in cabins and companionways.

Maintenance and care

Include a quick function check in your normal safety routine so you know the light and battery are behaving as expected. Clean the face and surrounding panel with a dry or slightly damp cloth, and avoid solvents or aggressive cleaners that can haze plastics over time.
