Lopolight Double 6nm Masthead and 3nm All-Round LED Light, IP68

Overview

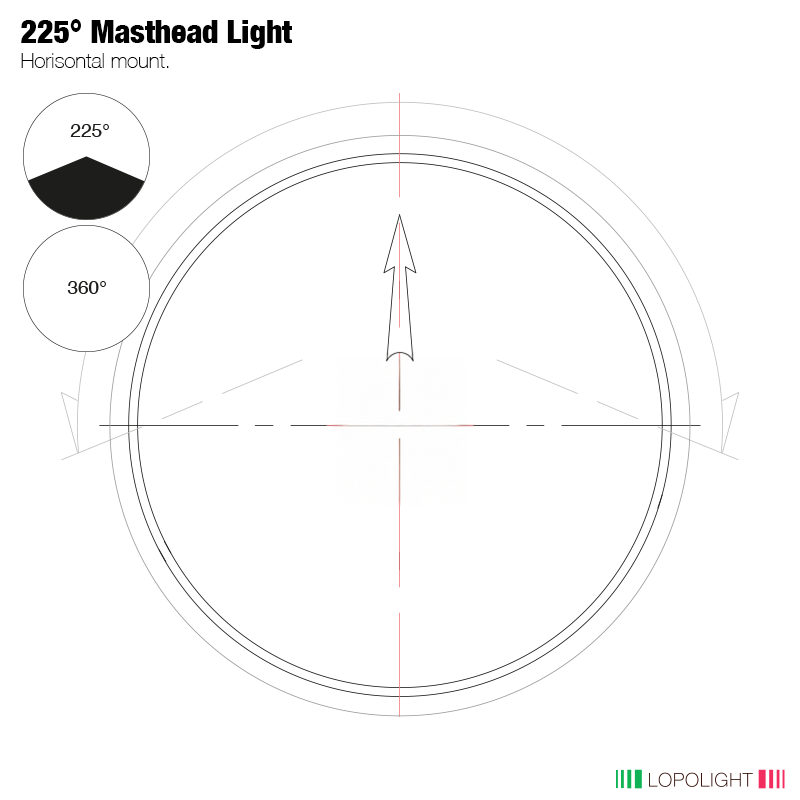

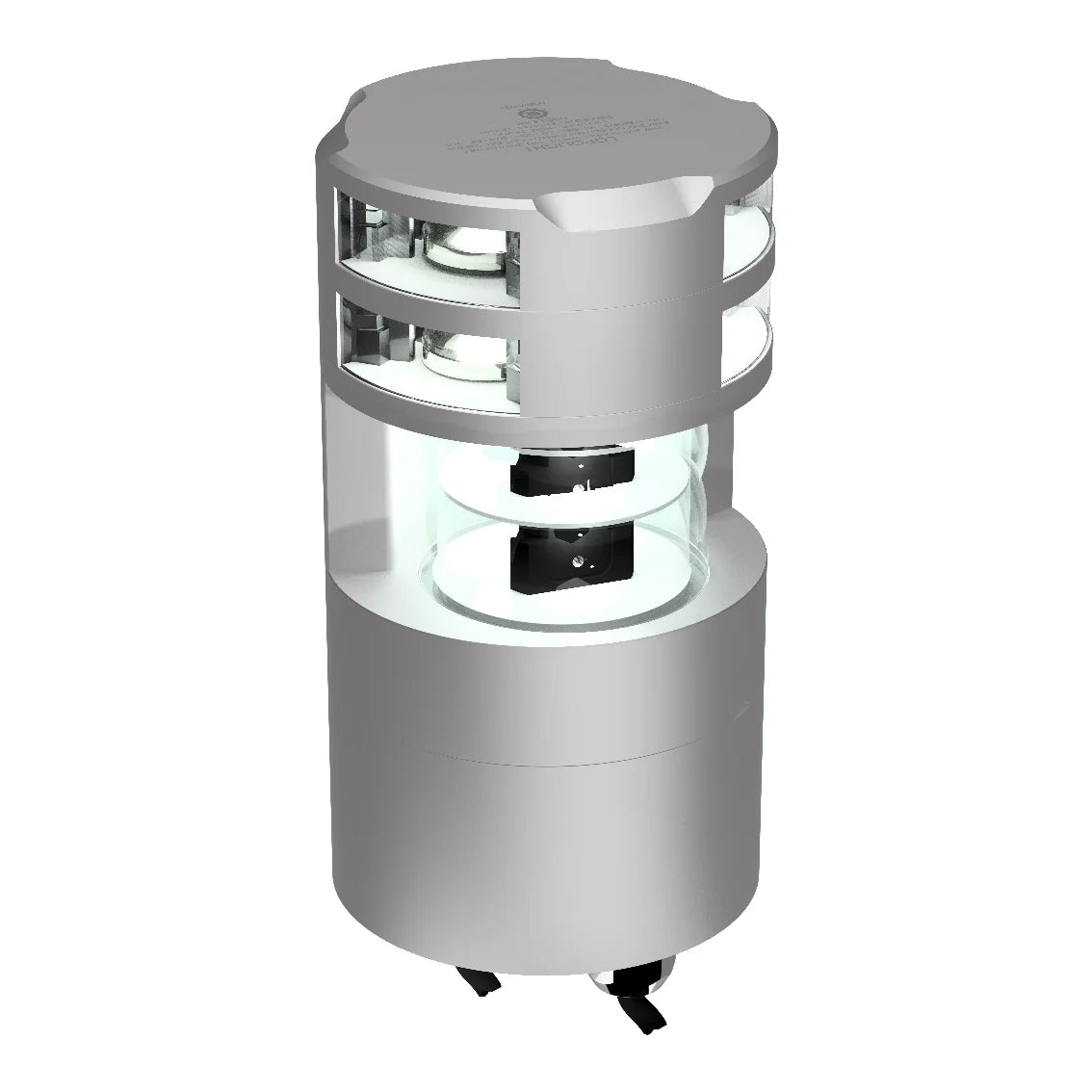

The Lopolight 300-138+112G2ST-CD is a combined LED navigation light assembly for vessels over 50 meters, featuring a double 6 nautical mile masthead light and a double 3 nautical mile, 360° white all-round light. The masthead section provides 225° coverage, while the all-round section serves the anchor-light function.

The assembly operates on 20-32 VDC with a 13 W power draw and an IP68 ingress protection rating. Its silver anodized aluminum construction, horizontal mounting configuration, and compact combined design accommodate both navigation light functions in a single installation.

Key features

• Double masthead and double all-round LED navigation light configuration with white light output.

• 6 nm masthead visibility with 225° coverage and 3 nm all-round visibility with 360° coverage.

• 20-32 VDC operating voltage with 13 W power consumption.

• IP68 ingress protection and an operating temperature range of -25°C to 55°C.

• Silver anodized aluminum construction with a PMMA lens and A4 stainless steel screws.

• Overall dimensions of 3.6 inches in diameter and 6.6 inches in height.

• Horizontal mounting on a cable-down aluminum base with a plug electrical connector.

• DNV-certified navigation light with approvals including COLREG 72, IEC 60945, USCG, ABS, and MED.

Installation and electrical connection

The assembly uses a horizontal mounting arrangement with a cable-down aluminum base. The plug connector provides the electrical interface, and the specified 20-32 VDC operating range supports compatible 24V marine electrical systems.

Marine applications

This configuration combines masthead and all-round white navigation lighting for superyachts and commercial vessels over 50 meters. The double-light arrangement accommodates installations requiring both functions in a combined fixture, while the IP68 rating and specified construction materials support exposure to marine operating conditions.
