Vimar Neve Up 2-Module Dial Thermostat, 100-240V, 5(2)A Relay Output, Flush Mount

Overview

The Vimar Neve Up Series is a flush-mount dial thermostat for boats and yachts with 100-240 V AC climate circuits that switch heating or air conditioning in ON/OFF mode. It uses a 5(2) A 240 V relay output, fits a 2-module opening, and gives you straightforward temperature control from a rotary dial rather than a touchscreen.

This thermostat is a practical fit for cabins, saloons, and other interior spaces where the vessel already has an AC-powered HVAC setup or an inverter-fed climate circuit. The setpoint can be adjusted from 4°C to 40°C, and the white LED backlighting includes brightness control so the display stays easy to read in daylight or at night.

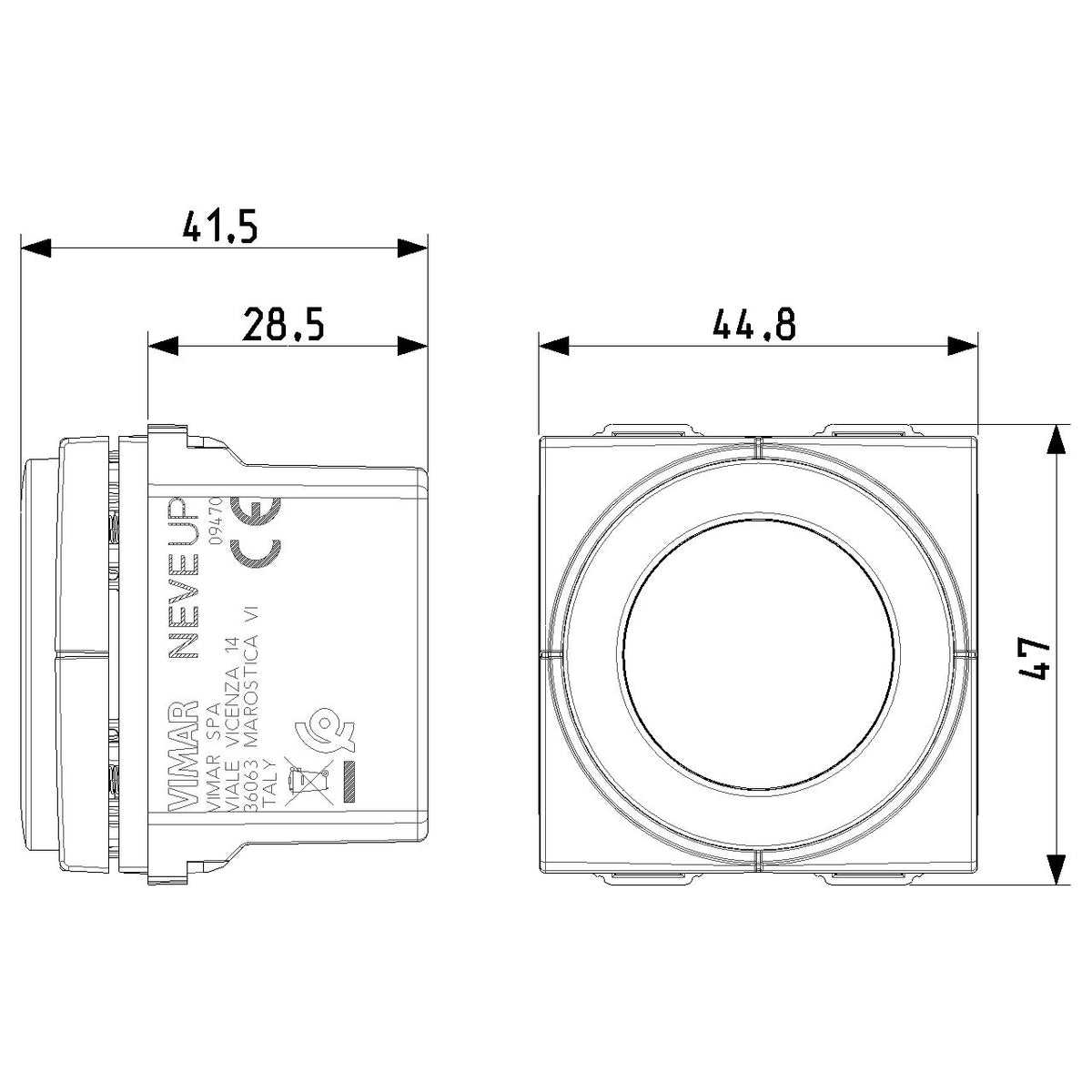

The body measures 47.00 x 44.80 x 41.50 mm, which helps when panel space is limited. Its flush-mounted layout keeps the front clean and easy to integrate into modern interior switch panels during a refit or new installation.

Key features

• 100-240 V AC, 50/60 Hz power supply for vessels with AC climate control circuits
• 5(2) A 240 V relay output for heating or air conditioning in ON/OFF mode
• Temperature setpoint adjustment from 4°C to 40°C through the front dial
• White LED display and backlighting with adjustable brightness for day and night use
• Flush-mount 2-module format for a clean fit in interior switch panels
• Class I temperature control device with 1% contribution

Variants

This thermostat is offered in two color configurations within the same Neve Up 2-module format.

The difference between the variants is the finish color. The electrical supply, control method, relay output, and core thermostat function remain the same across both versions.

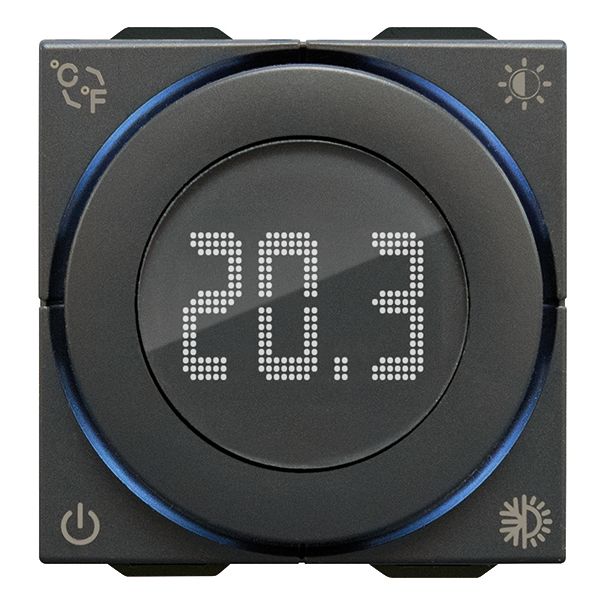

• VM09470.CM: Color: Carbon. This darker finish blends more quietly into anthracite panels and contemporary cabin interiors.

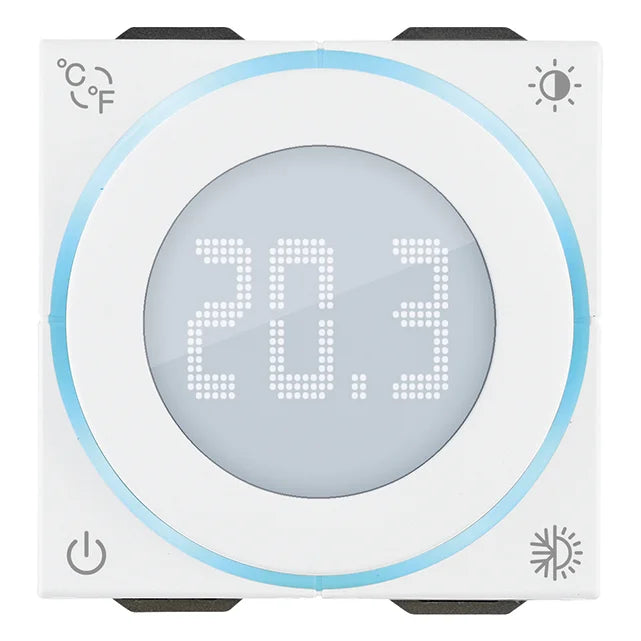

• VM09470: Color: White. This finish stands out more clearly on light switch plates and white interior panel layouts.

Electrical and system integration

This unit is intended for hard-wired AC installations, so it suits vessels where cabin heating or air conditioning is controlled from a 100-240 V circuit. It is not the right match for a direct 12 V or 24 V DC thermostat setup unless the system itself is designed around AC supply and switching.

The thermostat works in ON/OFF mode, which keeps operation simple for crew and guests. That makes it a sensible choice for accommodation spaces where you want room temperature control without adding a more complex networked system.

Installation and fit

The flush-mount body and 2-module footprint make this thermostat easier to place in finished interior panels without taking up much face space. For marine refit work, that can be useful when the goal is to add climate control in a neat way that matches other modular switches and controls nearby.

This product is a good match for owners, yards, and electricians looking for a compact wall control for enclosed living spaces on board. It works best where the priority is simple rotary control, a clean panel finish, and compatibility with an AC-powered heating or cooling circuit.
