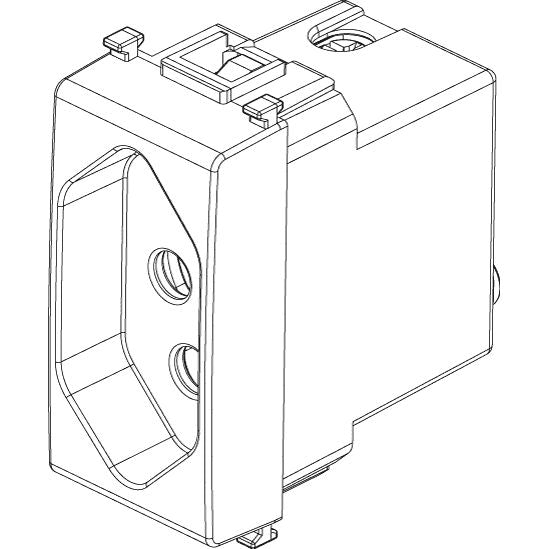

Vimar Plana 2P+E Brazilian SICURY Socket Outlet, 20A, 250V, IP20, Flush Mount, Halogen-Free Thermoplastic

Overview

The Vimar Plana is a 2P+E Brazilian SICURY outlet rated for 20A at 250V, with a flush-mounted 1-module format that sits neatly in interior electrical points and panel layouts. It uses screw terminals, includes enhanced contact protection, and carries an IP20 rating, so it belongs in dry, protected spaces rather than exposed deck or washdown areas.

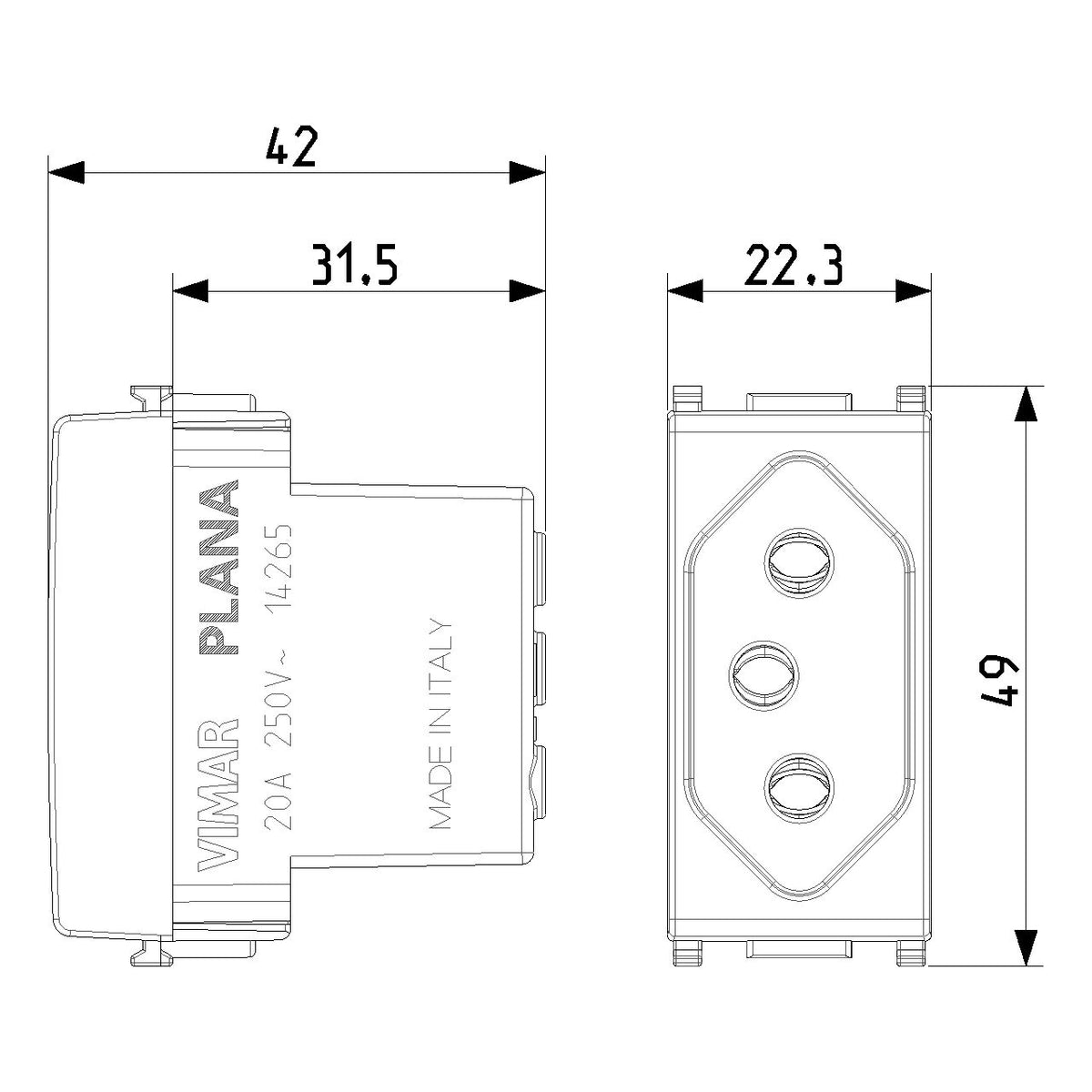

The housing is thermoplastic and halogen-free, with a glossy front and compact dimensions of 22.30 mm wide, 49.00 mm high, and 42.00 mm deep. On board, it suits cabin refits, galley areas, and other enclosed spaces where a Brazilian standard outlet is needed and the finish needs to match the rest of the installation.

Key features

• 2P+E Brazilian SICURY outlet rated for 20A, 250V, and 50 to 60 Hz circuits
• Flush-mounted 1-module format for clean integration into compatible Plana installations
• Screw terminal connection for secure wiring during new installs or replacements
• Enhanced contact protection with SICURY shutter for safer everyday use
• Halogen-free thermoplastic body with a glossy front surface
• IP20 protection for dry interior locations

Variants

This product is offered in two finish options.

The electrical format, 20A and 250V rating, 1-module body, flush-mounted installation, screw terminal connection, and IP20 protection remain the same across both versions. The change between variants is the visible finish and color.

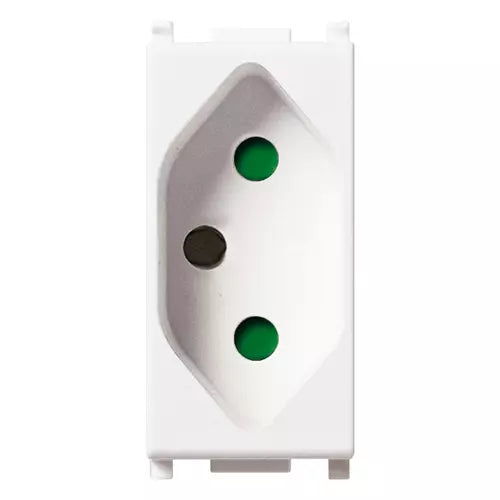

• VM14265: White finish. This version has a glossy untreated surface that works well with lighter cabin panels and trim.

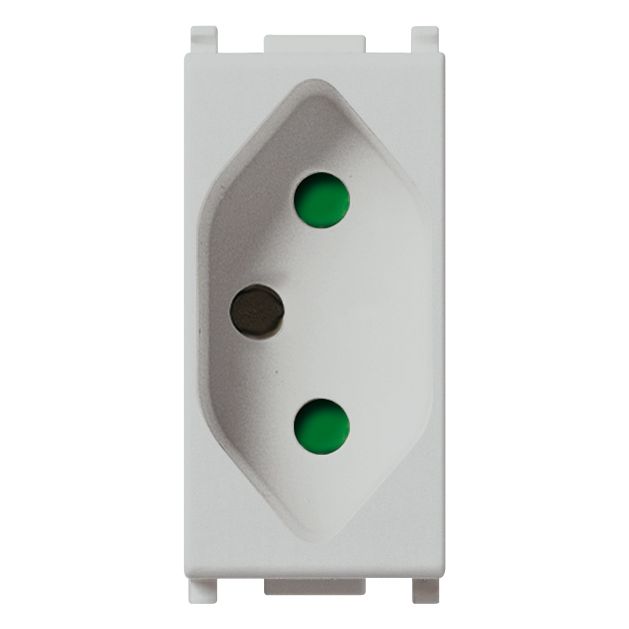

• VM14265.SL: Silver finish. This version has a glossy lacquered surface that gives a more metallic look in contemporary interiors.

Compatibility and fit

This outlet uses the Brazilian 2P+E pattern and is built as a 1-module device, so the support, plate, and mounting arrangement need to match the Plana system already in place. Before ordering, check the outlet standard, available module space, and the AC circuit rating on the vessel or property where it will be installed.

Installation and setup

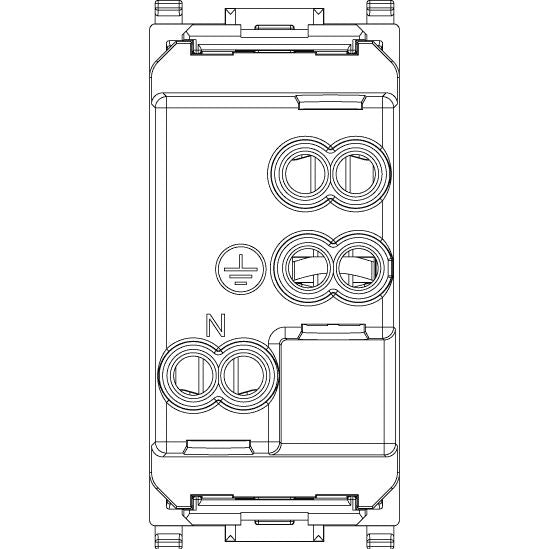

The screw terminal layout keeps wiring straightforward for electricians and marine installers working on protected interior circuits. It is a good match for cabins, saloons, and service spaces with shore power or onboard AC distribution, as long as the location stays dry and sheltered in line with the IP20 rating.
