Vimar Eikon Cable Outlet with Terminal Bar, For Square Mounting British Standard Boxes, 2P+T, 45A, 250V

Overview

The Vimar Eikon is a cable outlet with a 2P+T 45 A 250 V terminal bar for square British standard mounting boxes. It is a flush, fixed cable entry point with a built-in mounting frame and cover, so the cable exit stays neat on the finished face while the termination stays behind the unit.

On board, this suits protected interior spaces where a hard-wired cable needs to pass through a finished panel without using a plug socket, such as cabins, galleys, service areas, or helm interiors that already use the Eikon system. The terminal bar is rated 45 A at 250 V 50/60 Hz and accepts flexible cables from 4 mm² to 10 mm².

This is an ordinary IPX0 device, so it belongs in a dry installation area rather than an exposed deck, wet locker, or washdown zone. Across this range, the electrical format stays the same and the visible change is the finish.

Key features

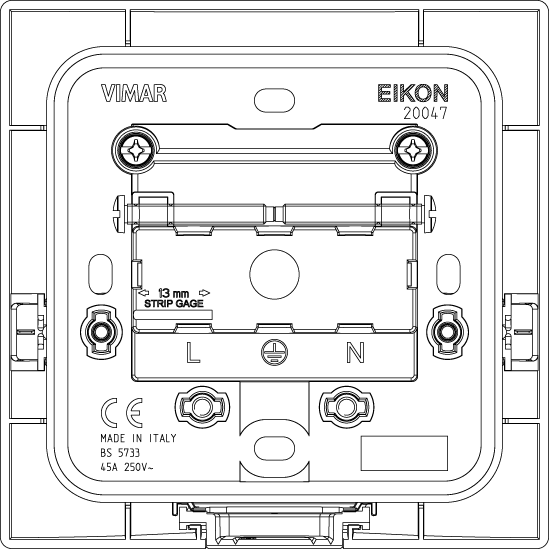

• 2P+T terminal bar rated 45 A, 250 V, 50/60 Hz
• Built-in mounting frame and cover for a cleaner finished face
• Fits square British standard mounting boxes
• Flush, fixed cable entry with provision for earthing
• Accepts flexible cables from 4 mm² to 10 mm²
• Ordinary IPX0 construction for protected interior locations
• CE marked and ASTA certified

Variants

This product is offered in three finish options within the same Eikon cable outlet format.

The listed variants change the visible color. The 45 A, 250 V, 2P+T terminal bar, the built-in mounting frame and cover, and the square British standard box format remain the same across the versions shown here.

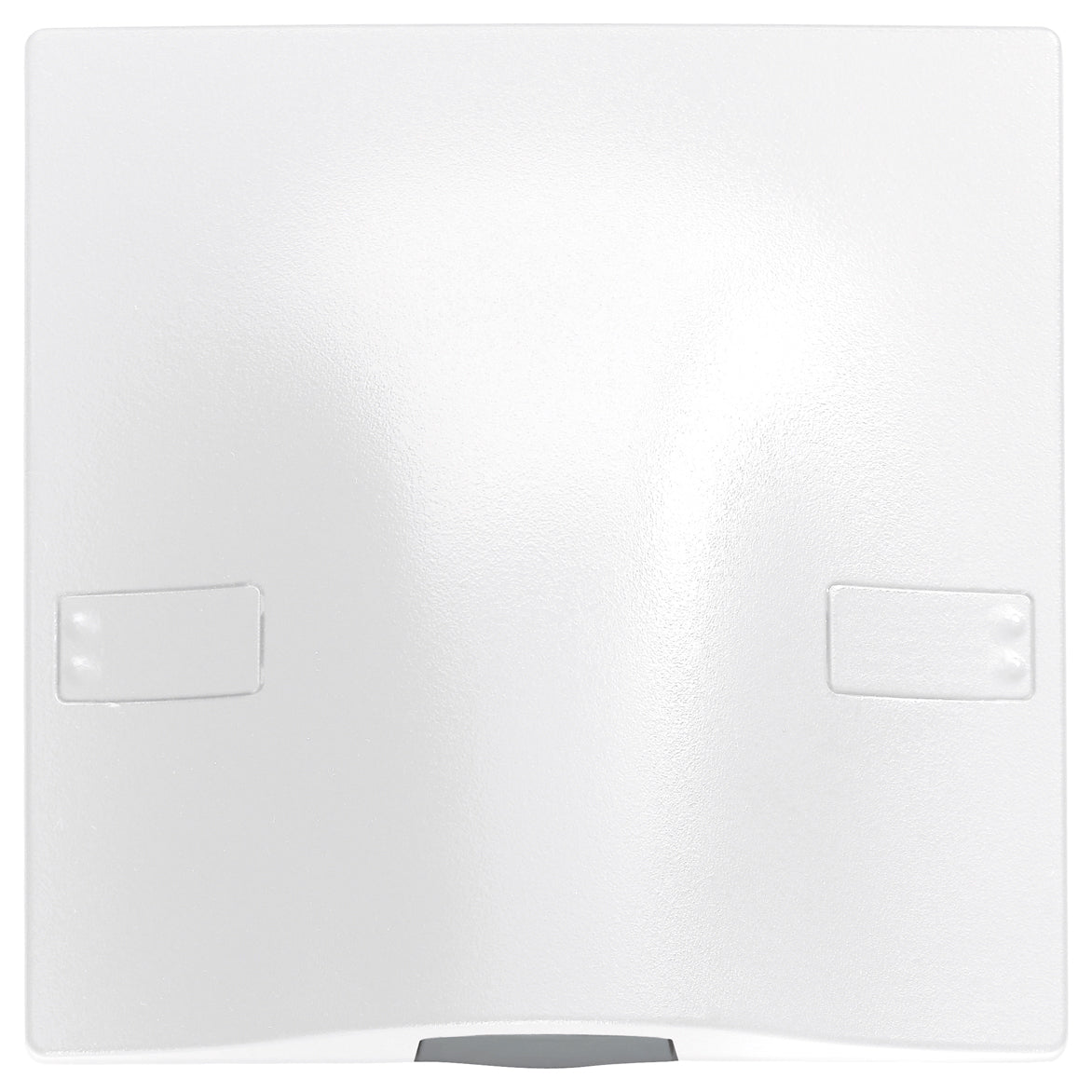

• VM20047.B: Color White. This version keeps the same electrical layout with a light finish that blends into white switch panels and cabin interiors.

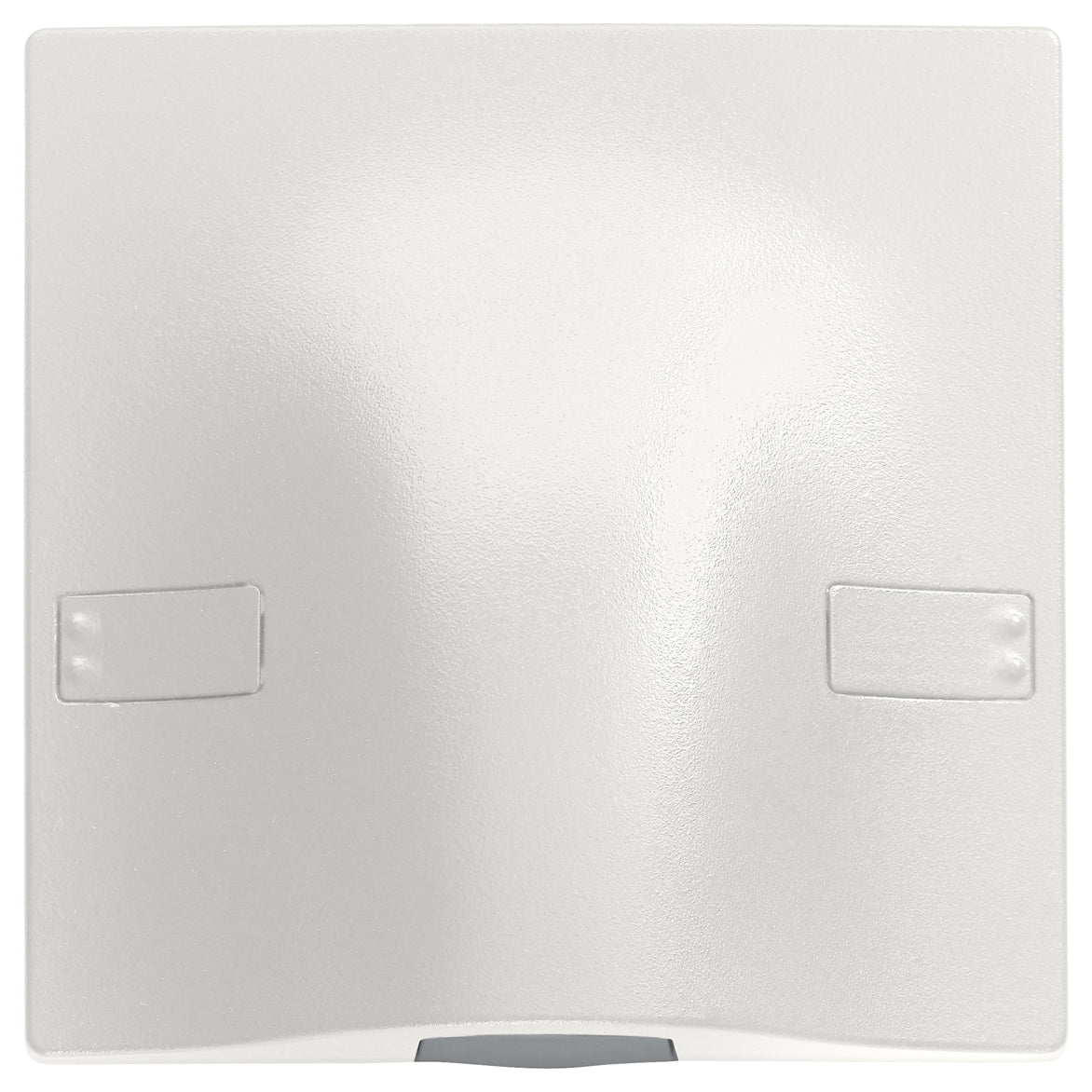

• VM20047.N: Color Silver. This version uses the same outlet format with a silver toned face that suits modern instrument panels and metallic trim.

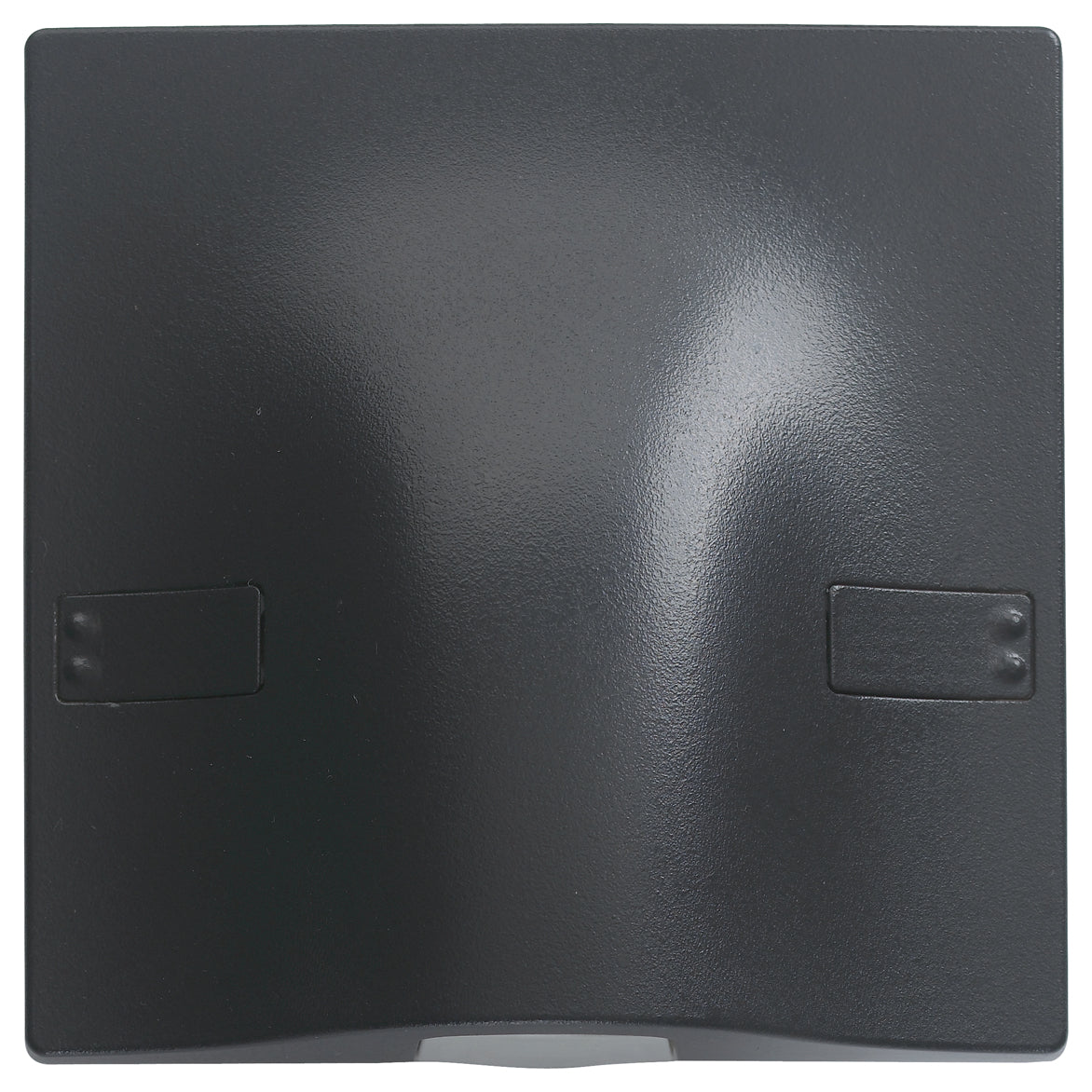

• VM20047: Color Grey. This version keeps the same fit and rating with a darker face that works well where existing Eikon devices are already in grey.

Compatibility and fit

This outlet is not a general-purpose deck gland or a weatherproof exterior fitting. It is part of the Vimar Eikon switching range and makes sense where the boat already uses square British standard boxes and matching interior electrical trim.

Before ordering, check the mounting box format, the cable size, and the installation zone. For a vessel refit, it is a good match when the goal is to pass a fixed cable through a finished panel and land it on a 45 A terminal bar without breaking the look of the surrounding switchgear.

Use on board

This works well for interior AC distribution points where a cable must exit cleanly from a panel to feed a fixed appliance or another hard-wired load. It is most relevant on yachts, cruisers, and other boats with finished accommodation spaces rather than open utility areas that take direct spray.
