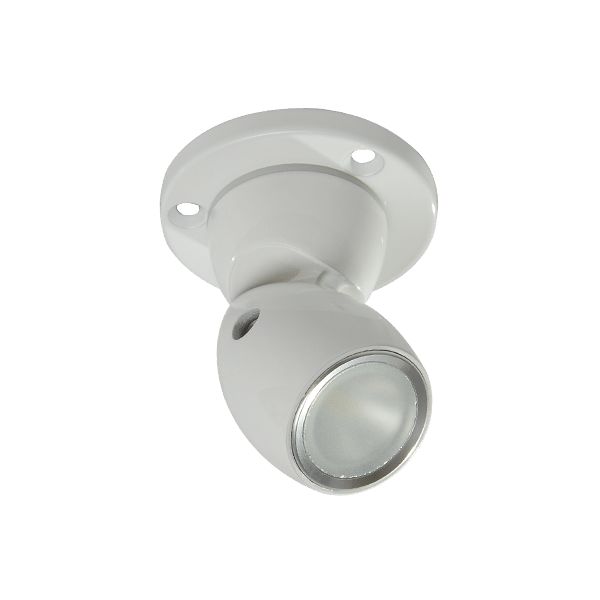

Lumitec GAI2 LED Positionable Light, 10-30V, 6W, IP67, Surface Mount, 5000K Cool White, White Housing, 340 lm

Overview

The Lumitec 111823 is a positionable LED utility light with a heavy duty surface-mount base for general lighting and close-up tasks on a boat. It runs on 10-30 VDC for 12V and 24V systems, uses 6W, and outputs 340 lumens of 5000K white light. The fixture is sealed to IP67 for wet locations and washdowns, and this version has no built-in switch so it can be controlled from a panel switch or upstream dimmer circuit.

The round base measures 2.53 inches across, which helps when you are fitting lighting onto a bulkhead, overhead, or cockpit sidewall. Because the head is aimable, you can point light at a chart table, steps, a berth, or a work area without lighting up the whole cabin.

This is a good match for boaters who want a clean, cool-white work-light look in a compact fixture, especially in spots that see spray, vibration, and frequent use.

Key features

• 10-30 VDC input for 12V and 24V DC systems
• 6W LED output with 340 lumens of 5000K white light
• IP67 sealed for exterior mounting and washdown zones
• Aimable head to direct light where you need it
• Surface-mount base with a 2.53 inch diameter footprint
• No built-in switch for clean installations with remote switching

Installation and setup

Plan the mounting location so the head has room to swivel without hitting trim, doors, or soft goods. If you are installing it outside or in a damp locker, seal the fasteners and the wire pass-through so water cannot migrate into the core or behind panels.

Route wiring with a drip loop and secure it so it cannot chafe from vibration. On open decks and in cockpits, keep the run tucked under coamings or inside conduit where it will not get snagged by gear.

Electrical and system integration

Wire it to a protected 10-30 VDC lighting circuit and control it from an external switch at the helm, cabin panel, or a nearby rocker switch location. If you want brightness control, use a compatible dimmer on the supply side and confirm the dimmer is rated for LED loads.

Use cases on board

Common installs include reading light duties at a berth, task lighting at the helm, cockpit prep lighting, and spot lighting for steps and companionways. The 5000K output reads as a crisp white, which helps when you are sorting lines, checking labels, or doing quick maintenance at night.

Maintenance and care

Rinse salt residue off the exterior when you wash down the boat, especially around the pivot points and base edge. Avoid harsh solvents on the lens and finish, and periodically check that mounting screws stay snug after long runs in chop.
