Hella Marine 2010 All-Round Anchor Light, White Light, 2 NM, 12V 10W Bulb, IPX6, Fold-Down Surface Mount, 305 mm Pole

Overview

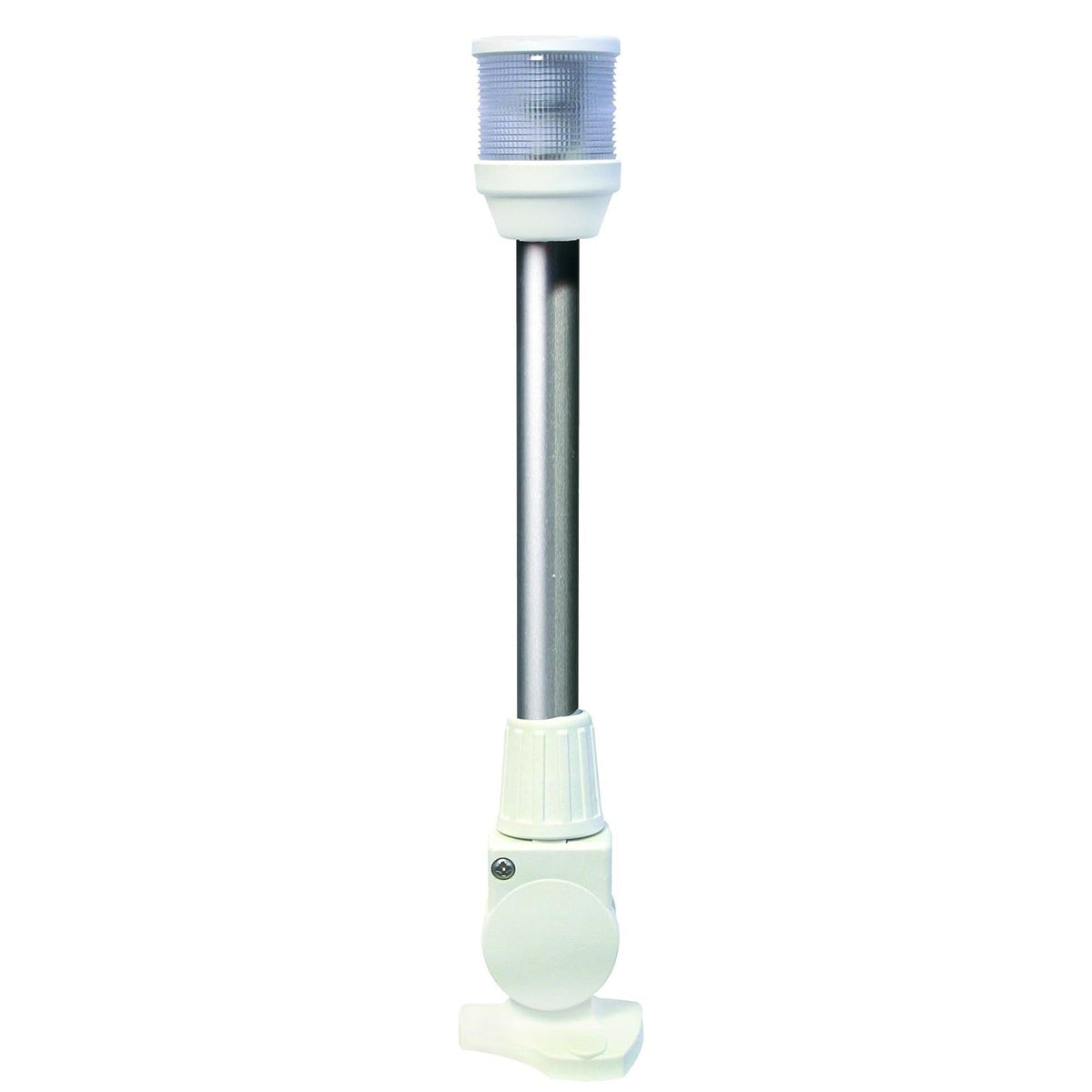

The Hella Marine 995002181 is a fold-down, 360-degree all-round white anchor lamp for 12V systems, rated IPX6 for exposed mounting and washdowns.

It uses a 10W SV8.5 (BAY15d) bulb and is rated for a minimum visible distance of 2 nautical miles. The pole length is 305 mm (about 12 in) with a 44 mm lamp diameter, which helps when you are checking clearance under covers, biminis, or a hardtop.

The housing and lens use plastic that resists UV and impacts, paired with an anodized aluminum pole. The assembly is non-magnetic, which can help reduce compass disturbance when it is mounted nearby.

Key features

• 360-degree all-round white output with 2 nautical mile minimum visibility rating
• IPX6-rated for water jets and typical deck washdowns
• 12V, 10W bulb system (SV8.5/BAY15d); 24V can be used with a 10W 24V bulb
• Fold-down pole adjusts through 180 degrees and locks at the chosen angle

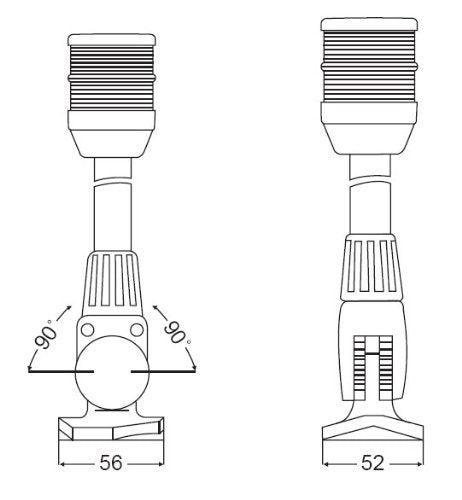

• Overall pole length 305 mm (about 12 in); lamp diameter 44 mm for clearance checks
• Pre-wired with a 100 mm cable lead for a short, clean hookup inside the mounting surface
• Anodized aluminum pole with a plastic housing and lens that resist UV exposure and impacts
• Removable wedge helps match cambered mounting surfaces so the light can sit true

Installation and setup

This style is meant for horizontal surface mounting where the lamp can stand clear and show an unobstructed 360-degree arc. The fold-down joint is handy for trailering, storage covers, and tight overhead clearance, while still letting you lock the pole upright for use at anchor.

If the mounting surface has crown or camber, the included wedge can help the base sit correctly. Take time to position it so antennas, rod holders, an outboard, or a bimini frame will not block the light when it is deployed.

Electrical and system integration

The lamp runs on 12V DC using the included 10W bulb and draws about 0.83 A at 12V. Wire it into an anchor or all-round light circuit at your helm switch and keep connections protected from moisture inside the mounting area. For 24V setups, the same lamp can be used by fitting a 10W 24V SV8.5 (BAY15d) bulb.

Compatibility and fit

This is an all-round white anchor light in a fold-down, surface-mount format. Use the 305 mm pole length, 44 mm lamp diameter, and the short 100 mm pre-wire lead to confirm it will clear nearby hardware and that you have room to route wiring under the mounting surface.

What's included

• Anchor lamp assembly with fold-down pole and base
• 12V 10W SV8.5 (BAY15d) bulb
• Stainless steel mounting screws
• Removable mounting wedge

Use on board

This light suits boats that need an all-round anchor light that can be folded down after use, such as center consoles, runabouts, small sailboats, and boats stored under a cover. It also makes sense for transom or cabin-top mounting where you want a clean look underway and an easy way to reduce height at the dock.

Maintenance and care

Rinse salt spray off the housing and pole as part of normal washdown. Keep the lens clean for consistent visibility, and replace the bulb if output drops or it fails after long hours at anchor.
