Lopolight 360 Degree Navigation Light, Blue Dinner and White Lights, 2nm, 10-32VDC, IP68, Horizontal Mount, Black HDPE Base

Overview

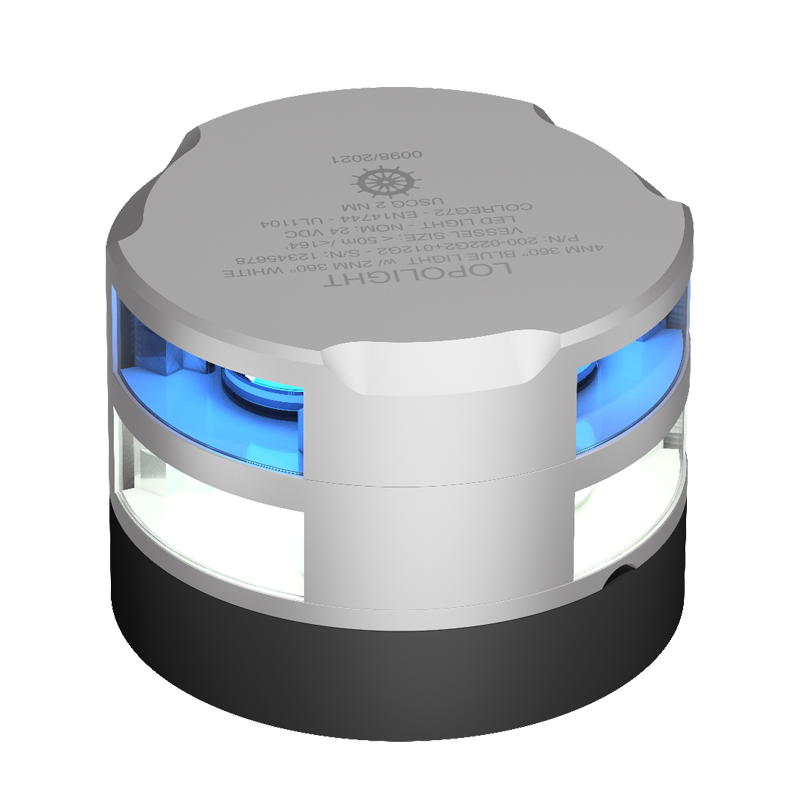

The Lopolight 200-012G2+022G2 is a 2 nm 360° white anchor light combined with a 2 nm 360° blue dinner light in a single housing for horizontal mounting.

It runs on 10-32VDC, so it fits both 12V and 24V boats, and the sealed IP68 construction is meant for exposed mounting on hardtops, arches, and masts. The overall footprint is Ø92.5mm x 68mm, and the unit comes pre-cabled with a 0.75m shielded marine-grade lead for routing back to a switch panel or nav light controller.

The housing uses aluminum with black anodizing (25µ) with a PMMA lens and A4 stainless steel fasteners, and it is rated for -25°C to 55°C. Current draw is 167mA at 12VDC and 110mA at 24VDC, with light intensity >5.4cd and 2 nm visibility. It is approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, and LR, and it is specified for vessels up to 50m.

Key features

• Two all-round light functions in one unit: 2 nm 360° white and 2 nm 360° blue.
• 10-32VDC input supports both 12V and 24V systems.
• IP68 sealing for rain, spray, and washdowns on exposed mounting locations.

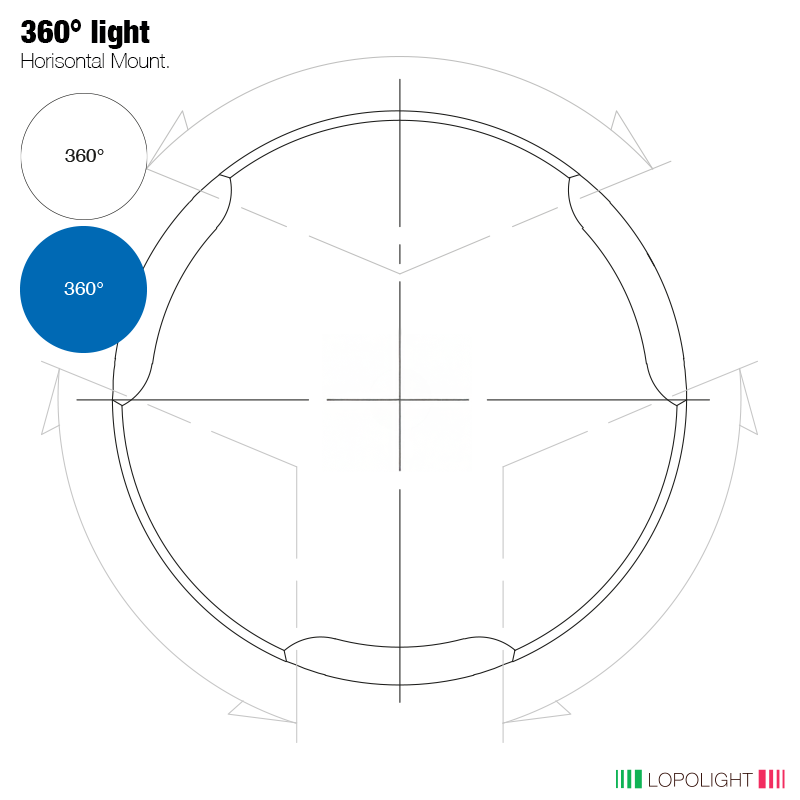

• Horizontal mount on a black HDPE base; overall size Ø92.5mm x 68mm.
• Pre-cabled with a 0.75m shielded marine-grade cable and a 0.7m cable lead at the light.
• Aluminum housing with black anodizing (25µ), PMMA lens, and A4 stainless steel screws.
• Rated operating temperature range of -25°C to 55°C.
• Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, and LR.

What’s included

• Navigation light assembly with white and blue functions, pre-cabled (0.75m shielded marine-grade cable)
• Installation guide

Installation and wiring

This unit is intended for horizontal mounting, so it is typically installed on a flat surface such as a radar arch, hardtop, or a dedicated light platform where it has clear 360° visibility. When planning the run, protect the cable where it passes through decks or tubing and keep connections in a dry junction point whenever possible.

Because it accepts 10-32VDC, it can be tied into standard DC lighting circuits on most boats. Before final fastening, power the unit and confirm your switching arrangement matches the white anchor function and the blue dinner function you plan to use.

Use on board

This is a good match for yachts and leisure vessels that want an approved 2 nm all-round white anchor light while also having an all-round blue signal light available from the same mounting point. It helps reduce clutter aloft when you would otherwise need two separate fixtures.

Maintenance and care

Rinse the light with fresh water after heavy salt spray and avoid abrasive cleaners on the lens. As part of routine checks, make sure the mounting screws stay snug and the cable jacket is not chafed where it enters the structure.
