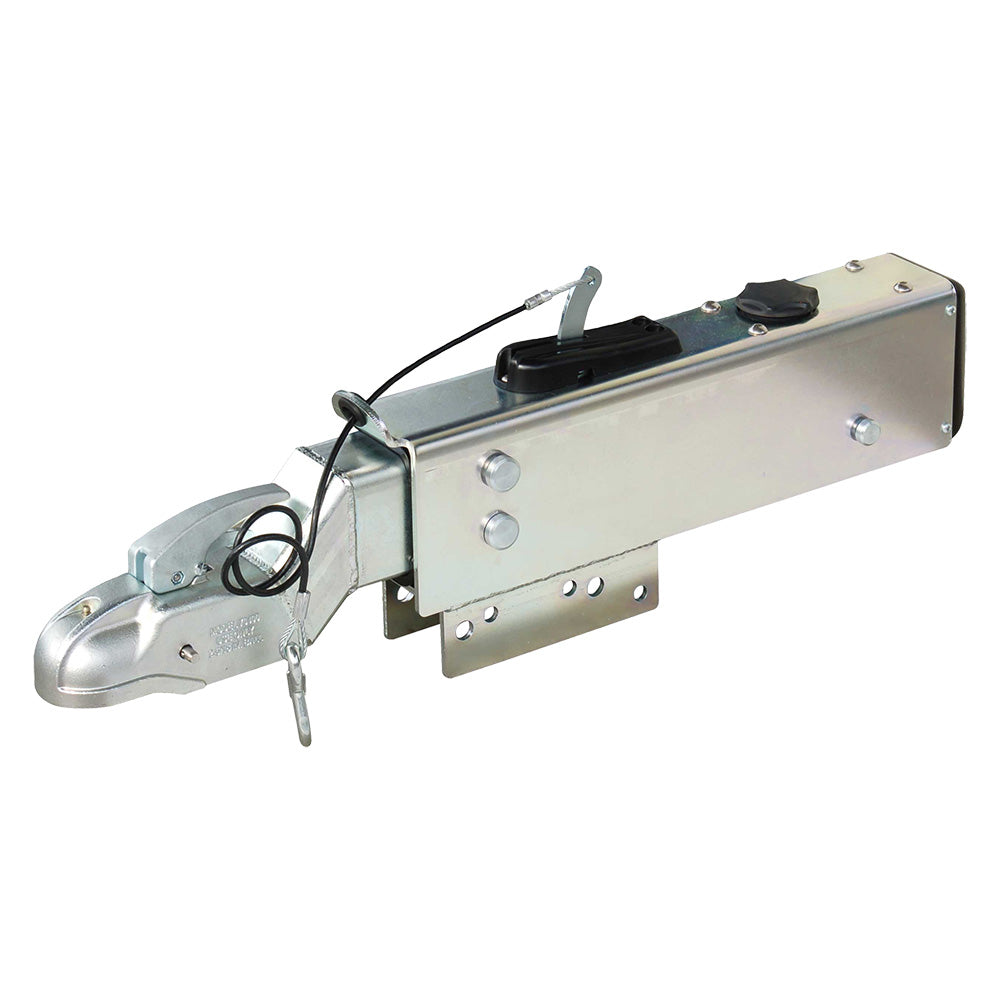

Load Rite - Brake Actuator - With 2-5/16 Prime Coupler

Unmatched Braking Precision for Your Marine Adventures

Experience superior braking performance with the Load Rite 16,500lb Capacity Disc Brake Actuator. Designed to synchronize seamlessly with your tow vehicle, this state-of-the-art actuator ensures smooth, efficient, and reliable braking for your trailer. Perfect for marine applications, it guarantees peace of mind and enhanced safety during your maritime journeys.

Engineered for Excellence: Key Features and Advantages

The Load Rite Disc Brake Actuator is a robust, high-capacity braking solution tailored for marine use. Its advanced design and top-tier components ensure unmatched performance in any towing situation. Here's what sets it apart:

• Automatic Synchronization: The "surge" or "push" mechanism ensures the trailer brakes are perfectly synchronized with the tow vehicle's brakes, enhancing overall safety.
• Hydraulic Pressure Delivery: The actuator telescopes together under pressure, applying force to the master cylinder and delivering hydraulic pressure to the brakes.
• Independent Dampening Shock Absorber: This built-in, sealed shock absorber controls the telescoping action, providing a smooth and controlled braking experience.
• Ready to Install: Pre-assembled and ready to bolt into place, fitting tongue sizes of 3"x 4" and 3"x 5" (9 ga. minimum).

Simplified Braking: Essential Technical Specifications

• Capacity: 16,500 lbs.
• Hitch Ball Compatibility: Fits 2-5/16" hitch ball
• Brake Type: Designed for use with disc brakes
• Gross Load: Maximum 16,500 lbs.
• Tongue Load: Maximum 1,650 lbs.
• Minimum Tongue Weight: 5% of Gross Vehicle Weight Rating (G.V.W.R.)

Perfect Fit: Dimensions and Compatibility

• Tongue Sizes: Compatible with 3"x 4" and 3"x 5" tongues, 9 ga. minimum
• Weight Capacity: Supports a gross load of up to 16,500 lbs., ensuring reliable performance for a wide range of marine trailers.

Finishes: Built for Marine Durability

The Load Rite Disc Brake Actuator features a durable finish, engineered to withstand the harsh marine environment. Its corrosion-resistant construction ensures long-lasting performance and reliability.

Superior Braking Power: Notable Highlights

• High Capacity: Handles a maximum gross load of 16,500 lbs.
• Advanced Synchronization: Ensures trailer brakes sync automatically with the tow vehicle's brakes.
• Smooth Operation: Independent dampening shock absorber provides controlled braking.

Tailored Options: Variations to Suit Your Needs

Choose the right Load Rite Disc Brake Actuator variant for your specific requirements:

• 6080.44 Max Load 16,500 lbs: Ideal for standard marine towing needs.
• 6080.6 Max Load 20,000 lbs: Offers higher capacity for larger loads and heavier marine equipment.

Enhance your marine trailer's braking system with the Load Rite 16,500lb Capacity Disc Brake Actuator. Engineered for maximum efficiency and reliability, this actuator ensures seamless braking performance, safeguarding your marine adventures. Whether you’re towing light or heavy loads, trust in Load Rite to deliver the precision and safety you need on the water.
