Garmin echo Flush Mount Kit, For echo 200/201/201dv/500c/501c/550c/551c/551dv and GPS 158/158i

Overview

The Garmin 010-11682-00 is a flush mount kit that lets you recess a compatible echo or GPS 158 display into a flat helm, console, or bulkhead panel.

This kit is used when you want the display to sit flush to the surface instead of being bracket-mounted. It matches the 5-inch class echo and GPS 158 units and uses a gasket between the display and the panel to help finish the cutout and improve the seal at the mounting face.

Flush mounting requires a panel cutout and access behind the mounting surface for the back of the unit, cable connectors, and routing.

Key features

• Flush-mount installation for compatible Garmin echo and GPS 158 displays on most flat boat panels
• Gasket-style mounting face to seat the display cleanly against the console surface
• Includes the necessary hardware for fastening the unit to the panel
• Installation instructions included to guide cutout and mounting steps

Compatibility and fit

Compatible with Garmin echo 200, echo 201, echo 201dv, echo 500c, echo 501c, echo 550c, echo 551c, echo 551dv, GPS 158, and GPS 158i.

Confirm you have a flat mounting area large enough for the unit and that there is clearance behind the panel for the unit body and cable connections before cutting.

Installation and setup

Dry-fit the display location first, then plan cable routing so connectors can be attached without sharp bends. After cutting the panel opening, clean up the edges and protect any exposed core material on fiberglass panels before final mounting. Tighten hardware evenly so the unit sits square and the gasket compresses consistently around the face.

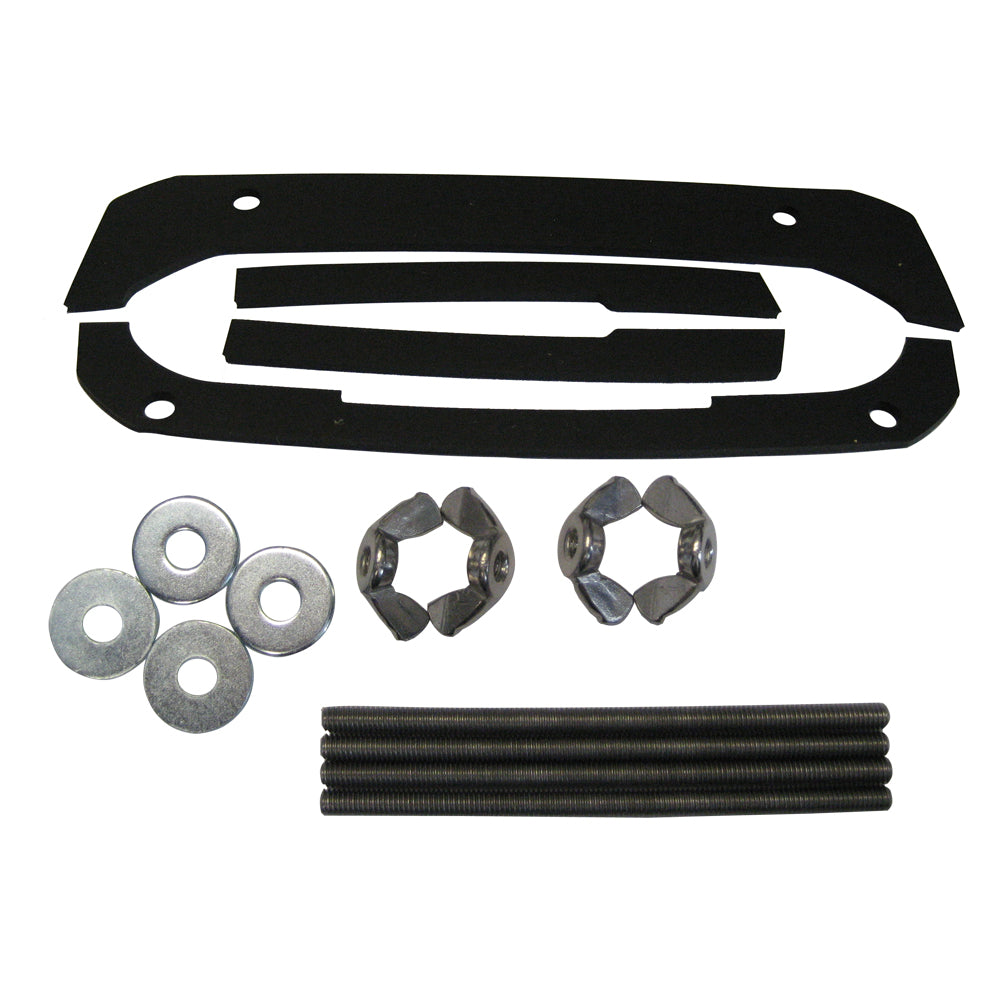

What’s included

• Flush-mount gasket
• Mounting hardware
• Installation instructions

Use on board

This style of mount is a good match for helms where you want fewer protruding parts that can snag lines or get bumped in tight cockpits. It also works well on smaller center consoles and enclosed pilothouses where clean sightlines and a tidy dash layout matter.
